SawStop Professional Cabinet Saw, 52 Inch, »Dado Plus«
Product no.:
721762K
Brand:
SawStop
€5,099.00 €4,284.87
per set
Bulky goods – delivery time will be provided by our customer service.
Delivery mid August 2026
- Dimensions (L x W x H) 2136 x 827 x 864 mm
-
Geräuschemission
Sound power level (Lw): 98.50 dB(A)Sound pressure level (Lp): 92.2 dB(A)
Sound power level (Lwa): 98.50 dB(A)
Sound pressure level (Lpa): 92.2 dB(A) - Inclination 45 °
- Machine/Accessory Machines
- Machine type Circular bench saw
Bulky goods – delivery time will be provided by our customer service.
Delivery mid August 2026
Description

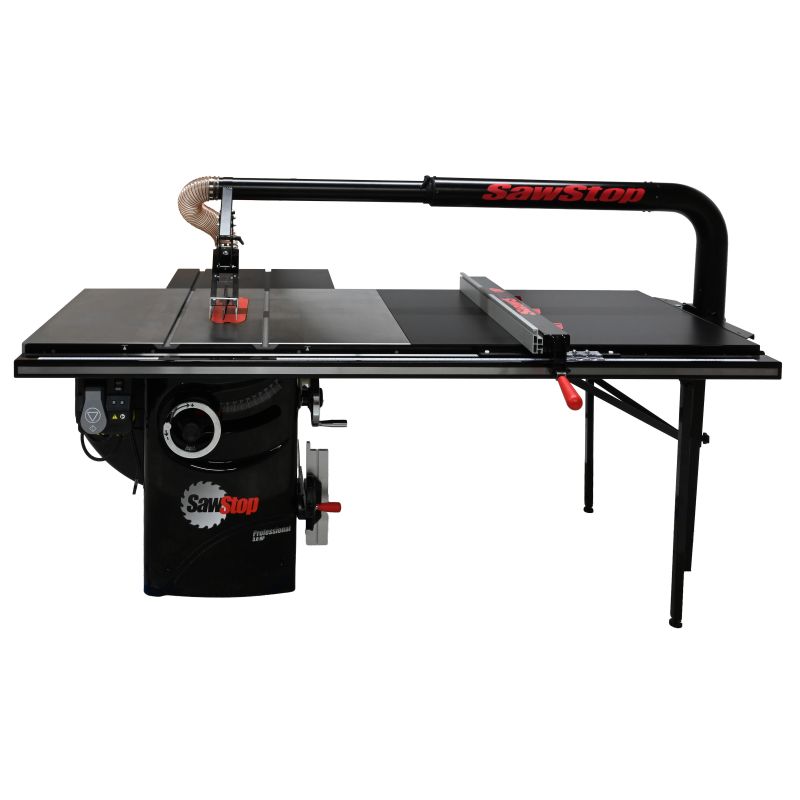

Professional Cabinet Saw, 52 Inch »Dado Plus« with a rip capacity of 1300 mm. Includes Floating Overarm Dust Collection Ø 75/100 mm, Dado Blade Set, Dado Brake Cartridge and Zero Clearance Insert for dado blades.
This configuration allows the use of dado blade sets in compliance with EU regulations.

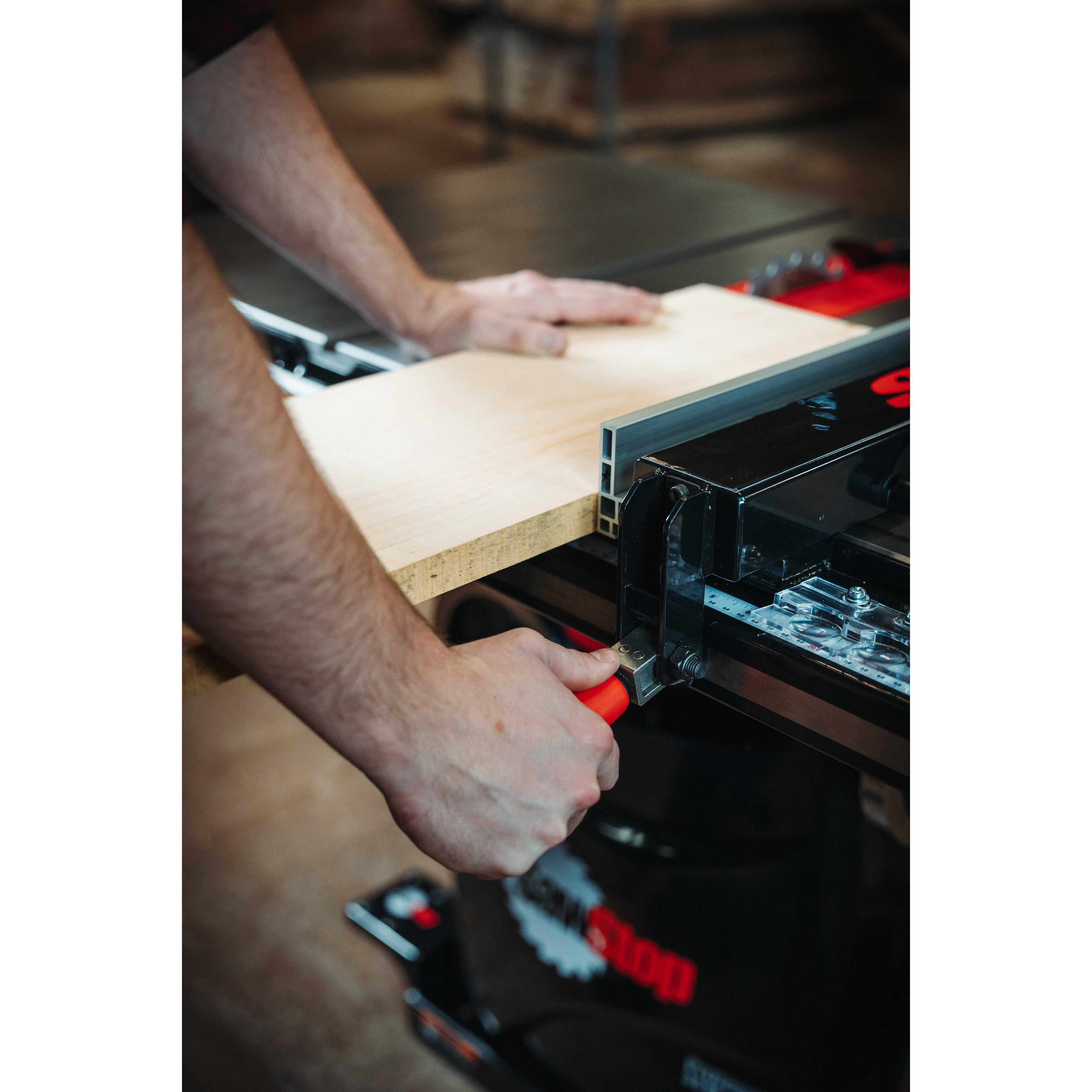

Work smarter, safer and better. Every detail of the SawStop Professional Cabinet Saw is engineered with care. Every cut is controlled, every millisecond monitored by the advanced SawStop AIM safety system, which stops the blade within 5 milliseconds upon skin contact. This machine is unique not only because of its blade brake. It also excels in construction quality, stability and precision. The T-Glide Advance precision fence offers smooth travel and accurate adjustments. Its quick-adjust Hi-Lo design provides additional safety when cutting thin or narrow stock.

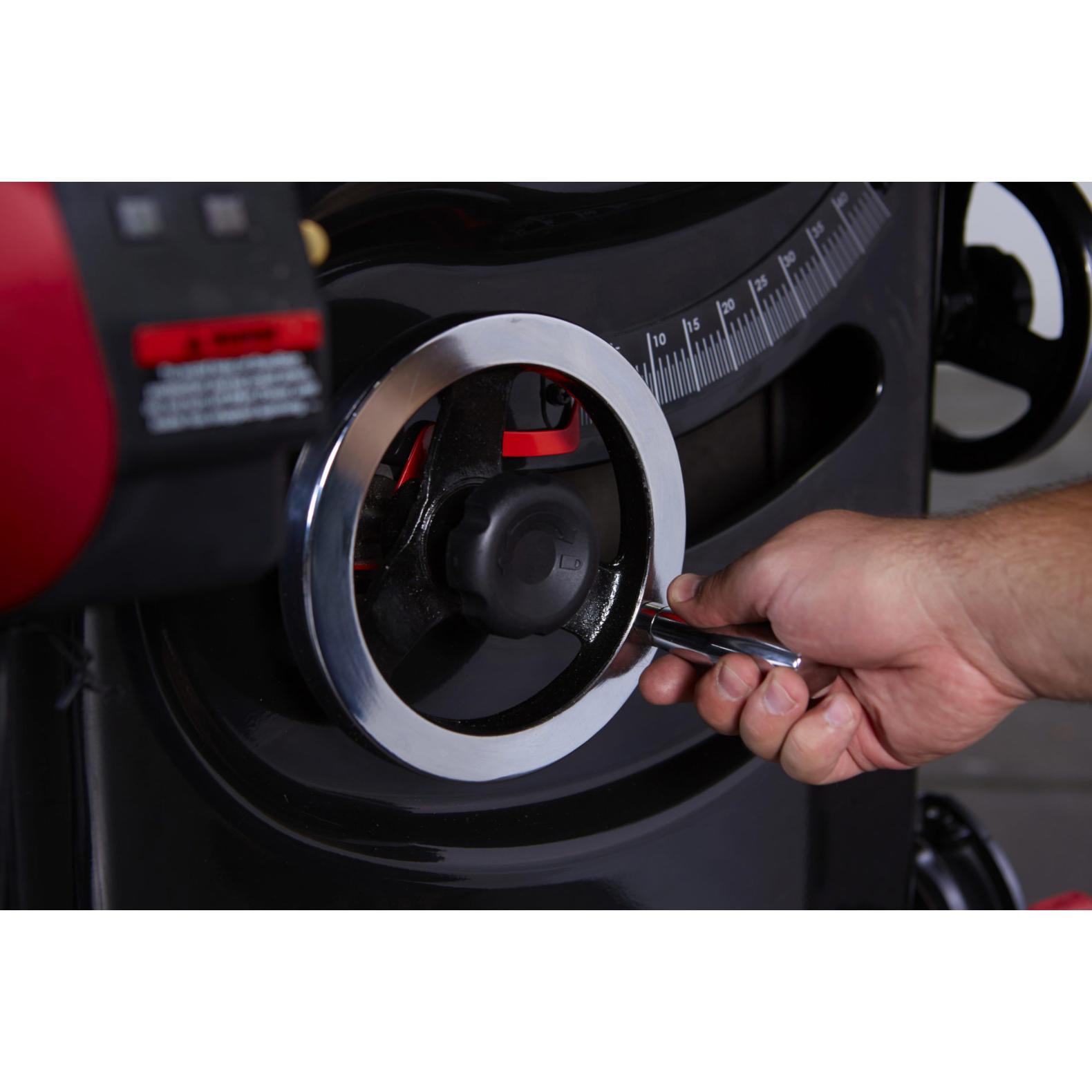

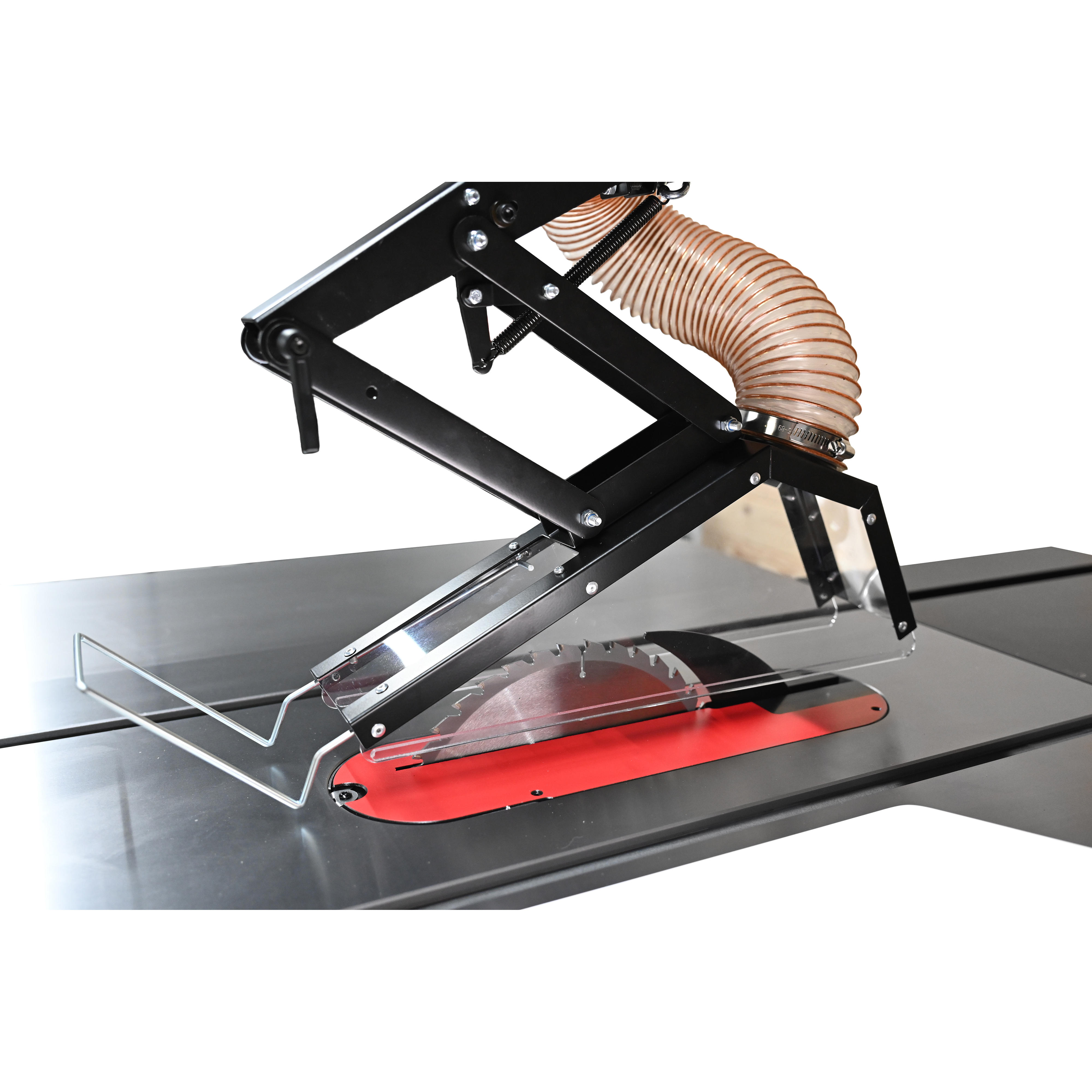

Unmatched quality: The trunnion and arbor are engineered for precision, strength and stability. Gas-piston assisted elevation ensures smooth and effortless height adjustment. Table flatness is measured diagonally, with a maximum deviation of 0.010 inch (0.25 mm). Efficient dust collection: Above the table, the overarm dust collection system and micro guard achieve up to 99 % collection efficiency. Below the table, advanced blade shrouding channels dust directly from the blade into the 4 inch (100 mm) dust port. Outfeed support: The added support of the outfeed table provides even more control and safety. For larger workpieces, a folding outfeed table (No. 721767K) is available separately – ideal for handling oversized cuts. Reliability: The Control Box houses the on/off switch, power paddle, on-board computer, and an additional residual current breaker. It continuously monitors all safety systems to ensure reliable protection. Powerful 3 HP motor: Delivers ample torque and cutting power to effortlessly handle a wide variety of materials with speed and precision.
Highlights:
Expanded capability with dado cuts
Dado cuts are now possible on the PCS – in combination with the floating overarm dust collection system above the blade. This allows wide, precise grooves to be cut quickly and cleanly, with highly effective dust collection.
Performance without compromise:
The PCS delivers unmatched precision, smooth operation and an exceptionally robust construction. Vibration-free operation and precision-adjustable controls make it the first choice for woodworkers who demand the highest levels of accuracy, reliability and professional results.
Unmatched quality: The trunnion and arbor are engineered for precision, strength and stability. Gas-piston assisted elevation ensures smooth and effortless height adjustment. Table flatness is measured diagonally, with a maximum deviation of 0.010 inch (0.25 mm). Efficient dust collection: Above the table, the overarm dust collection system and micro guard achieve up to 99 % collection efficiency. Below the table, advanced blade shrouding channels dust directly from the blade into the 4 inch (100 mm) dust port. Outfeed support: The added support of the outfeed table provides even more control and safety. For larger workpieces, a folding outfeed table (No. 721767K) is available separately – ideal for handling oversized cuts. Reliability: The Control Box houses the on/off switch, power paddle, on-board computer, and an additional residual current breaker. It continuously monitors all safety systems to ensure reliable protection. Powerful 3 HP motor: Delivers ample torque and cutting power to effortlessly handle a wide variety of materials with speed and precision.
Highlights:
Expanded capability with dado cuts
Dado cuts are now possible on the PCS – in combination with the floating overarm dust collection system above the blade. This allows wide, precise grooves to be cut quickly and cleanly, with highly effective dust collection.
Performance without compromise:
The PCS delivers unmatched precision, smooth operation and an exceptionally robust construction. Vibration-free operation and precision-adjustable controls make it the first choice for woodworkers who demand the highest levels of accuracy, reliability and professional results.
The Active Injury Mitigation (AIM) system by SawStop
This revolutionary safety technology was developed by SawStop to stop the circular saw blade the moment it comes into contact with skin.
The saw blade is supplied with a low electrical current. This voltage is continuously monitored on the opposite side of the blade. If the blade comes into contact with skin, the electrical signal changes because the human body is conductive. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact – typically a finger.
Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.
After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.
The saw blade is supplied with a low electrical current. This voltage is continuously monitored on the opposite side of the blade. If the blade comes into contact with skin, the electrical signal changes because the human body is conductive. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact – typically a finger.
Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.
After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.
SawStop Europe Guarantee
You have the option to register your new machine with SawStop Europe online within 30 days of purchase. In addition to your statutory warranty rights, you will receive an extended warranty of up to 3 years (36 months) from the date of purchase – the SawStop Europe Guarantee. Please note that registration can only be completed by the end user!
For full warranty terms and to register your machine, visit: sawstop.eu
For full warranty terms and to register your machine, visit: sawstop.eu
Scope of delivery
- Cabinet saw, rip capacity 1300 mm
- Dado blade set
- Cast iron table extension

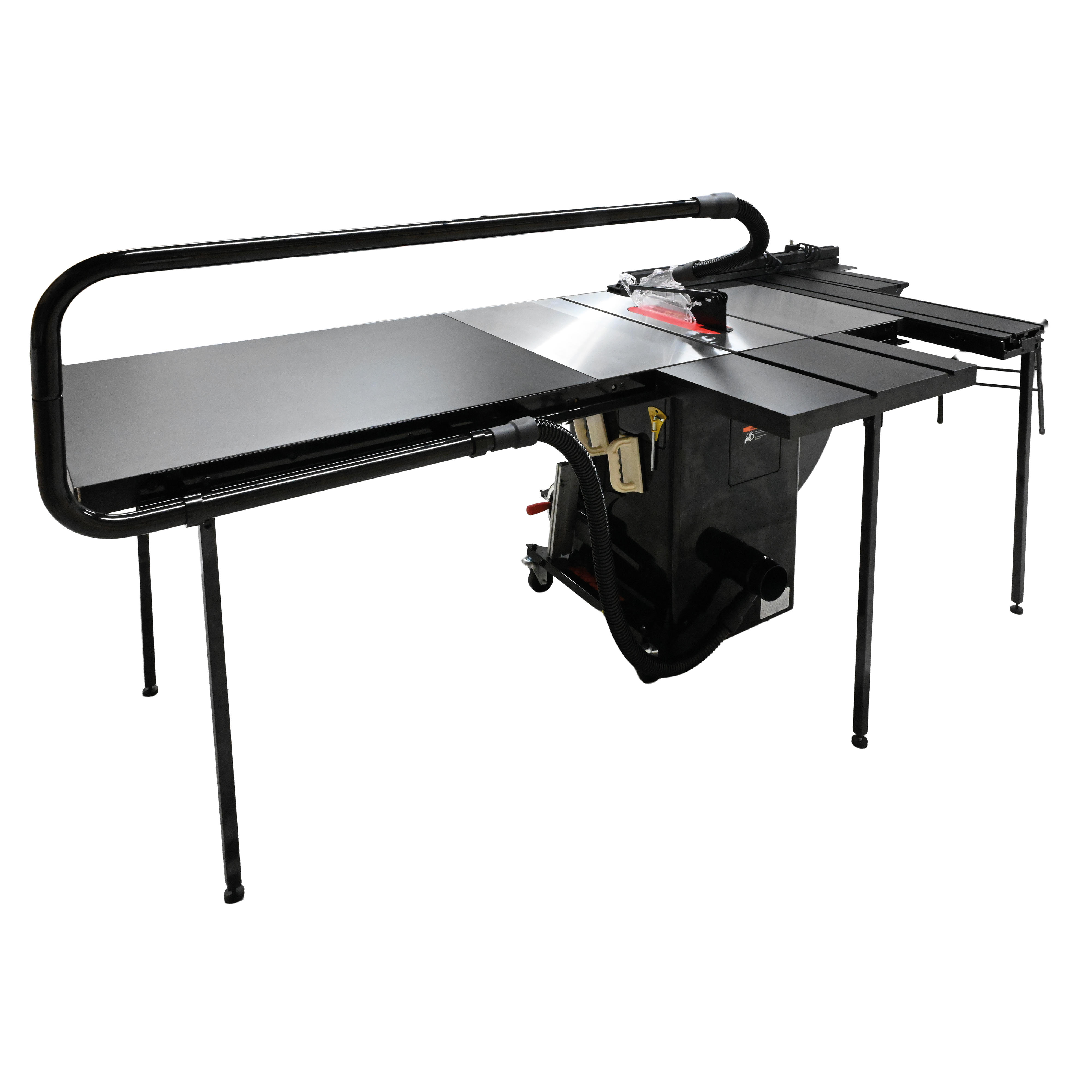

- Folding outfeed table

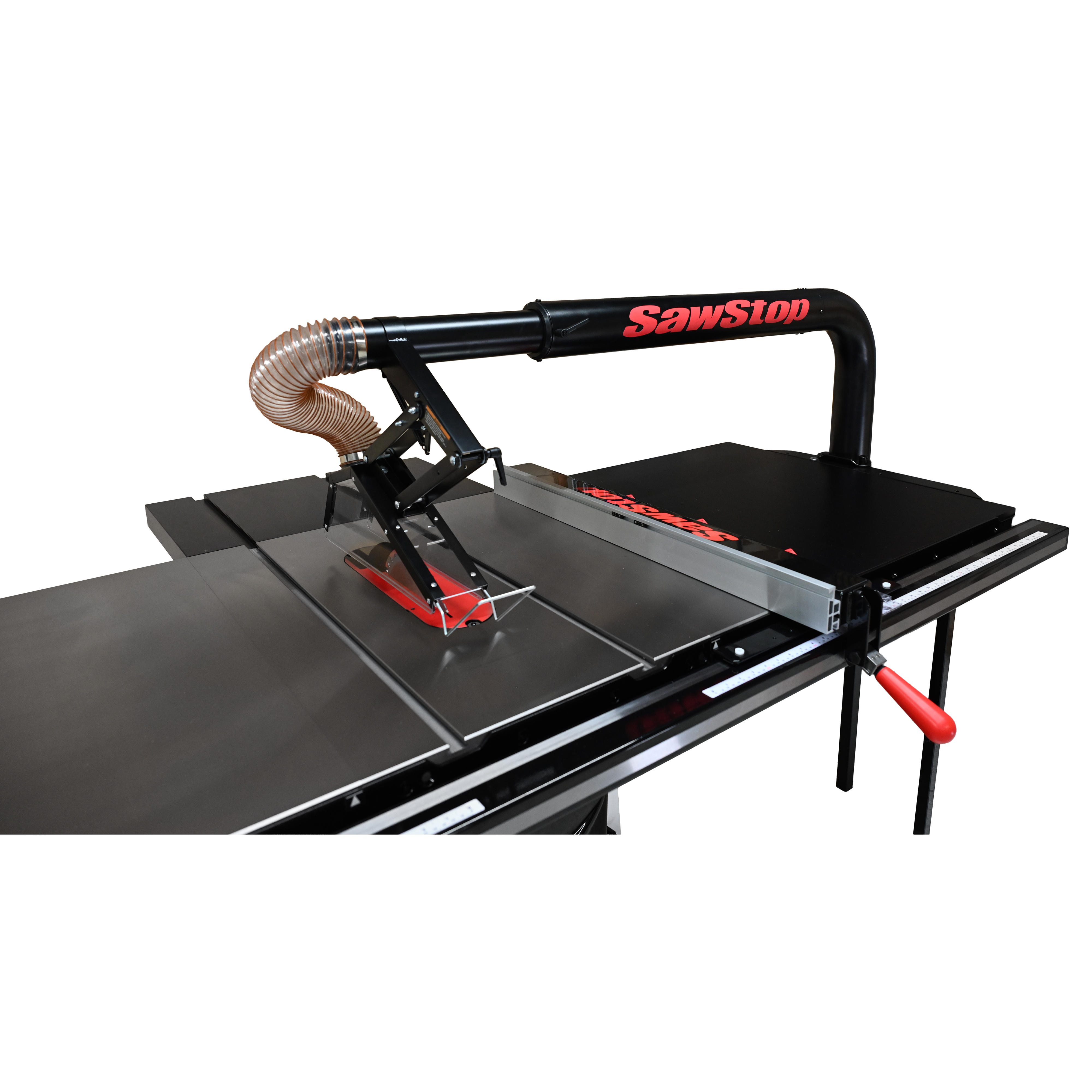

- Floating overarm dust collection Ø 75/100 mm
- Mitre gauge (±60°)
- T-glide fence with Hi-Low functionality
- Brake cartridge (installed)
- Dado brake cartridge
- Blade Ø 254 × 3 × 30 mm, ATB40
- Riving knife for 254 mm blade diameter
- Riving knife for 250 mm blade diameter
- Zero clearance insert
- Zero clearance insert for dado blades
- Riving knife with blade guard
- Dust port reducer
- Push stick
- 2 blade wrenches
- 3/5/8 mm hex keys
- Quick-start poster with assembly instructions
- Owner’s manual (DE, EN, FR, ES)
Properties
| Dimensions (L x W x H): | 2136 x 827 x 864 mm |
|---|---|
| Geräuschemission: |
Sound power level (Lw): 98.50 dB(A)Sound pressure level (Lp): 92.2 dB(A)
Sound power level (Lwa): 98.50 dB(A) Sound pressure level (Lpa): 92.2 dB(A) |
| Inclination: | 45 ° |
| Machine/Accessory: | Machines |
| Machine type: | Circular bench saw |
| Motor voltage: | 230 V, 50 Hz (CEE 3-pole 16 A plug) 230 W, 50 Hz 230 W, 50 Hz (Power Plug CEE 3-pin 16 A) |
| No Load Speed: | 4000 1/min |
| Parallelschnittbreite: | 1321 mm |
| Power input: | 2200 W |
| Power source: | Corded |
| Saw Blade Ø: | 254 mm |
| Schnitthöhe 0°: | 79 mm |
| Schnitthöhe 45°: | 57 mm |
| Weight: | 204 kg |
Properties
| Dimensions (L x W x H): | 2136 x 827 x 864 mm |
|---|---|
| Geräuschemission: |
Sound power level (Lw): 98.50 dB(A)Sound pressure level (Lp): 92.2 dB(A)
Sound power level (Lwa): 98.50 dB(A) Sound pressure level (Lpa): 92.2 dB(A) |
| Inclination: | 45 ° |
| Machine/Accessory: | Machines |
| Machine type: | Circular bench saw |
| Motor voltage: | 230 V, 50 Hz (CEE 3-pole 16 A plug) 230 W, 50 Hz 230 W, 50 Hz (Power Plug CEE 3-pin 16 A) |
| No Load Speed: | 4000 1/min |
| Parallelschnittbreite: | 1321 mm |
| Power input: | 2200 W |
| Power source: | Corded |
| Saw Blade Ø: | 254 mm |
| Schnitthöhe 0°: | 79 mm |
| Schnitthöhe 45°: | 57 mm |
| Weight: | 204 kg |
Manufacturer
SawStop
SawStop is not only a manufacturer of high-quality circular bench saws, but also the inventor of the AIM system, which stops the blade within 5 milliseconds upon skin contact. SawStop’s revolutionary Active Injury Mitigation (AIM) system has saved thousands of fingers and prevented countless serious hand injuries in the United States since the company was founded in 2000. Since 2017, SawStop has been part of Tooltechnic Systems (TTS), which also includes Festool and Shaper.
