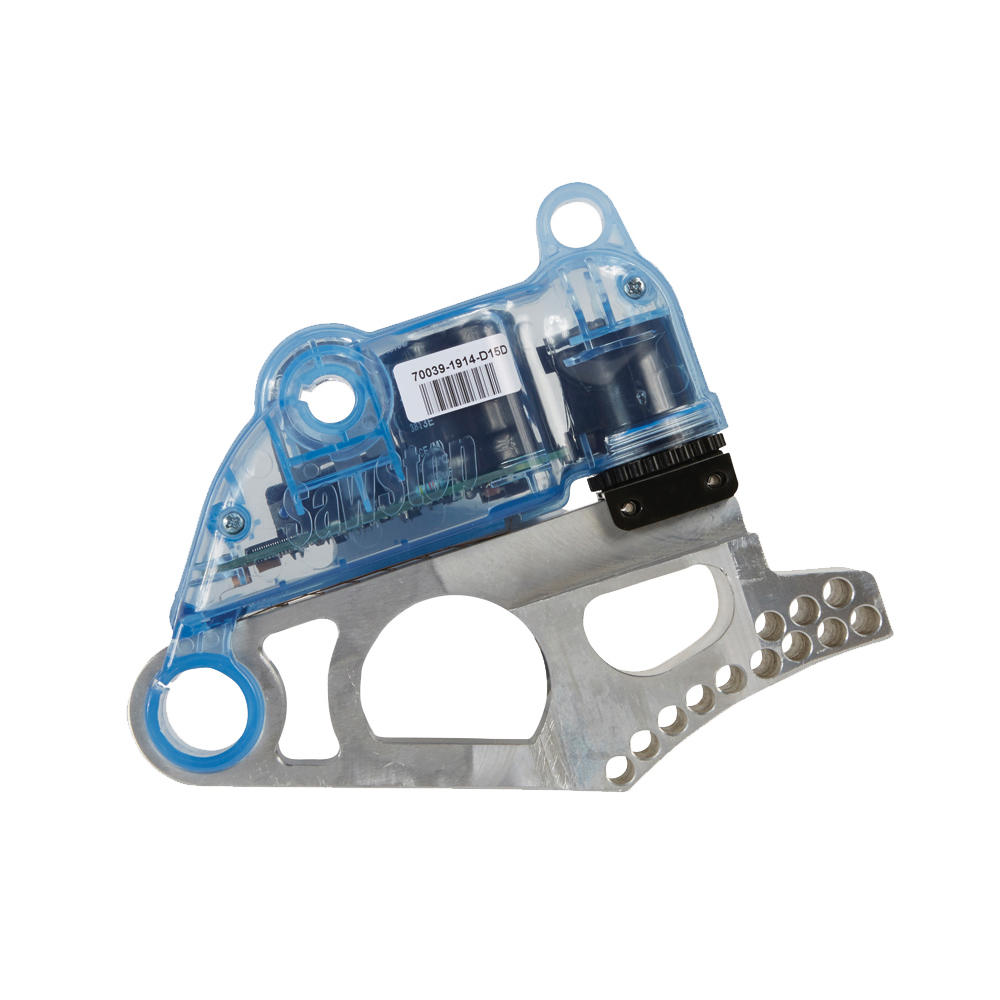

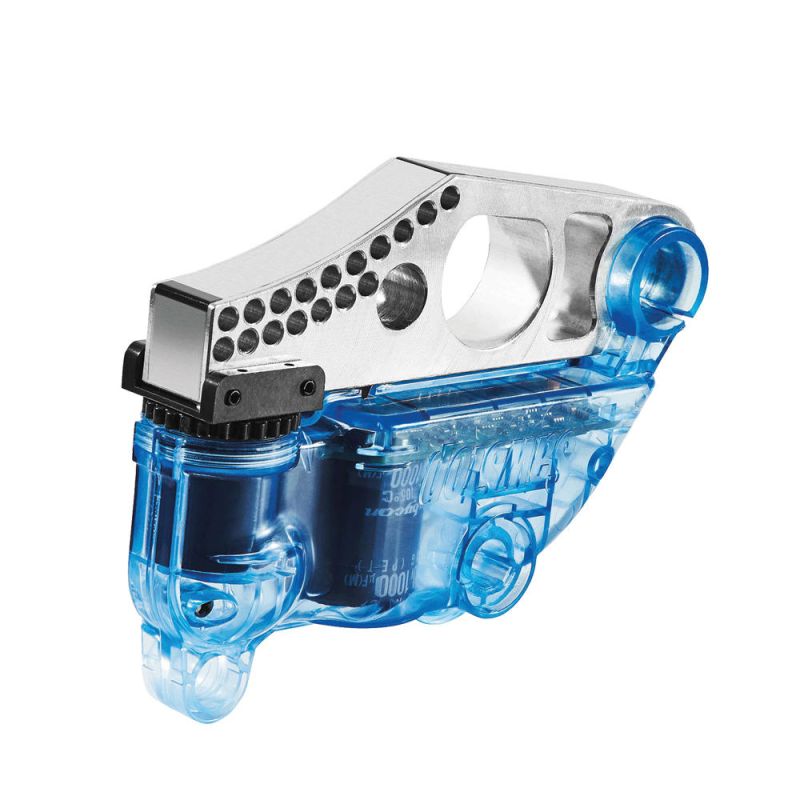

SawStop Brake Cartridge
Product no.:
721646K
Brand:
SawStop
€89.00 €74.79
per piece(s)
In stock, delivery time approx. 2-3 working days
- Fits SawStop circular bench saws with blade diameter 250 mm (10 inch / 254 mm)
- Maschine/Zubehör Accessories
- Maschinen-Typ Circular bench saws
Description

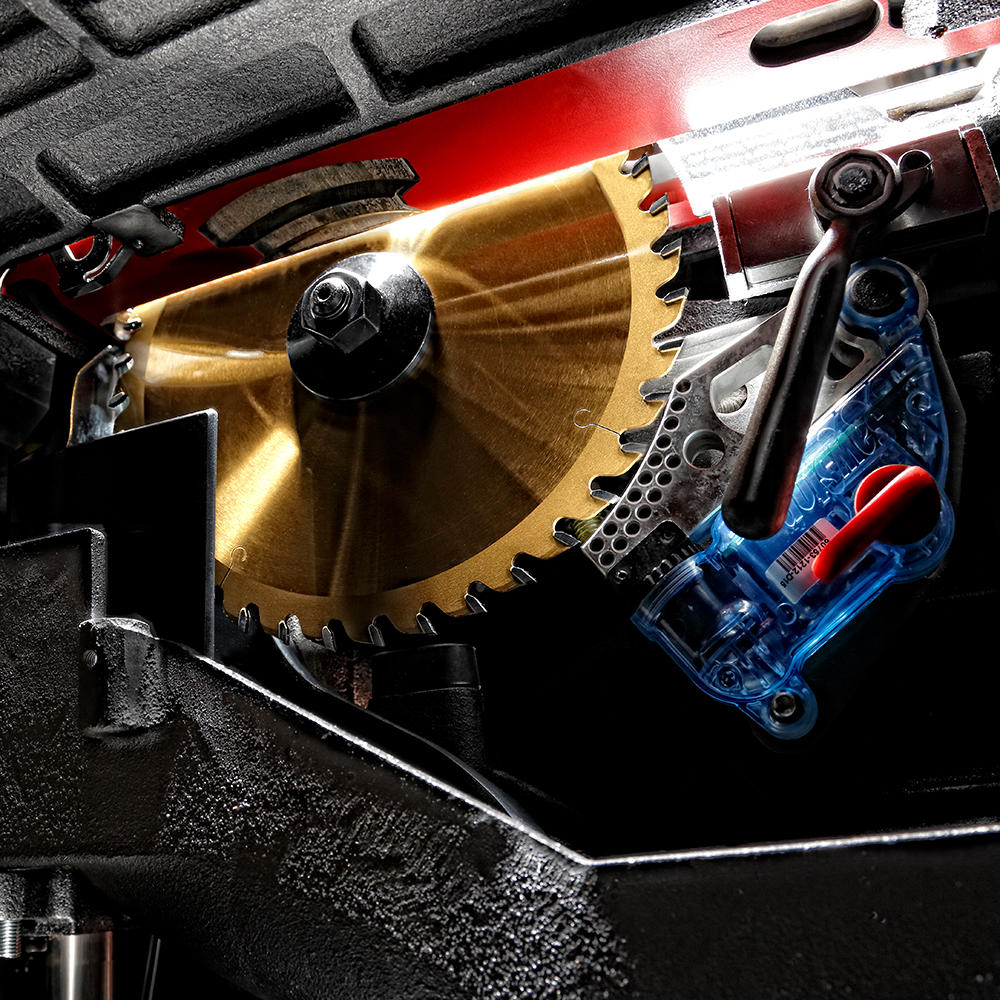

The SawStop brake cartridge stops the saw blade within 5 milliseconds upon detecting skin contact. The cartridge fires an aluminium block into the spinning blade. A Mylar shield prevents activation when cutting through conductive materials such as nails, staples or screws. Suitable for SawStop »Jobsite Saw Pro« Circular Bench Saw (No. 721644K) and »Compact« Circular Bench Saw (No. 721643K).
Note: After activation, both the saw blade and brake cartridge must be replaced. To be ready for use again within minutes, it is advisable to keep a spare blade and spare brake cartridge on hand.
Note: After activation, both the saw blade and brake cartridge must be replaced. To be ready for use again within minutes, it is advisable to keep a spare blade and spare brake cartridge on hand.
The Active Injury Mitigation (AIM) system by SawStop
This revolutionary safety technology was developed by SawStop to stop the circular saw blade the moment it comes into contact with skin.
The saw blade is supplied with a low-voltage signal. This voltage is continuously monitored on the opposite side of the blade. When a finger touches the blade, the voltage drops because the human body is conductive and grounded. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact – typically a finger.
Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.
After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.
The saw blade is supplied with a low-voltage signal. This voltage is continuously monitored on the opposite side of the blade. When a finger touches the blade, the voltage drops because the human body is conductive and grounded. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact – typically a finger.
Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.
After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.
Properties
| Fits: | SawStop circular bench saws with blade diameter 250 mm (10 inch / 254 mm) |
|---|---|
| Maschine/Zubehör: | Accessories |
| Maschinen-Typ: | Circular bench saws |
Properties
| Fits: | SawStop circular bench saws with blade diameter 250 mm (10 inch / 254 mm) |
|---|---|
| Maschine/Zubehör: | Accessories |
| Maschinen-Typ: | Circular bench saws |
Manufacturer
SawStop
SawStop is not only a manufacturer of high-quality circular bench saws, but also the inventor of the AIM system, which stops the blade within 5 milliseconds upon skin contact. SawStop’s revolutionary Active Injury Mitigation (AIM) system has saved thousands of fingers and prevented countless serious hand injuries in the United States since the company was founded in 2000. Since 2017, SawStop has been part of Tooltechnic Systems (TTS), which also includes Festool and Shaper.
