Hoffmann Dovetail Routing Machine x-Line 20

Easy to use - precise results

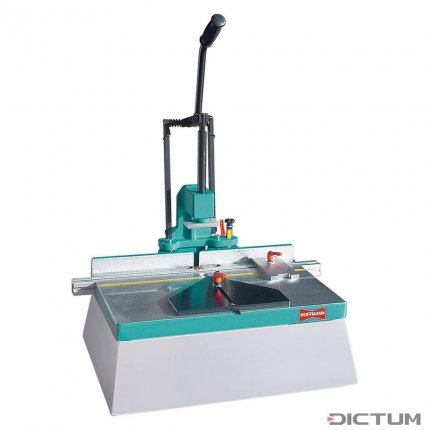

Hoffmann Dovetail Routing Machine x-Line 20
Transportable and flexible dovetail routing machine with motor that starts automatically and...
Transportable and flexible dovetail routing machine with motor that starts automatically and various stop systems for making keyway joints. Mills one exact keyway per working cycle for dovetail sizes W-1/-2/-3.
The workpieces are positioned and fixed at the supplied butt stop or the 45° centre fence plate. The workpieces are clamped by pressing the handle down. At the same time, the milling assembly moves the cutter to the set milling depth. The milled parts are released by raising the handle; the motor switches off automatically. Clamping height 0-110 mm. Milling depth 0-80 mm. All Hoffmann accessories are compatible with this machine.

    Scope of delivery

    • Butt stop
    • Centre fence plate 45°

    more
    less
    Further details on the manufacturer

    Hoffmann Schwalbe

    Hoffmann Schwalbe

    This form- and force-fit plastic connecting element is ideal for safely and quickly connecting two wooden elements. With its double wedge, it pulls the two elements to be connected together and thus saves time-consuming clamping. In addition, the workpiece surface will show no pressure marks. In order to obtain the correct strength of a connection, various dovetail cross-sections and lengths are available, from filigree decorative and picture frames to large-format post and mullion constructions.
    Your advantages:

    • Reliable, durable and versatile applications for frame connections, gallery constructions, board and panel constructions
    • Uncomplicated, efficient and fast to use
    • Extremely stable and reliable connections
    • Cost-effective and up to 70 % faster (compared to other connection methods)

    • Weight 19 kg
    • Motor voltage 230 V / 50 Hz
    • Exhaust Nozzle Ø 60 mm
    • Cutting Depth max. 80 mm
    • No Load Speed 29 000 1/min
    • Power input 530 W
    • Dimensions (L x W x H) 600 x 540 x 770 mm
    Article no. 720932
    Brand Hoffmann
    Freight forwarding good - Pre-order now - Article early April 2024 available
    Free shipping delivery by freight carrier to:
    • Austria
    • Germany

    For delivery worldwide please contact our customer service at +49 (0)9931 4058-902.

    €2,399.00 per piece(s)

    Prices incl. VAT

    i

    plus shipping costs

    Remember
    Many other models
    Type Price Quantity
    Hoffmann Dovetail Routing Machine x-Line 20
      €2,399.00

    Plenty of accessories and spare parts

    Accessories

    Hoffmann Dovetail Router Bit CT, for Key W2

    Hoffmann Dovetail Router Bit CT, for Key W2

    Original Hoffmann Dovetail router bit in tungsten carbide (CT). Matches the Hoffmann Key for a perfect fit and lasting joints.
    variants
    €62.30

    incl. VAT plus shipping costs

    Article No. 718521

    Hoffmann Key W2, 100 Pieces, 9.5 mm

    Hoffmann Key W2, 100 Pieces, 9.5 mm

    Key cross-section: 10 x 8 mm Applications for the Hoffmann Key W2 Interior fittings Inset door frames Skirting and cornices Cladding doors and windows Mitred or square cut architraves Cabinetry
    variants
    €8.40

    incl. VAT plus shipping costs

    Article No. 718526

    Hoffmann Key W3, 100 Pieces, 15.8 mm

    Hoffmann Key W3, 100 Pieces, 15.8 mm

    Key cross-section: 13 x 9.5 mm Applications for the Hoffmann Key W3 Interior fittings Work-tops Corner units/framing Handrails Angular and circular windows Wood/aluminium windows
    variants
    €11.90

    incl. VAT plus shipping costs

    Article No. 718532

    Hoffmann Key W1, 100 Pieces, 10 mm

    Hoffmann Key W1, 100 Pieces, 10 mm

    Key cross-section: 7 x 5.5 mm. Applications for the Hoffmann Key W1 Frames for pictures, mirrors, boxes set-on plinths Cornices Georgian window bars Drawers
    variants
    €6.60

    incl. VAT plus shipping costs

    Article No. 718523

    Hoffmann Internal Fence

    Hoffmann Internal Fence

    Internal fence for left and right. Fits Dovetail Routing Machines MU 3 (No. 720933 ) and x-Line 20 No. 720932 .
    €173.00

    incl. VAT plus shipping costs

    Article No. 720935

    Hoffmann Internal Fence with Angle Adjustment

    Hoffmann Internal Fence with Angle Adjustment

    Fits Dovetail Routing Machines MU 3 (No. 720933 ) and x-Line 20 No. 720932 .
    €225.00

    incl. VAT plus shipping costs

    Article No. 720938

    Hoffmann »Synchro« Adjustable Fence, 0-90°

    Hoffmann »Synchro« Adjustable Fence, 0-90°

    Fits Dovetail Routing Machines MU 3 (No. 720933 ) and x-Line 20 No. 720932 .
    €309.00

    incl. VAT plus shipping costs

    Article No. 720939
