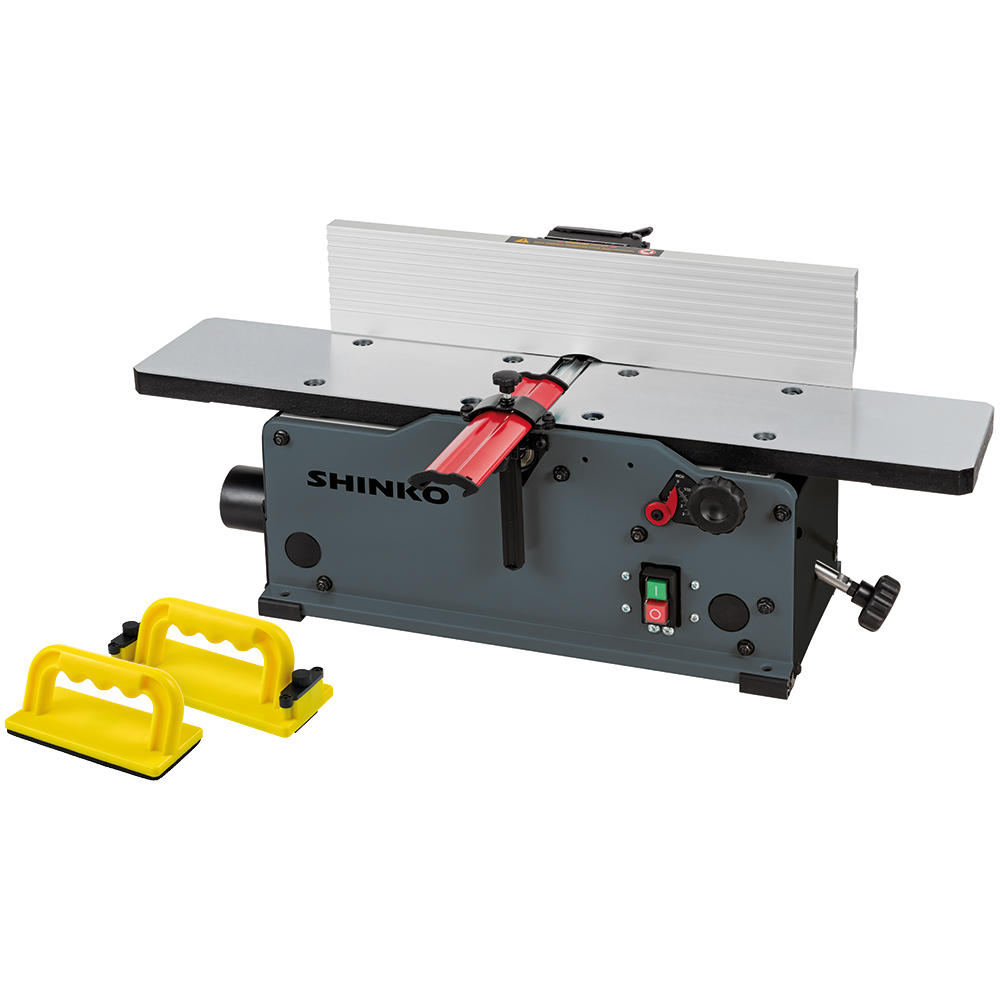

Shinko® Surface Planer AH150s, Cast Iron Tables
Product no.:
715643
Brand:
Shinko
€549.00 €461.34
per piece(s)
Delivery time approx. 3-5 working days
- Cutterblock Ø 51 mm
- Dimensions (L x W x H) 760 x 450 x 320 mm
- Exhaust Nozzle Ø 57/63 mm
- Machine/Accessory Machines
- Machine type Planers
Description
Infeed and outfeed tables made of cast iron.
Indispensable for precise jointing and flattening of boards, squared timber and strips, as well as for edge jointing when preparing panels for glue-up. With the adjustable fence, edges can be planed at angles from 90° to 45°.
Your benefits:
Compared to aluminium, cast iron has approximately three times the density, resulting in higher abrasion resistance, stiffness and hardness.
Aluminium tables (Nos. 715478, 715479):
Your benefits:
- Cutting depth adjustment via handwheel; max. cutting depth 3 mm

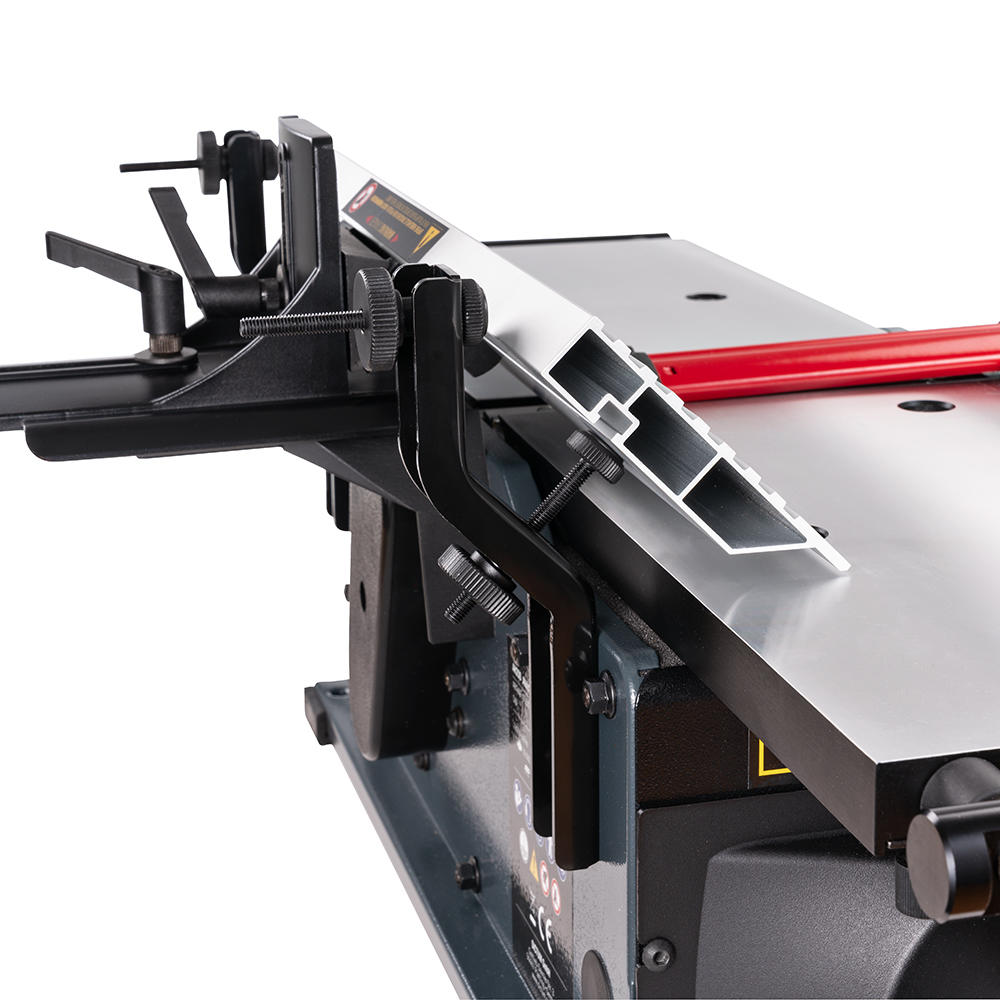

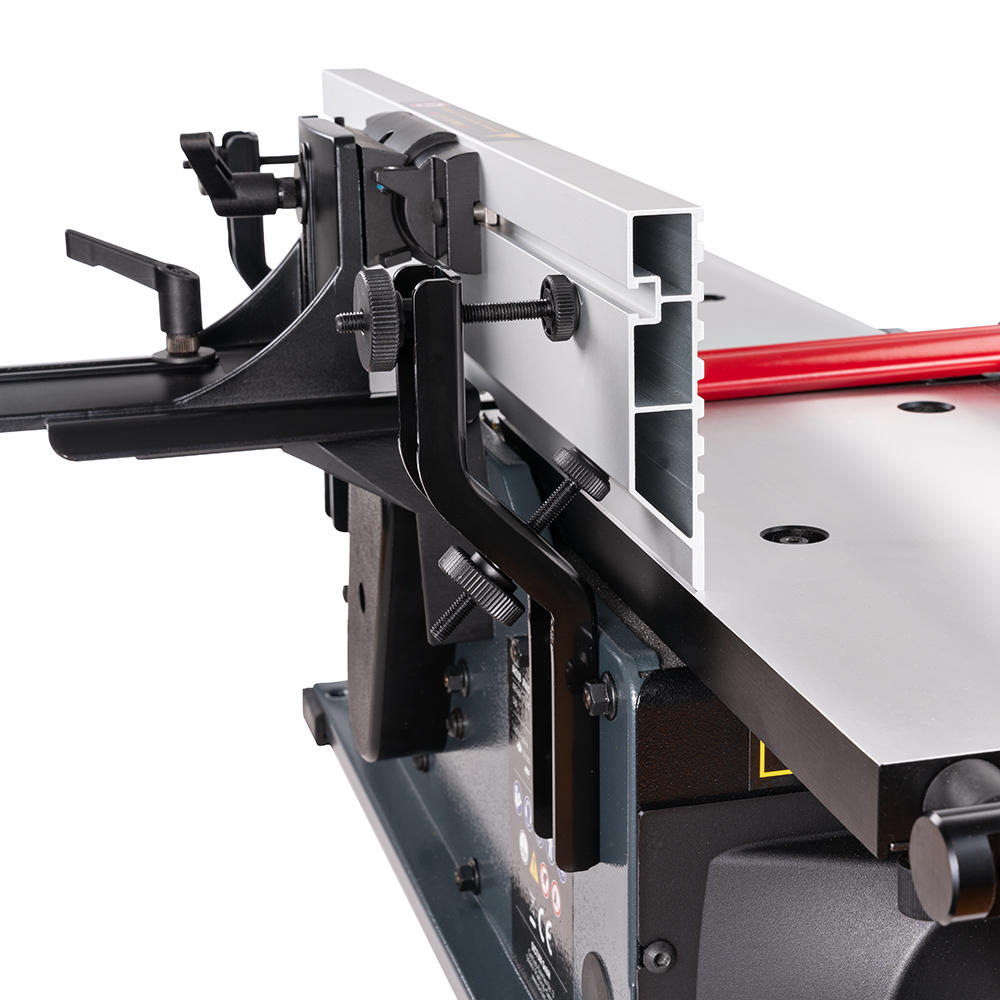

- Adjustable aluminium fence; tiltable from 90° to 45°
- Precision-machined tables made of torsion-resistant cast metal
- Machine housing made entirely of sheet steel

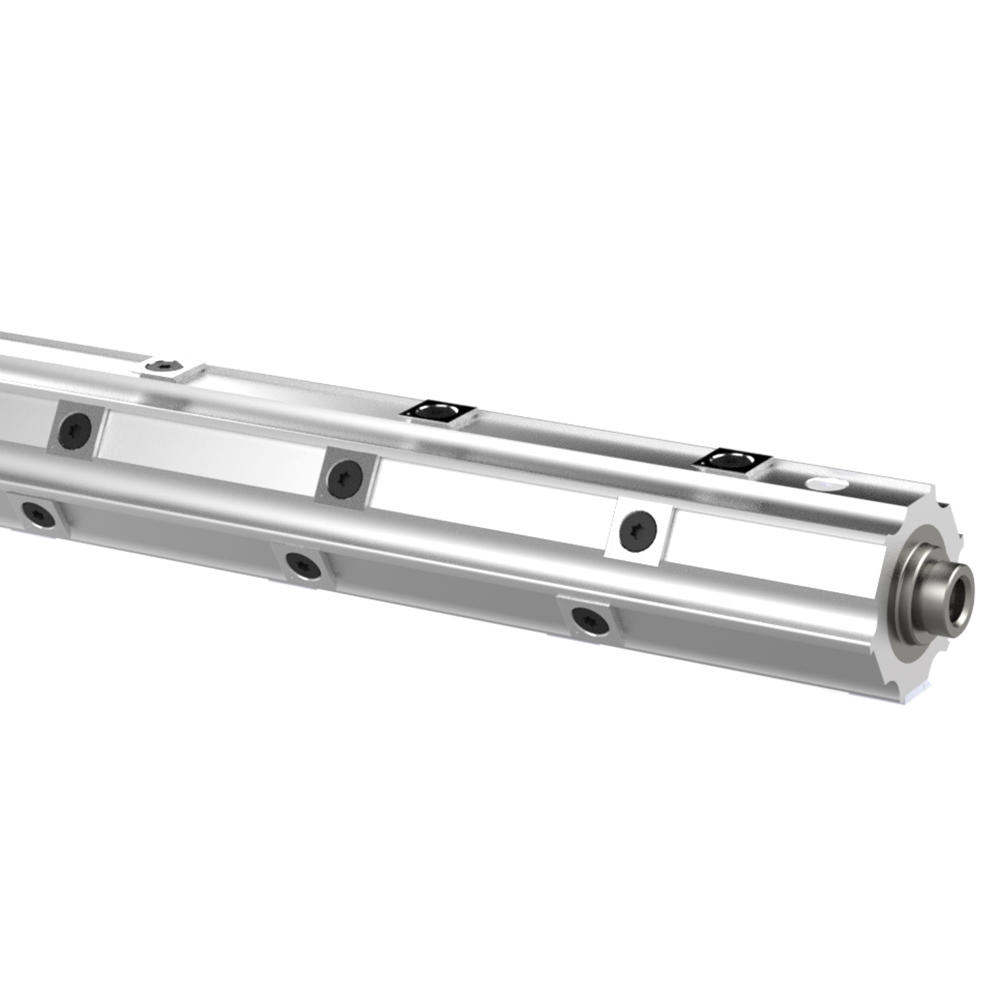

- Precision-machined cutterhead with helical indexable inserts
- Adjustable blade guard for safe operation
- Cutting depth scale in mm and inches
- Smooth-running, high-torque motor with poly-V belt
- On/off switch with no-volt release to prevent restart after a power interruption
- Individual inserts can be rotated and replaced
- Reduced noise level
- Smooth, satin finish (without typical planer marks)
- Less friction = lower power consumption
- Short chips for improved extraction: no clogging of extraction hoses
Compared to aluminium, cast iron has approximately three times the density, resulting in higher abrasion resistance, stiffness and hardness.
Aluminium tables (Nos. 715478, 715479):
- Preferably for softwoods, knot-free timber and homogeneous engineered wood panels
- Timber stored outdoors should be checked for contamination (sand, soil, etc.) before planing; even small grains can scratch an aluminium surface
- Lower overall machine weight, making it easier to transport for frequent on-site use
- Resistant to corrosion; reduced maintenance, especially when working with damp timber
- Less sensitive to foreign bodies in the timber (sand, soil, nails, etc.)
- Suitable for all types of wood, including knotty timber and coated panels
- Signs of wear are less visible than on aluminium
- Ferromagnetic surface, e.g. for use with magnetic featherboards
Scope of delivery
- 1 standard push block
- 1 push block with retractable dogs
- 12 HSS indexable inserts (mounted), 14.29 × 14.29 × 2 mm
- 1 torque wrench preset to 6 Nm, incl. long T25 bit
- 1 Torx T25 screwdriver
- 2 spare carbon brushes
- 1 dust extraction adaptor Ø 57/63 mm
Properties
| Cutterblock Ø: | 51 mm |
|---|---|
| Dimensions (L x W x H): | 760 x 450 x 320 mm |
| Exhaust Nozzle Ø: | 57/63 mm |
| Machine/Accessory: | Machines |
| Machine type: | Planers |
| Max. Planing depth : | 3 mm |
| Messerart: | Indexable inserts |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 12 000 1/min AH150/200/260 12 000 1/min, AH310 11 000 1/min |
| Number of cutters: | 12 piece(s) |
| Planing width : | 150 mm |
| Power input: | AH150/200 1200 W, AH260/310 1400 W AH150/AH200 1 200 W, AH260 1 400 W |
| Power source: | Corded |
| Sound power level (LWA): | AH150 = 108 db(A); AH200 = 101,8 db(A); AH260 = 102,7 db(A) |
| Sound pressure level (LpA ): | AH150 = 95,2 db(A); AH200 = 88,6 db(A); AH260 = 91,7 db(A) |
| Table dimensions: | 160 x 760 mm |
| Version: | Infeed and outfeed tables made of cast iron. |
| Weight: | 25 kg |
Properties
| Cutterblock Ø: | 51 mm |
|---|---|
| Dimensions (L x W x H): | 760 x 450 x 320 mm |
| Exhaust Nozzle Ø: | 57/63 mm |
| Machine/Accessory: | Machines |
| Machine type: | Planers |
| Max. Planing depth : | 3 mm |
| Messerart: | Indexable inserts |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 12 000 1/min AH150/200/260 12 000 1/min, AH310 11 000 1/min |
| Number of cutters: | 12 piece(s) |
| Planing width : | 150 mm |
| Power input: | AH150/200 1200 W, AH260/310 1400 W AH150/AH200 1 200 W, AH260 1 400 W |
| Power source: | Corded |
| Sound power level (LWA): | AH150 = 108 db(A); AH200 = 101,8 db(A); AH260 = 102,7 db(A) |
| Sound pressure level (LpA ): | AH150 = 95,2 db(A); AH200 = 88,6 db(A); AH260 = 91,7 db(A) |
| Table dimensions: | 160 x 760 mm |
| Version: | Infeed and outfeed tables made of cast iron. |
| Weight: | 25 kg |
