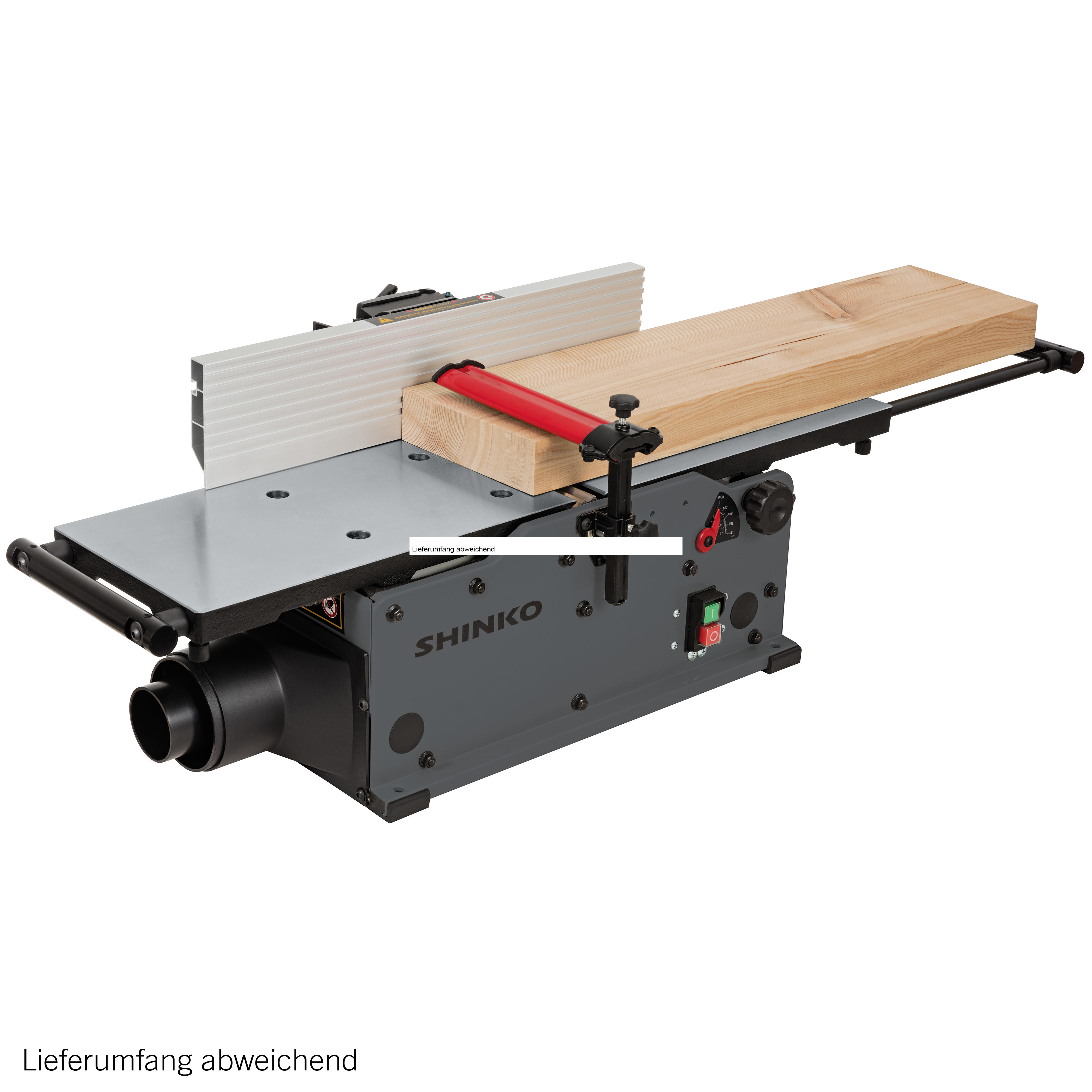

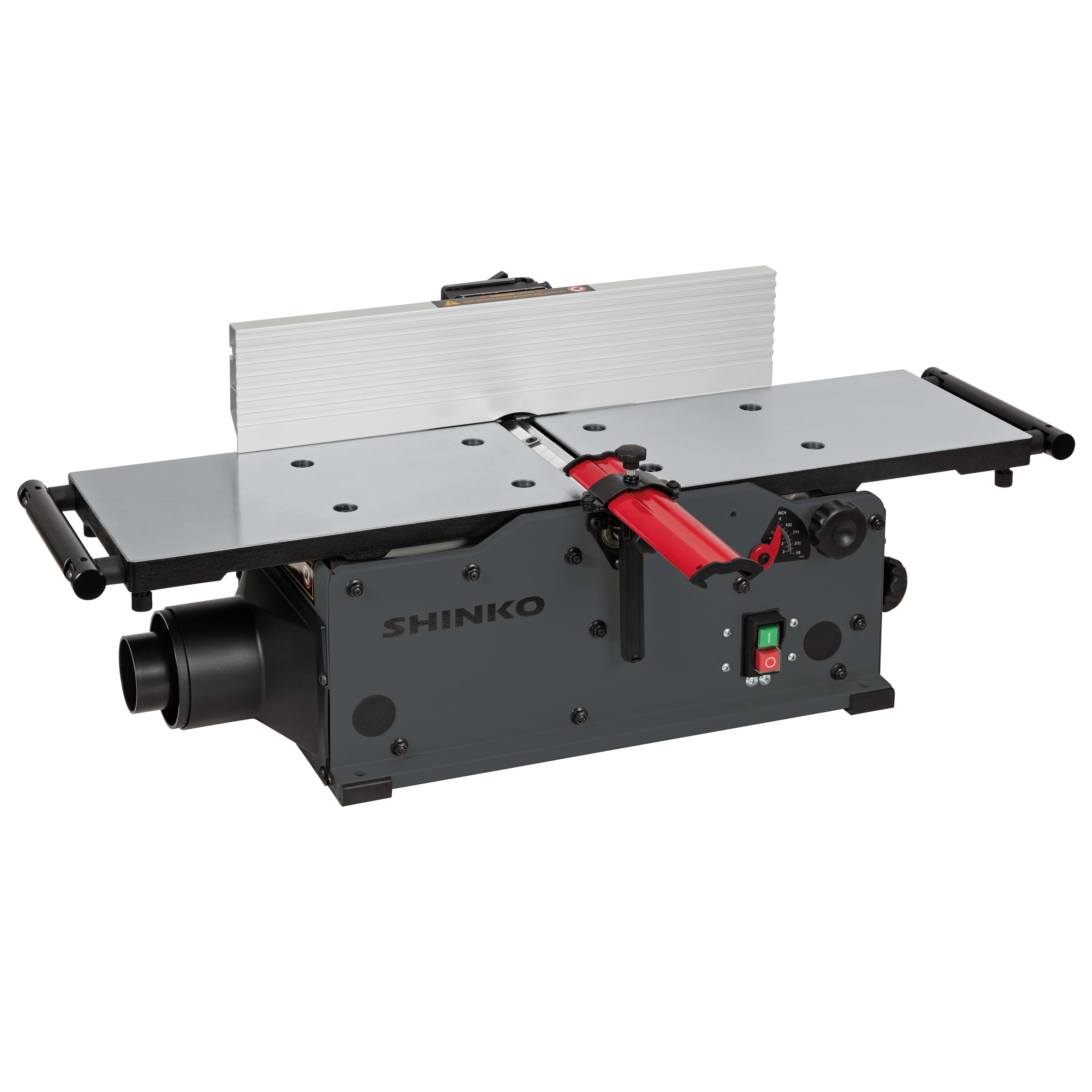

Shinko® Surface Planer AH200, Cast Aluminium Tables
Product no.:
715479
Brand:
Shinko
€669.00 €562.18
per piece(s)
Delivery time approx. 3-5 working days
- Cutterblock Ø 51 mm
- Dimensions (L x W x H) 865 x 500 x 330 mm
- Exhaust Nozzle Ø 57/63 mm
- Machine/Accessory Machines
- Machine type Planers
Description
Infeed and outfeed tables made of cast aluminium. Incl. integrated tilt protection with fine adjustment at the infeed and outfeed tables with 130 cm jaw opening.
Indispensable for precise jointing and flattening of boards, squared timber and strips, as well as for edge jointing when preparing panels for glue-up. With the adjustable fence, edges can be planed at angles from 90° to 45°.
Your benefits:
Compared to aluminium, cast iron has approximately three times the density, resulting in higher abrasion resistance, stiffness and hardness.
Aluminium tables (Nos. 715478, 715479):
Your benefits:
- Cutting depth adjustment via handwheel; max. cutting depth 3 mm

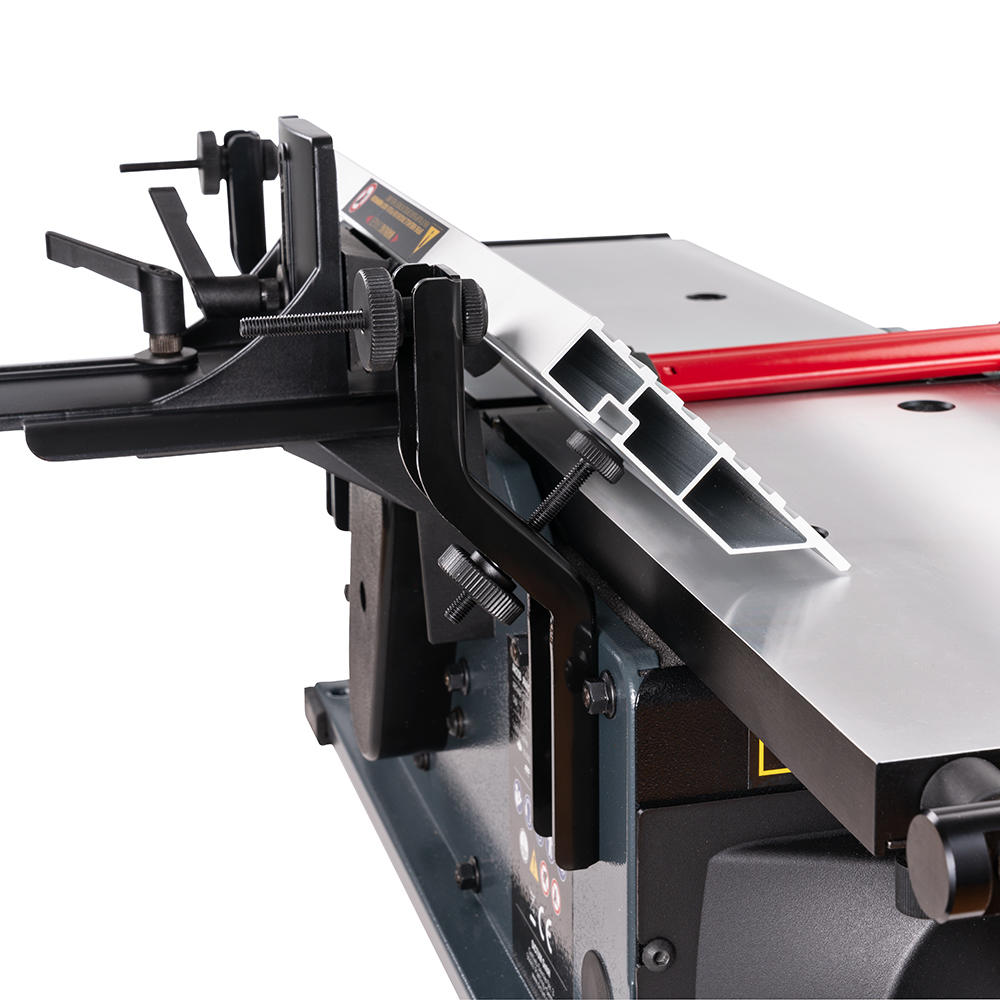

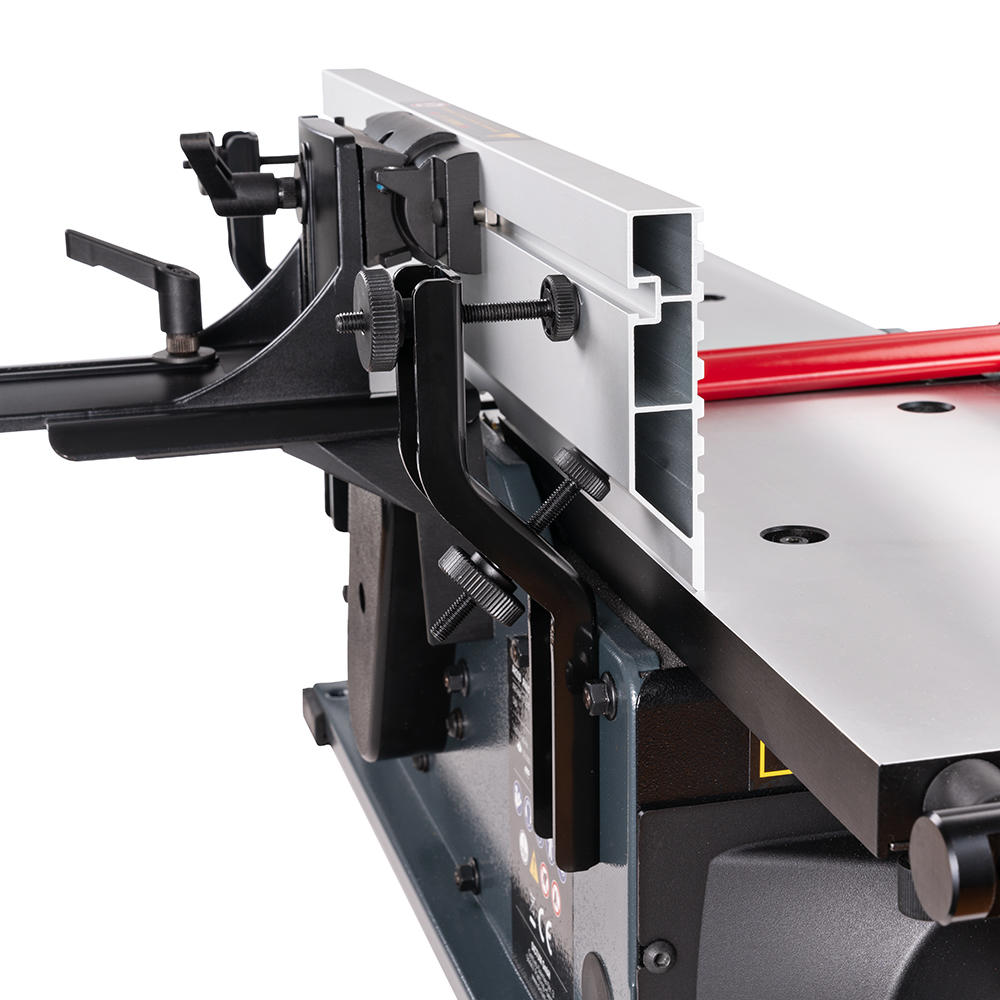

- Adjustable aluminium fence; tiltable from 90° to 45°
- Precision-machined tables made of torsion-resistant cast metal
- Machine housing made entirely of sheet steel

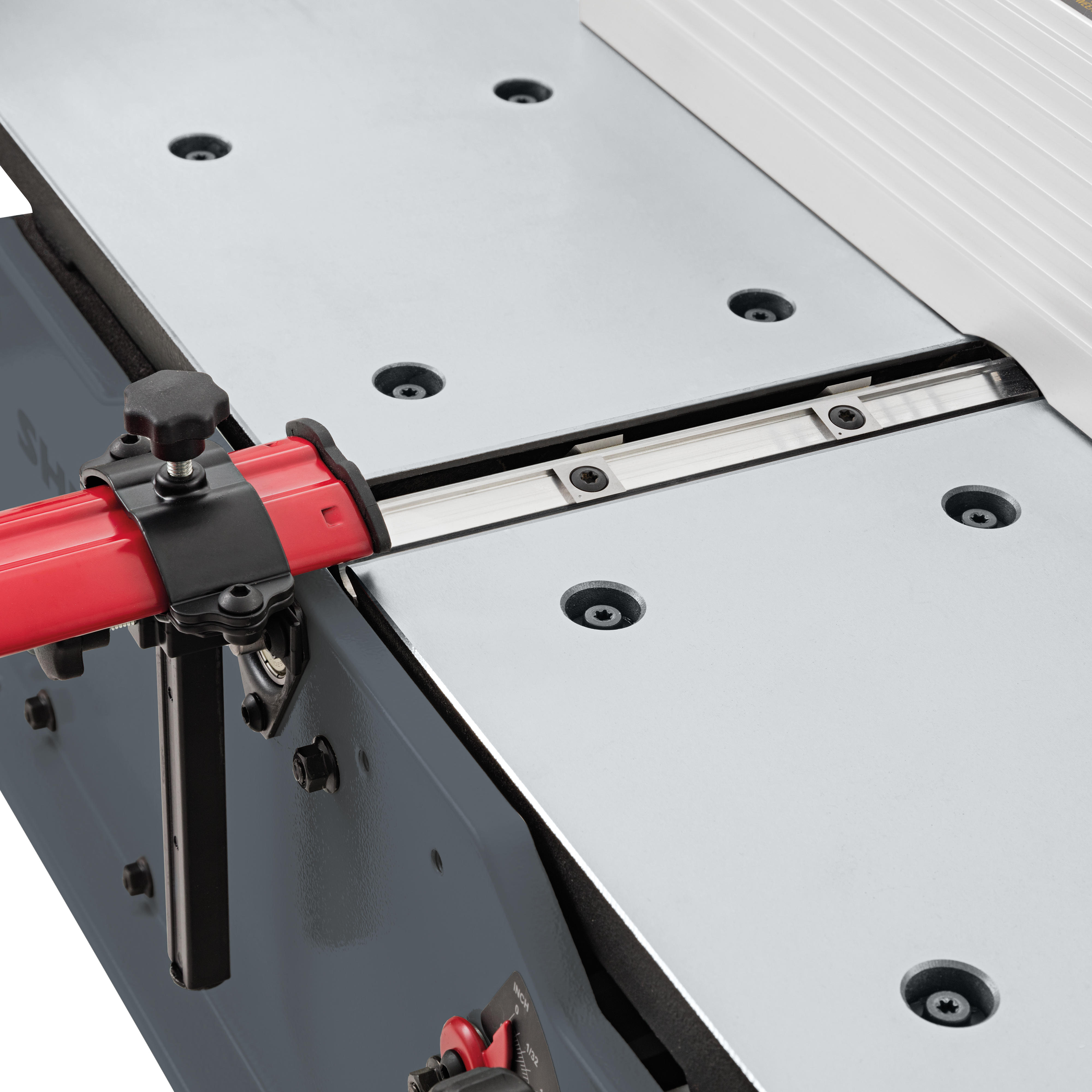

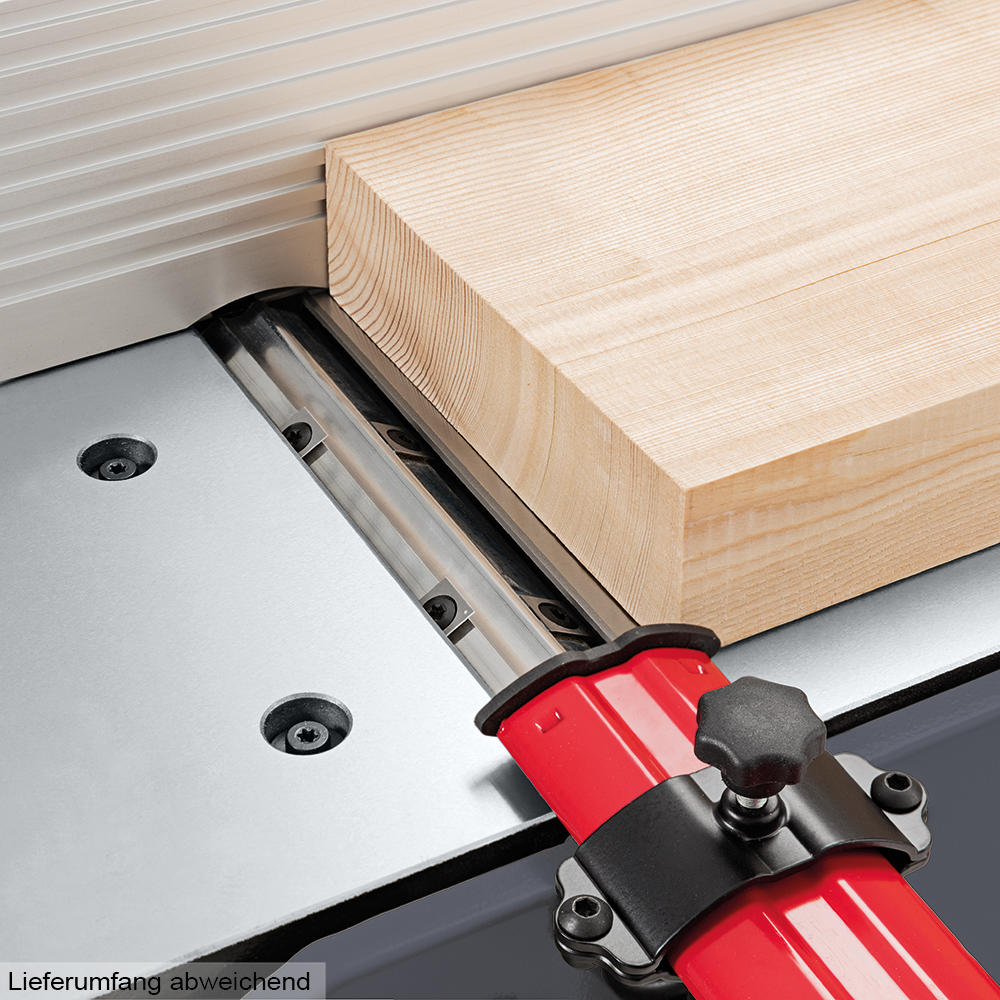

- Precision-machined cutterhead with helical indexable inserts
- Adjustable blade guard for safe operation
- Cutting depth scale in mm and inches
- Smooth-running, high-torque motor with poly-V belt
- On/off switch with no-volt release to prevent restart after a power interruption
- Individual inserts can be rotated and replaced
- Reduced noise level
- Smooth, satin finish (without typical planer marks)
- Less friction = lower power consumption
- Short chips for improved extraction: no clogging of extraction hoses
Compared to aluminium, cast iron has approximately three times the density, resulting in higher abrasion resistance, stiffness and hardness.
Aluminium tables (Nos. 715478, 715479):
- Preferably for softwoods, knot-free timber and homogeneous engineered wood panels
- Timber stored outdoors should be checked for contamination (sand, soil, etc.) before planing; even small grains can scratch an aluminium surface
- Lower overall machine weight, making it easier to transport for frequent on-site use
- Resistant to corrosion; reduced maintenance, especially when working with damp timber
- Less sensitive to foreign bodies in the timber (sand, soil, nails, etc.)
- Suitable for all types of wood, including knotty timber and coated panels
- Signs of wear are less visible than on aluminium
- Ferromagnetic surface, e.g. for use with magnetic featherboards
Scope of delivery

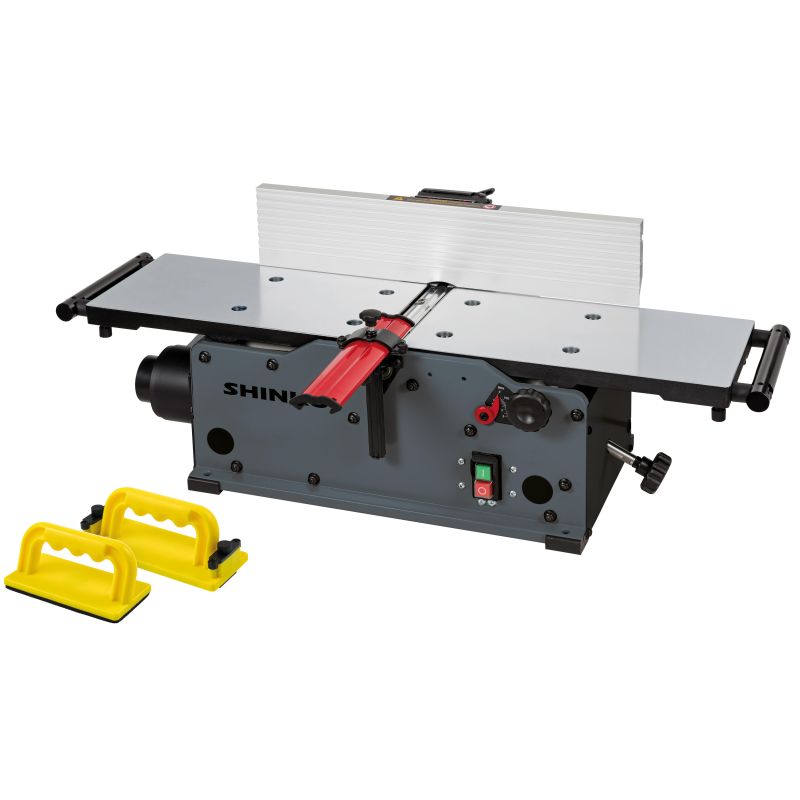

- 1 standard push block
- 1 push block with retractable dogs
- 16 HSS indexable inserts (mounted), 14.29 × 14.29 × 2 mm
- 1 torque wrench preset to 6 Nm, incl. long T25 bit
- 1 Torx T25 screwdriver
- Tilting guard with fine adjustment
- 2 spare carbon brushes
- 1 dust extraction adaptor Ø 57/63 mm and 95/100 mm
Properties
| Cutterblock Ø: | 51 mm |
|---|---|
| Dimensions (L x W x H): | 865 x 500 x 330 mm |
| Exhaust Nozzle Ø: | 57/63 mm |
| Machine/Accessory: | Machines |
| Machine type: | Planers |
| Max. Planing depth : | 3 mm |
| Messerart: | Indexable inserts |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 12 000 1/min AH150/200/260 12 000 1/min, AH310 11 000 1/min |
| Number of cutters: | 16 piece(s) |
| Planing width : | 200 mm |
| Power input: | AH150/200 1200 W, AH260/310 1400 W AH150/AH200 1 200 W, AH260 1 400 W |
| Power source: | Corded |
| Sound power level (LWA): | AH150 = 108 db(A); AH200 = 101,8 db(A); AH260 = 102,7 db(A) |
| Sound pressure level (LpA ): | AH150 = 95,2 db(A); AH200 = 88,6 db(A); AH260 = 91,7 db(A) |

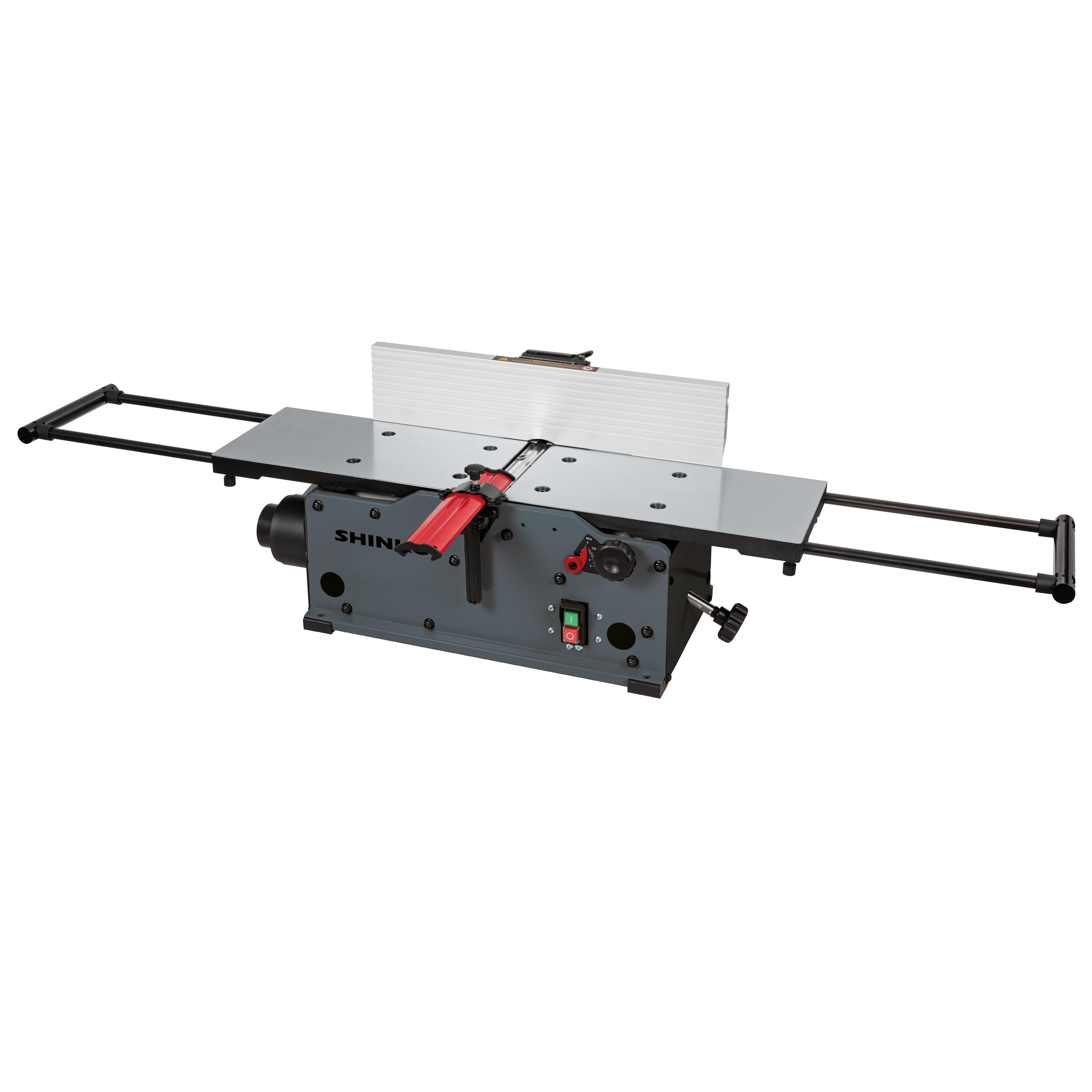

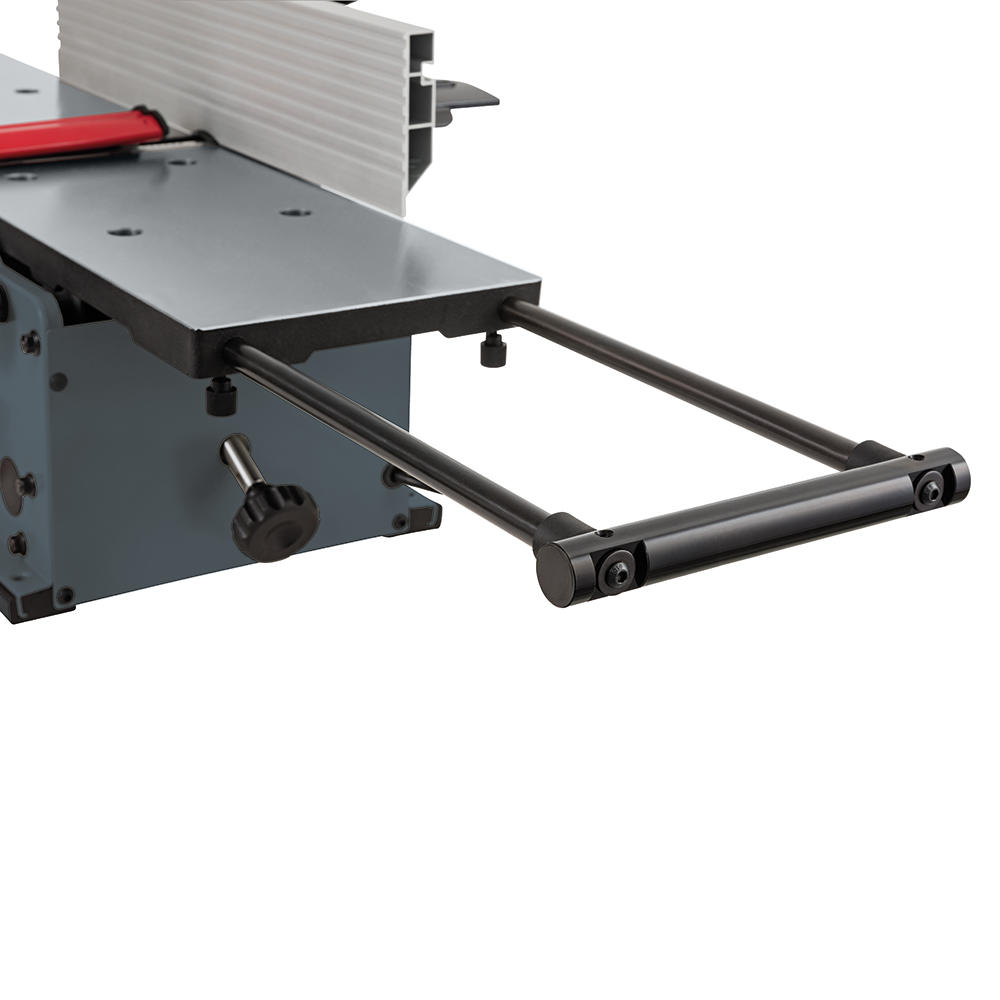

| Table dimensions: | 210 x 870 mm 210 x 870-1300 mm |
| Version: | Infeed and outfeed tables made of cast aluminium. |
| Weight: | 25 kg |
Properties
| Cutterblock Ø: | 51 mm |
|---|---|
| Dimensions (L x W x H): | 865 x 500 x 330 mm |
| Exhaust Nozzle Ø: | 57/63 mm |
| Machine/Accessory: | Machines |
| Machine type: | Planers |
| Max. Planing depth : | 3 mm |
| Messerart: | Indexable inserts |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 12 000 1/min AH150/200/260 12 000 1/min, AH310 11 000 1/min |
| Number of cutters: | 16 piece(s) |
| Planing width : | 200 mm |
| Power input: | AH150/200 1200 W, AH260/310 1400 W AH150/AH200 1 200 W, AH260 1 400 W |
| Power source: | Corded |
| Sound power level (LWA): | AH150 = 108 db(A); AH200 = 101,8 db(A); AH260 = 102,7 db(A) |
| Sound pressure level (LpA ): | AH150 = 95,2 db(A); AH200 = 88,6 db(A); AH260 = 91,7 db(A) |
| Table dimensions: | 210 x 870 mm 210 x 870-1300 mm |
| Version: | Infeed and outfeed tables made of cast aluminium. |
| Weight: | 25 kg |
