DICTUM® Extraction Unit SA 2200
Product no.:
725034
Brand:
DICTUM
€729.00 €612.61
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
Delivery time approx. 3-5 working days
- Airflow max. 2220 m³/h
- Chip bag capacity 150 l
- Chip bag dimensions Ø 51 cm x 107 cm
- Exhaust Nozzle Ø 2 x 100 cm
- Filter diameter 51 cm
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
Delivery time approx. 3-5 working days
Description

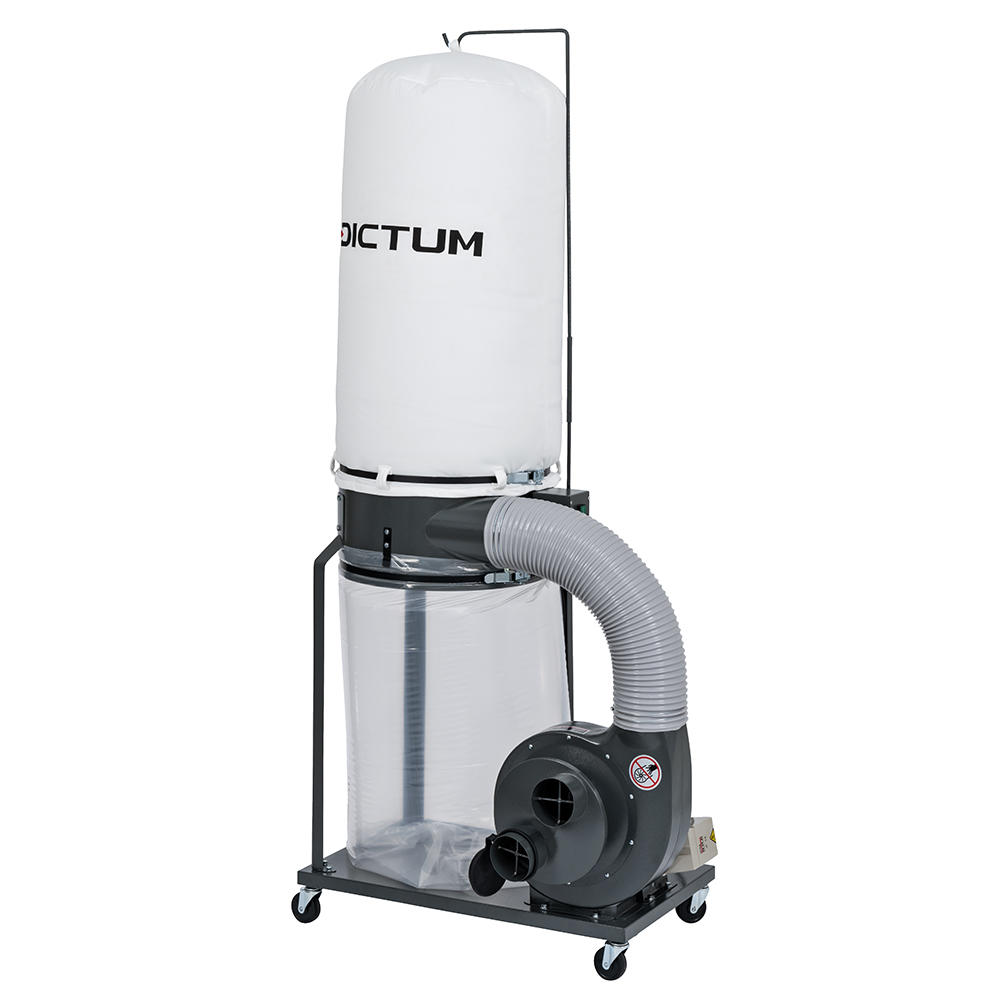

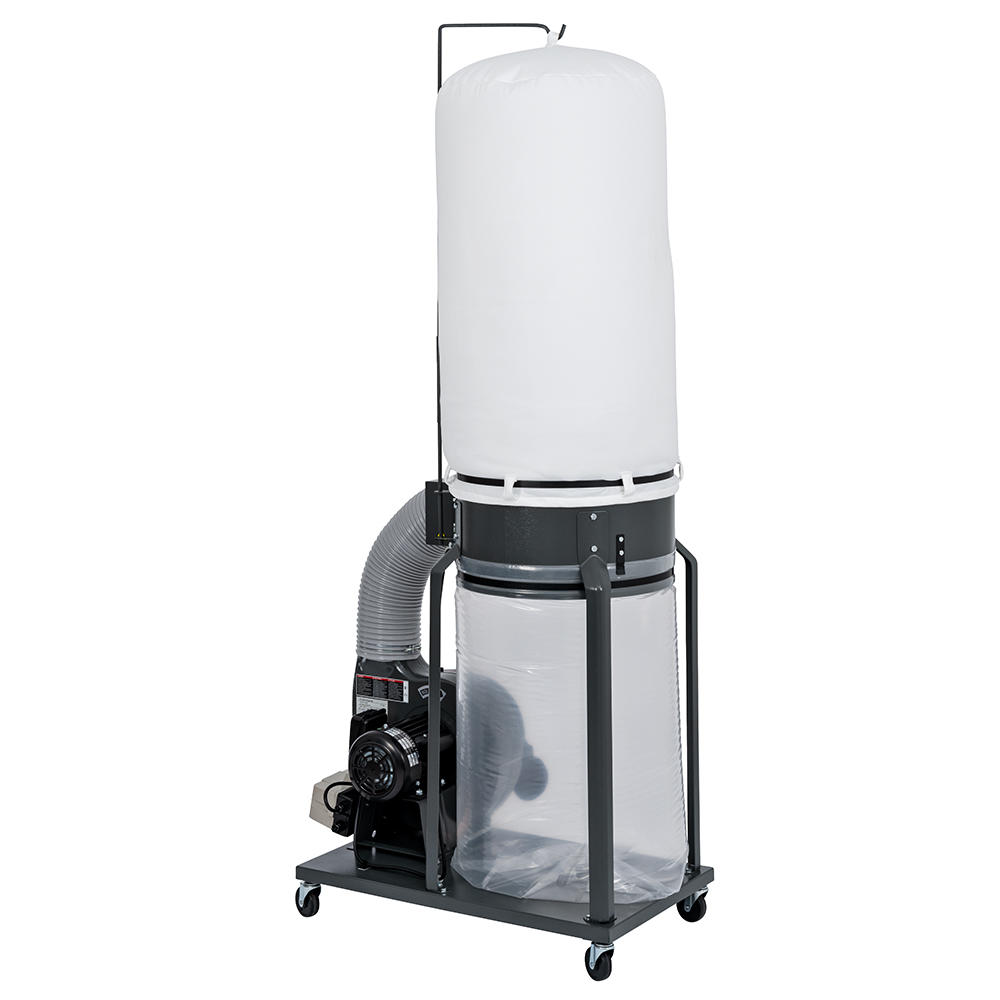

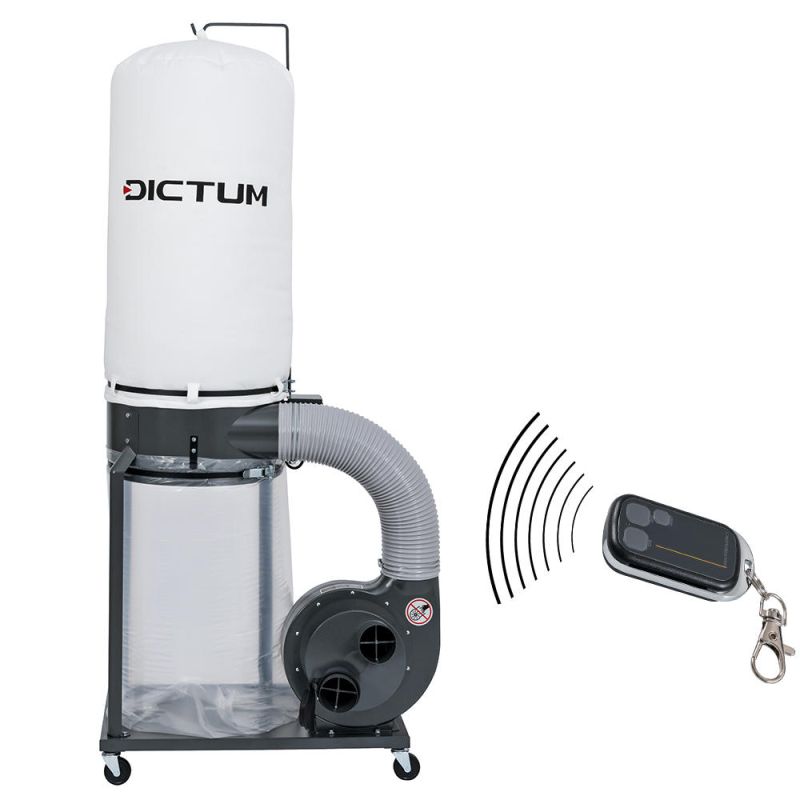

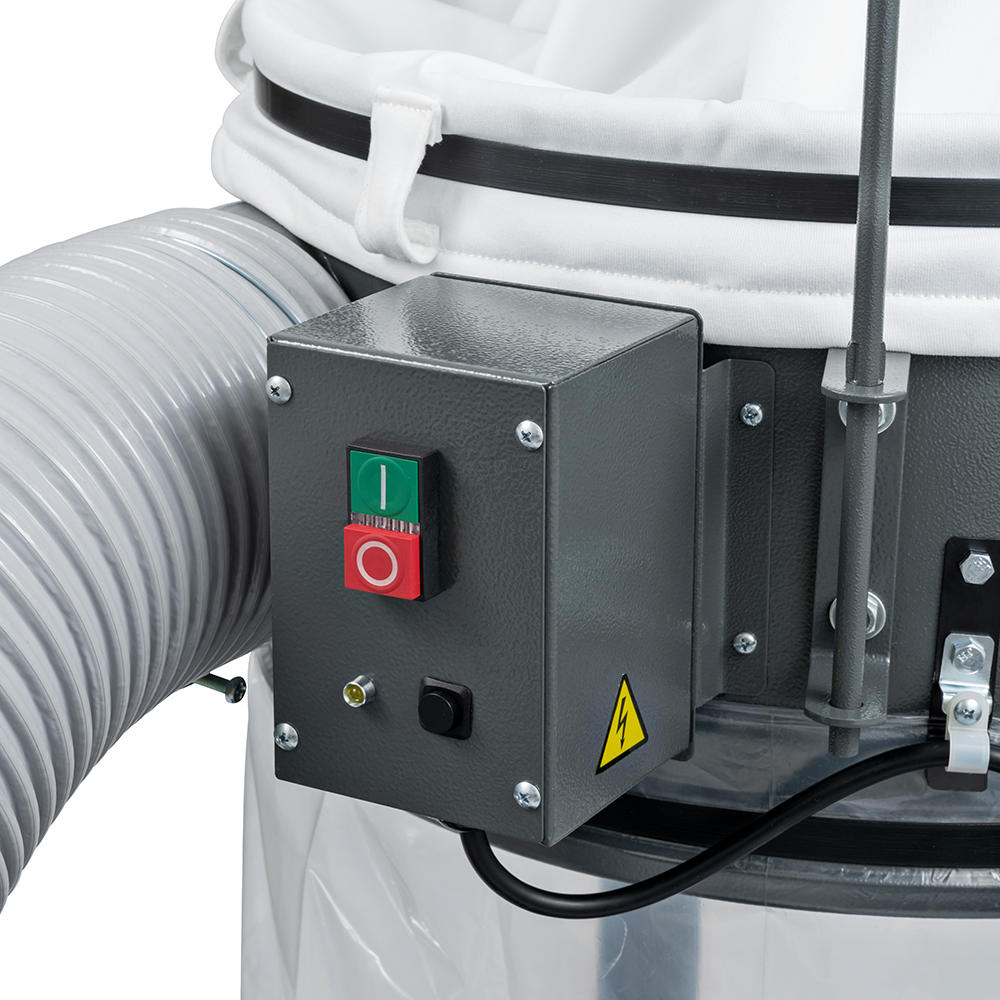

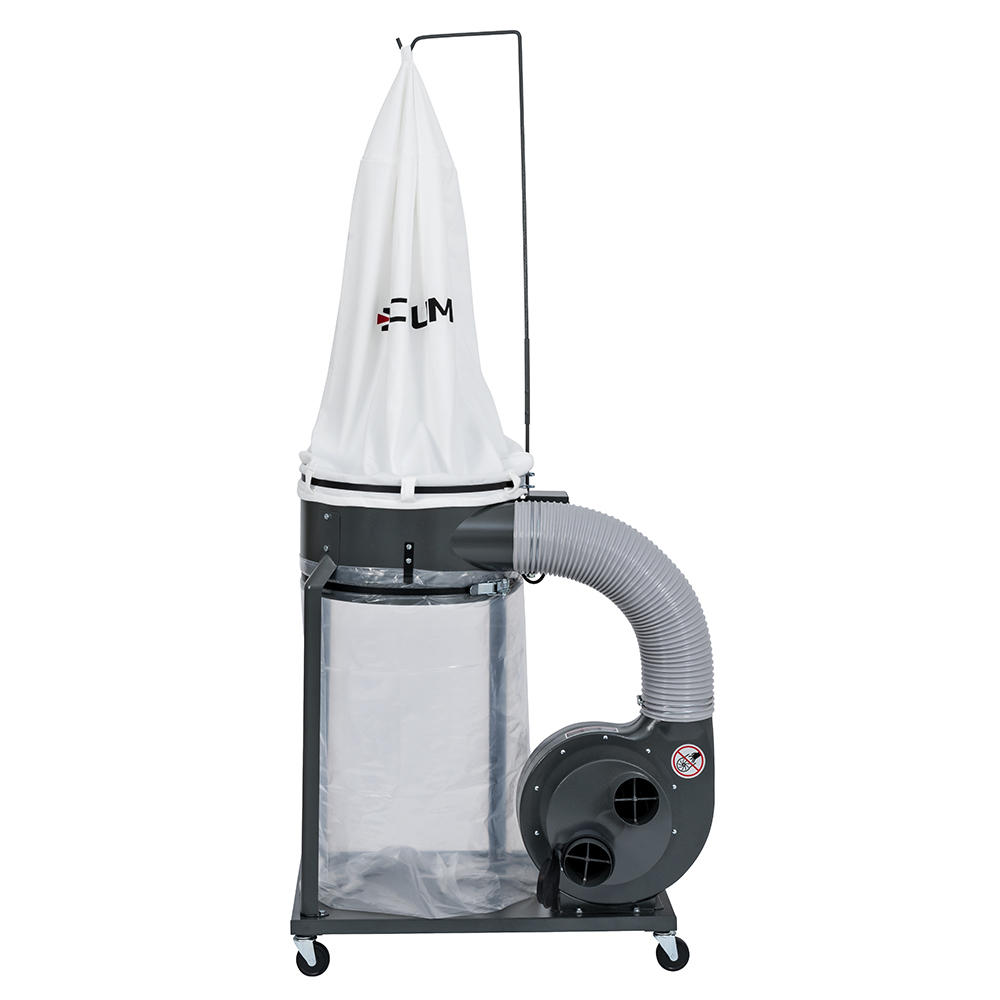

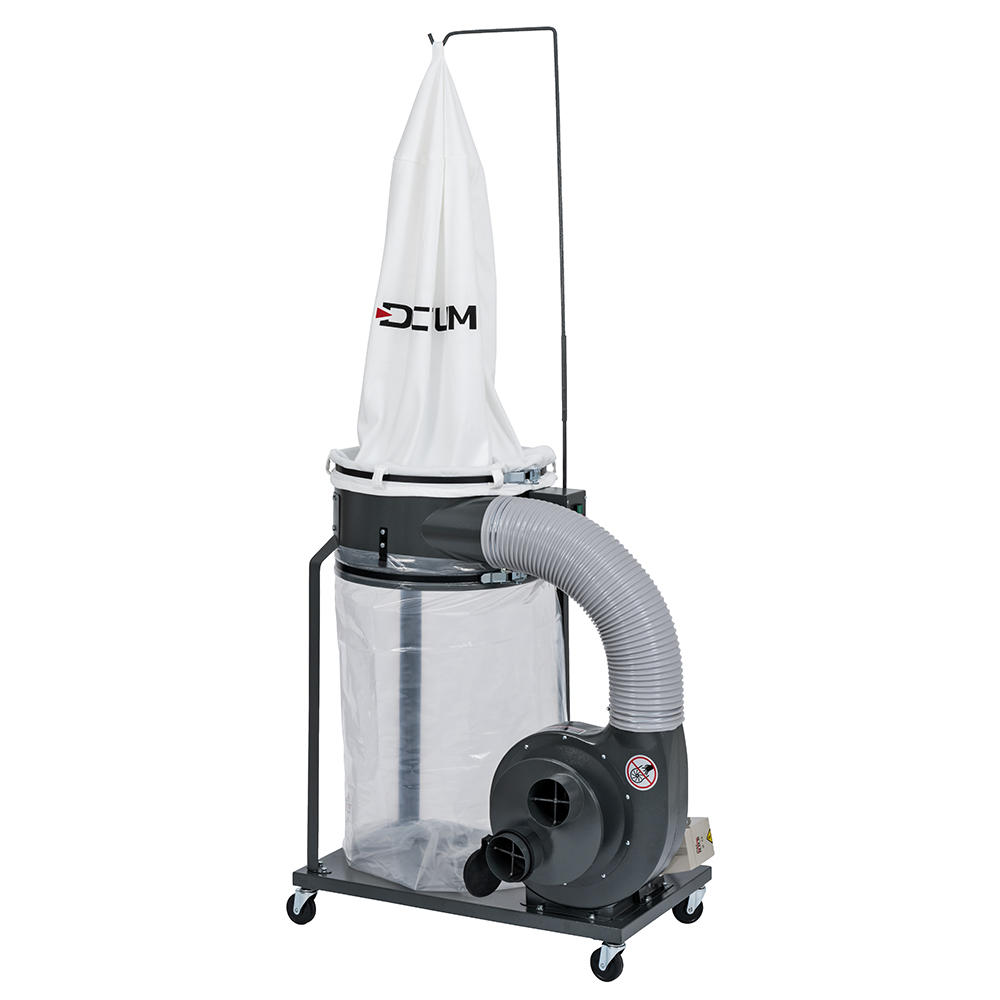

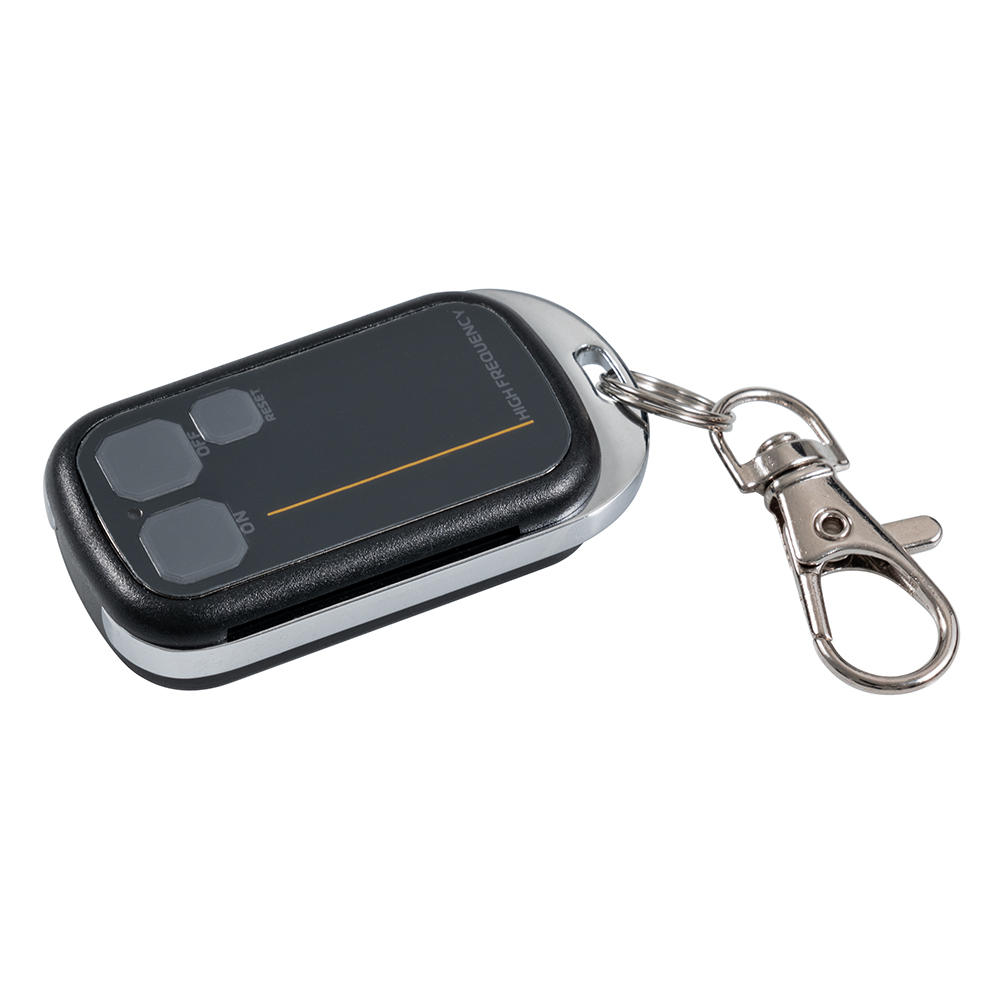

An ideal extraction system for small workshops where several machines need to be connected. Two 100 mm suction ports and an extraction capacity of 2220 m³/h allow for simultaneous extraction from multiple machines*. The extraction unit comes standard with a 5-micron polyester filter bag and can be upgraded with a 1-micron pleated filter (No. 725037) if needed, e.g. for fine sanding dust. A handy remote control facilitates turning the unit on/off from up to 50 metres away and through walls. An integrated control light indicates when a filter change is due. The 150-litre capacity of the chip collection bag provides ample space for high chip production machines, such as milling and planing machines.
*Please also see the recommendations under Selection criteria.
Benefits and features:
The machine is supplied in easy-to-assemble modules (including step-by-step assembly instructions).
*Please also see the recommendations under Selection criteria.
Benefits and features:
- Sturdy construction made of powder-coated metal components.

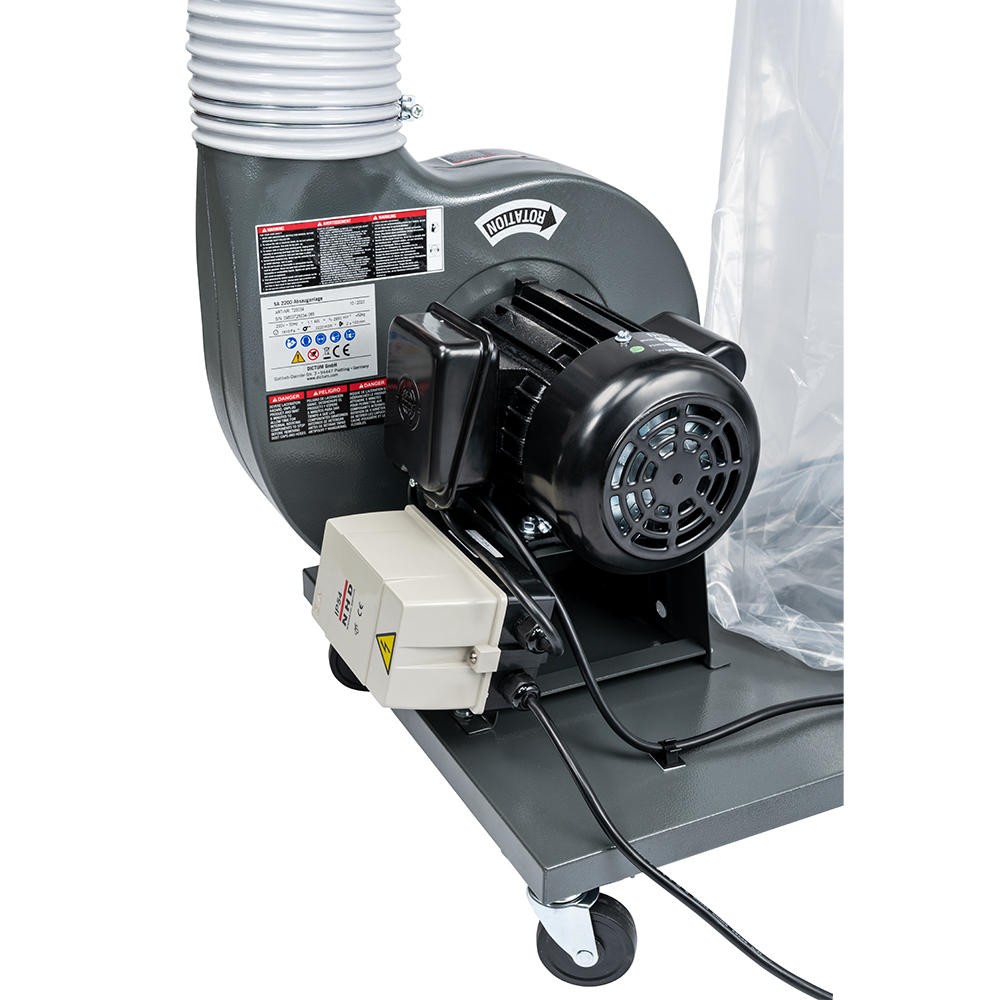

- Precisely balanced steel fan with optimised blade shape ensures a long service life as well as vibration-free and quiet operation.
- Dust separator effectively separates the finest airborne particles from the extracted material, preventing premature clogging of filter pores.
- Optimised separation of the air/chip mixture for higher density in the chip collection bag (fewer bag changes required).
- Highly effective filtration of 99.9 % of particles with a size ≥ 5 microns.

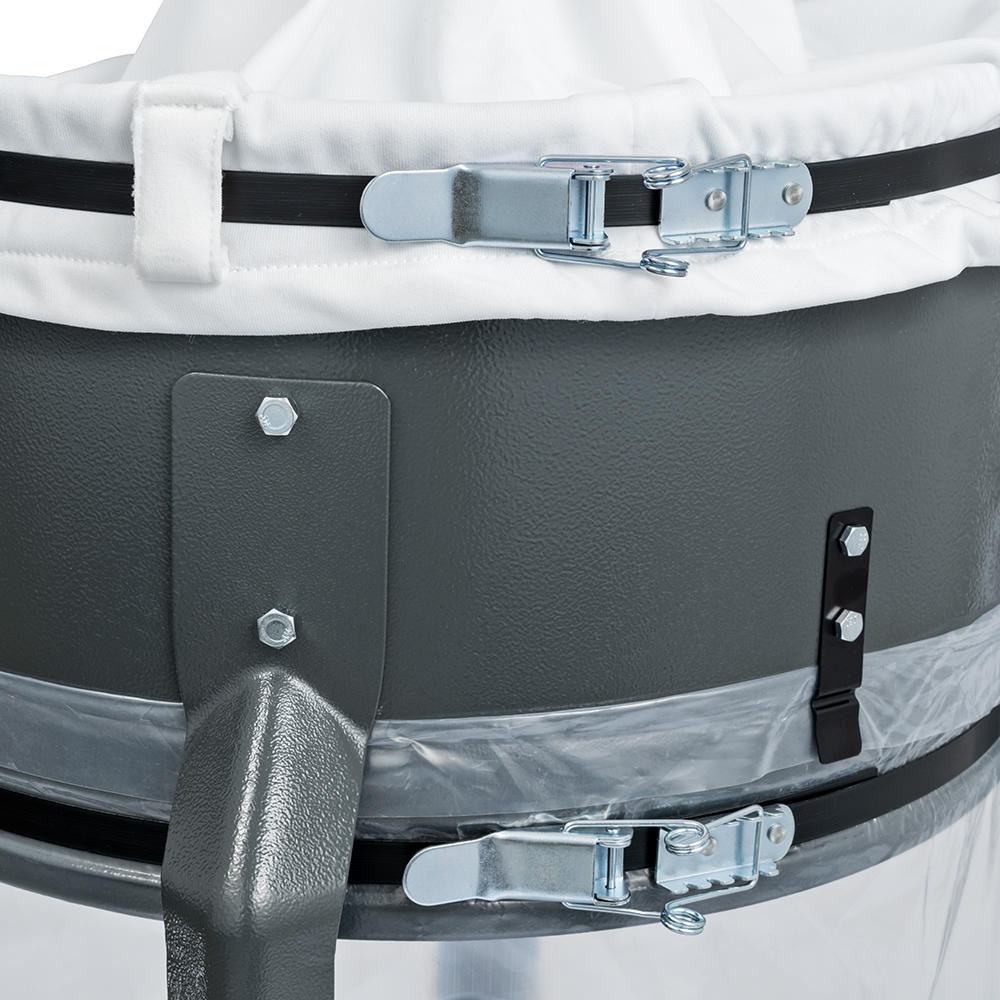

- Chip collection bag is supported by sturdy base plate and reliably fixed to the separator with an adjustable clamp strap.
- Multiple suction ports in robust sheet steel construction with rubber cover caps.
- Four swivel casters for optimal manoeuvrability in the workshop.
The machine is supplied in easy-to-assemble modules (including step-by-step assembly instructions).
Selection criteria for extraction systems:
The smaller the chip bag volume, the smaller the amount of chips produced by the machine should be. Circular saws generate less chip volume than thickness planers. Planers with a 50 cm planing width produce more chip volume than machines with only a 20 cm planing width.
Consider the simultaneity factor. Is the system extracting from only one machine or several machines simultaneously?
When extracting fine sanding dust, the system should be equipped with a 1-micron pleated filter.
Large extraction openings for small dust particles, e.g. at sanding tables, require a greater air volume flow than the precise extraction of chips, e.g. with bandsaws.
The heavier the chips to be extracted, e.g. wet planer shavings, the higher the negative pressure (also known as differential pressure) should be.
The longer the extraction duct, the more bends or distributors present, the higher the negative pressure (also known as differential pressure) should be.
The following rules should be observed for group extraction (several machines connected to one extraction line):
Dust filter: The term micron (μm or micrometre) refers to the mesh or pore size of the filter material. The smaller the micron value, the finer the dust particles removed from the exhaust air.
The smaller the chip bag volume, the smaller the amount of chips produced by the machine should be. Circular saws generate less chip volume than thickness planers. Planers with a 50 cm planing width produce more chip volume than machines with only a 20 cm planing width.
Consider the simultaneity factor. Is the system extracting from only one machine or several machines simultaneously?
When extracting fine sanding dust, the system should be equipped with a 1-micron pleated filter.
Large extraction openings for small dust particles, e.g. at sanding tables, require a greater air volume flow than the precise extraction of chips, e.g. with bandsaws.
The heavier the chips to be extracted, e.g. wet planer shavings, the higher the negative pressure (also known as differential pressure) should be.
The longer the extraction duct, the more bends or distributors present, the higher the negative pressure (also known as differential pressure) should be.
The following rules should be observed for group extraction (several machines connected to one extraction line):
- The total cross-section of all extraction ports to be used simultaneously should not exceed the cross-section of the fan's suction port.
- The ducting should be as short and straight as possible, with branches and bends installed as sparingly as possible.
- Place duct reductions as close to the machine as possible, with smaller diameters always on the machine side.
- Equip machines and devices to be extracted with shut-off valves when several machines and devices are connected to the extraction system.
- Avoid hose lines with high friction resistance and high pressure loss. Flexible hoses have a higher pressure loss compared to rigid, smooth-walled pipes.
Dust filter: The term micron (μm or micrometre) refers to the mesh or pore size of the filter material. The smaller the micron value, the finer the dust particles removed from the exhaust air.
Scope of delivery
- Extraction unit dismantled into easy-to-assemble components
- Filter bag, Ø 51 cm x 95 cm
- Chip collection bag, Ø 51 cm x 107 cm
- 2 suction ports, Ø 100 mm, made of sheet steel
Properties
| Airflow max.: | 2220 m³/h |
|---|---|
| Chip bag capacity: | 150 l |
| Chip bag dimensions: | Ø 51 cm x 107 cm |
| Exhaust Nozzle Ø: | 2 x 100 cm |
| Filter diameter: | 51 cm |
| Filter material: | Polyester |
| Filter surface area: | 1.93 m² |
| Low Air Pressure: | 1618 Pa |
| Machine/Accessory: | Machines |
| Machine type: | Extraction units |
| Motor speed: | 2850 min⁻¹ |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 1100 W |
| Power source: | Corded |
| Sound pressure level (LpA ): | 85 dB(A) |
| Space required (L x W x H): | 95 x 50 x 210 cm |
| Weight: | 52 kg |
Properties
| Airflow max.: | 2220 m³/h |
|---|---|
| Chip bag capacity: | 150 l |
| Chip bag dimensions: | Ø 51 cm x 107 cm |
| Exhaust Nozzle Ø: | 2 x 100 cm |
| Filter diameter: | 51 cm |
| Filter material: | Polyester |
| Filter surface area: | 1.93 m² |
| Low Air Pressure: | 1618 Pa |
| Machine/Accessory: | Machines |
| Machine type: | Extraction units |
| Motor speed: | 2850 min⁻¹ |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 1100 W |
| Power source: | Corded |
| Sound pressure level (LpA ): | 85 dB(A) |
| Space required (L x W x H): | 95 x 50 x 210 cm |
| Weight: | 52 kg |
