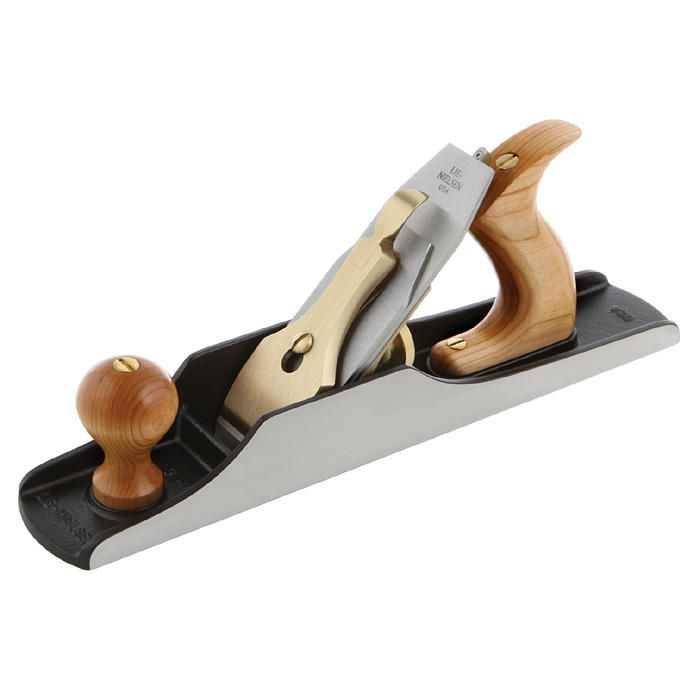

Lie-Nielsen® Jack Plane No. 5
Product no.:
703715
Brand:
Lie-Nielsen
€424.00 €356.30
per piece(s)
Delivery time on request
- Blade material A2 steel
- Blade thickness 3.2 mm
- Blade width 51 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description
The increased length and weight compared to the No. 4 plane makes it ideal not only for smoothing but also for levelling surfaces.
Lie-Nielsen® Bench Planes No. 4, No. 4½, No. 5, No. 5½, No. 6, No. 7

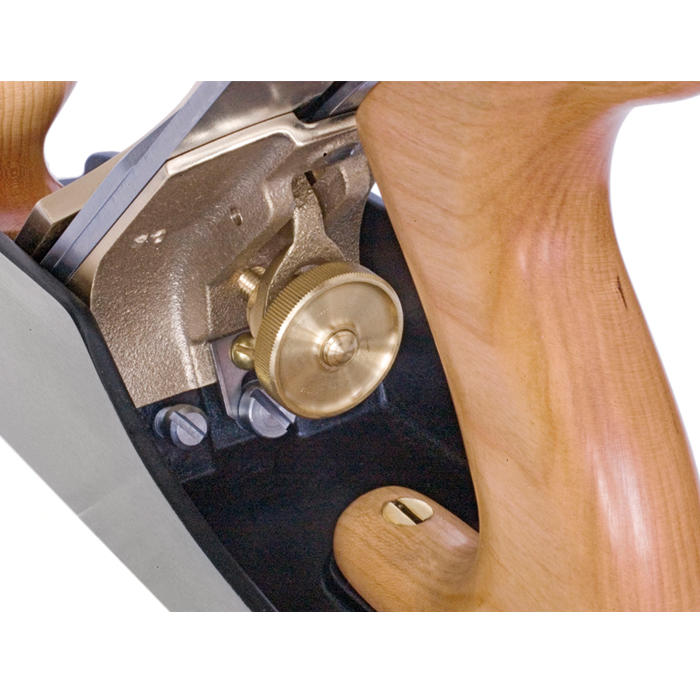

The all-purpose woodworking plane. With its Bedrock design, this plane allows chatter-free cutting thanks to its fully supported blade and a mouth that can be adjusted without removing the cap iron and blade. Additional lateral blade adjustment. The low blade-feed adjuster allows the cutting depth to be changed during planing. Its heavy weight makes irregular grain or difficult woods easier to work. Bronze frog and cap.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 355 mm |
| Plane body: | Spheroidal Cast Iron |
| Purpose: | Smoothing (fine finishing) |
| Typ: | Bench planes |
| Weight: | 2.6 kg |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 355 mm |
| Plane body: | Spheroidal Cast Iron |
| Purpose: | Smoothing (fine finishing) |
| Typ: | Bench planes |
| Weight: | 2.6 kg |
