Zen-Wu® Titanium Plane Blade, Laminated Magnacut Steel, 51 mm, with Chipbreaker
Product no.:
745307
Brand:
Zen-Wu
€146.90 €123.45
per piece
Delivery time approx. 3-5 working days
- Blade material Magnacut steel
- Blade thickness 4 mm
- Blade width 51 mm
- Fits Plane No. 4 and No. 5
Description
Flawless smoothing with precision and quality

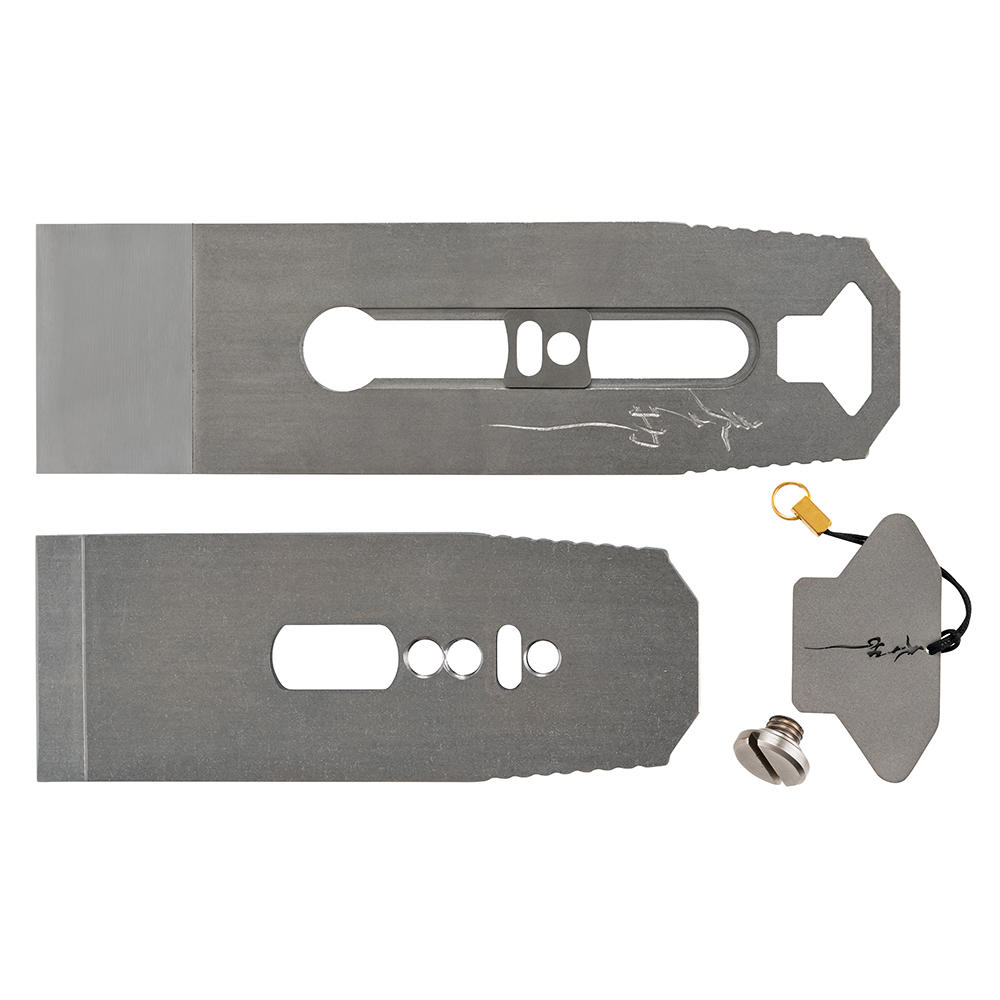

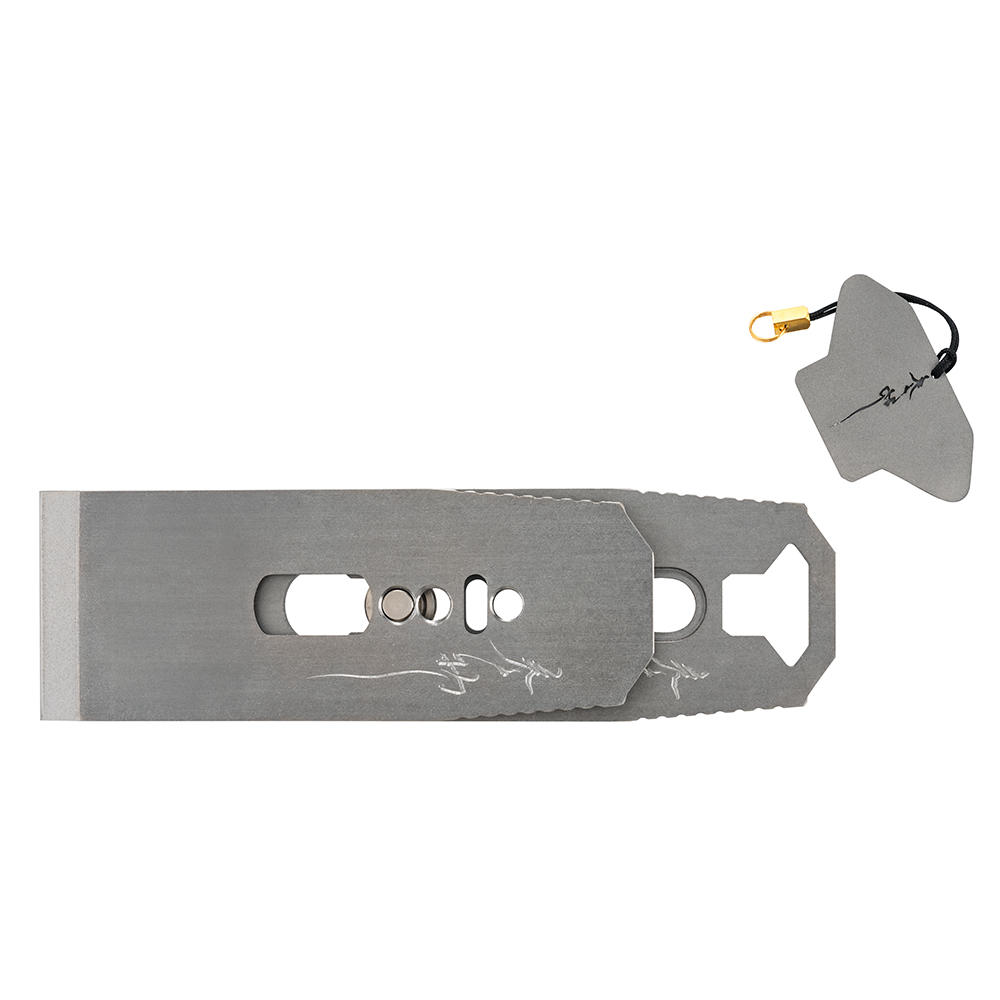

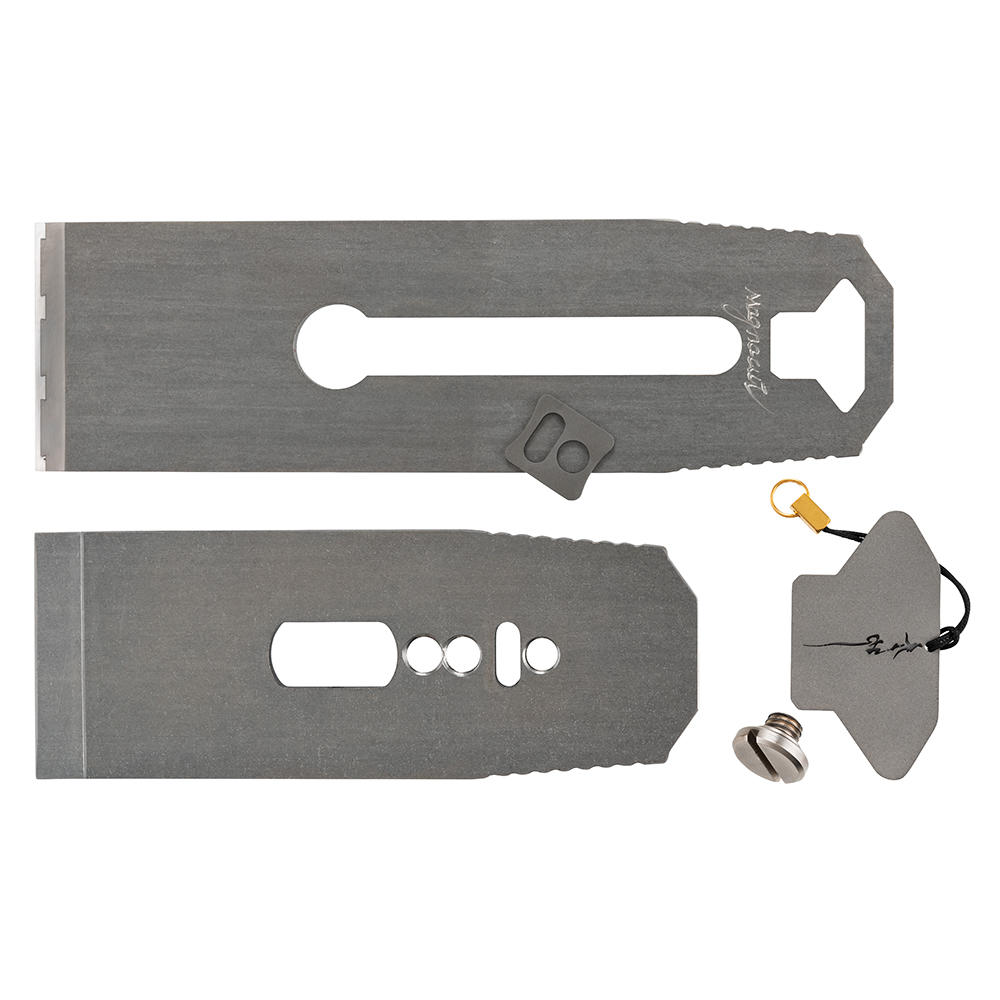

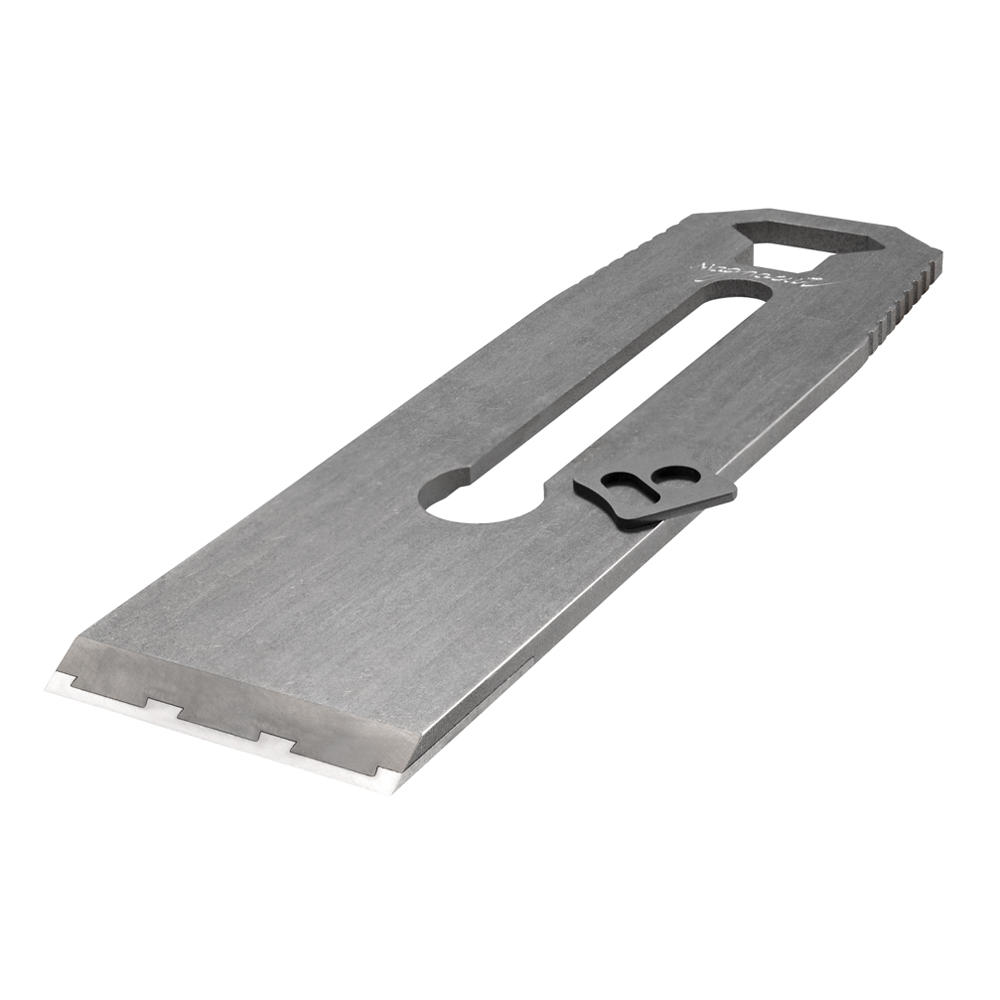

These plane blades are a unique upgrade for all Bailey/Stanley design metal planes with adjustable frog: Titanium as the carrier material, positively laminated with Magnacut steel – for the highest performance and surface quality. Suitable for, among others, planes from DICTUM, Lie-Nielsen, Veritas, Clifton, Stanley, Kunz, and Anant. Available with or without titanium chipbreaker. Ready for immediate use, edge without micro bevel.

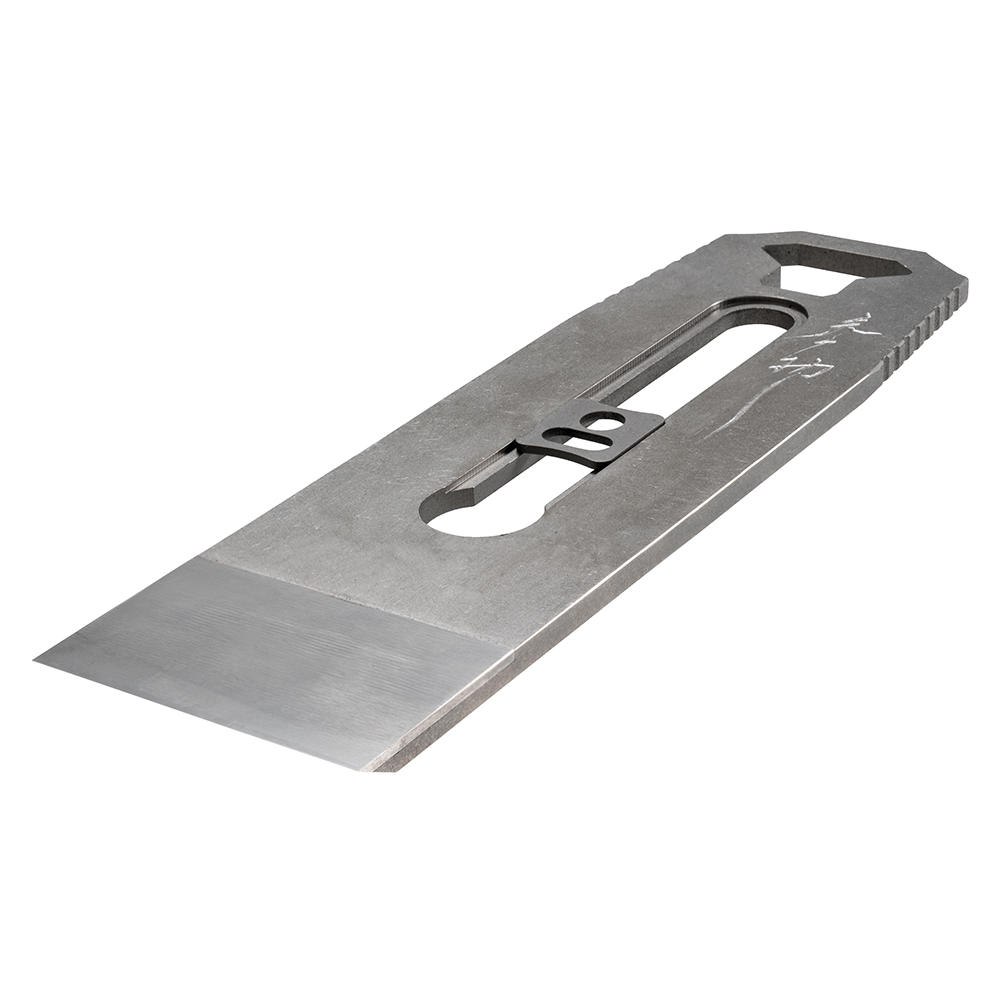

- High edge retention and sharpness: The cutting edge made of Magnacut steel (62-63 HRC) is razor sharp, extremely wear-resistant, and due to the lower chromium content compared to other PM steels, it is very easy to resharpen.
- Improved surface quality: The vibration-damping properties of titanium minimise tear-out, and the high elasticity prevents the blade from bending under heavy load or pressure from the chipbreaker.
- Precise flatness: Impressive is the precisely flat polished surface of the back with low roughness (flatness 0.01 mm / Rz 1.6 µm), perfect for the sharpest edges.
- No modifications to the plane are required for installation, only the frog needs to be adjusted.

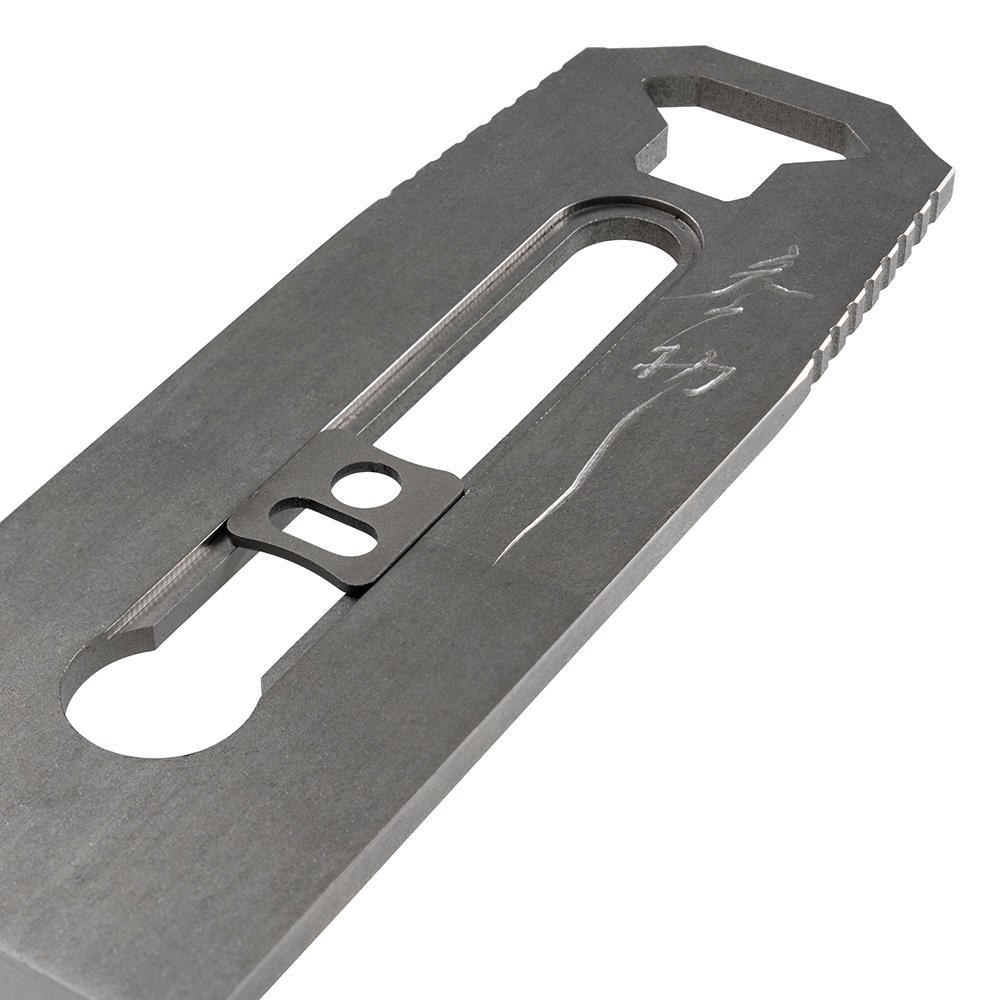

- The centrally placed slider in the plane blade is exclusively intended for compatibility with Lie Nielsen and older Stanley planes.
- Note: On very old Stanley models, it may be necessary to adjust the plane mouth with a file.
- The sharpenability of titanium is comparable to that of iron, and the lower material weight makes it easier to handle.
- We recommend Cerax sharpening stones, diamond stones, or 3M™ Stikit™ Microfinishing Film Sheets.
Magnacut steel
Magnacut steel is a powder-metallurgically produced, corrosion-resistant high-performance steel with a comparatively low chromium content. It is characterised by higher cutting-edge retention compared to O1, A2, or similar PM steels. High-hardness vanadium and niobium carbides provide an excellent combination of notched impact toughness and wear resistance. Due to the low chromium content and the resulting fine-grained structure, impressive sharpness is achieved. Hardness 62-63 HRC.
Properties
| Blade material: | Magnacut steel |
|---|---|
| Blade thickness: | 4 mm |
| Blade width: | 51 mm |
| Fits: | Plane No. 4 and No. 5 |
Properties
| Blade material: | Magnacut steel |
|---|---|
| Blade thickness: | 4 mm |
| Blade width: | 51 mm |
| Fits: | Plane No. 4 and No. 5 |
Manufacturer
Zen-Wu
Zen-Wu Toolworks develops and produces high-quality tools for demanding woodworking. These are characterised by top-notch materials and outstanding handling.
