Lie-Nielsen® Shoot Board Plane No. 51
Product no.:
703029
Brand:
Lie-Nielsen
€609.00 €511.76
per piece(s)
Currently unavailable until further notice.
- Blade material A2 steel
- Blade thickness 3.6 mm
- Blade width 60 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description

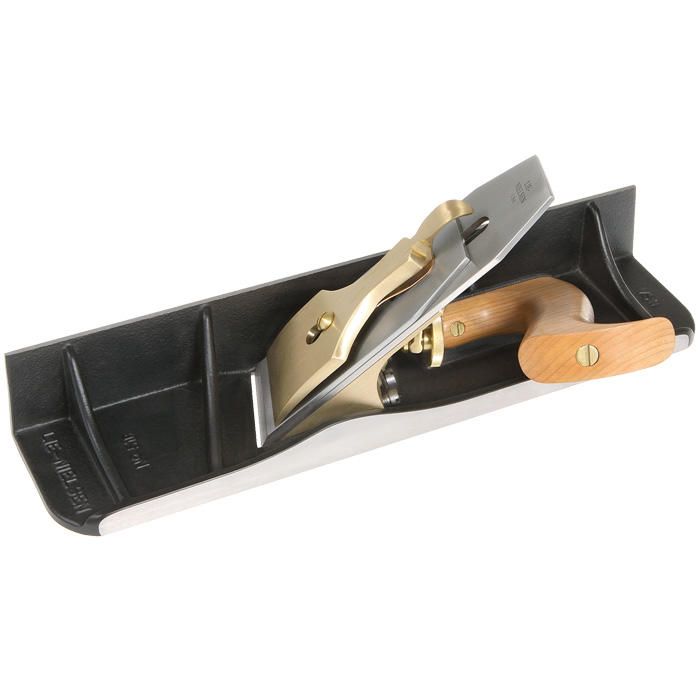

The ultimate shooting plane

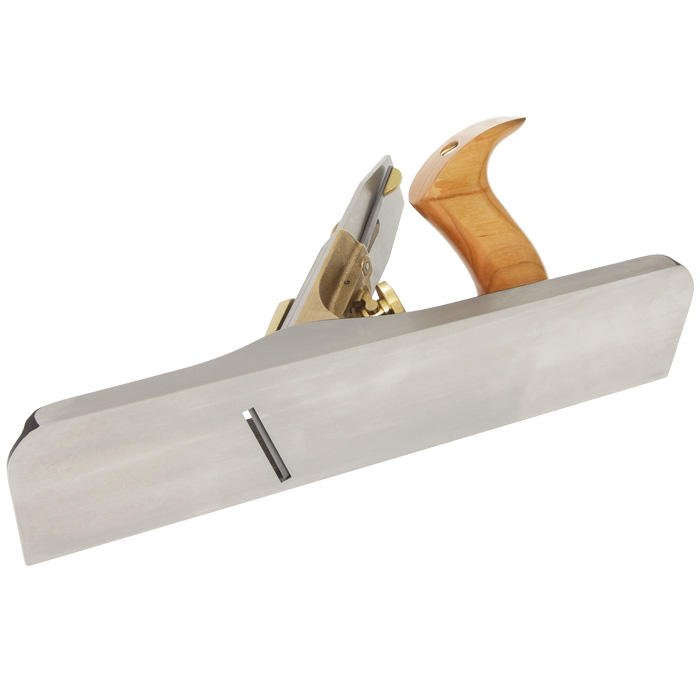

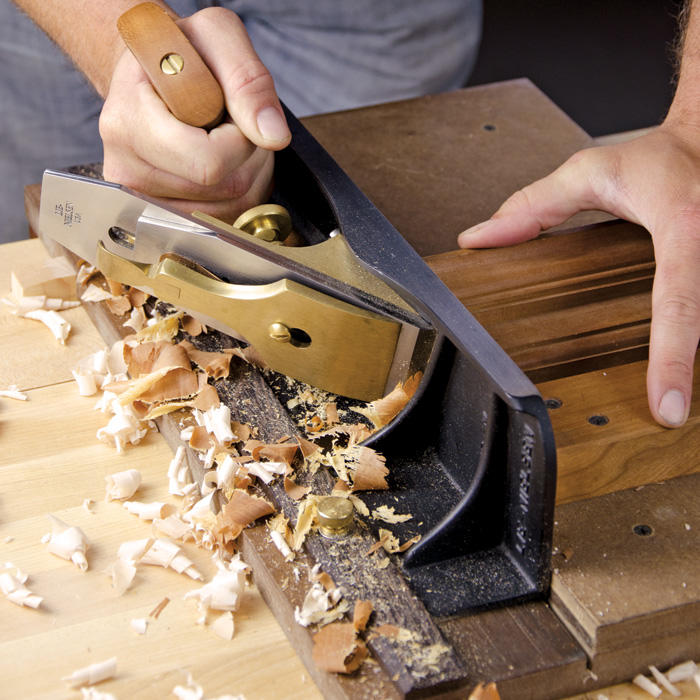

This specially-designed plane for use on a shooting board is an adaptation of the Stanley No. 51, which was made until 1943. Its precisely flat and square sole makes it ideal for fine work on end grain and mitres. The blade is inserted at an angle to the planing direction, so that it cuts on the pull stroke. It can be used with the original Stanley metal shooting board. Handle designed for right-handers. Includes instructions for making your own shooting board.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.6 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 380 mm |
| Plane body: | Grey cast iron |
| Purpose: | Planing end grain |
| Typ: | Others |
| Weight: | 4.1 kg |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.6 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 380 mm |
| Plane body: | Grey cast iron |
| Purpose: | Planing end grain |
| Typ: | Others |
| Weight: | 4.1 kg |
