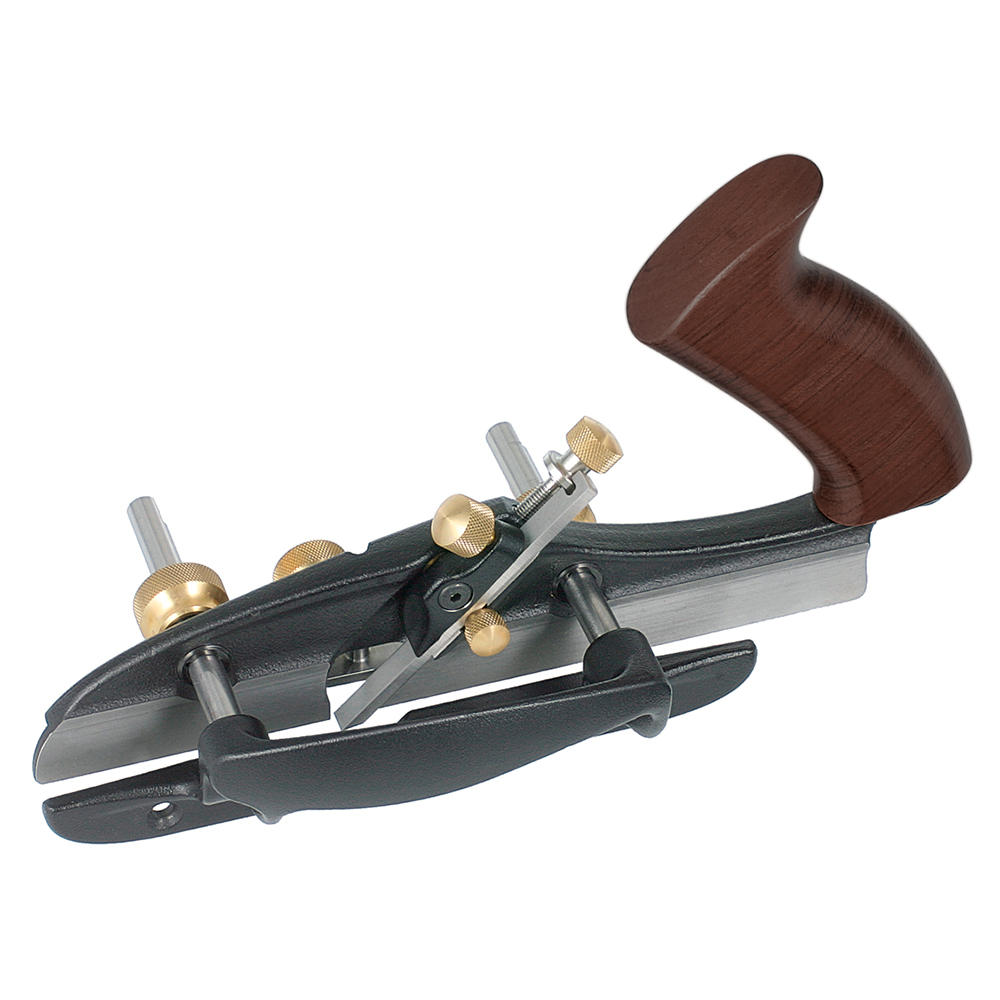

Veritas® Plow Plane, A2 Blade
Product no.:
703634
Brand:
Veritas
€274.00 €230.25
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material A2 steel
- Blade thickness 3.2 mm
- Blade width ¼ inch (equivalent to 6.35 mm)
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description
Traditionally used for drawer bottoms or rear walls, plow planes have almost been forgotten in the age of spindle moulders. This compact plow plane allows you to work with more control and above all more quietly than with a router. The smooth-running lateral and depth fences are easy to adjust by hand using the large brass knurled screws.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | ¼ inch (equivalent to 6.35 mm) |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Intended use: | Cutting grooves, rabbets and profiles |
| Overall length: | 225 mm |
| Plane body: | Spheroidal cast iron |
| Type: | Others |
| Weight: | 840 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | ¼ inch (equivalent to 6.35 mm) |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Intended use: | Cutting grooves, rabbets and profiles |
| Overall length: | 225 mm |
| Plane body: | Spheroidal cast iron |
| Type: | Others |
| Weight: | 840 g |
