Shaper Origin incl. Shaper Workstation and Shaper Plate
Product no.:
721427K
Brand:
Shaper Tools
Price advantage
€4,569.60 €3,840.00
per set % €4,748.10 €3,990.00 (3.76% saved)
In stock, delivery time approx. 2-3 working days
- Drehzahlbereiche 10 000-26 000 rpm
- Maschine/Zubehör Machine
- Maschinen-Typ CNC-Fräsen
- Motor voltage 220-240 V~, 50 Hz/60 Hz
- Power input 720 W
Description

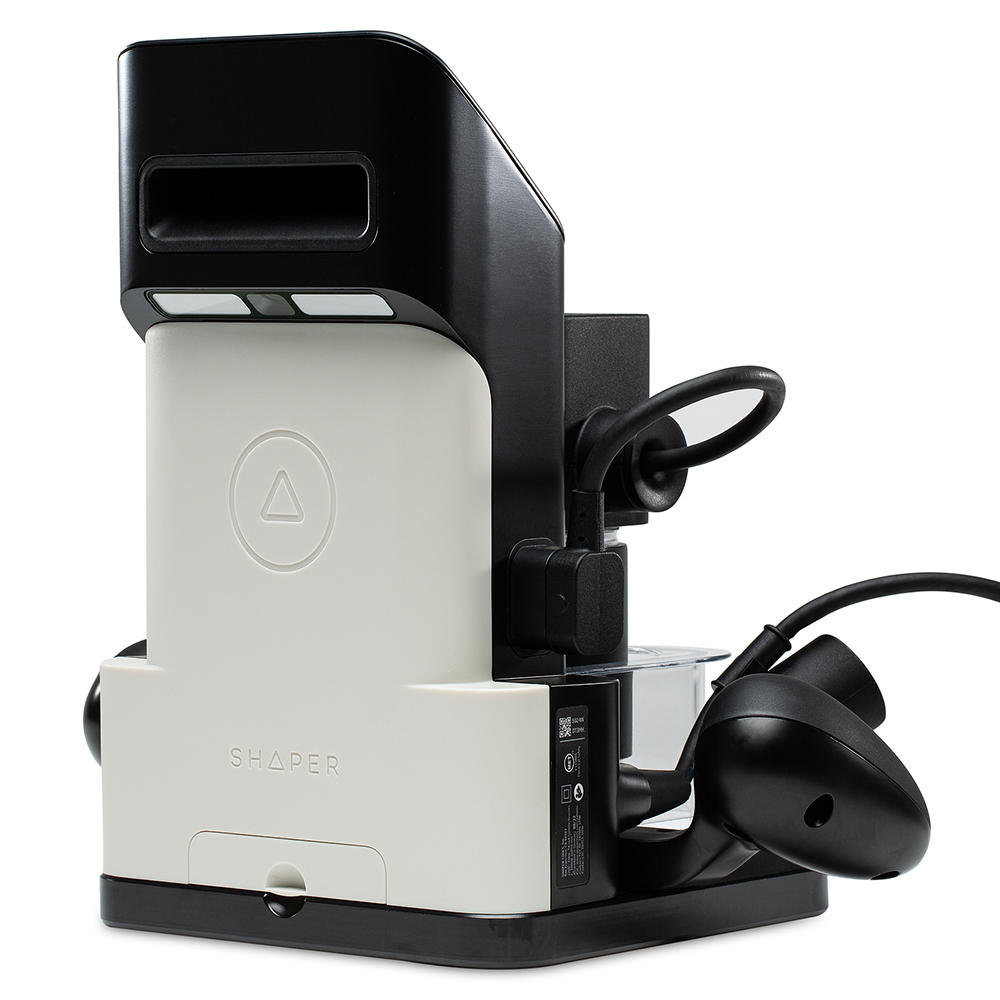

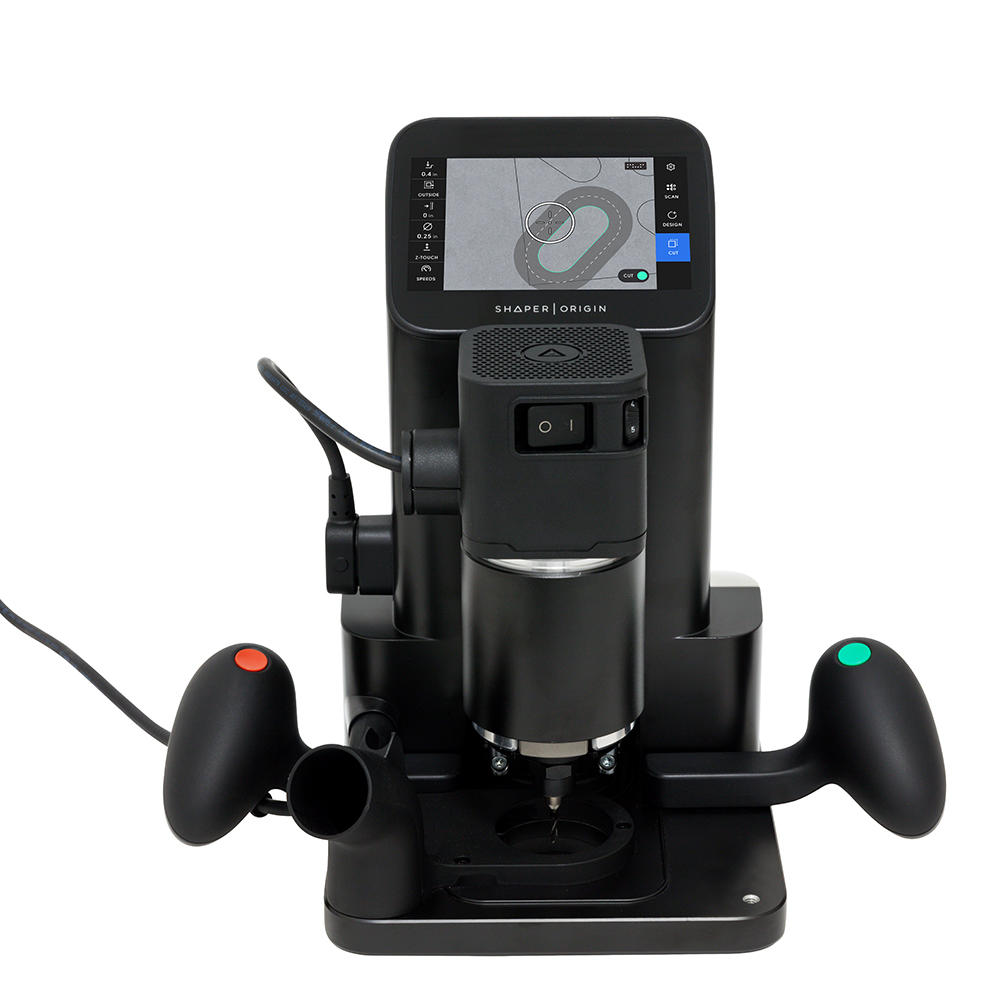

Handheld CNC router. Work hands on with unparalleled accuracy, flexibility and efficiency.
Shaper Origin combines robotic precision with the simplicity of a hand tool to create a first-of-its-kind machine: a handheld CNC router. With its intuitive interface, automatic cut correction and on-tool design, Origin brings digital precision, flexibility and efficiency to the craft of woodworking. Create and edit your projects directly via the touch screen on the machine or import designs and drawings from your CAD and drawing software. Use Origin flexibly wherever it is needed, whether on the construction site or in the workshop. Whether it is for recessing inlays and fittings or precision-fit joints, the Shaper Origin guarantees versatile, creative and professional applications.
Your benefits:
Your benefits:

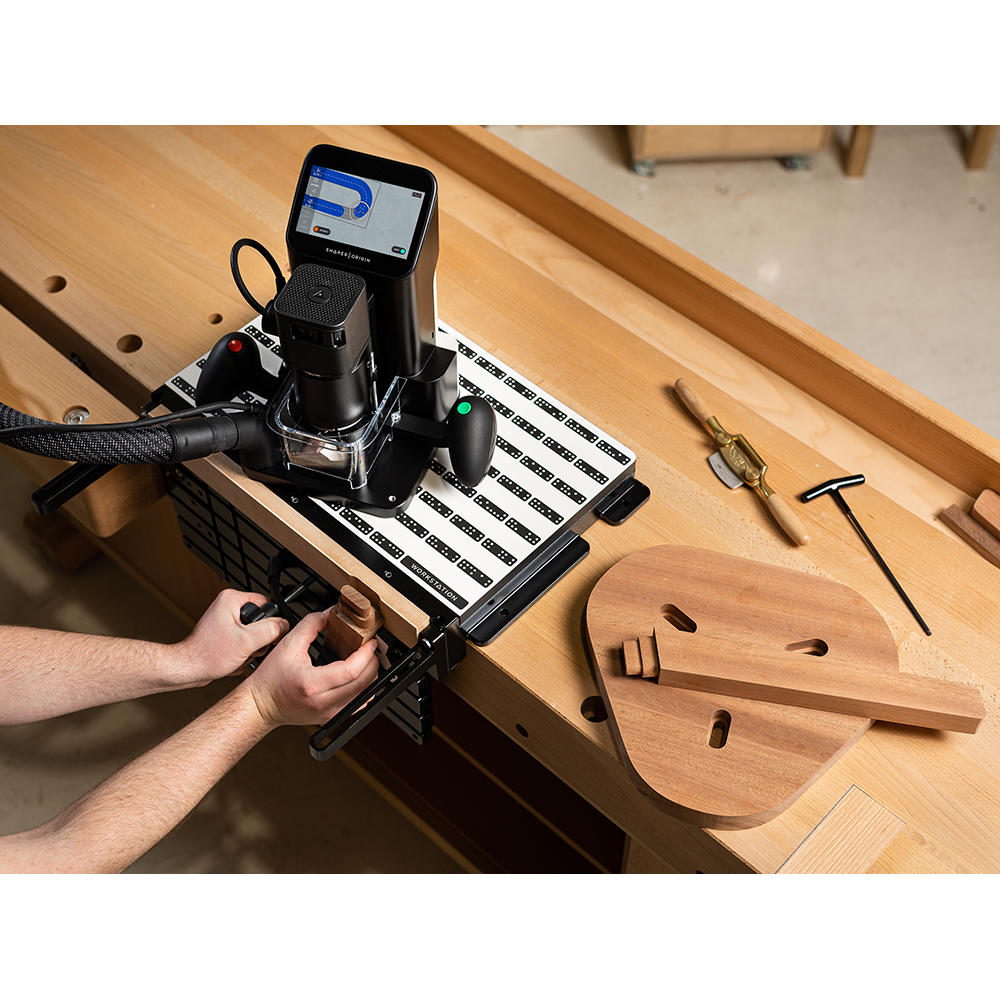

- Precise joinery: Combine Origin with the Shaper Workstation to cut mortise and tenons, box joints, and other custom joinery with ease and precision.
- Unmatched portability: Bring Origin to the construction site and work at any scale. Install virtually any hardware or inlay, and mill pockets with minimal setup and maximum repeatability.
- Easy hardware installation: Cut perfect features for any piece of hardware. Browse the ShaperHub’s Hardware Catalogue for over a hundred tested and verified free hardware templates from top manufacturers.
- Digital precision: Origin uses ShaperTape to digitally augment your workspace and to track its position while you are working.

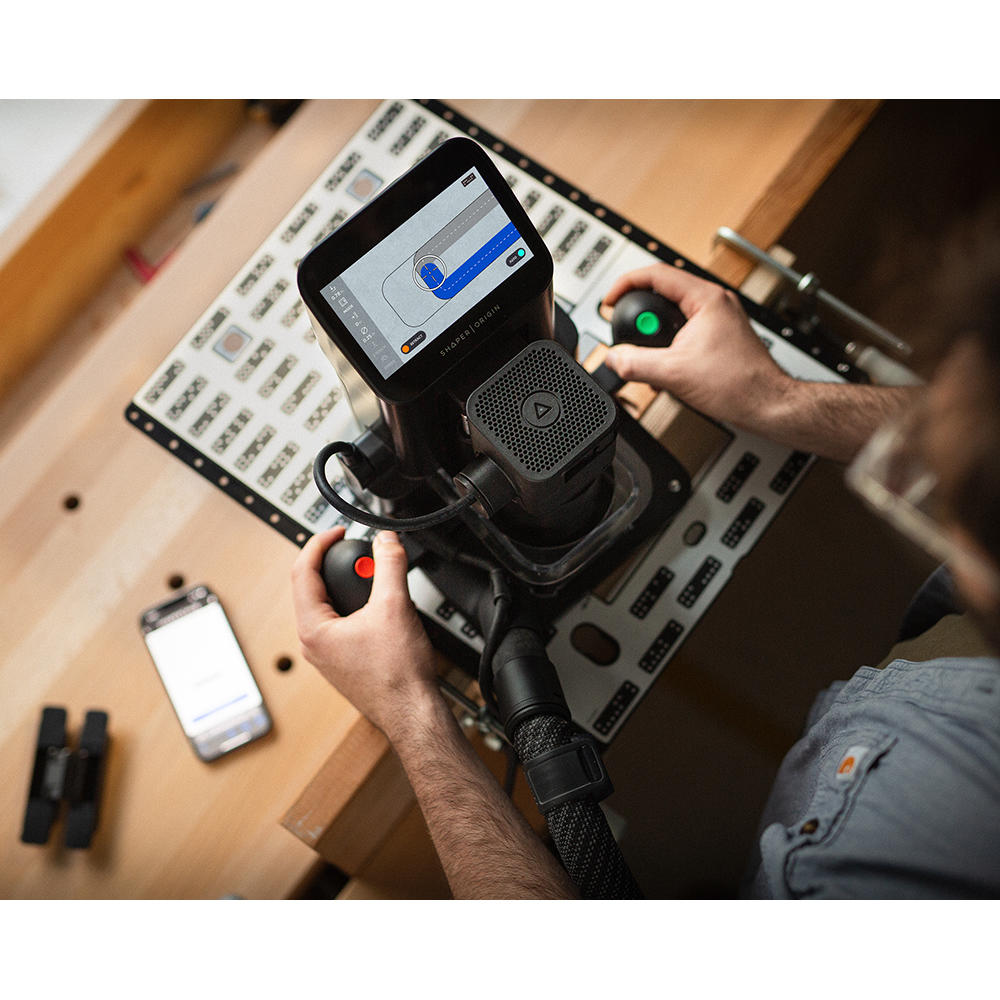

- No CAD experience required: Easily create or import designs; no programming required. Switch the milling spindle on and get cutting. Make changes on the fly to adjust for a real-world fit.
- Purpose-built for craftspeople and focused on the features that matter to you most
- Work on site on workpieces of almost any size
- Digitally adjustable for the most precise milling results, completely without guides or templates
- Design and route perfect contours, joints and engravings
- No CAD experience required
- On-Tool design directly on the machine (separate software not required)
- Automatic cut correction
- Intuitive interface
- 8 mm collet accepts any commonly available 8 mm shank router bits
- Input power 220-240 V,~ 50 Hz/60 Hz
- WiFi & USB connectivity, e.g. for software updates or transferring design files
- Touch screen: Capacitive multi-touch full-colour LCD
- Dust extraction port: Fits most standard 27 mm and 36 mm suction hoses (e.g. Festool)
- Brushed motor spindle, produced by Festool to Shaper specifications
- 720 Watt (AC), 10 000-26 000 rpm with load-compensating speed control
- Soft-start, over-temperature and over-load safety cut-offs
- Z-Axis travel length 43 mm
- Height 306 mm
- Depth 227 mm
- Width 339 mm
- Weight 6.75 kg

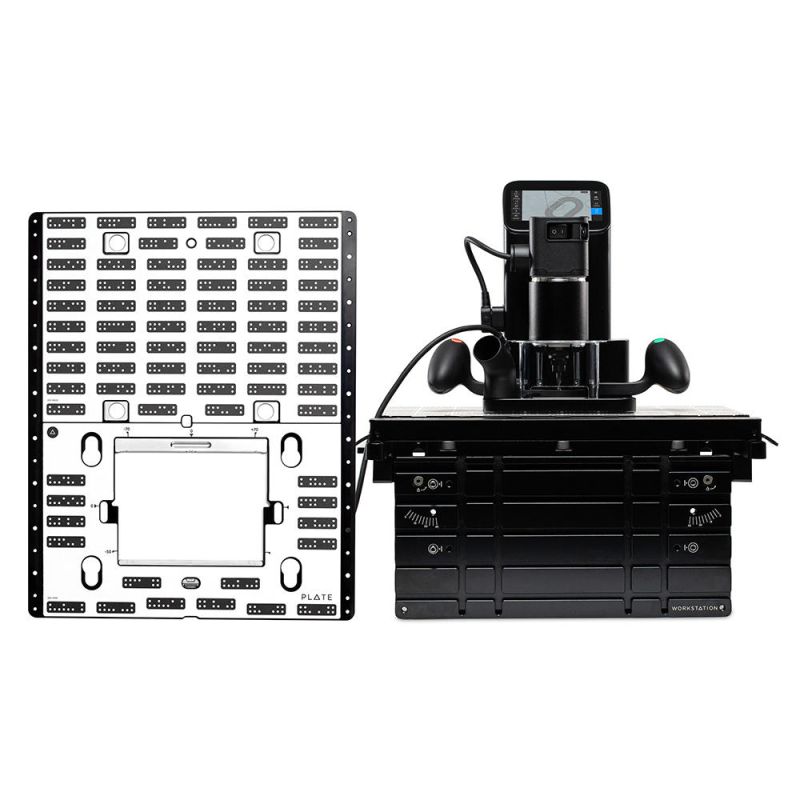

The set includes the Shaper Origin, the Shaper Workstation and the Shaper Plate

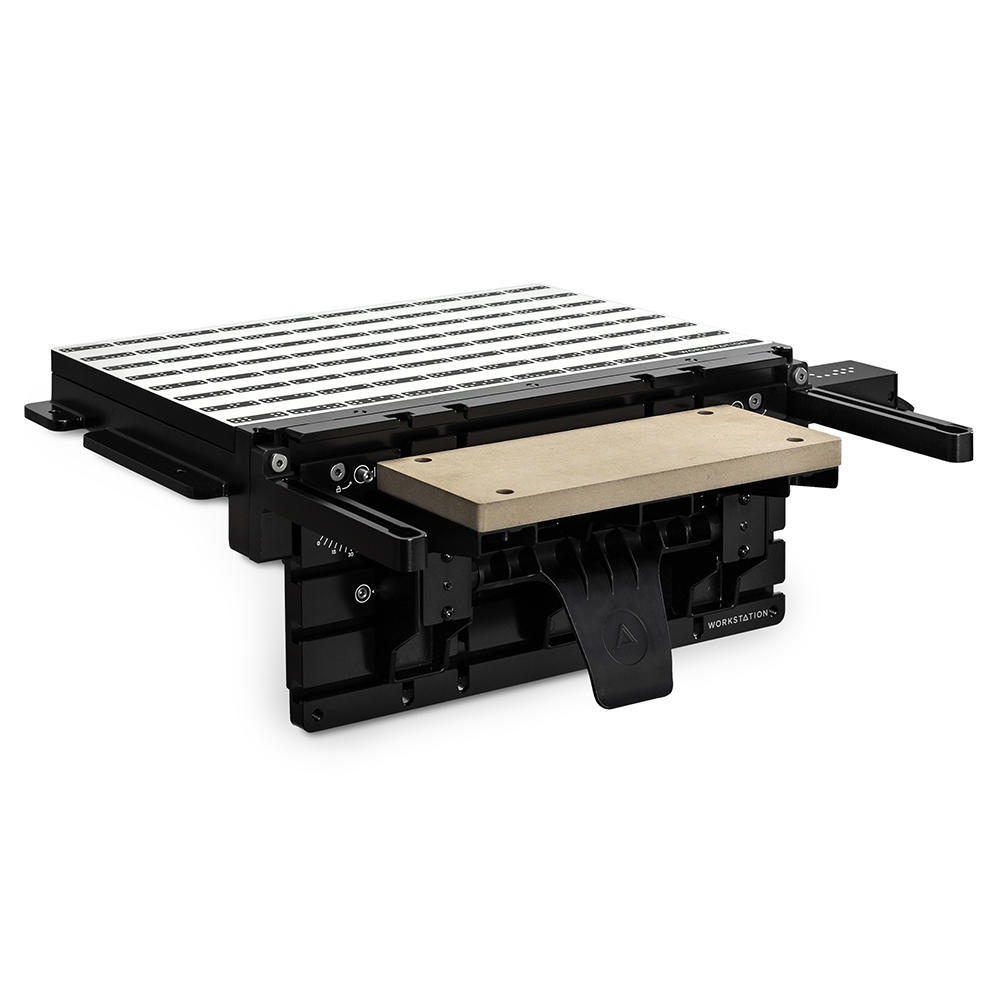

Shaper Workstation

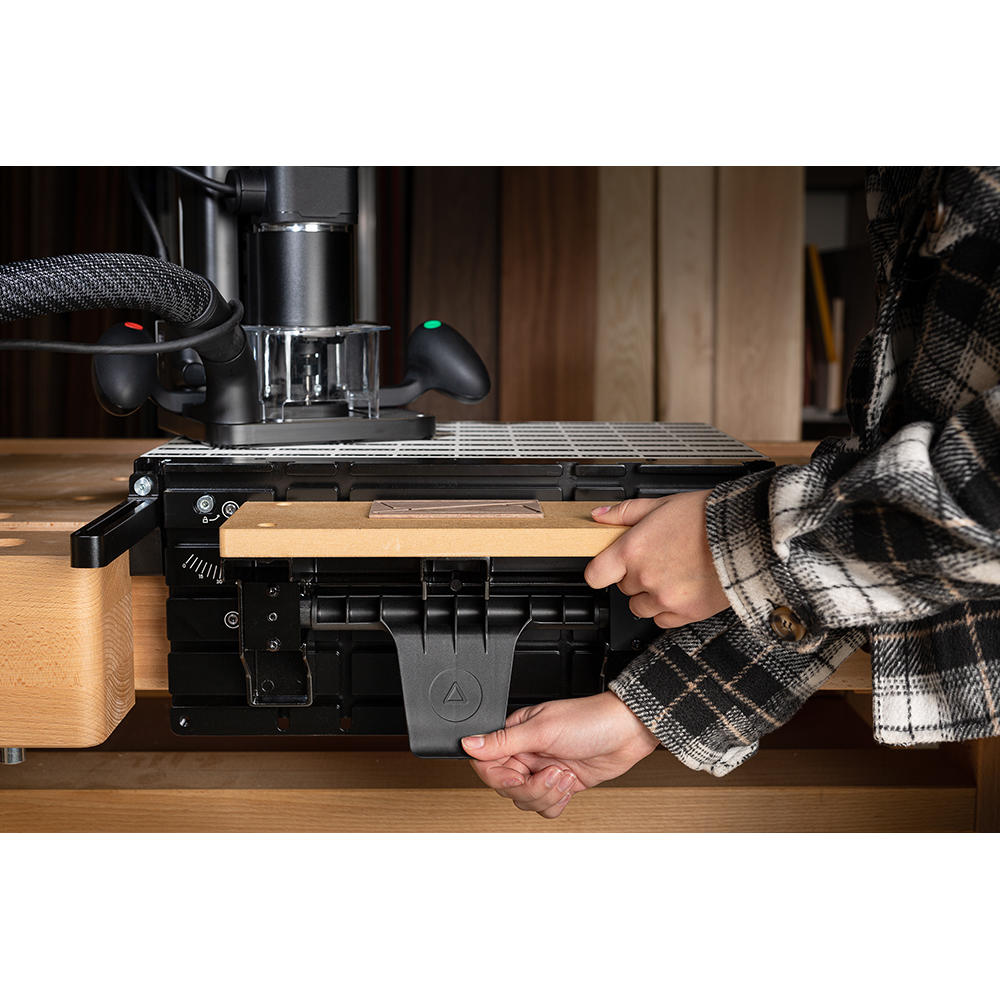

The efficient clamping device for Origin. Perfect for horizontal and vertical clamping of all workpieces. Align, fix and cut with repeatable accuracy. Workstation is a flexible and efficient clamping device, ideal for implementing even complex projects. Fix workpieces horizontally and vertically and create perfect box joints and other joints, or clamp even small workpieces for safe machining. With the workstation as a practical clamping device, even complex projects are quickly and easily implemented with the Origin. Thanks to various fixing options, workpieces can be clamped securely and flexibly - both horizontally and vertically. For example, perfect mortise and tenon or dovetail joints are cut without much effort, speeding up the work processes. With the workpiece shelf, even small and narrow workpieces can be securely fixed and machined. Simply attach the workstation to a workbench or use it as a mobile workstation. The workstation can be used wherever you want.
Shaper Plate

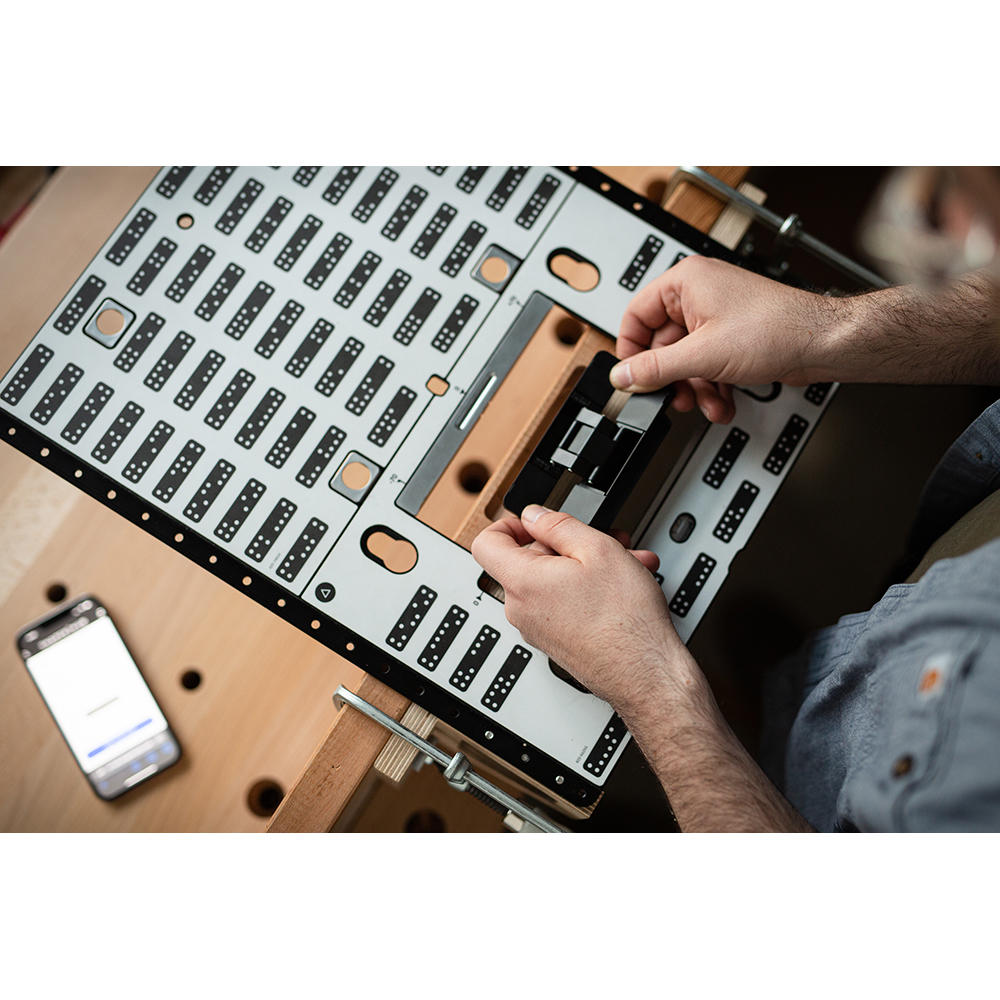

With Shaper Plate, you get a device for the whole range of tasks. Perfect for recessing various fittings, creating inlays, drilling rows of holes in the System 32, and more. Plate is perfectly compatible with the many digital hardware data from the ShaperHub hardware catalogue. Simply search for the desired fitting, synchronise with Origin, and start routing immediately.
Scope of delivery
- Shaper Origin
- Shaper Systainer³ T-Loc
- 2 rolls of ShaperTape (45 m each)
- Tool change accessories
- Reusable transport locks
- USB A/C dual flash drive
- 8 mm collet
- 3 mm up-spiral flat router bit, shank diameter 8 mm
- 6 mm up-spiral flat router bit, shank diameter 8 mm
- 60° engraving router bit, shank diameter 8 mm
- Shaper Workstation
- Shaper Plate with MINI-Systainer, two special clamps, System 32 pin and levelling feet
Properties
| Drehzahlbereiche: | 10 000-26 000 rpm |
|---|---|
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | CNC-Fräsen |
| Motor voltage: | 220-240 V~, 50 Hz/60 Hz |
| Power input: | 720 W |
| Power source: | Corded |
| Spindelhub: | 43 mm |
Properties
| Drehzahlbereiche: | 10 000-26 000 rpm |
|---|---|
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | CNC-Fräsen |
| Motor voltage: | 220-240 V~, 50 Hz/60 Hz |
| Power input: | 720 W |
| Power source: | Corded |
| Spindelhub: | 43 mm |
