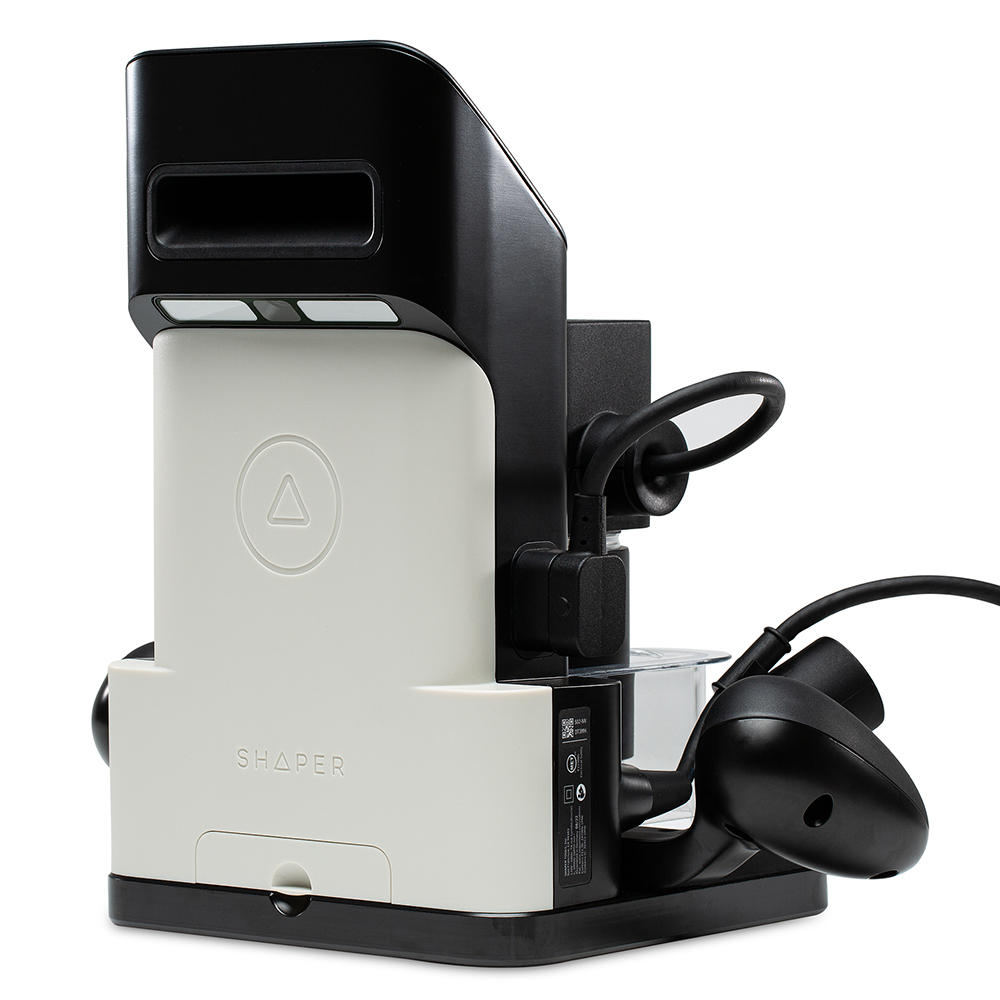

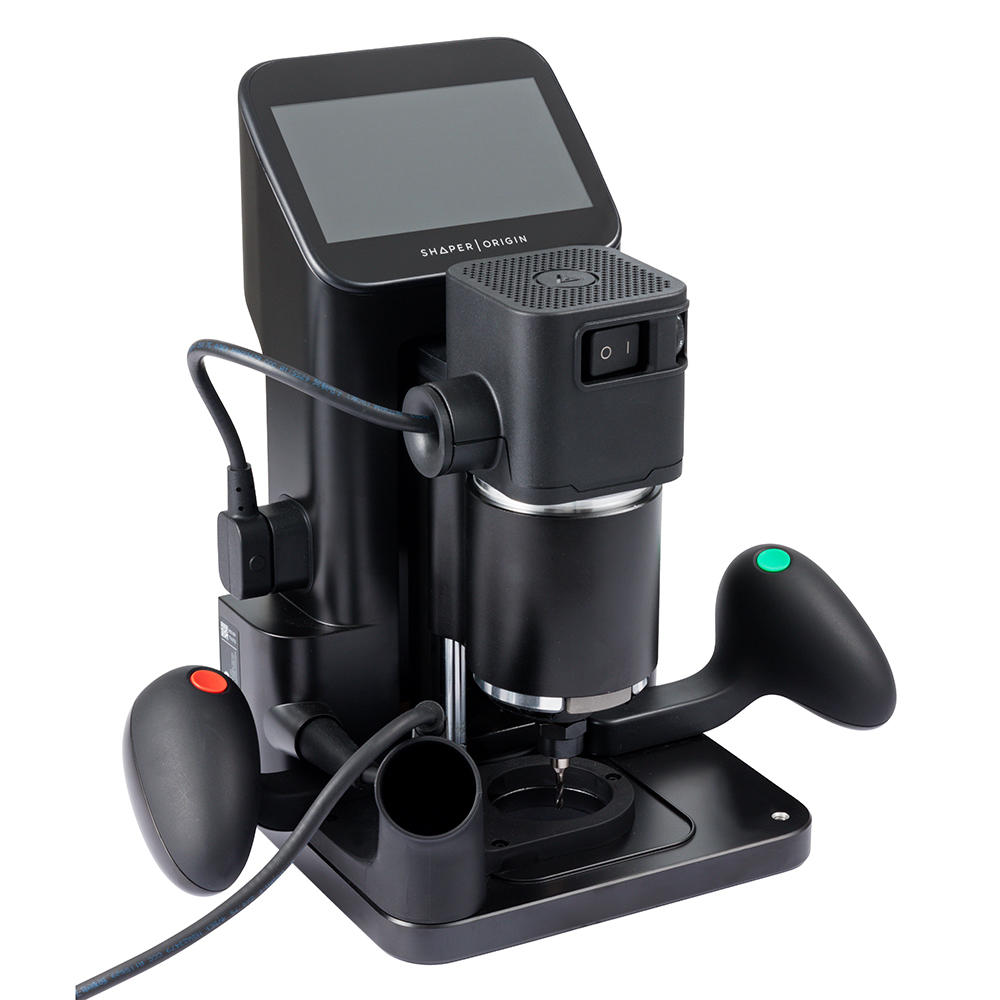

Shaper Origin incl. Shaper Plate
Product no.:
721426K
Brand:
Shaper Tools
Price advantage
€4,123.35 €3,465.00
per set
Delivery time 2-3 business days
- Drehzahlbereiche 10 000-26 000 rpm
- Machine/Accessory Machines
- Machine type CNC Router
- Motor voltage 220-240 V~, 50 Hz/60 Hz
- Power input 720 W
Description

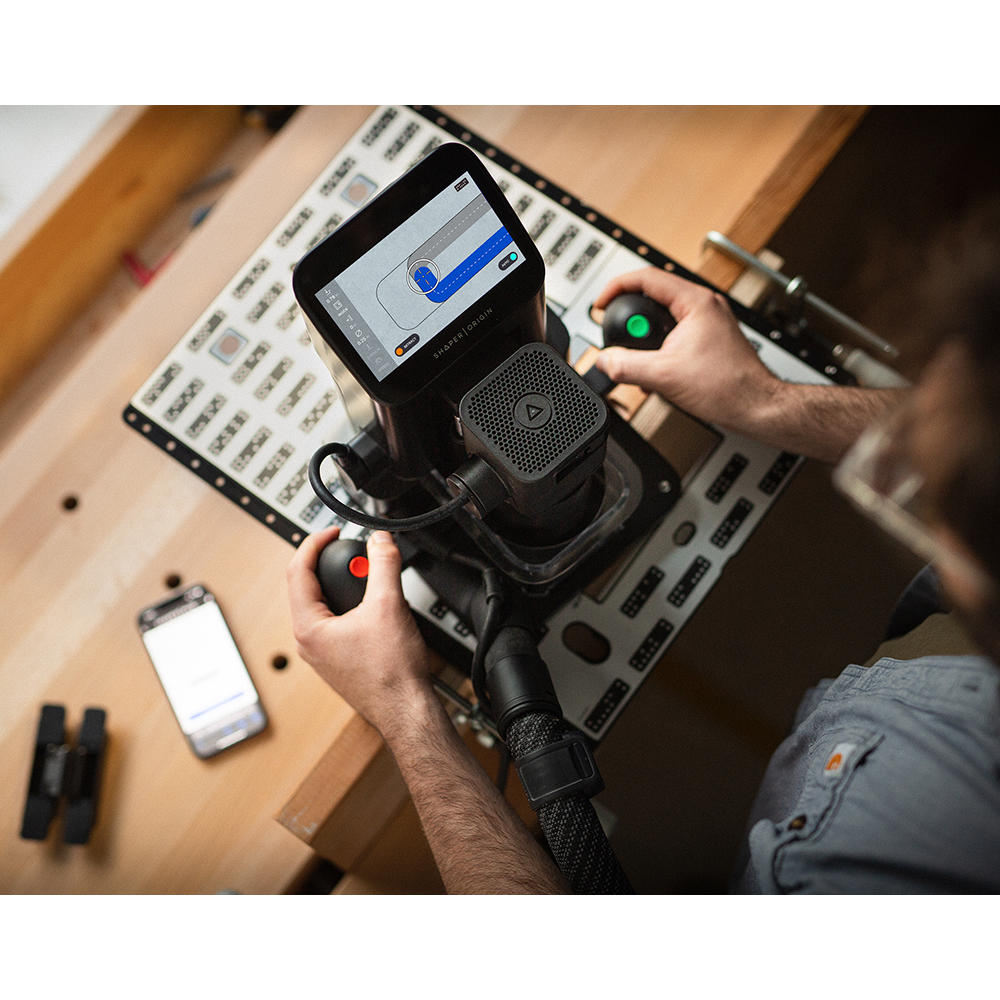

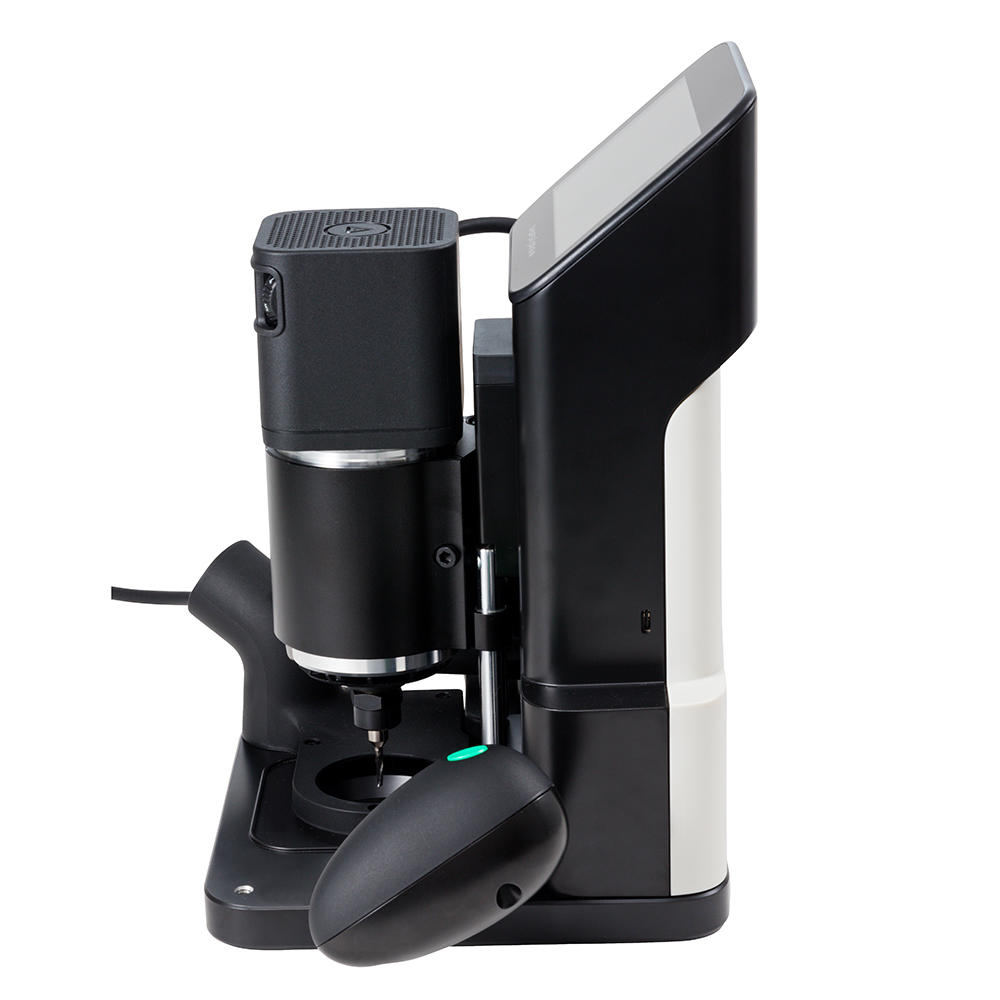

Handheld CNC router. Work hands on with unparalleled accuracy, flexibility and efficiency.
Shaper Origin combines robotic precision with the simplicity of a hand tool to create a first-of-its-kind machine: a handheld CNC router. With its intuitive interface, automatic cut correction and on-tool design, Origin brings digital precision, flexibility and efficiency to the craft of woodworking. Create and edit your projects directly via the touch screen on the machine or import designs and drawings from your CAD and drawing software. Use Origin flexibly wherever it is needed, whether on the construction site or in the workshop. Whether it is for recessing inlays and fittings or precision-fit joints, the Shaper Origin guarantees versatile, creative and professional applications.
Your benefits:
Your benefits:
- Precise joinery: Combine Origin with the Shaper Workstation to cut mortise and tenons, box joints, and other custom joinery with ease and precision.
- Unmatched portability: Bring Origin to the construction site and work at any scale. Install virtually any hardware or inlay, and mill pockets with minimal setup and maximum repeatability.
- Easy hardware installation: Cut perfect features for any piece of hardware. Browse the ShaperHub’s Hardware Catalogue for over a hundred tested and verified free hardware templates from top manufacturers.
- Digital precision: Origin uses ShaperTape to digitally augment your workspace and to track its position while you are working.
- No CAD experience required: Easily create or import designs; no programming required. Switch the milling spindle on and get cutting. Make changes on the fly to adjust for a real-world fit.
- Purpose-built for craftspeople and focused on the features that matter to you most
- Work on site on workpieces of almost any size
- Digitally adjustable for the most precise milling results, completely without guides or templates
- Design and route perfect contours, joints and engravings
- No CAD experience required
- On-Tool design directly on the machine (separate software not required)
- Automatic cut correction
- Intuitive interface
- 8 mm collet accepts any commonly available 8 mm shank router bits
- Input power 220-240 V,~ 50 Hz/60 Hz
- WiFi & USB connectivity, e.g. for software updates or transferring design files
- Touch screen: Capacitive multi-touch full-colour LCD
- Dust extraction port: Fits most standard 27 mm and 36 mm suction hoses (e.g. Festool)

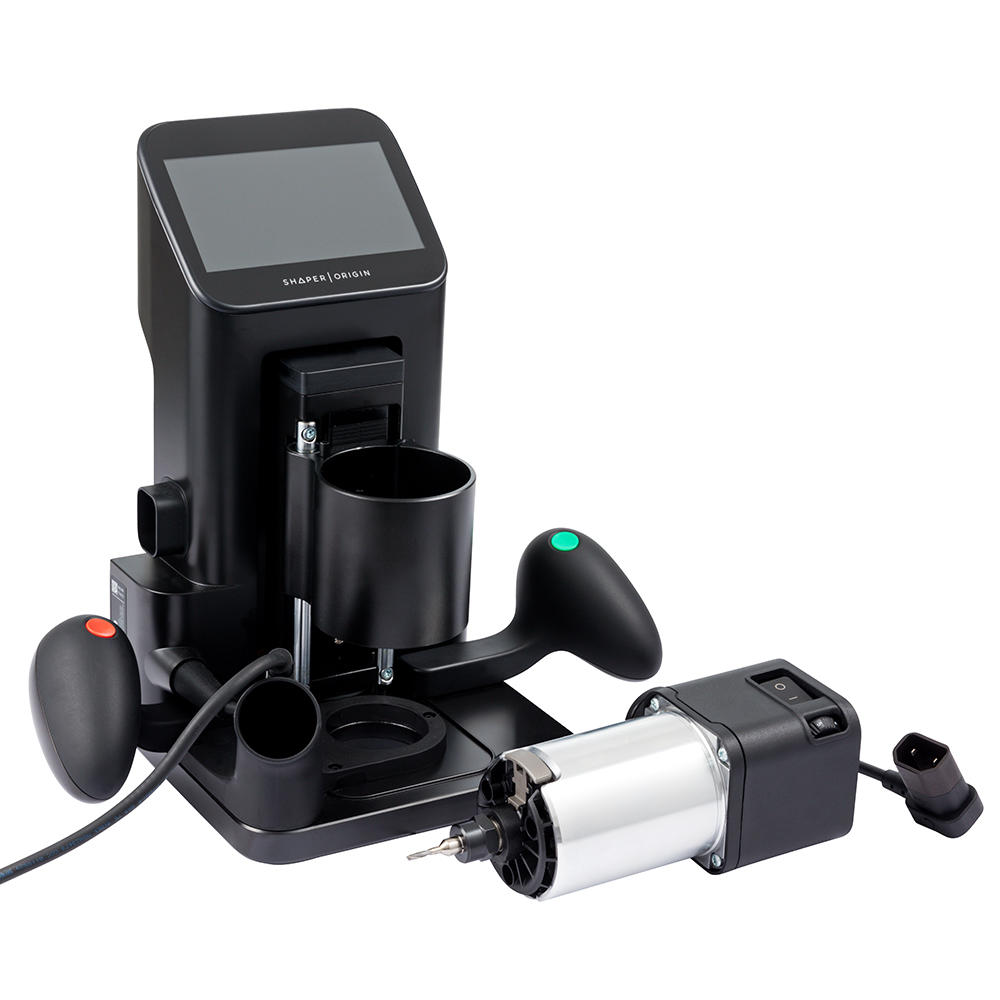

- Brushed motor spindle, produced by Festool to Shaper specifications
- 720 Watt (AC), 10 000-26 000 rpm with load-compensating speed control
- Soft-start, over-temperature and over-load safety cut-offs
- Z-Axis travel length 43 mm
- Height 306 mm
- Depth 227 mm
- Width 339 mm
- Weight 6.75 kg

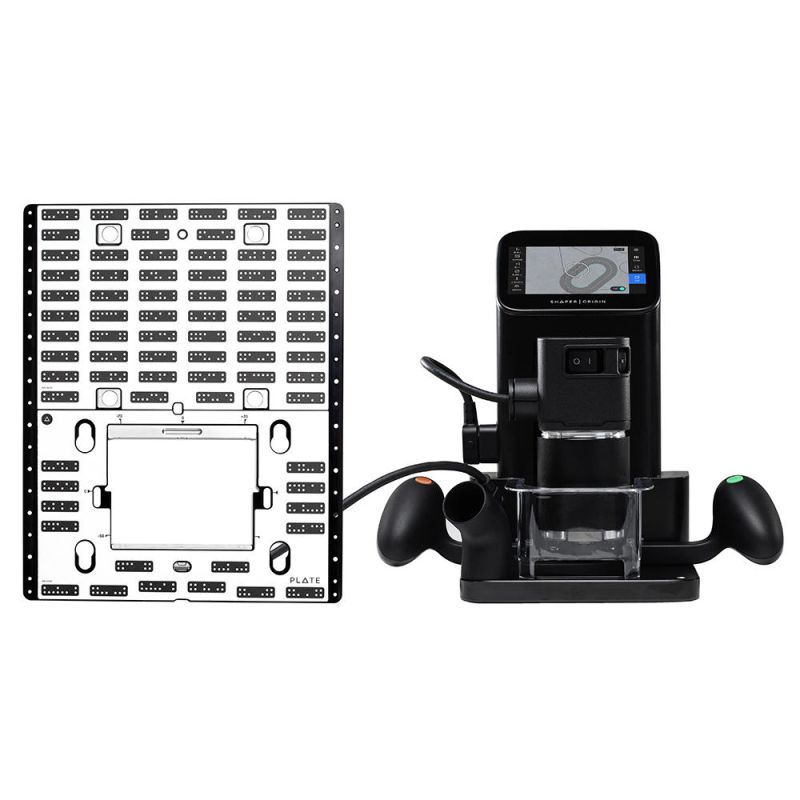

The set includes the Shaper Origin and the Shaper Plate

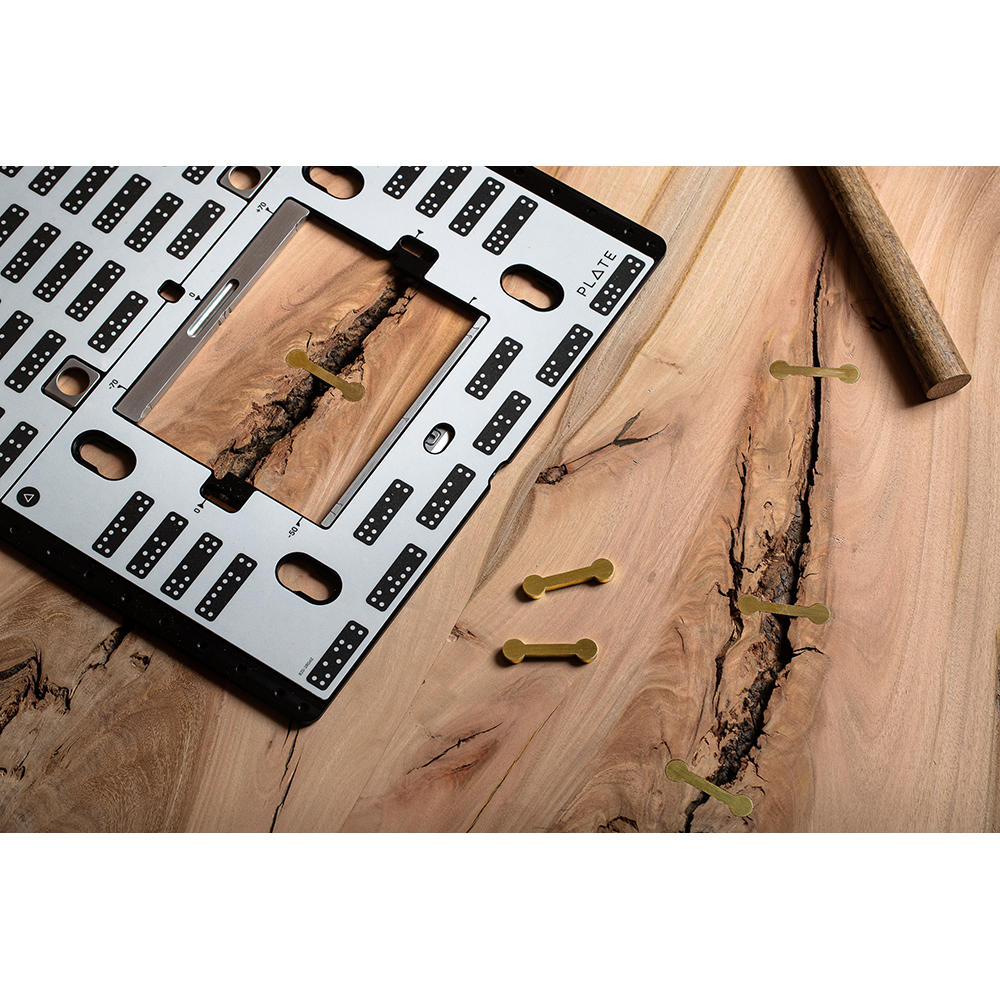

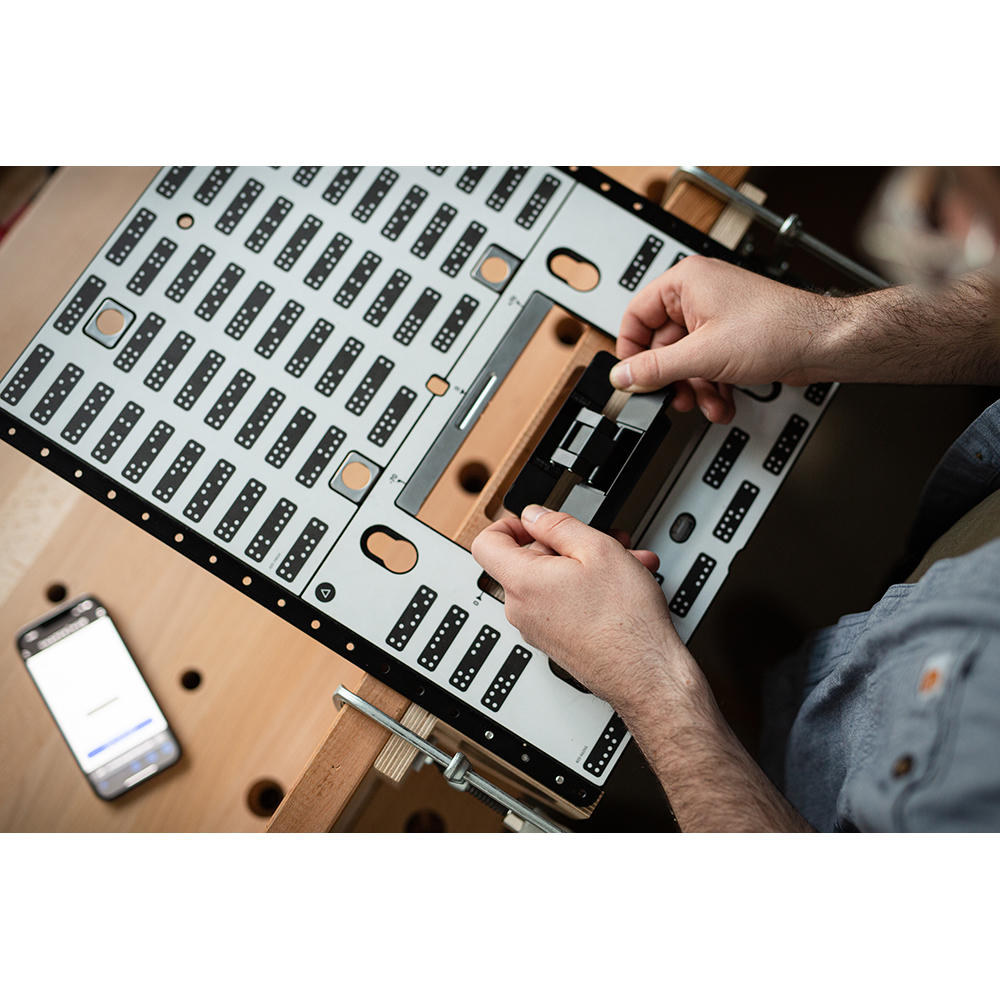

The Shaper Plate is a universal template designed to fit a wide range of hardware, inlays, round corners, route system 32 holes and so much more. Align Plate to your workpiece and let Origin do the rest. Utilise hundreds of digital templates available on ShaperHub.
Features:
- Robust ShaperTape surface
- Various fences and crosshairs for aligning
- Reverse is covered in an anti-slip mat
- Perfectly combinable with the ShaperHub hardware catalogue
- For hardware installation, repair works and inlays
- Precise and repeatable routing
Scope of delivery
- Shaper Origin

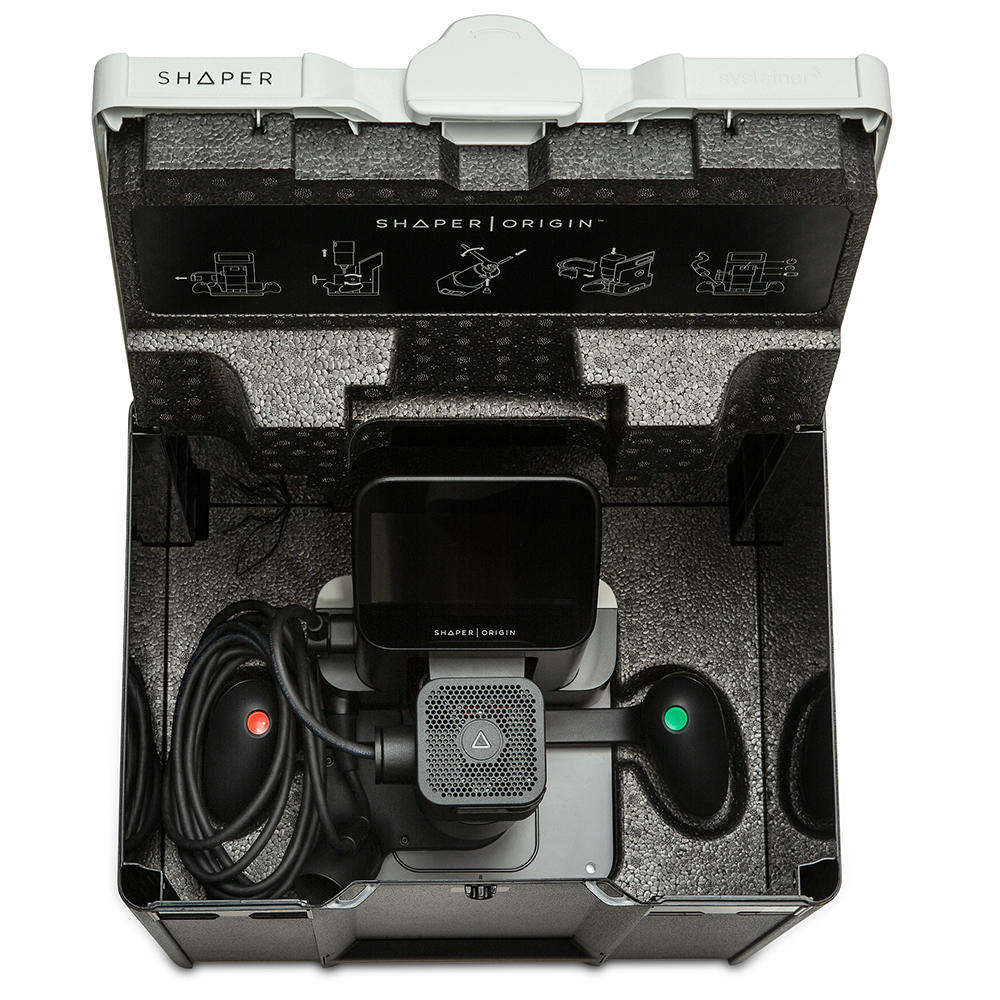

- Shaper Systainer³ T-Loc
- 2 rolls of ShaperTape (45 m each)
- Tool change accessories
- Reusable transport locks
- USB A/C dual flash drive
- 8 mm collet
- 3 mm up-spiral flat router bit, shank diameter 8 mm
- 6 mm up-spiral flat router bit, shank diameter 8 mm
- 60° engraving router bit, shank diameter 8 mm

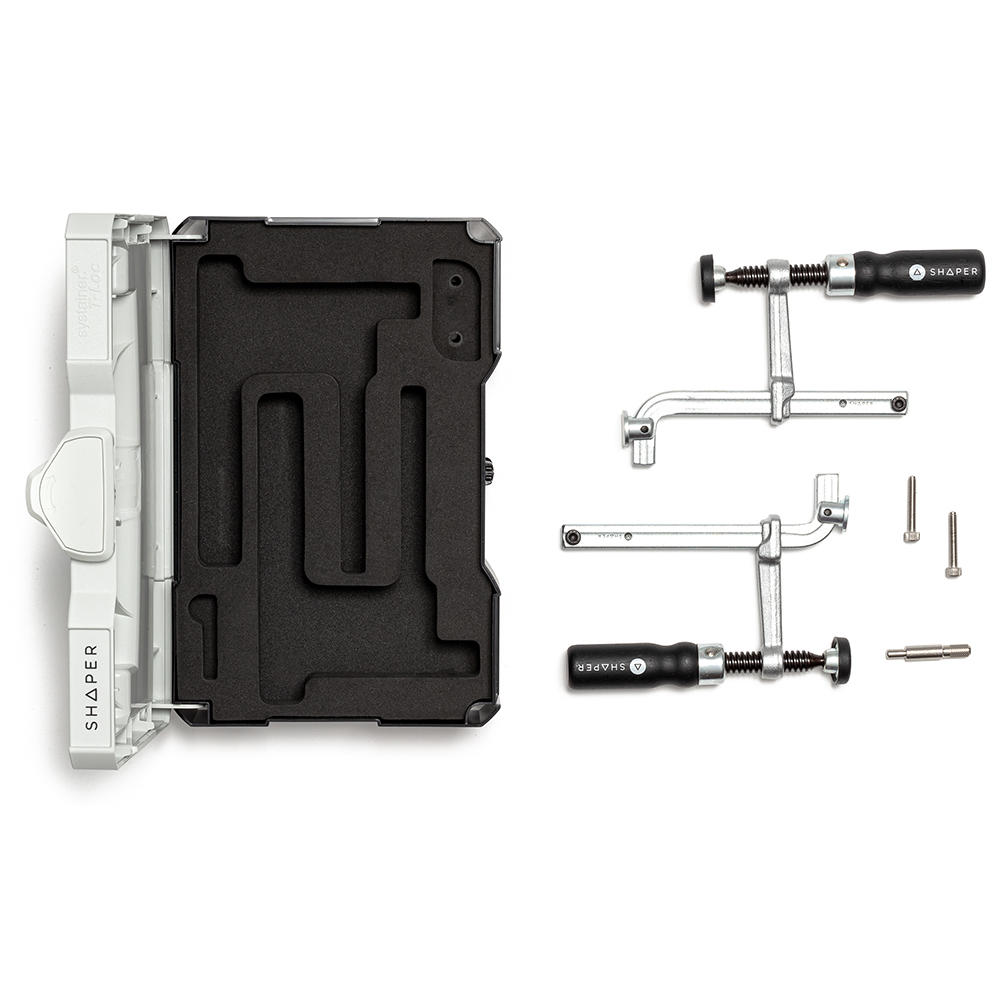

- Shaper Plate with MINI-Systainer, two special clamps, System 32 pin and levelling feet
Properties
| Drehzahlbereiche: | 10 000-26 000 rpm |
|---|---|
| Machine/Accessory: | Machines |
| Machine type: | CNC Router |
| Motor voltage: | 220-240 V~, 50 Hz/60 Hz |
| Power input: | 720 W |
| Power source: | Corded |
| Spindelhub: | 43 mm |
Properties
| Drehzahlbereiche: | 10 000-26 000 rpm |
|---|---|
| Machine/Accessory: | Machines |
| Machine type: | CNC Router |
| Motor voltage: | 220-240 V~, 50 Hz/60 Hz |
| Power input: | 720 W |
| Power source: | Corded |
| Spindelhub: | 43 mm |
Manufacturer
Shaper Tools
Headquartered in San Francisco, Shaper was founded in 2012 with the goal of developing a revolutionary line of computer-assisted power tools that began with a handheld CNC router called Origin.
| Name: | Shaper Tools |
|---|---|
| Mailing address: | Dieselstraße 26 70771 Leinfelden-Echterdingen Deutschland |
| Homepage: | https://www.shapertools.com |
| Email address: | julian@shapertools.com |
