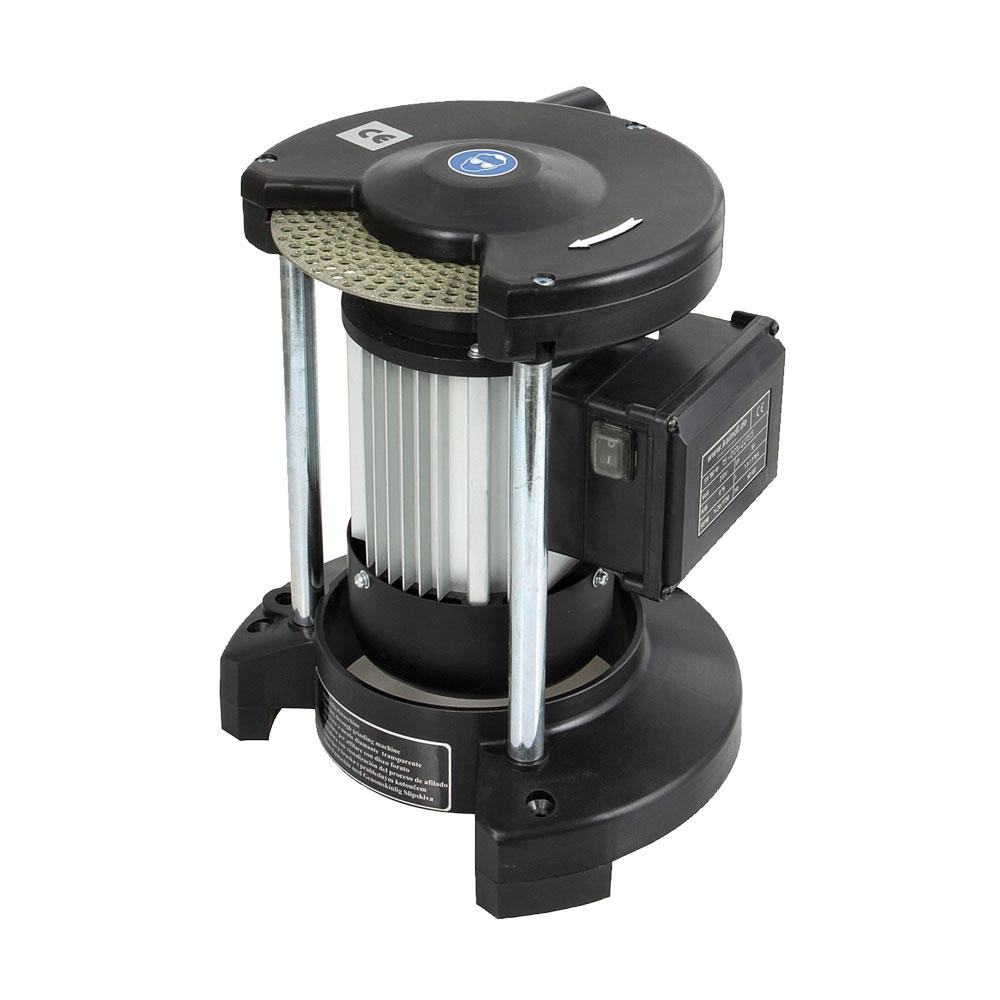

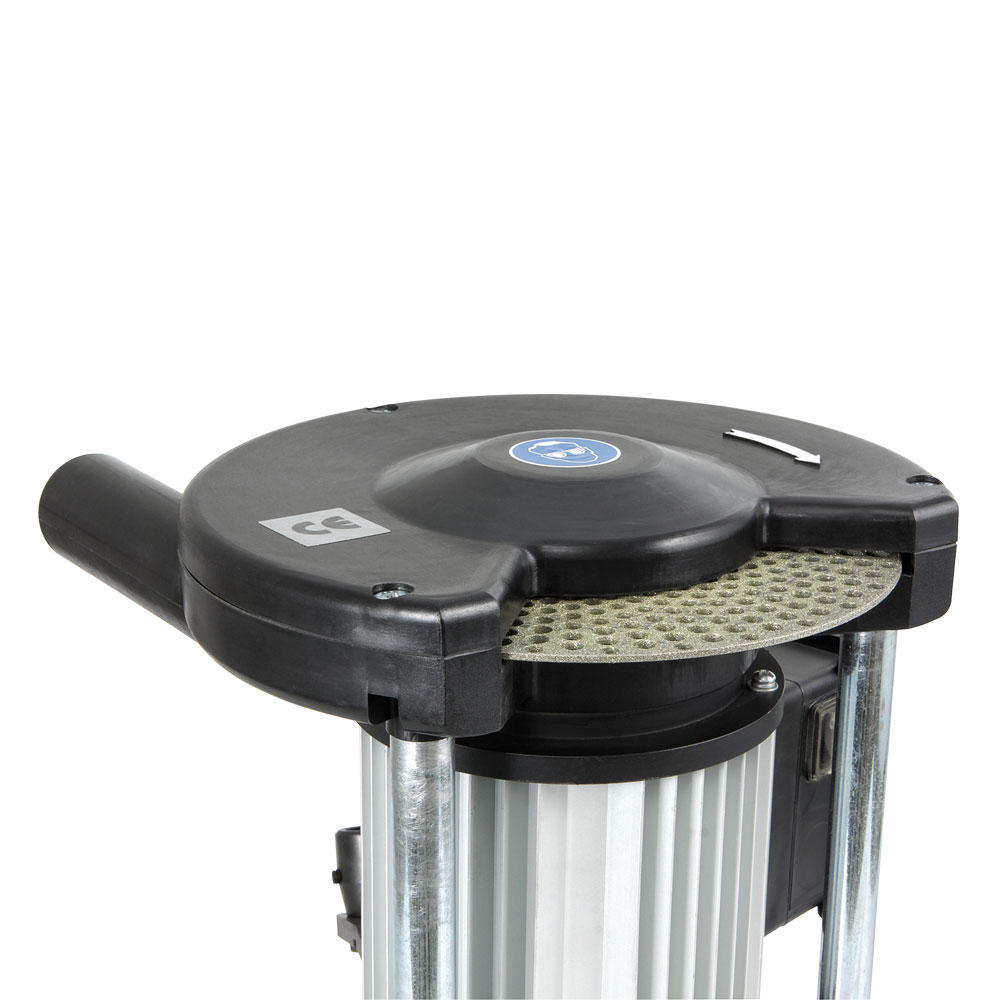

See-through Grinding Machine
Product no.:
706956
Brand:
Sonstige
€869.00 €730.25
per piece(s)
In stock, delivery time approx. 2-3 working days
- Disc diameter 180 mm
- Exhaust Nozzle Ø 28/35 mm
- Motor 230 V / 50 Hz
- No Load Speed 1420 rpm
- Power input 150 W
Description

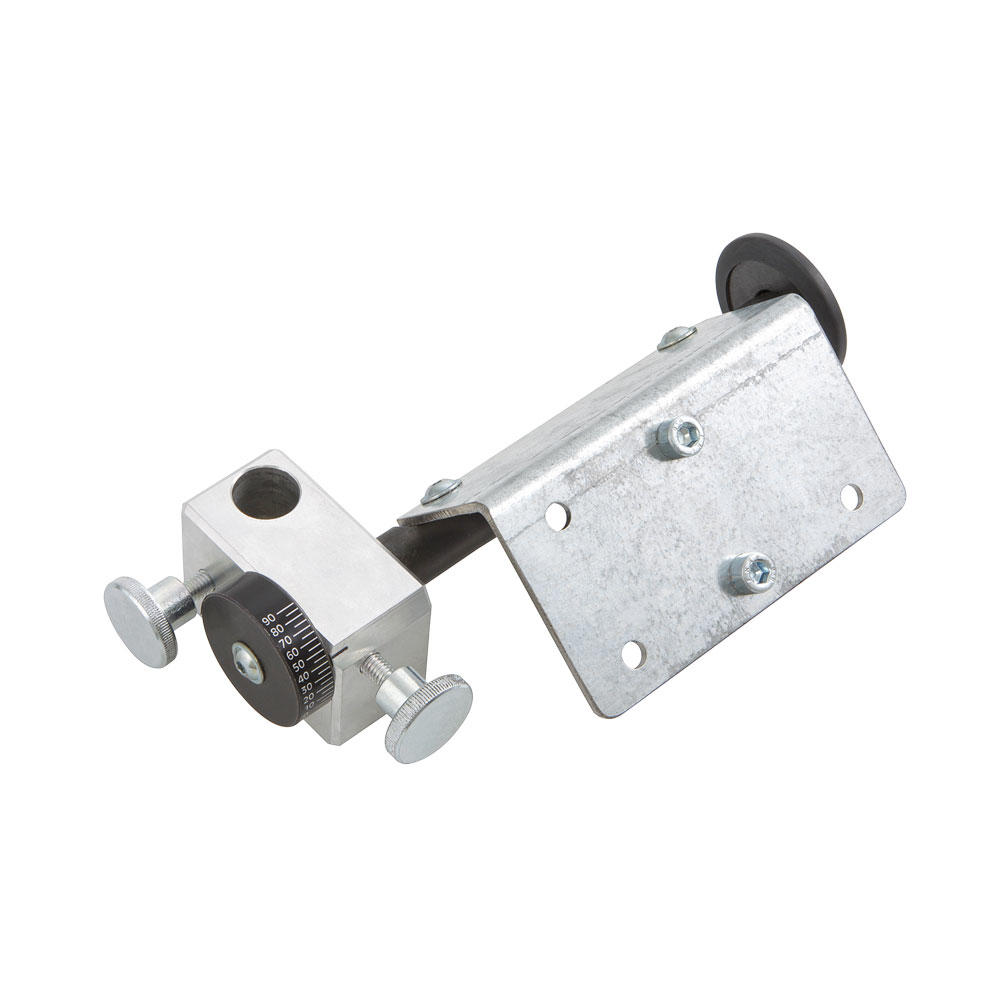

Optional accessory: grinding rest with angle adjustment No. 706958 and precision optics with LED light No. 706957.

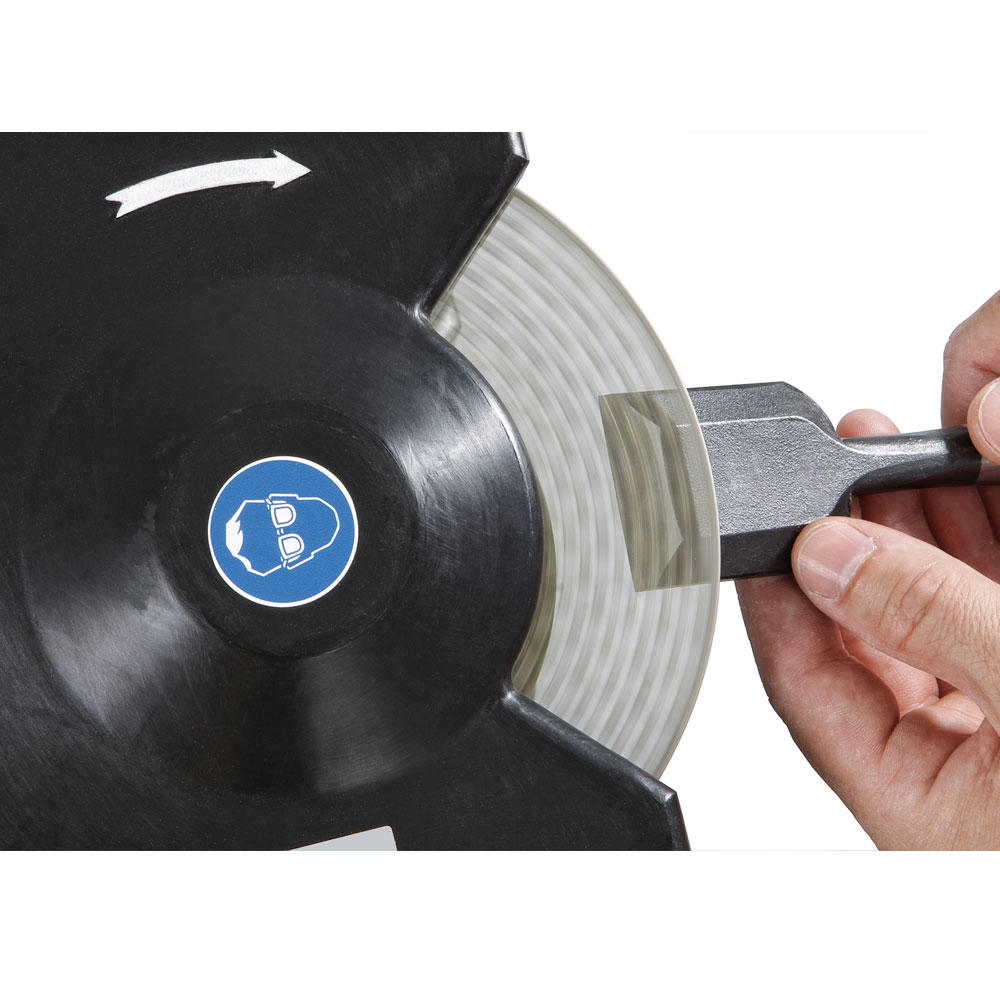

The rapid rotation speed and perforated grinding surface make it possible to look through the diamond wheel. This provides a perfect view of the grinding process. You can see the bevel directly - which is not possible with conventional sharpening processes - and quickly and easily make corrections on sight. Materials such as carbide, Widia, HSS, chrome-vanadium steel, stone and ceramic can all be processed without changing the grinding wheel.
Advantages:
Advantages:

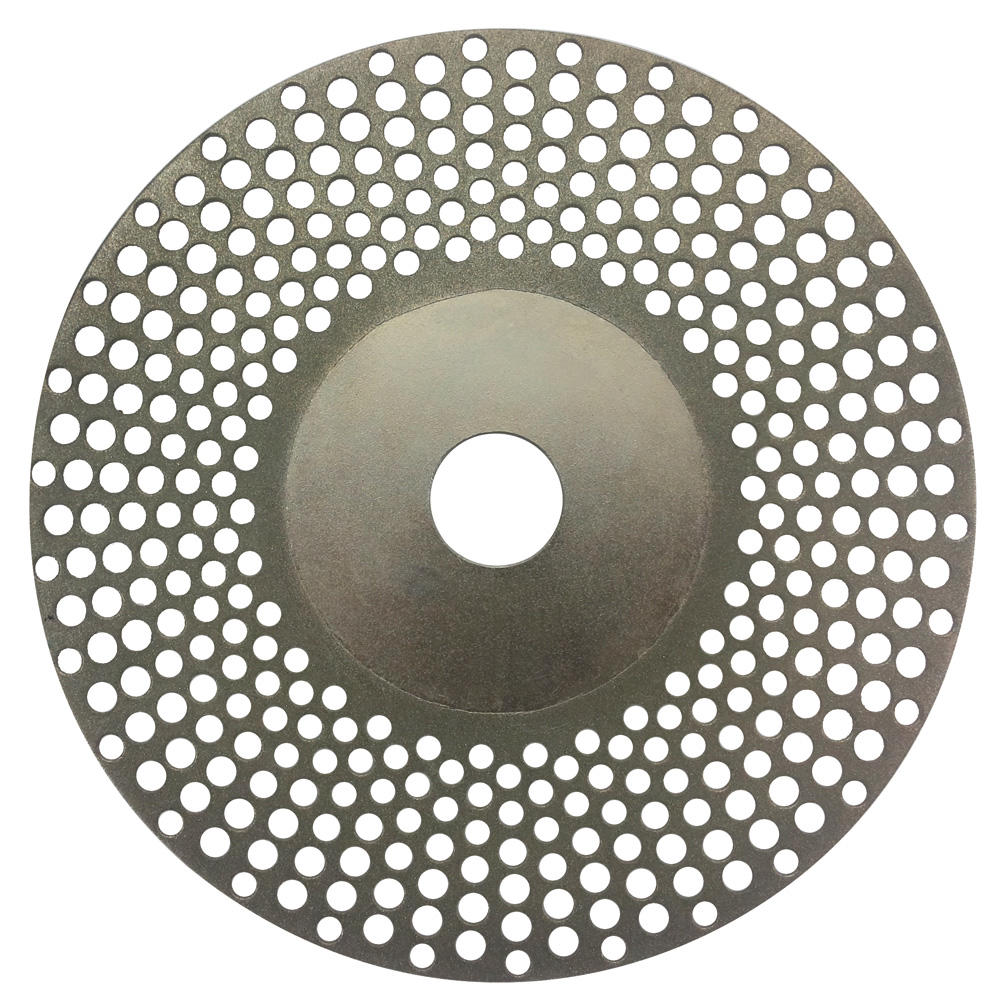

- 3-sided coated diamond see-through grinding wheel, Ø 180 mm, grit D126 (standard) matches conventional grit 120-140
- Perforated grinding surface becomes transparent when it rotates, allowing increased control of the tool
- Perforation keeps it cool longer and prevents the cutting edge from overheating
- High-quality diamond coating (synthetic diamond) guarantees long service life
- Narrow grinding wheel: 2.3 mm
- Connection for dust extractor: Ø 28 / 35 mm
Scope of delivery
- Disc cleaner
- Operating tools
- Comes with German and English instructions
Properties
| Disc diameter: | 180 mm |
|---|---|
| Exhaust Nozzle Ø: | 28/35 mm |
| Motor: | 230 V / 50 Hz |
| No Load Speed: | 1420 rpm |
| Power input: | 150 W |
| Type: | Dry-grinding machine |
Properties
| Disc diameter: | 180 mm |
|---|---|
| Exhaust Nozzle Ø: | 28/35 mm |
| Motor: | 230 V / 50 Hz |
| No Load Speed: | 1420 rpm |
| Power input: | 150 W |
| Type: | Dry-grinding machine |
