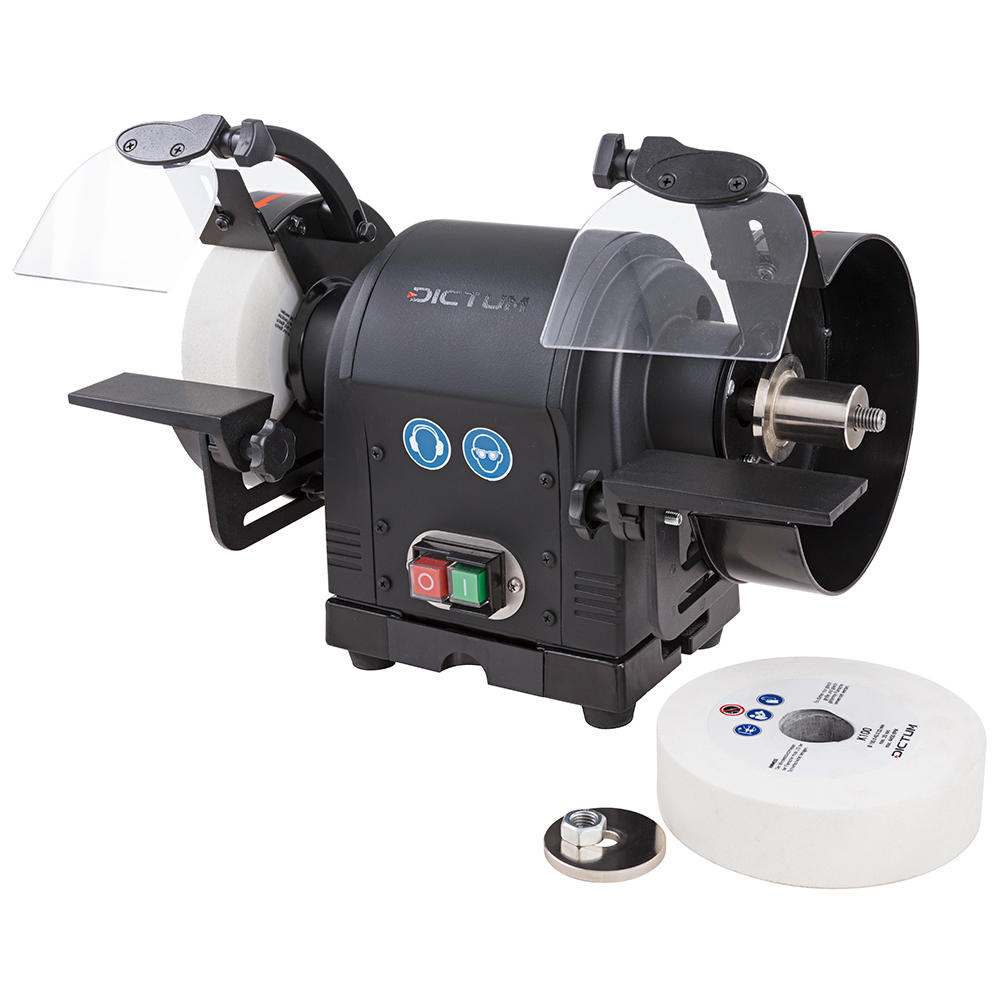

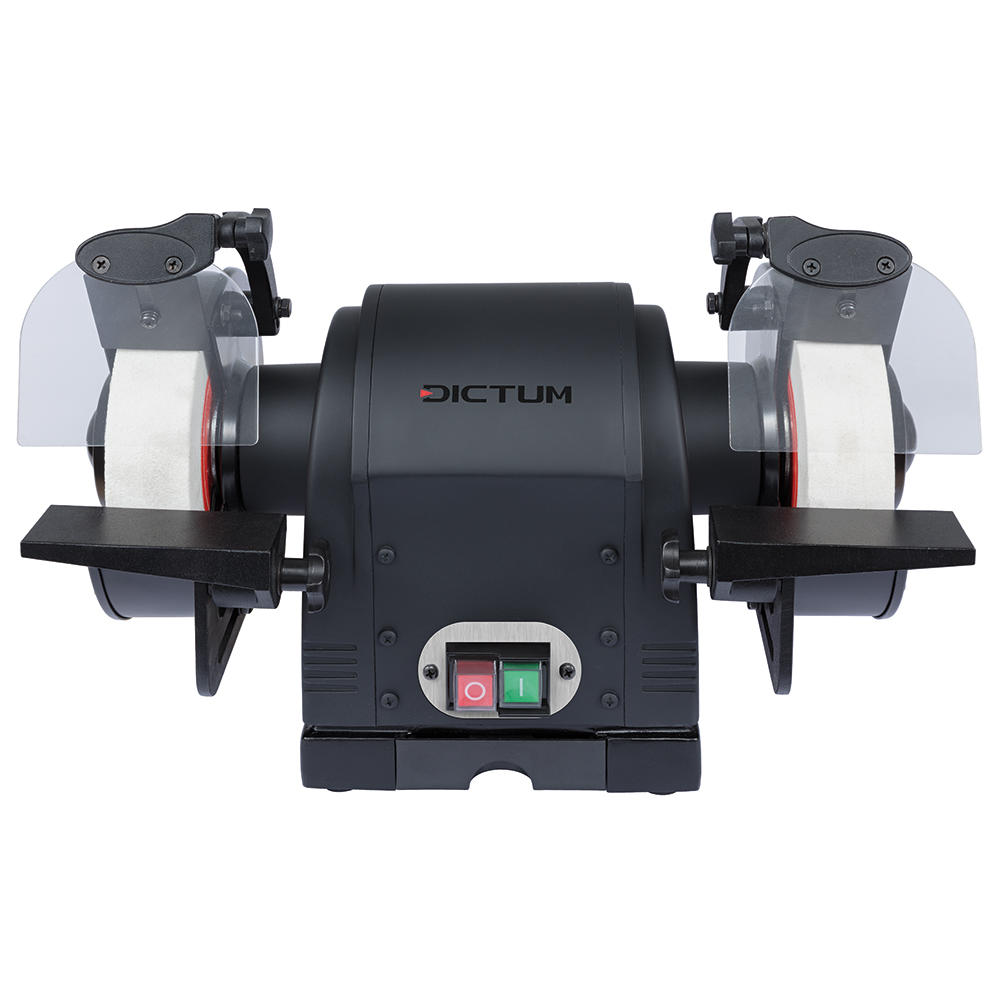

DICTUM® Low-speed Grinder DS 150 L
Product no.:
720782
Brand:
DICTUM
€235.00 €197.48
per piece(s)
Product early February 2026 Available
- Center hole 12.7/32 mm
- Dimensions 420 x 260 x 185 mm
- Disc diameter 150 mm
- Motor 230 V
- No Load Speed 1450 rpm
Description
- Low-speed grinder: due to a speed of 1450 rpm, the risk of overheating is significantly reduced; conventional double-wheeled grinders usually operate with 3000 rpm
- Wheel width 40 mm, an unbeatable advantage, especially when sharpening larger turning gouges with a rounded cross-section or grinding plane blades
- Machine housing, base, brackets and tool rests made of robust steel and die-cast aluminium

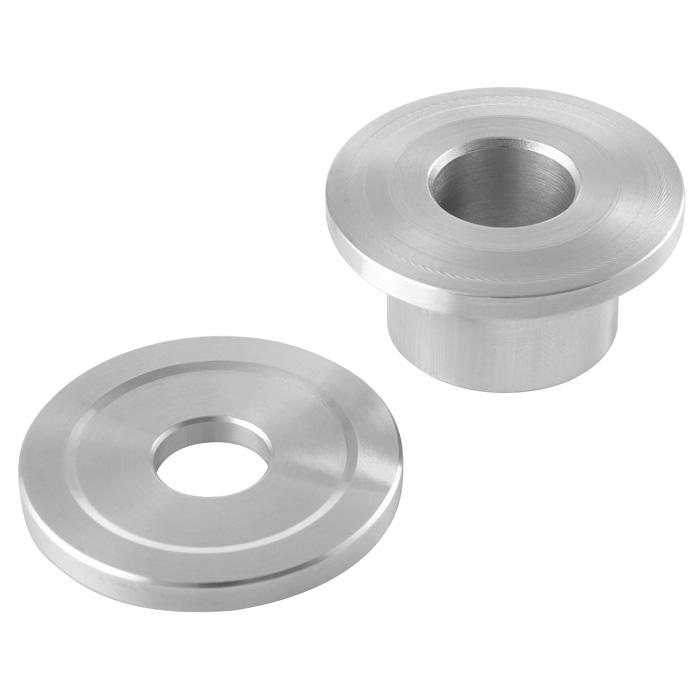

- Balanced shaft and special flanges for exemplary running smoothness and long life
- Low vibration/low noise

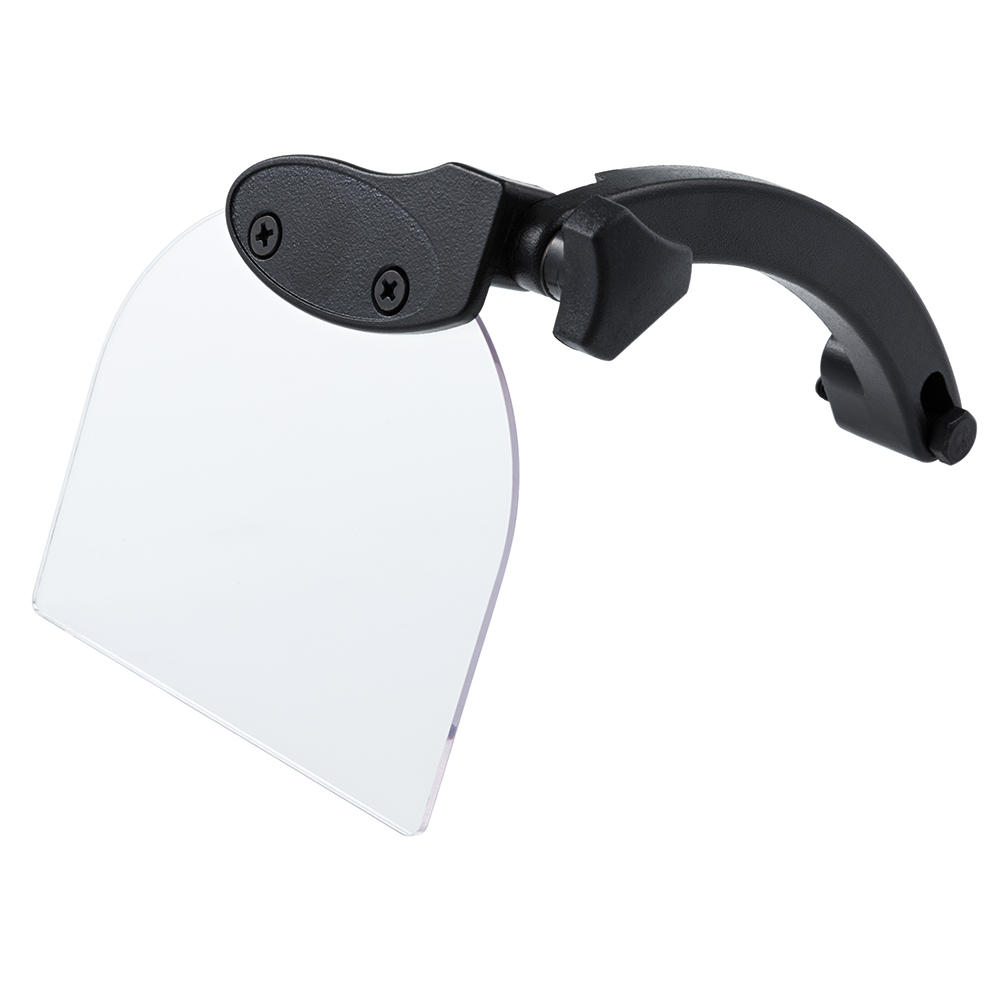

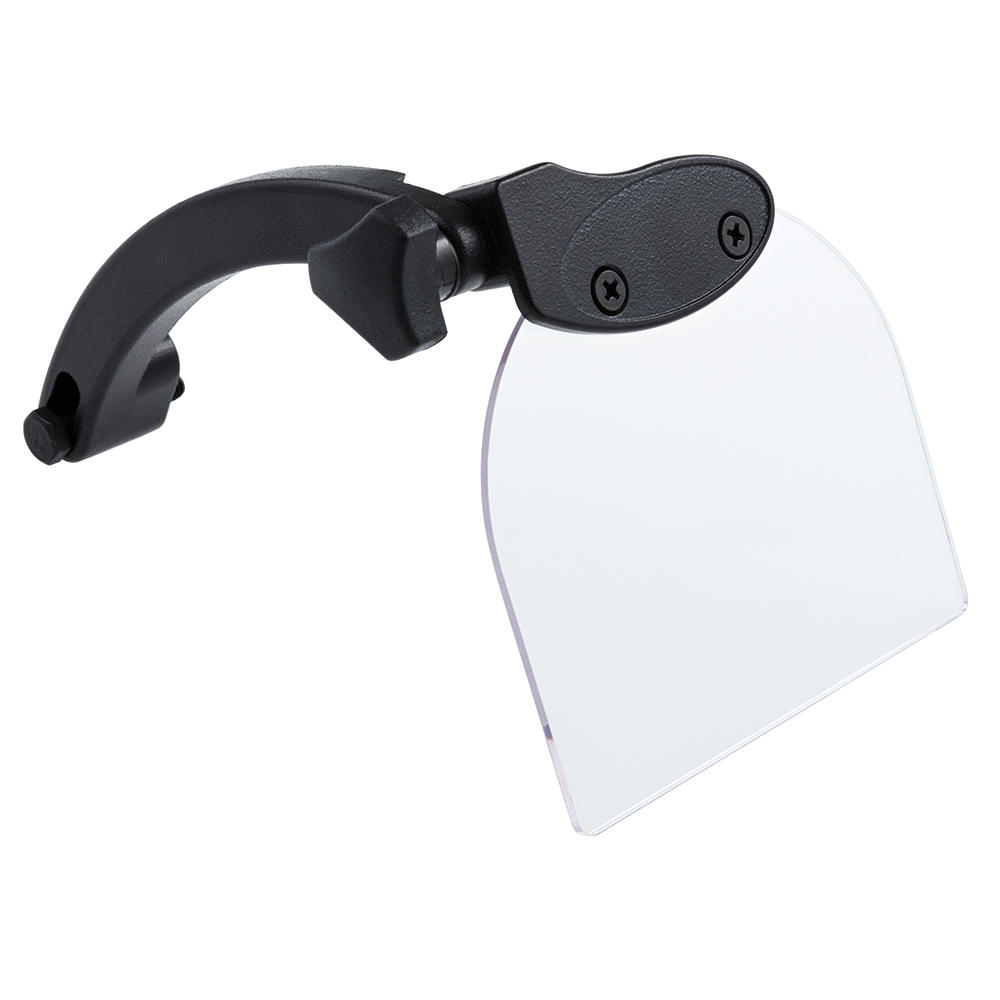

- Easily adjustable, solid spark protection and protective screens

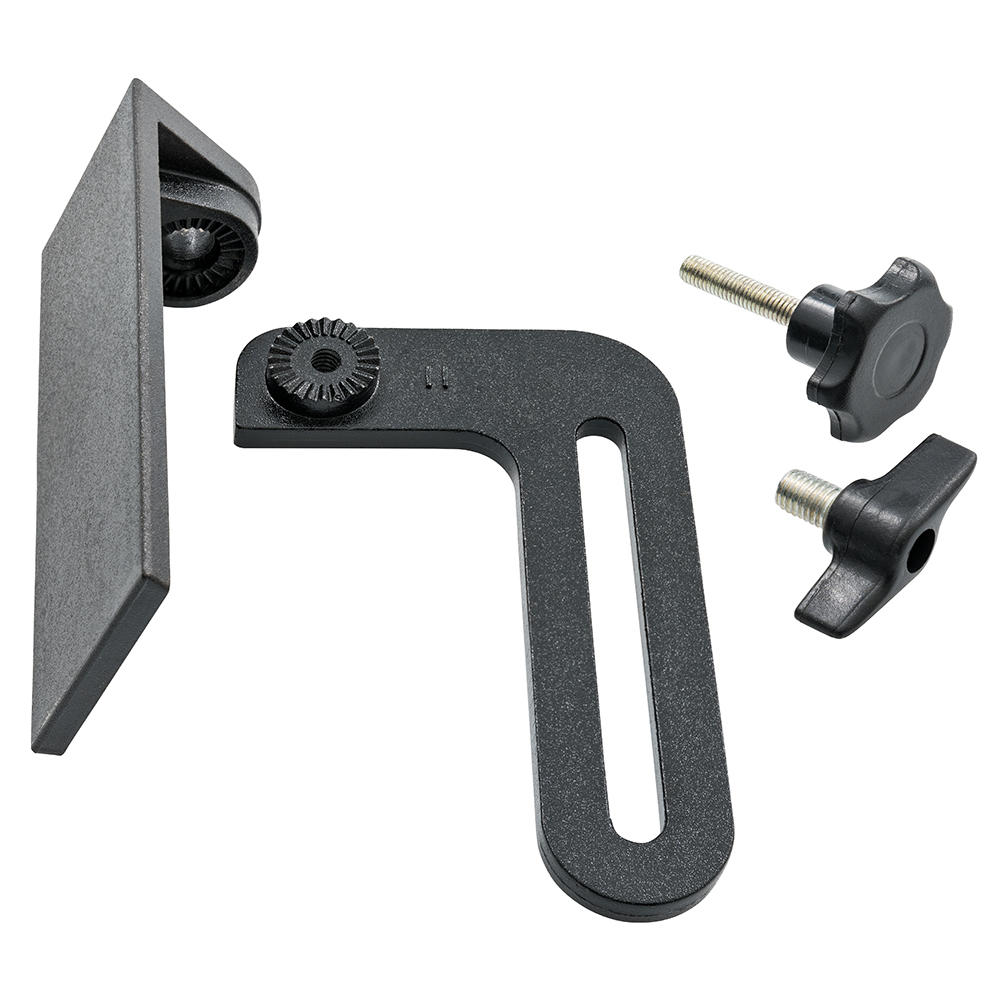

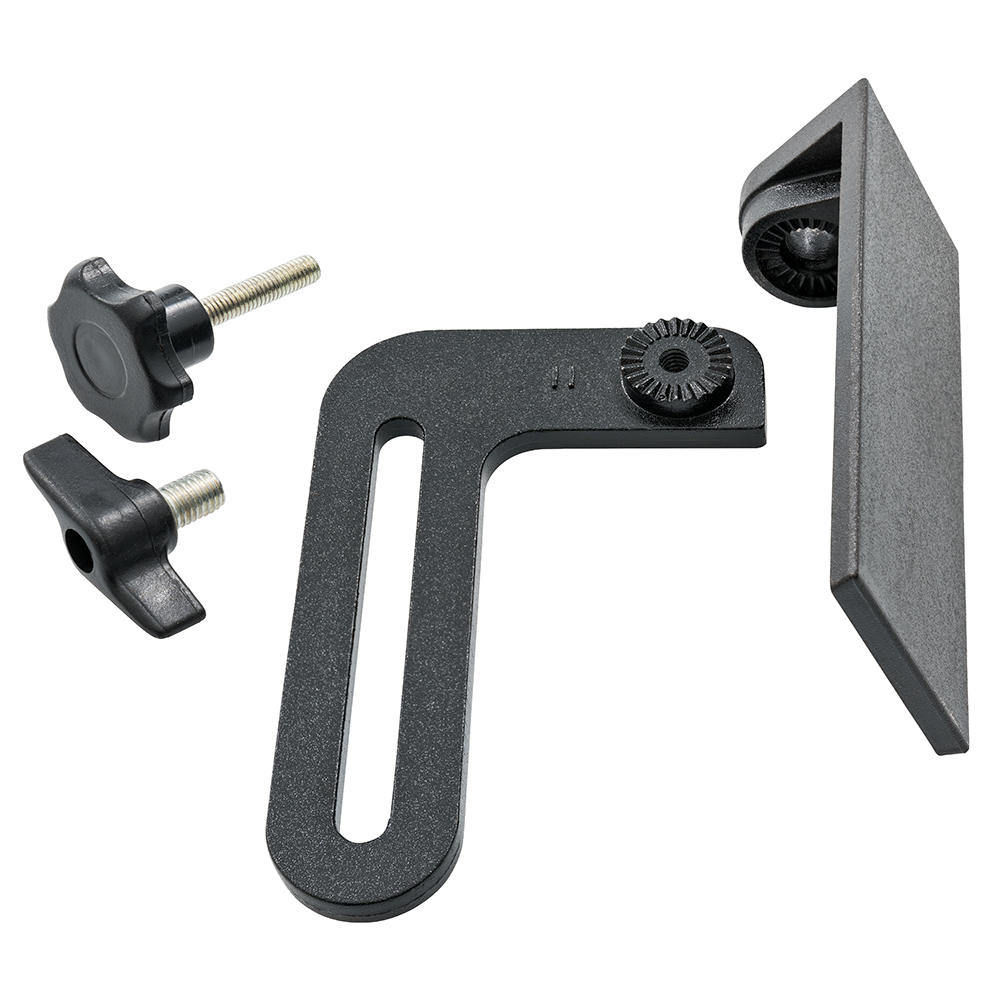

- Solid swivel tool rests made of die-cast aluminium
- Cast iron base with openings for workbench mounting
The DS 150 L is specially designed to meet tool sharpening needs.
Scope of delivery

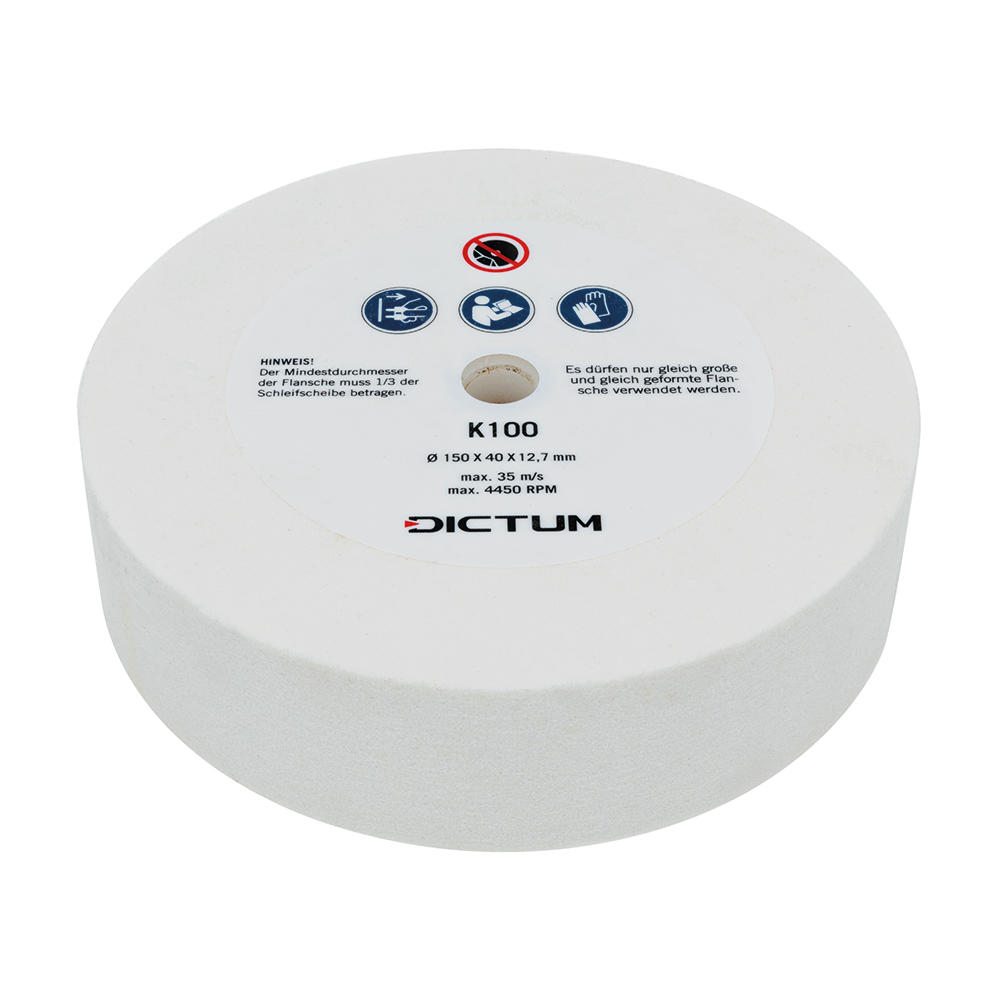

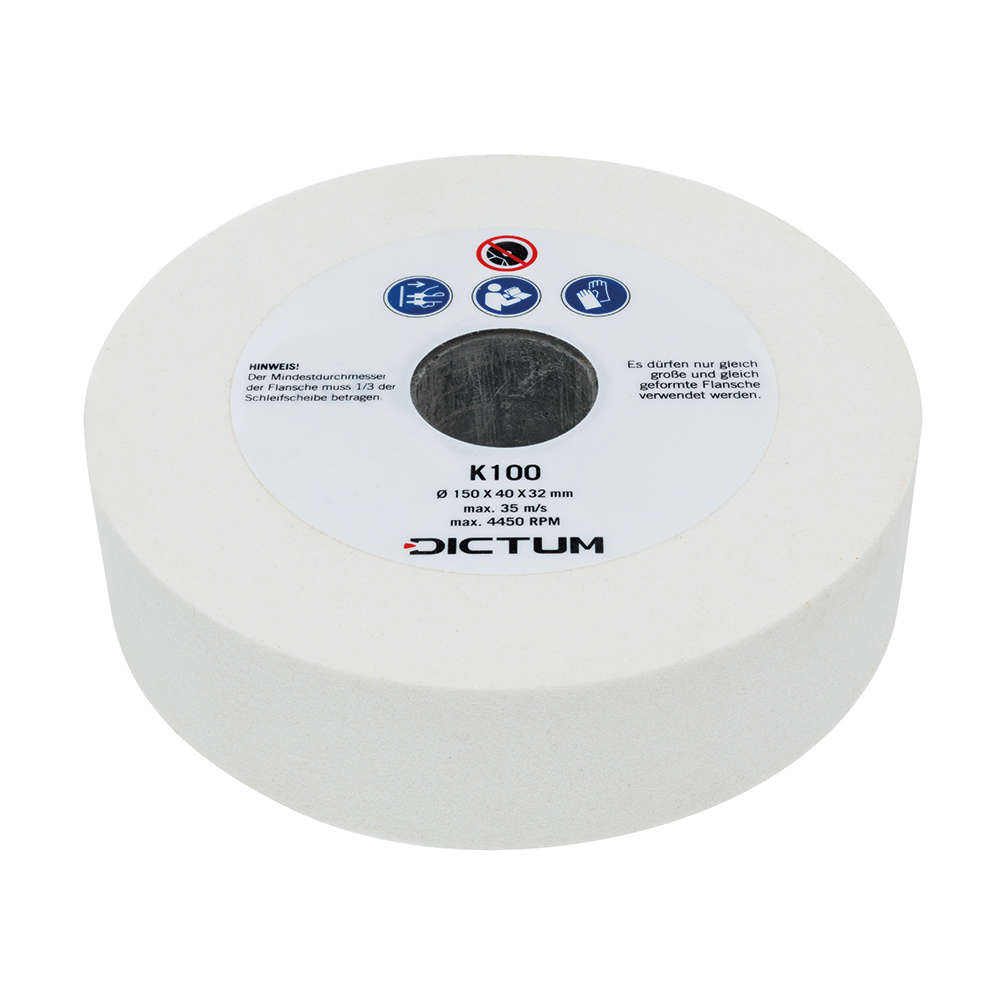

- White aluminium oxide grinding wheel, 150 x 40 x 32 mm, 60 grit
- White aluminium oxide grinding wheel, 150 x 40 x 32 mm, 100 grit
- Safety glasses

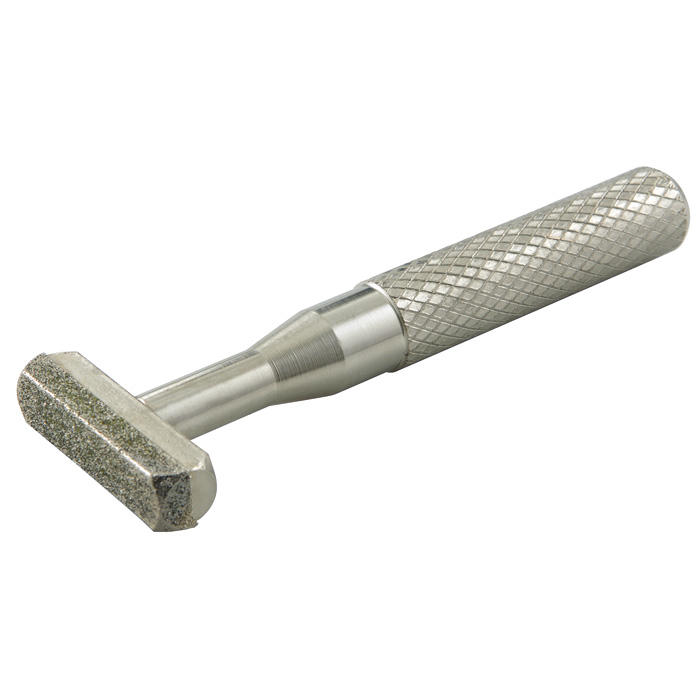

- Diamond grinding wheel dresser

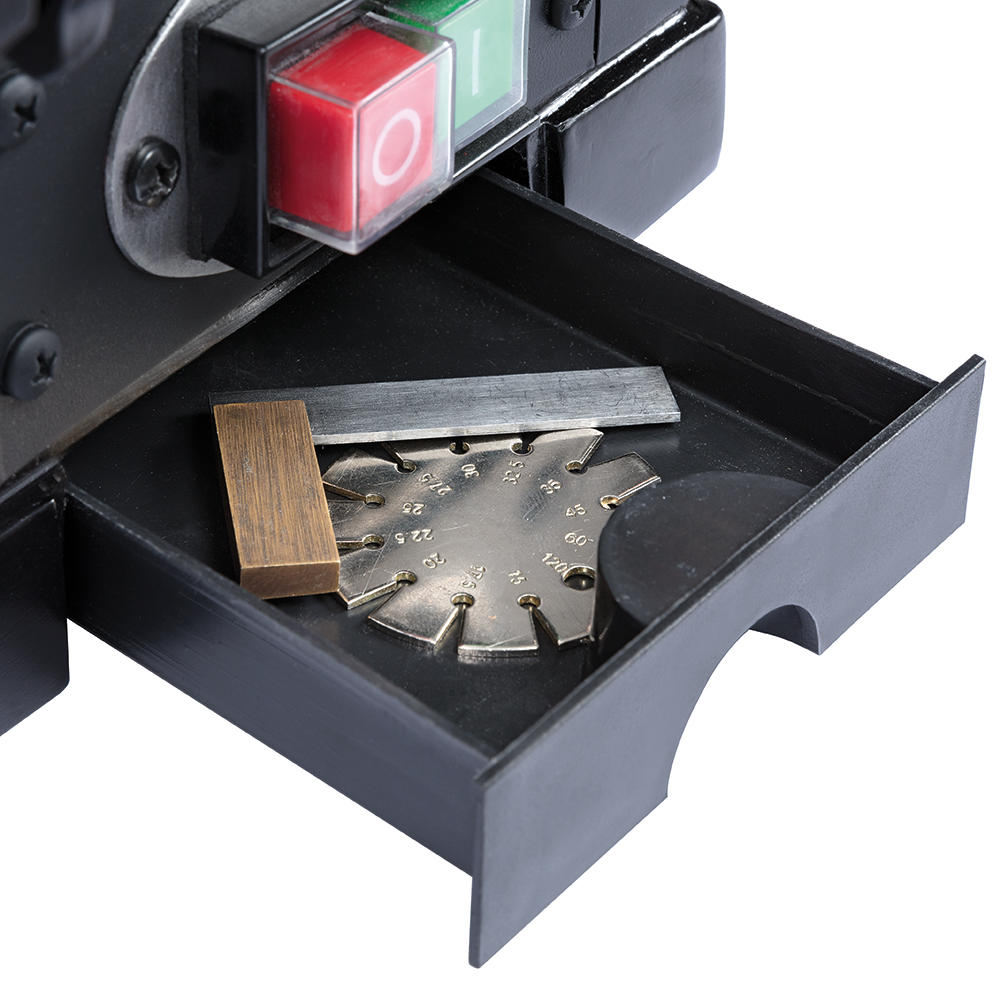

- Integrated tray for e.g. coolants or small parts
- Open-ended spanner
Properties
| Center hole: | 12.7/32 mm |
|---|---|
| Dimensions: | 420 x 260 x 185 mm |
| Disc diameter: | 150 mm |
| Motor: | 230 V |
| No Load Speed: | 1450 rpm |
| Power input: | 370 W |
| Weight: | 14 kg |
| Width: | 40 mm |
Properties
| Center hole: | 12.7/32 mm |
|---|---|
| Dimensions: | 420 x 260 x 185 mm |
| Disc diameter: | 150 mm |
| Motor: | 230 V |
| No Load Speed: | 1450 rpm |
| Power input: | 370 W |
| Weight: | 14 kg |
| Width: | 40 mm |

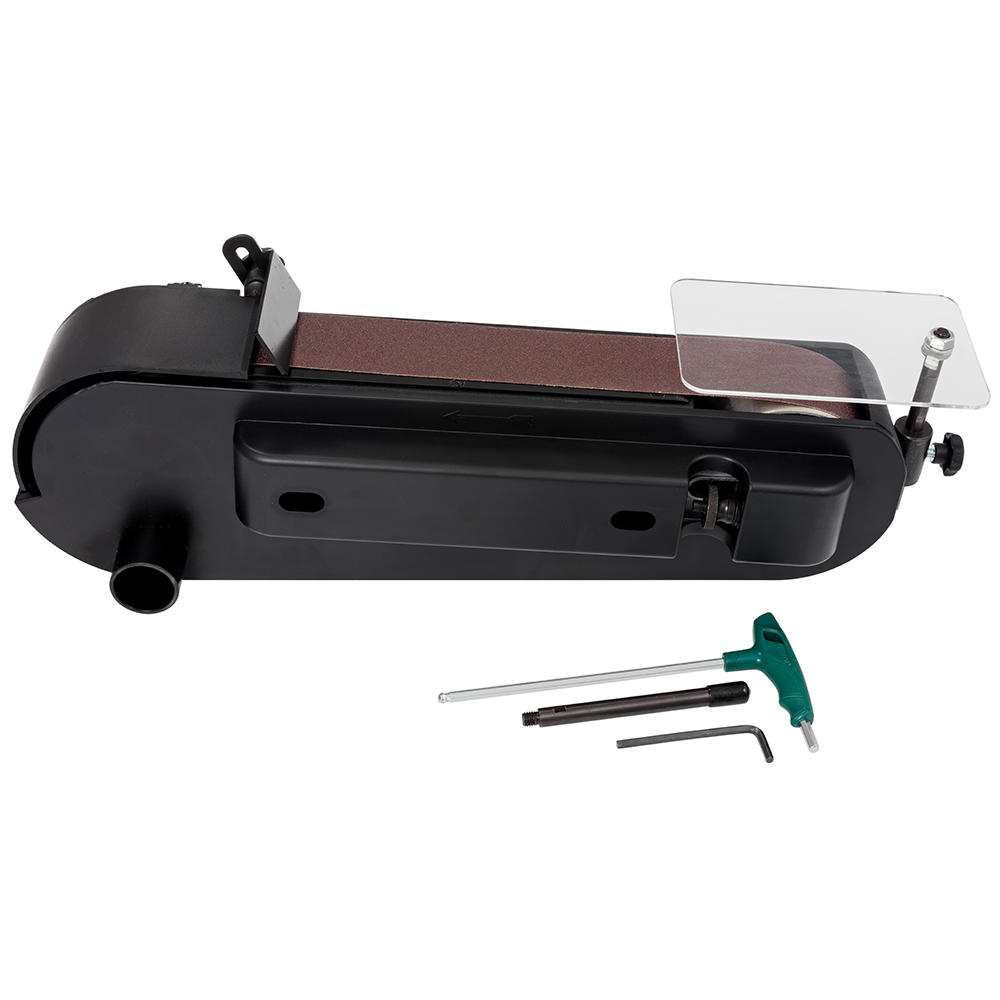

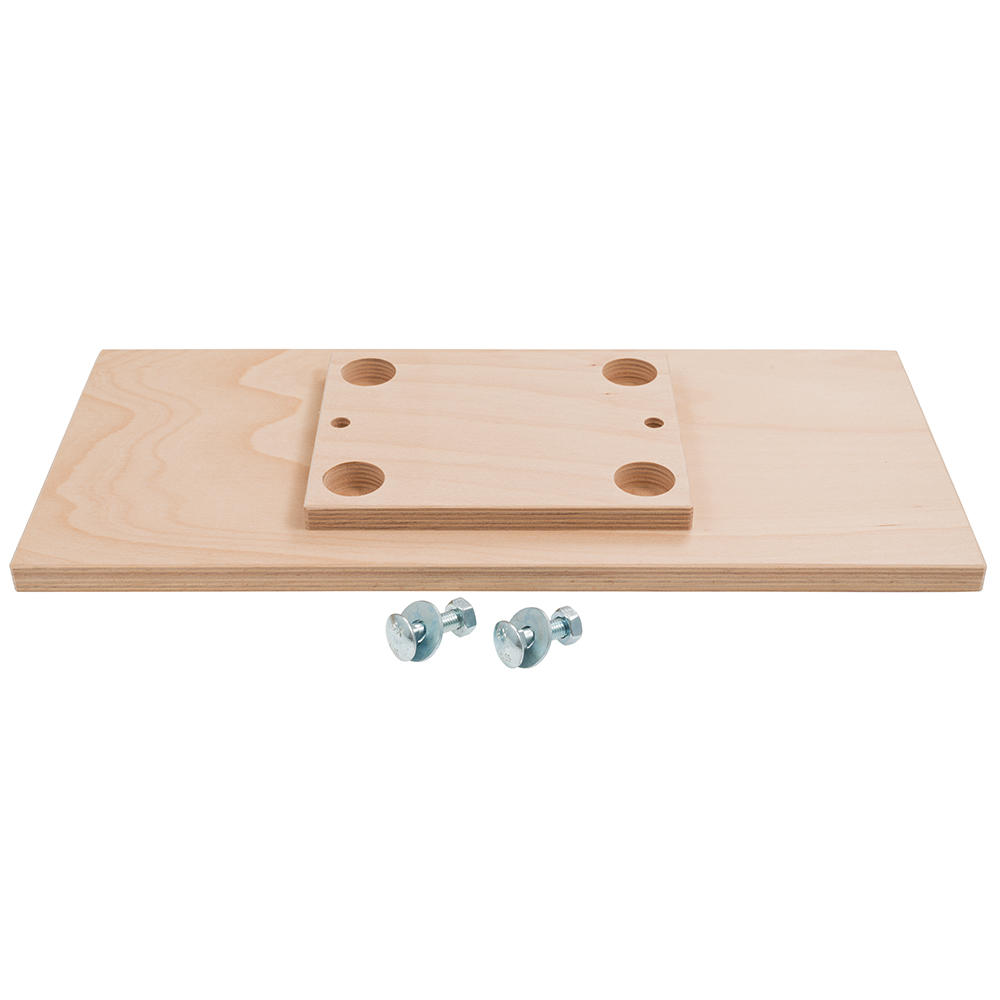

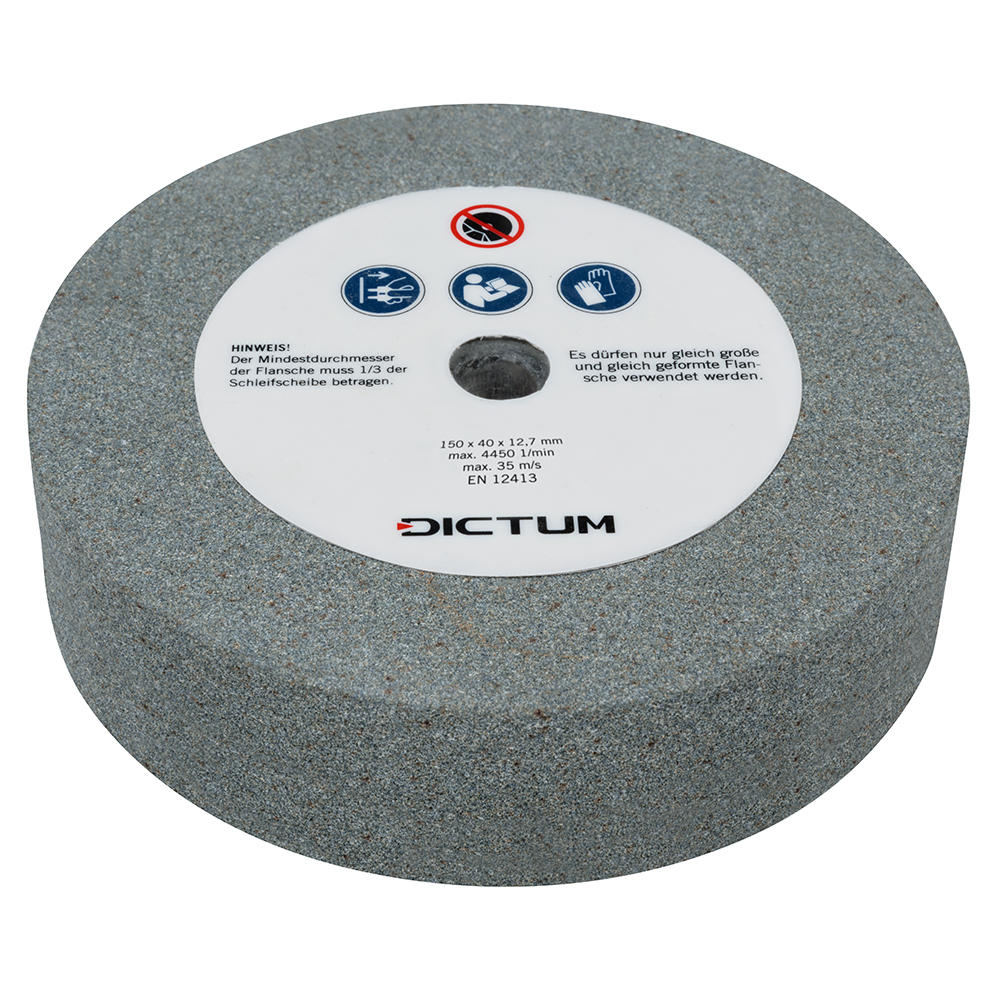

Accessories
Zubehör

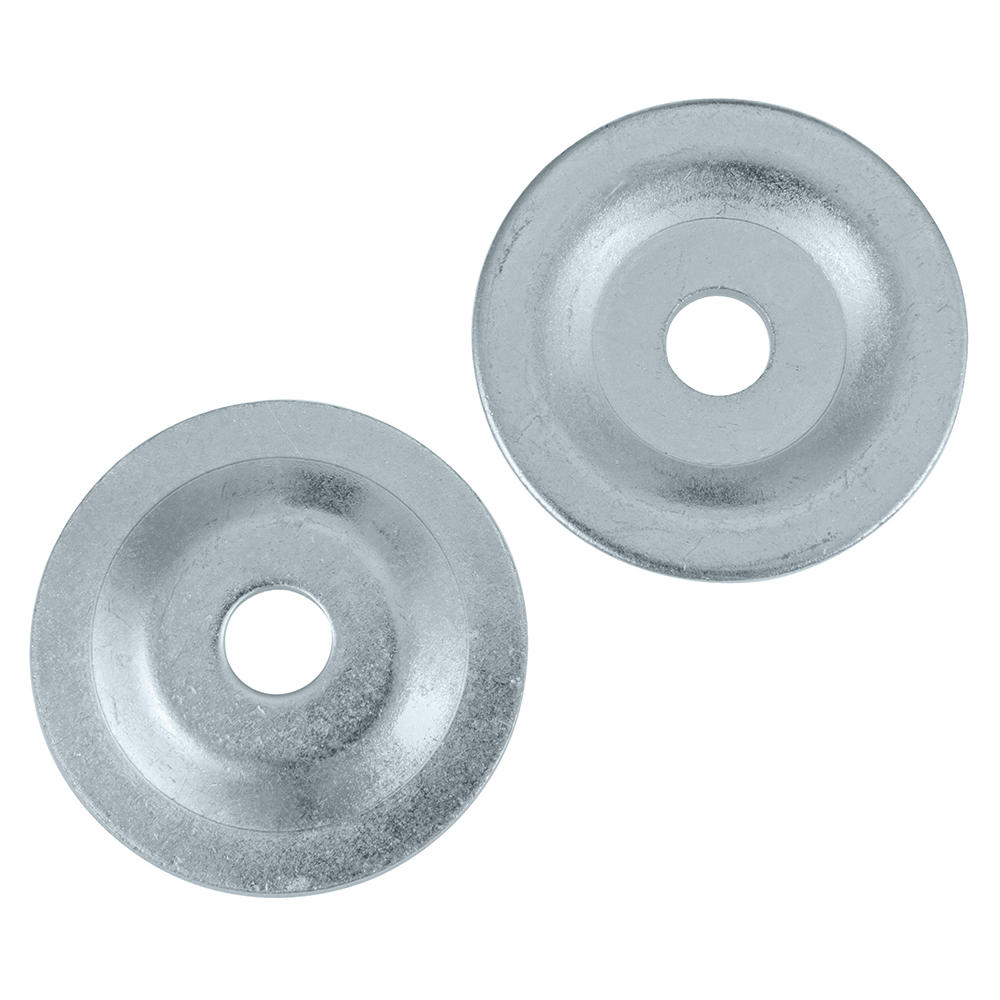

Spare parts
