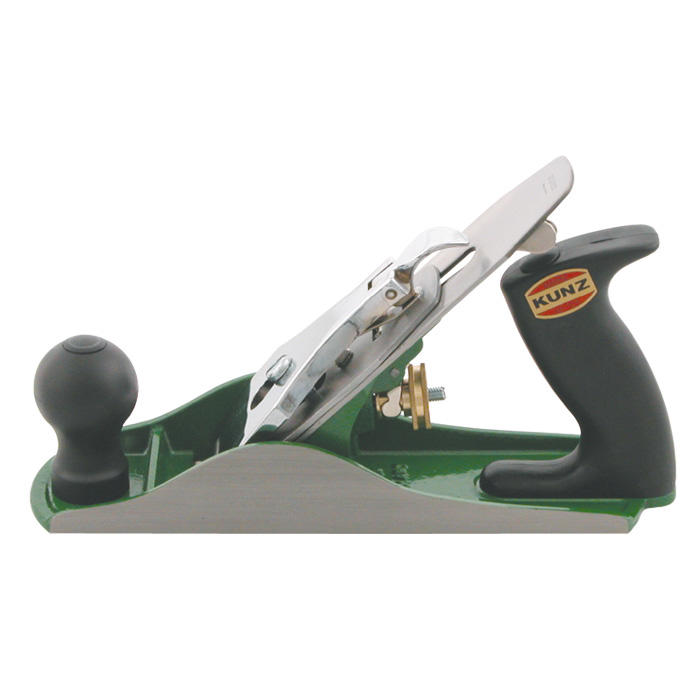

Kunz® Smoothing Plane No. 4
Product no.:
703146
Brand:
Kunz
€89.00 €74.79
per piece(s)
Product mid February 2026 Available
- Blade material Tool steel
- Blade thickness 2.5 mm
- Blade width 50 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description
The standard smoothing plane is capable of taking the finest shavings even on woods with random grain direction. A major argument in favour of this »Bailey« style plane is its cheap price. The cutting depth and lateral blade position can be adjusted with a knurled nut and an adjustment lever. Double blade, blade angle 45°.
Kunz® Planes
Kunz is known for its solid planes of wear-resistant grey cast iron and good value for money. The standard tool steel blades are hardened to approx. 62 HRC. Their green surfaces make the Kunz planes, made in Germany, unique.
Properties
| Blade material: | Tool steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 50 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Grey cast iron |
| Purpose: | Smoothing (fine finishing) |
| Typ: | Bench planes |
| Weight: | 1.5 kg |
Properties
| Blade material: | Tool steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 50 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Grey cast iron |
| Purpose: | Smoothing (fine finishing) |
| Typ: | Bench planes |
| Weight: | 1.5 kg |
