Wixey Digital Setting Gauge for Woodworking Machines
Description

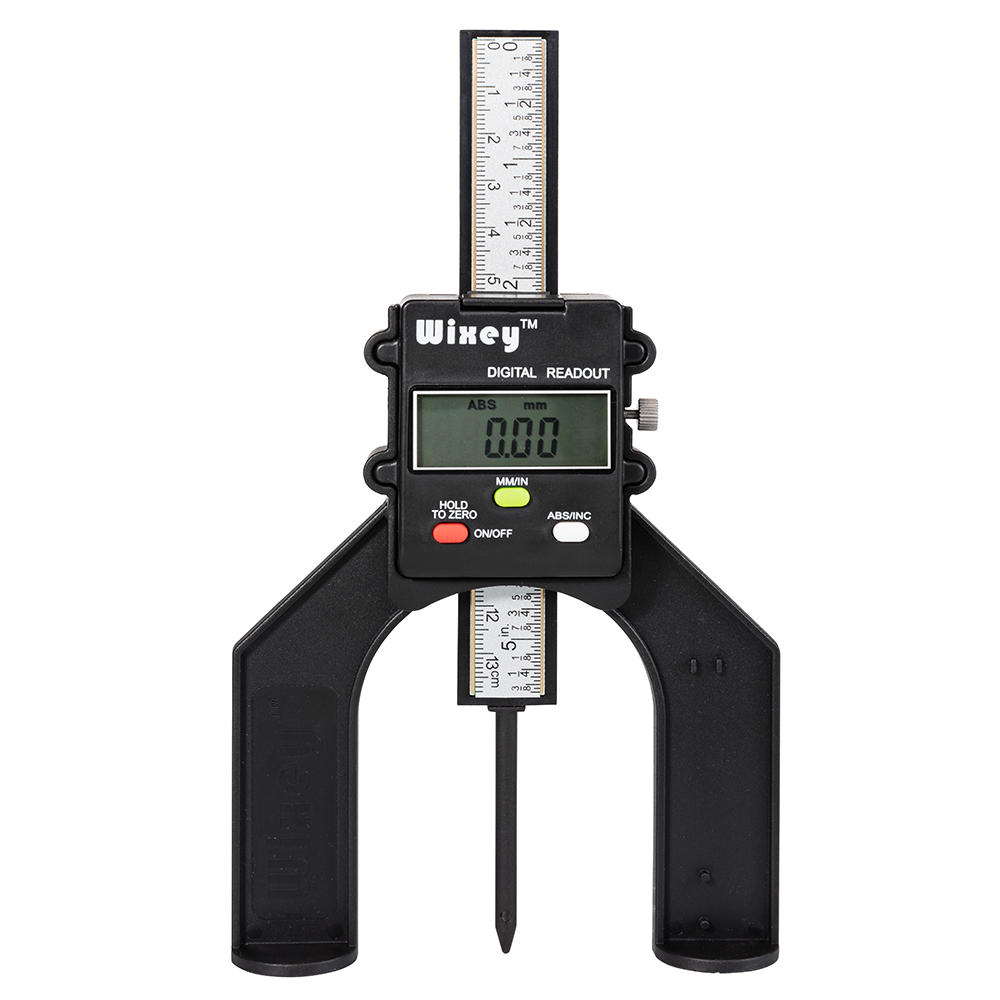

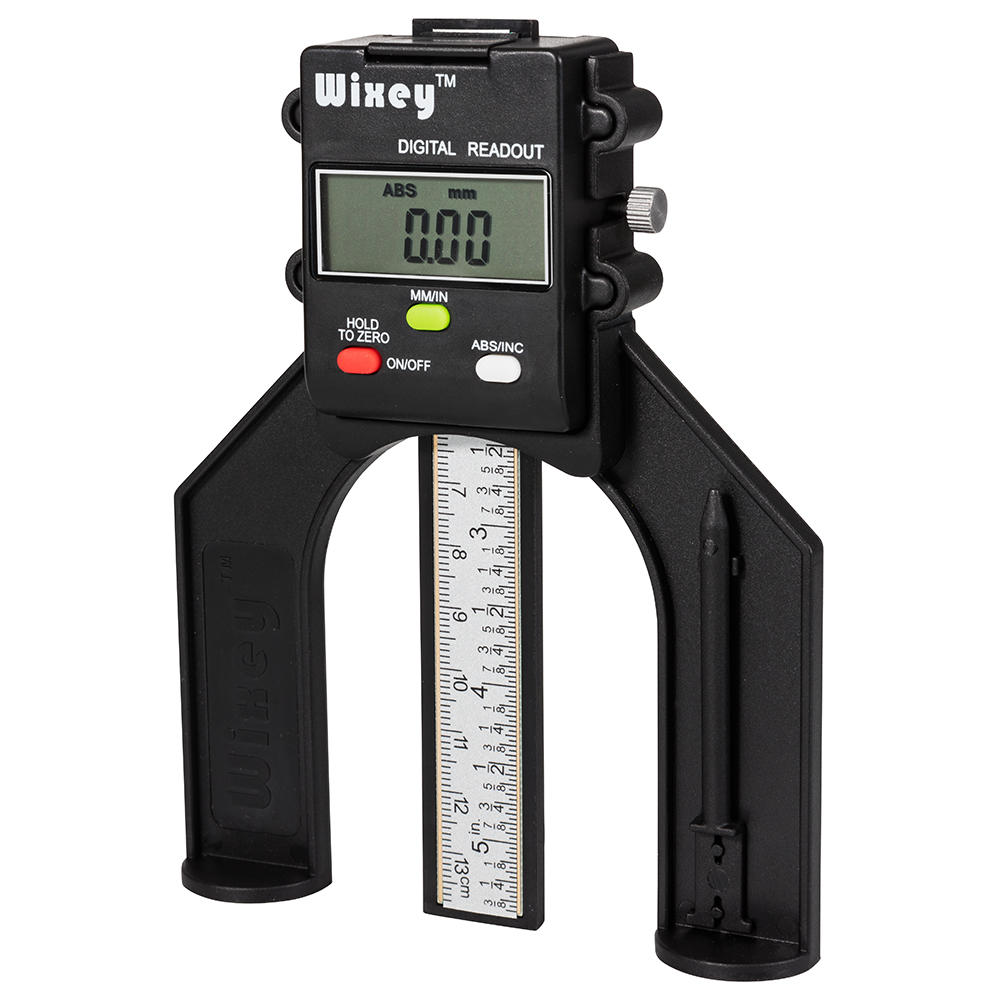

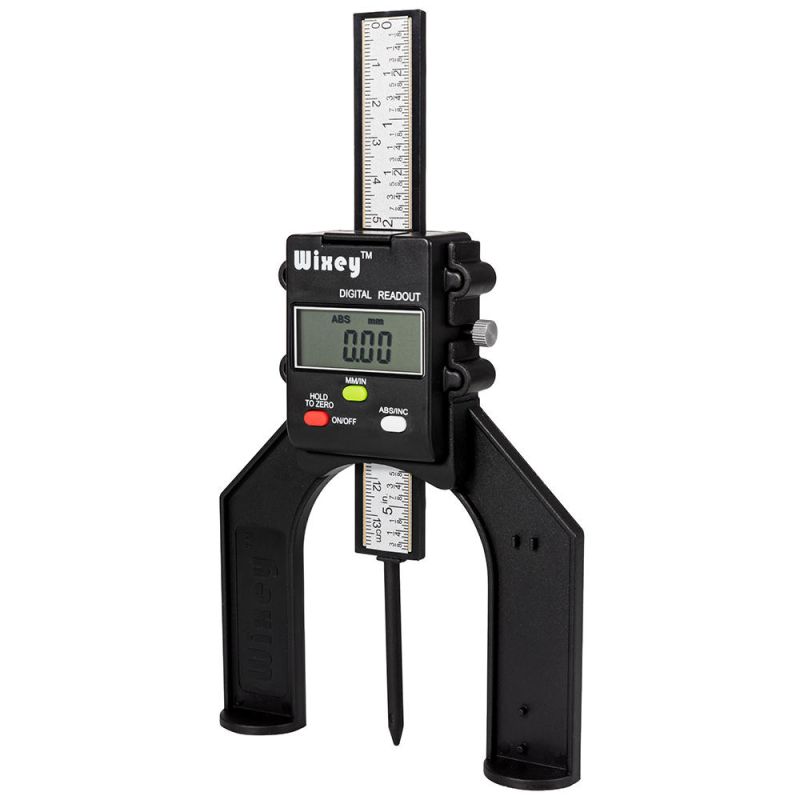

Designed for woodworking, this depth setting gauge is useful for many applications. The easy-to-read display is simple to operate. The measuring tip can also be used to take depth measurements in narrow boreholes.
Applications:
Applications:

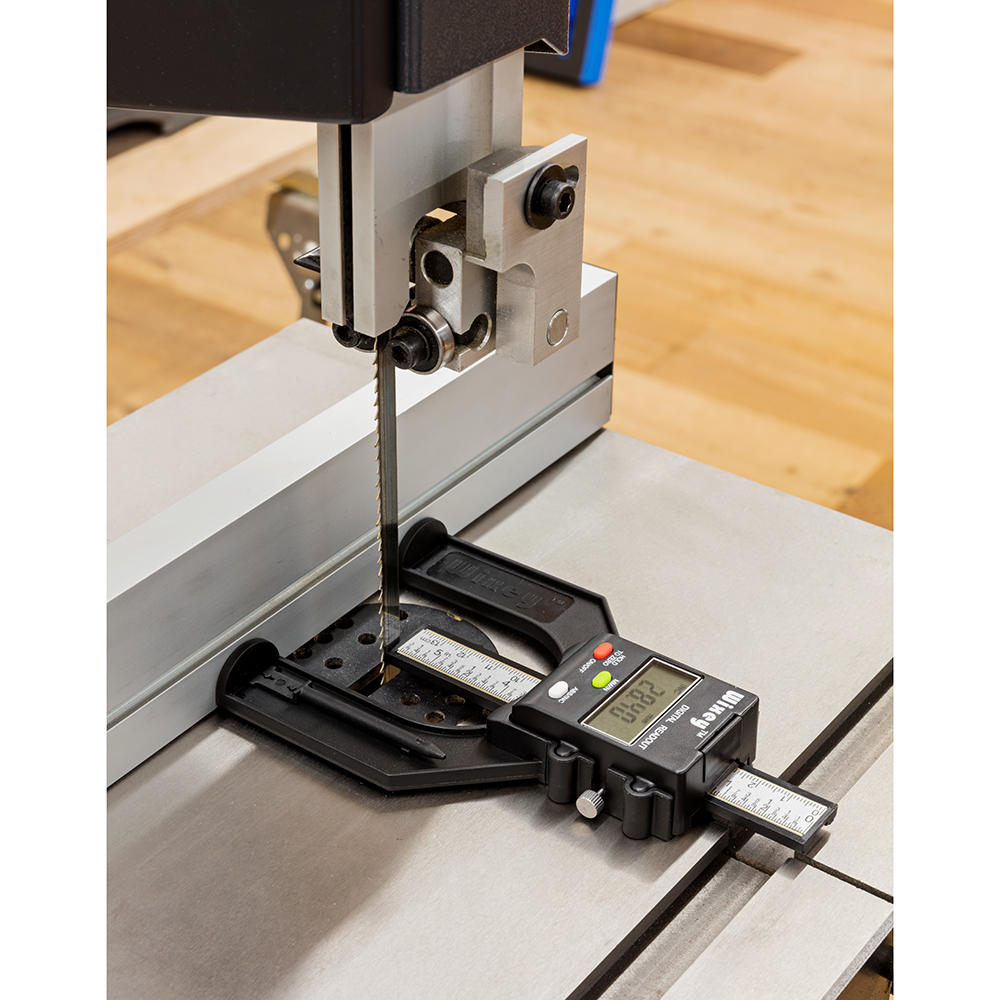

- Distance measurement from rip fence to bandsaw blade
- Distance measurement from router table fence to cutter
- Routing depth measurement on router tables and routers
- Cutting depth measurement on circular saw blades
- Depth measurement on e.g. boreholes
- Absolute measurement mode
- Incremental measurement mode
- mm/inch display
- Automatic switch-off
- Measuring range: height 76 mm (3 inch), depth 51 mm (2 inch)
- Display mode: mm/inch in decimal and fraction
- Accuracy: mm ± 0.1 mm / inch in decimal ± 0.004 and fraction ± 1/250
- Power supply: CR2032 battery (included)
Manufacturer
| Name: | Wixey |
|---|---|
| Mailing address: | Ave East 1162 15th 98112 Seattle United States |
