Piher® Maxi-E High-Performance Clamp, Jaw Opening 400 mm
Product no.:
729998
Brand:
Piher
€34.10 €28.66
per piece(s)
Delivery time 5-8 business days
- Jaw opening 400 mm
- Swing 85 mm
- Weight 2.9 kg
Description

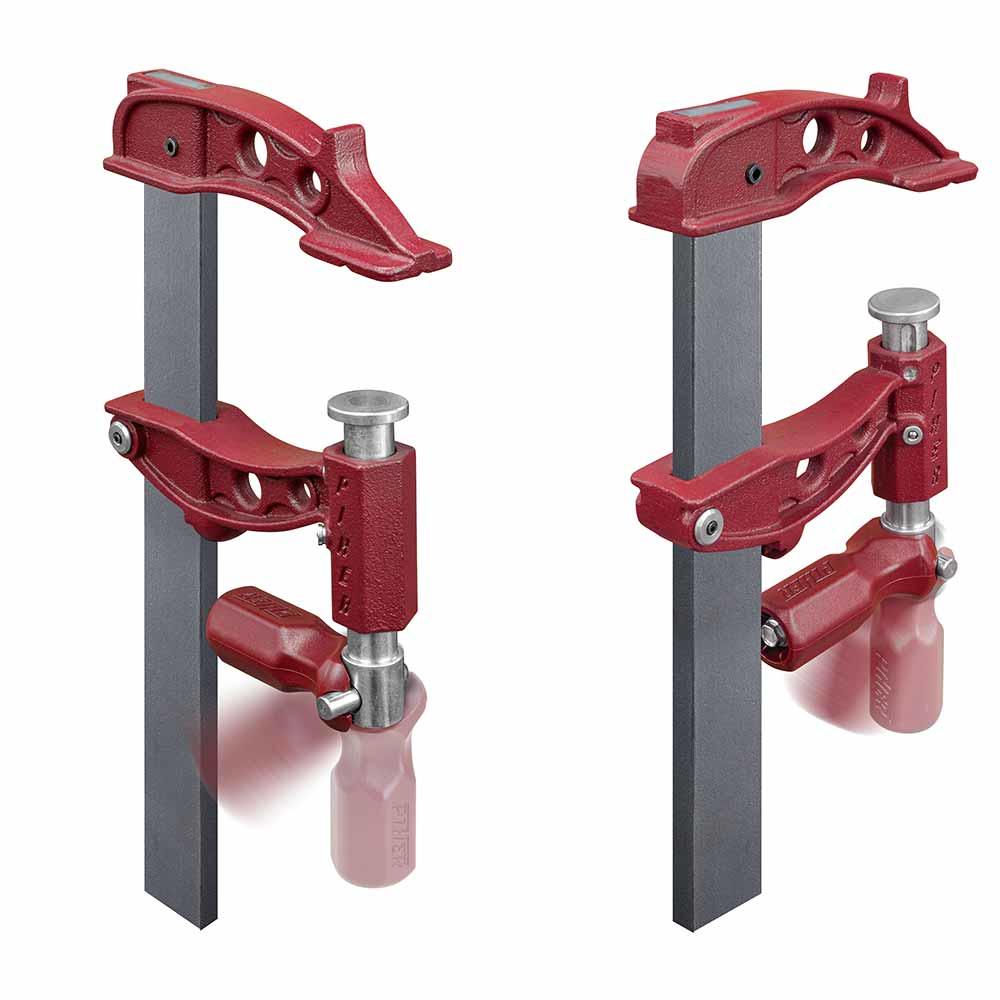

This solid clamp made of high-grade spheroidal cast iron combines extreme power and a high technical specification. Its enormous clamping pressure puts conventional clamps in the shade. Whether in furniture-making, carpentry or metalworking, the clamp holds together both flat and round workpieces. The main difference compared with conventional clamps is the pressure bolt, which does not turn when the clamp is tightened, so the freshly glued wooden parts do not drift apart. Protective plastic caps (No. 720411) are also included to prevent pressure marks on surfaces.
Benefits of a Piher clamp:
Benefits of a Piher clamp:
- Fully covered screw thread, thus protected from impact and contaminants (glue, steel swarf, cement, etc.)
- Double thread increases both speed and clamping pressure
- Greasing hole for optimum lubrication of the thread
- Pressure bolt does not turn during tightening, thus preventing freshly glued wooden parts from drifting apart
- Spring-activated brake on the bar keeps the jaws firmly in place
- The surface of the fixed jaw is grooved for easy positioning and maximum grip on round workpieces
- Ergonomic plastic handle for maximum force transmission (approx. 900-1000 kg), foldable (180°), interchangeable and heat resistant up to 100 °C
- The straight back allows the set up of the clamp horizontally without it tilting, which makes it easier to glue large workpieces
- Solid bar cross-section ensures torsion-free clamps, even in extra-long versions
Properties
| Jaw opening: | 400 mm |
|---|---|
| Swing: | 85 mm |
| Weight: | 2.9 kg |
Properties
| Jaw opening: | 400 mm |
|---|---|
| Swing: | 85 mm |
| Weight: | 2.9 kg |
Manufacturer
Piher
The Piher family business, founded in 1957, develops and manufactures clamping tools. Based in Logroño, Spain, it focuses on high quality, reliability and durability.
| Name: | Piher |
|---|---|
| Mailing address: | Poligono Cantabria 1 C/ Pescadores 6 26009 Logrono Spain |
| Homepage: | https://www.piher.com |
