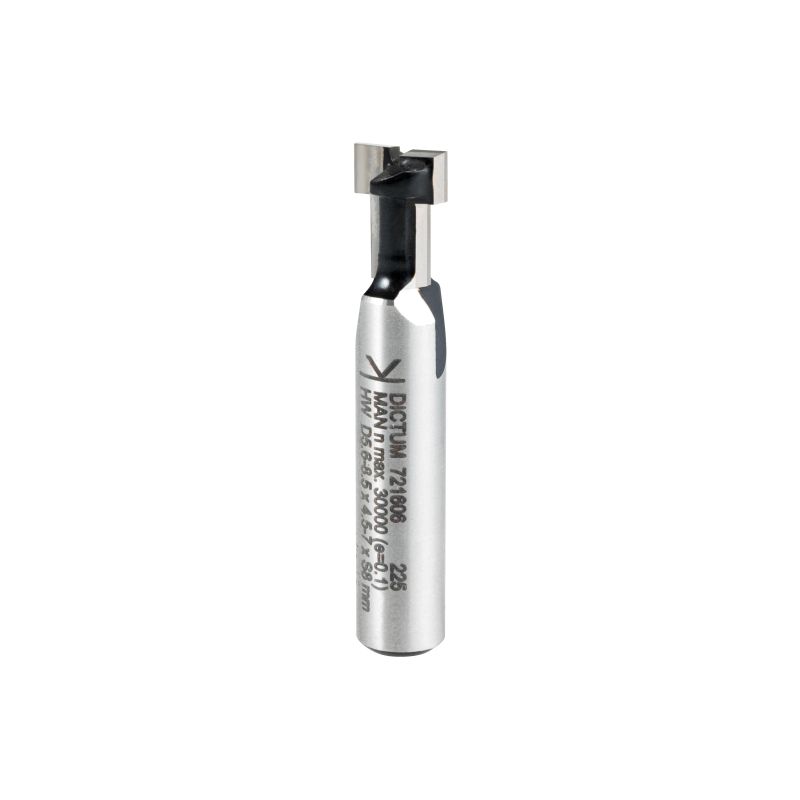

DICTUM® TC T-Slot Groove Cutter, Shank Ø 8 mm, M5
Product no.:
721606
Brand:
DICTUM
€22.90 €19.24
per piece(s)
In stock, delivery time approx. 2-3 working days
- Form T-slot
- Overall length 46.5 mm
- Schaft-Ø 8 mm
- Schneiden-Ø 8.5 / 5.6 mm
- Schneidenlänge 7 / 4.5 mm
Description
T-slot cutter M5 (Ø D1/D2 = 8.5/5.6 mm, NL 1/2 = 7/4.5 mm)
For milling T-slots e.g. in workbench tops. The dimensions are matched to the heads of the hex screws with metric thread. These can be inserted directly into the milled grooves without aluminium rails. Also suitable for slot nuts and hammer-head screws. You can also mill openings with undercuts such as keyhole suspensions.
Safety first
- All cutters comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications laser-engraved on shank
Tungsten carbide (TC) tipped shank cutters
- Tungsten carbide tips ensure high heat- and wear-resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks ensure accurate concentricity
- Secure clamping in the collet (eccentricity marked on the shank)
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Form: | T-slot |
|---|---|
| Overall length: | 46.5 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 8.5 / 5.6 mm |
| Schneidenlänge: | 7 / 4.5 mm |
| Schneidenzahl: | 2 |
| Schneidstoff: | HW - tungsten carbide |
Properties
| Form: | T-slot |
|---|---|
| Overall length: | 46.5 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 8.5 / 5.6 mm |
| Schneidenlänge: | 7 / 4.5 mm |
| Schneidenzahl: | 2 |
| Schneidstoff: | HW - tungsten carbide |
Manufacturer
DICTUM
DICTUM is dedicated to creating products which have a long service life and are free from substances that are harmful to the environment or health.
For more than 170 years, our corporate philosophy has embodied:
- The highest functional aesthetics
- A commitment to ergonomics
- The best materials
- Long-standing business relationships with manufacturers and suppliers
- Long-lasting products thanks to comprehensive services such as our
Sharpening service
Handle mounting service
Spare parts availability
