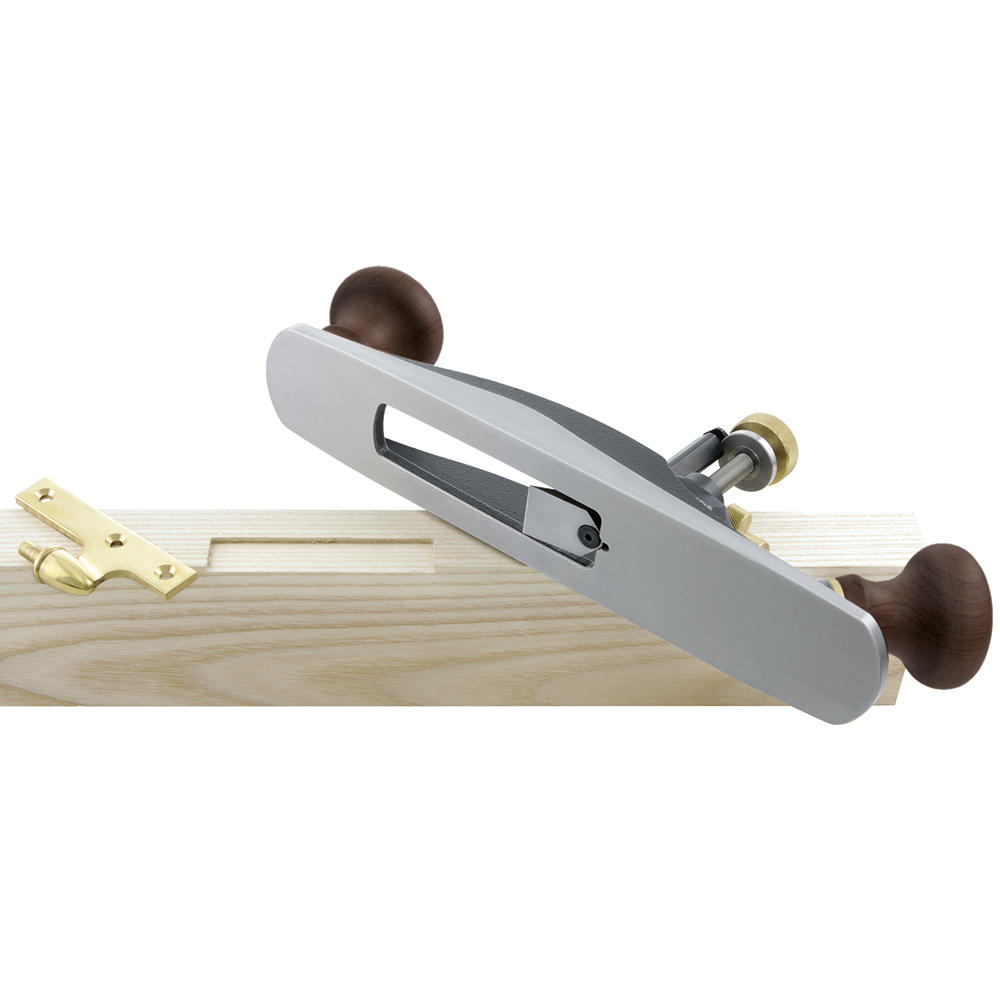

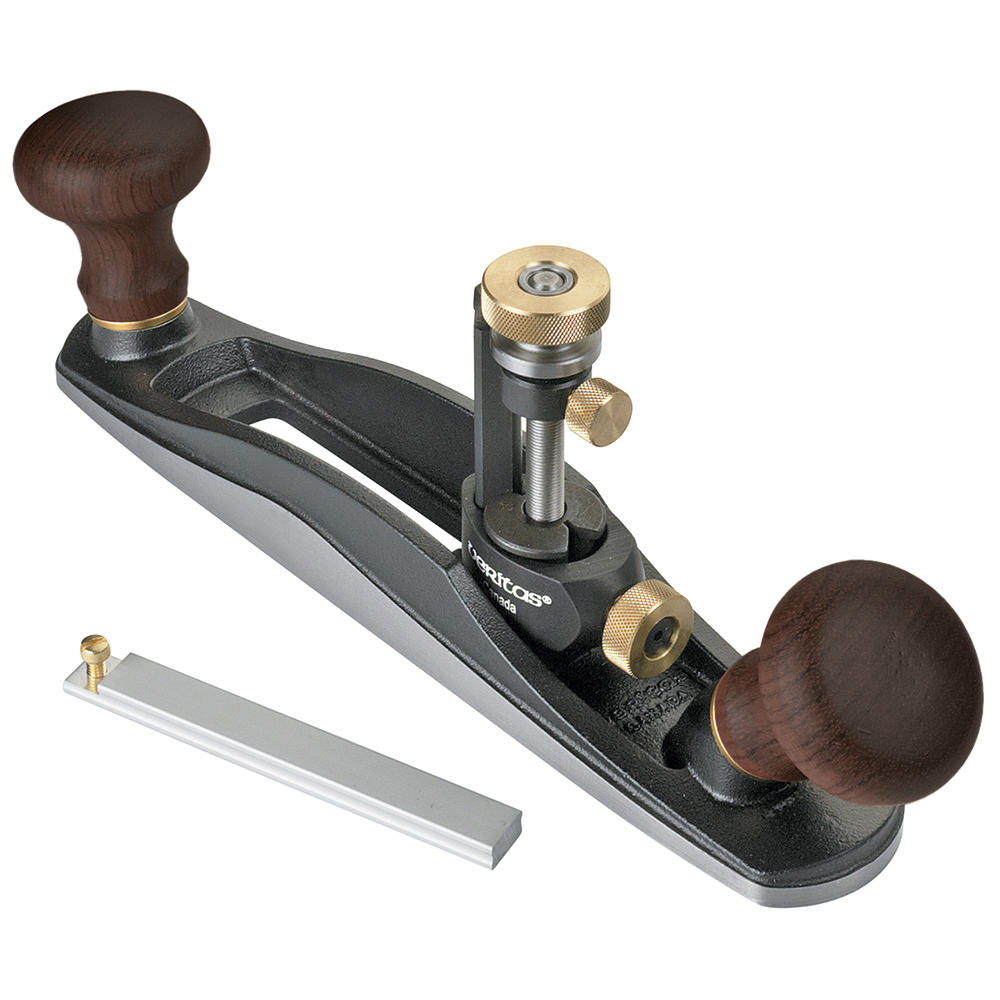

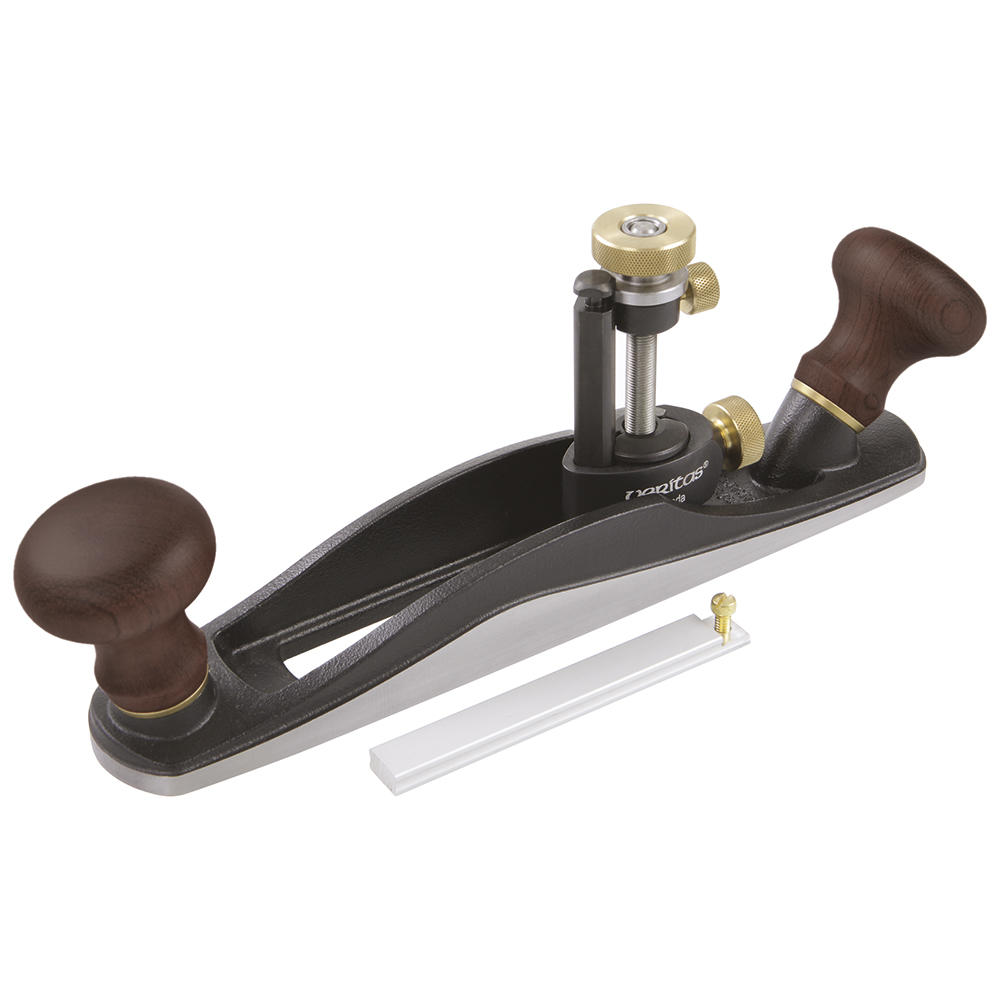

Veritas® Butt Mortise Plane, high-carbon steel-Blade
Product no.:
703599
Brand:
Veritas
€215.00 €180.67
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material A2 steel
- Blade thickness 4.5 mm
- Blade width 19 mm
- Design / cutting angle Others
- Form Others
Description

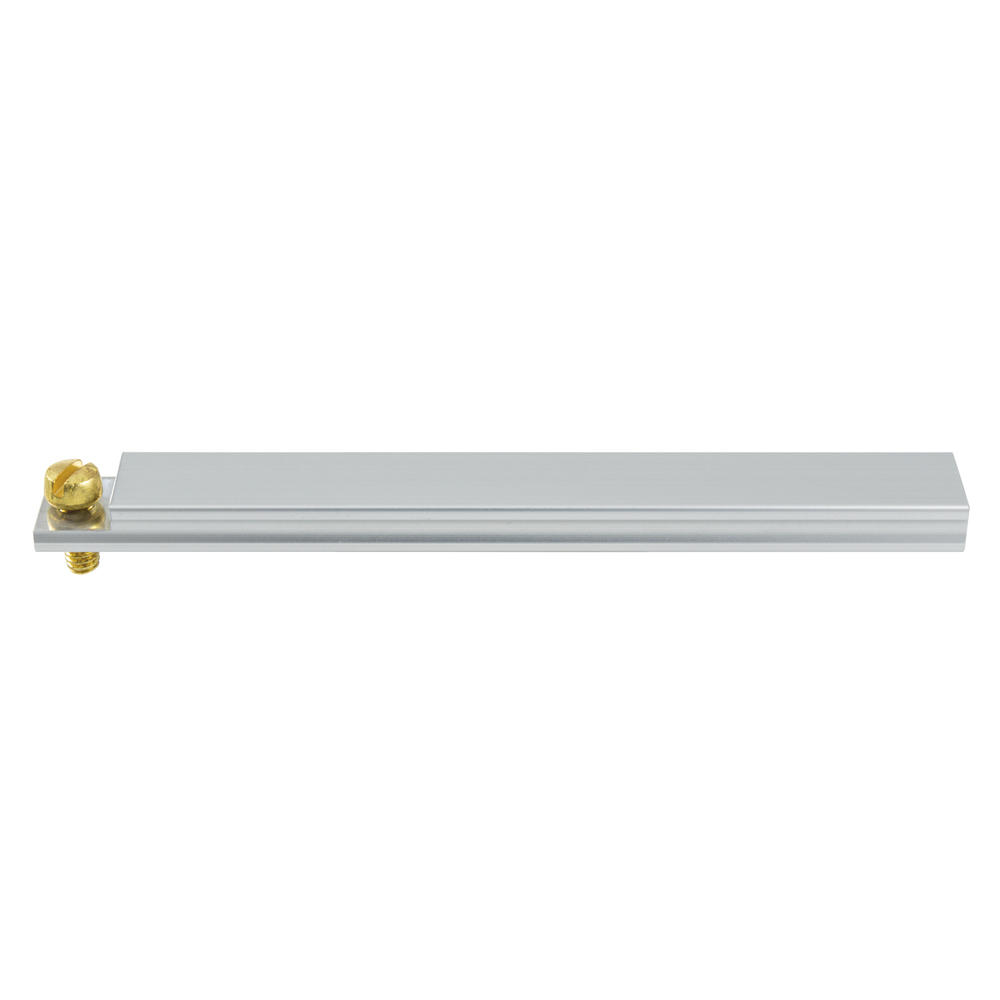

Specially designed butt mortise plane for hinges, lock fronts and other fittings. The fine blade adjustment and the depth stop allow the cutting depth to be transferred directly from the hinge to the blade in no time. The 65 mm-long mouth makes it easy to guide the plane along the marking and always provides a clear view of the edges and bottom for precise and clean planing. Also ideal for inlays. Comes with sharpening device.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 4.5 mm |
| Blade width: | 19 mm |
| Design / cutting angle: | Others |
| Form: | Others |
| Overall length: | 275 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Cutting grooves, rabbets and profiles |
| Typ: | Others |
| Weight: | 1.2 kg |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 4.5 mm |
| Blade width: | 19 mm |
| Design / cutting angle: | Others |
| Form: | Others |
| Overall length: | 275 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Cutting grooves, rabbets and profiles |
| Typ: | Others |
| Weight: | 1.2 kg |
