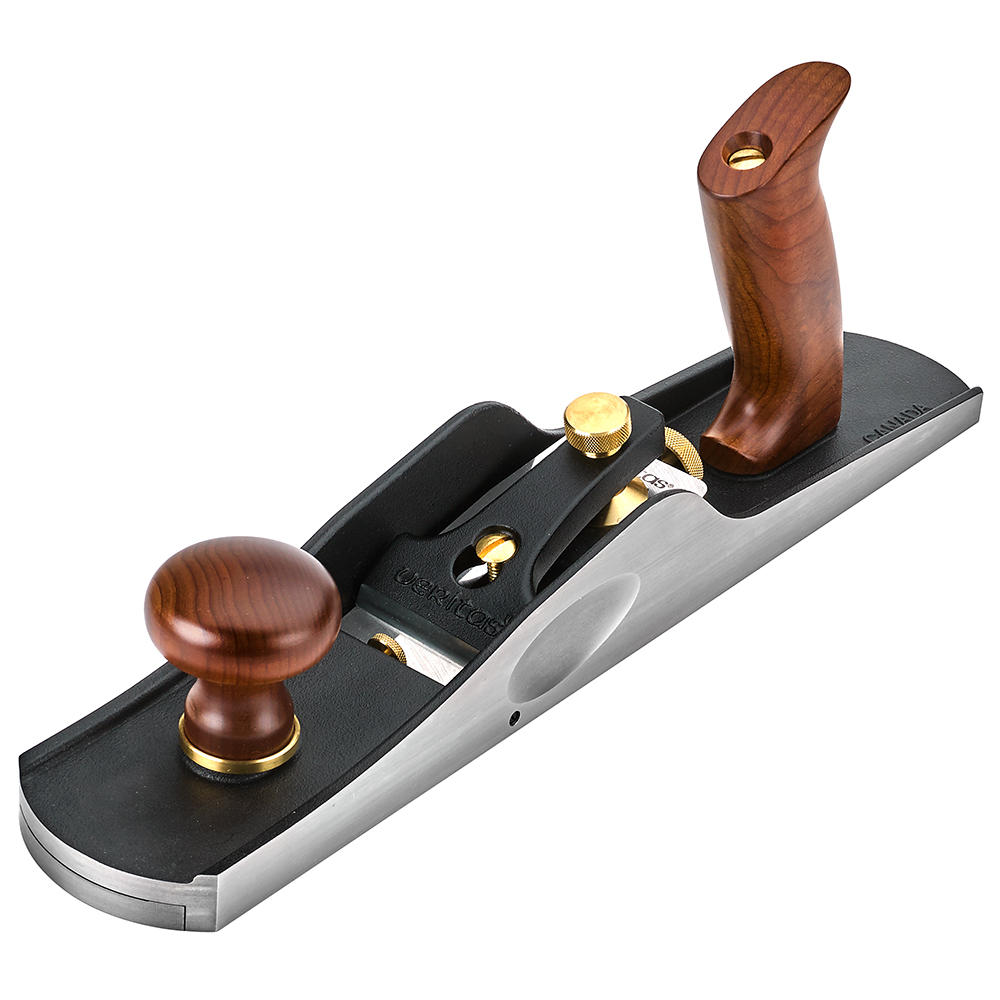

Veritas^® Low-Angle Jack Plane No. 62, A2 Blade

Name: Veritas® Low-Angle Jack Plane No. 62, A2 Blade
Brand: Veritas
SKU: 703866
Price: 329.0 EUR
Availability: OutOfStock

Product no.: 703866

Brand: Veritas

€329.00 €276.47

per piece(s)

Prices incl. VAT, plus delivery Prices excl. VAT, plus delivery

Product details:

Blade material A2 steel
Blade thickness 4.8 mm
Blade width 57 mm
Design / cutting angle Bevel up / cutting angle 35°-37° (end grain processing)
Form Bevel up / cutting angle 35°-37° (end grain processing)

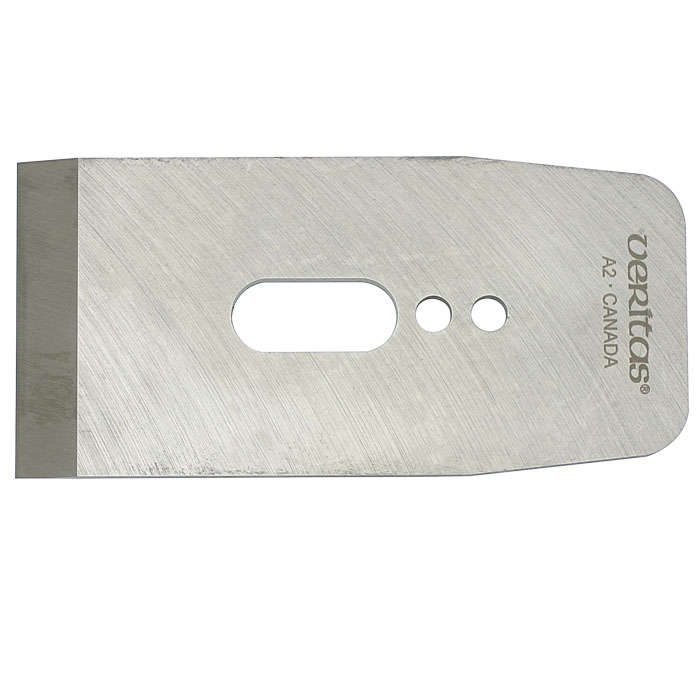

703630, Replacement Blade for Veritas® Low-Angle Bench Planes, A2, 1 piece(s)

Quantity:

Includes Sharpening Pass - two free sharpenings.

Share product

Additional content

Description

This plane is patterned after the Stanley No. 62, which was specially designed for smoothing butcherblocks. It easily copes with even the most difficult jobs, such as planing end grain and long-grained or knotty wood. The blade is set bevel-up in the milled bed at a 12° angle. Bevel angle 25°. Results in a cutting angle of 37°. The mouth opening can be adjusted via the moveable shoe.

Due to its length, design, and accessories, the No. 62 is the most universal plane type of all, and was already highly popular during Stanley times. Apart from smoothing, its long design also makes it ideal for trueing surfaces. The blade, whose cutting angle can be easily adjusted by regrinding the bevel, handles even end grain, knotty wood and difficult grain without problems. The front handle allows easy and convenient adjustment of the mouth piece. Thanks to the central adjusting screw, the blade feed and lateral position can be adjusted quickly and precisely. For fine cuts and working with end grain. Blade angle 12°. A 25° bevel angle produces a cutting angle of 37°. Please note: The plane is supplied in two parts (plane body and blade).

Veritas^® Planes

The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.

Properties

Blade material:	A2 steel
Blade thickness:	4.8 mm
Blade width:	57 mm
Design / cutting angle:	Bevel up / cutting angle 35°-37° (end grain processing)
Form:	Bevel up / cutting angle 35°-37° (end grain processing)
Overall length:	380 mm
Plane body:	Spheroidal cast iron
Purpose:	Multi-purpose Planing end grain
Typ:	Bench planes
Weight:	2.7 kg

Properties

Blade material:	A2 steel
Blade thickness:	4.8 mm
Blade width:	57 mm
Design / cutting angle:	Bevel up / cutting angle 35°-37° (end grain processing)
Form:	Bevel up / cutting angle 35°-37° (end grain processing)
Overall length:	380 mm
Plane body:	Spheroidal cast iron
Purpose:	Multi-purpose Planing end grain
Typ:	Bench planes
Weight:	2.7 kg

Accessories

Zubehör

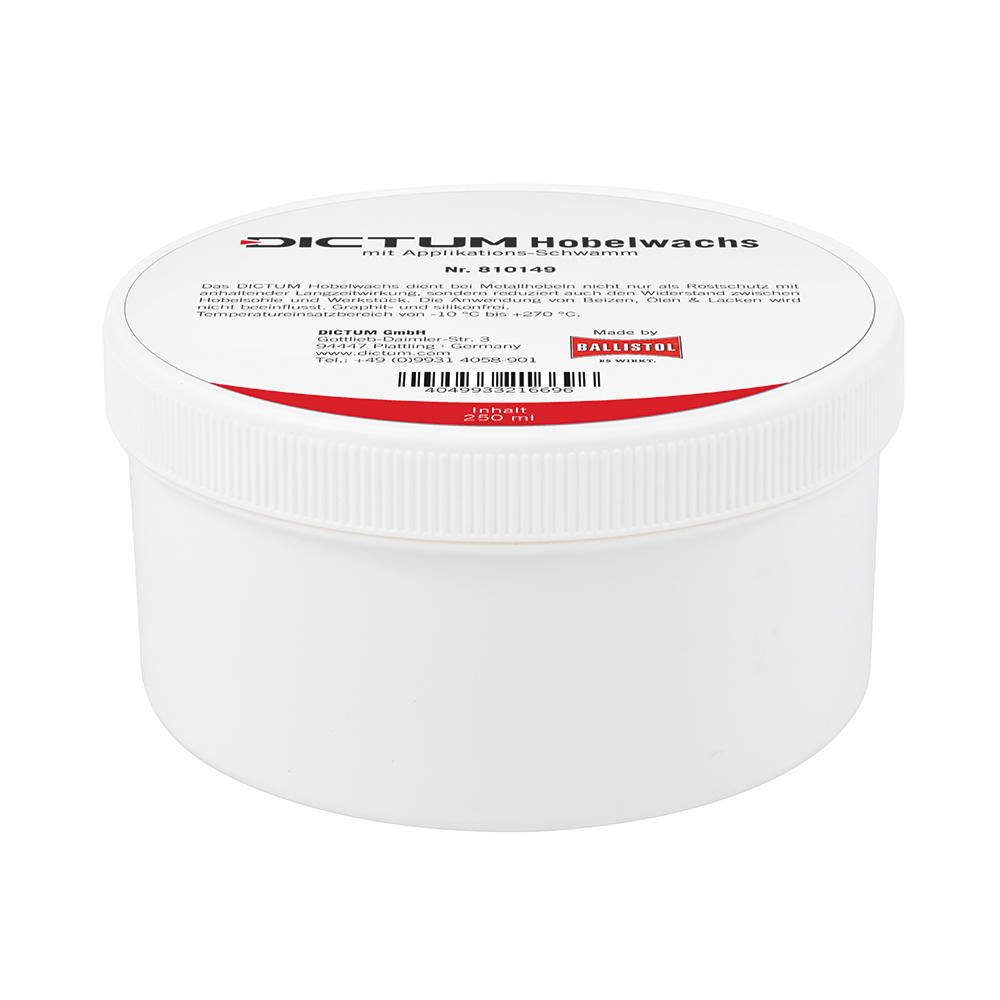

DICTUM^® Wax for Planes
