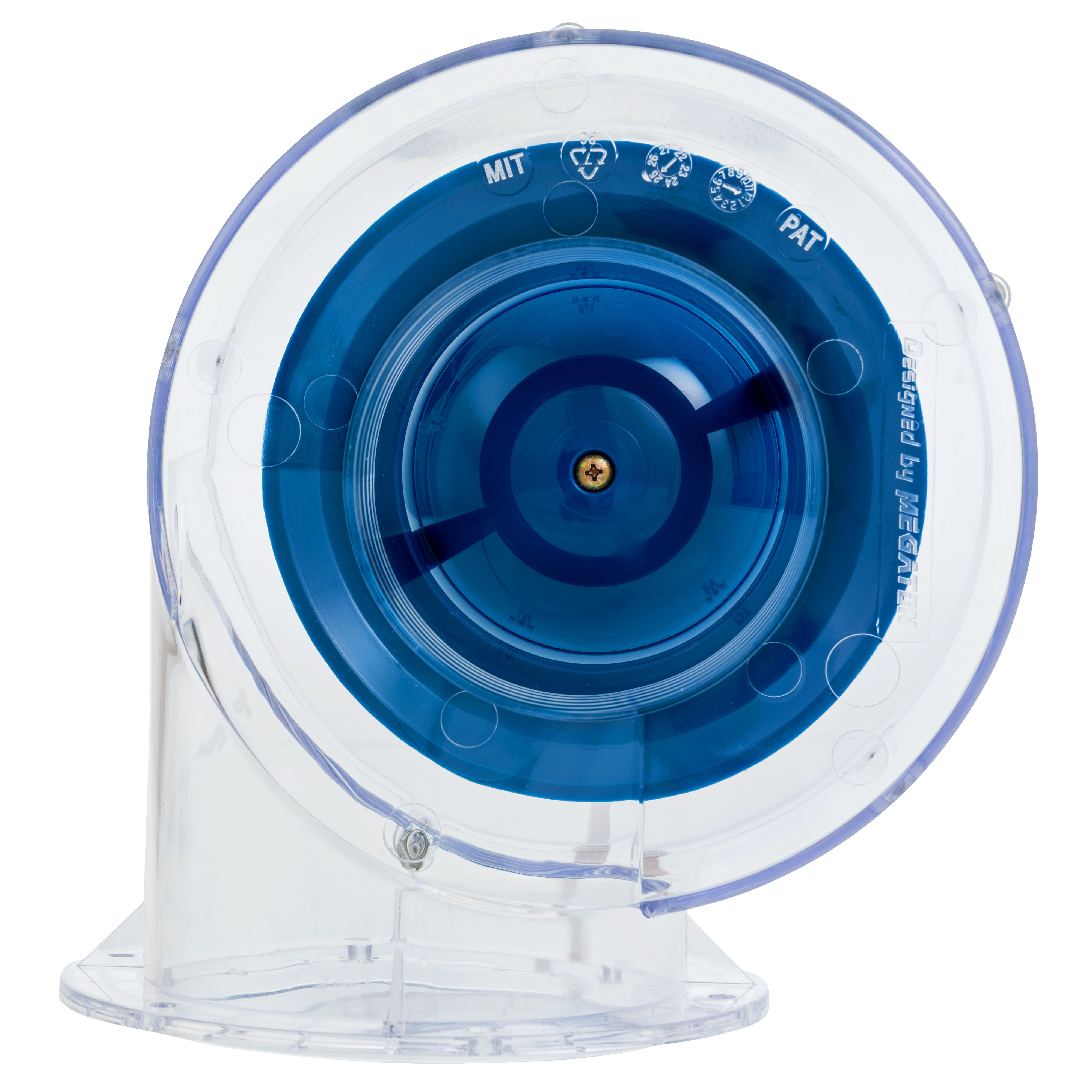

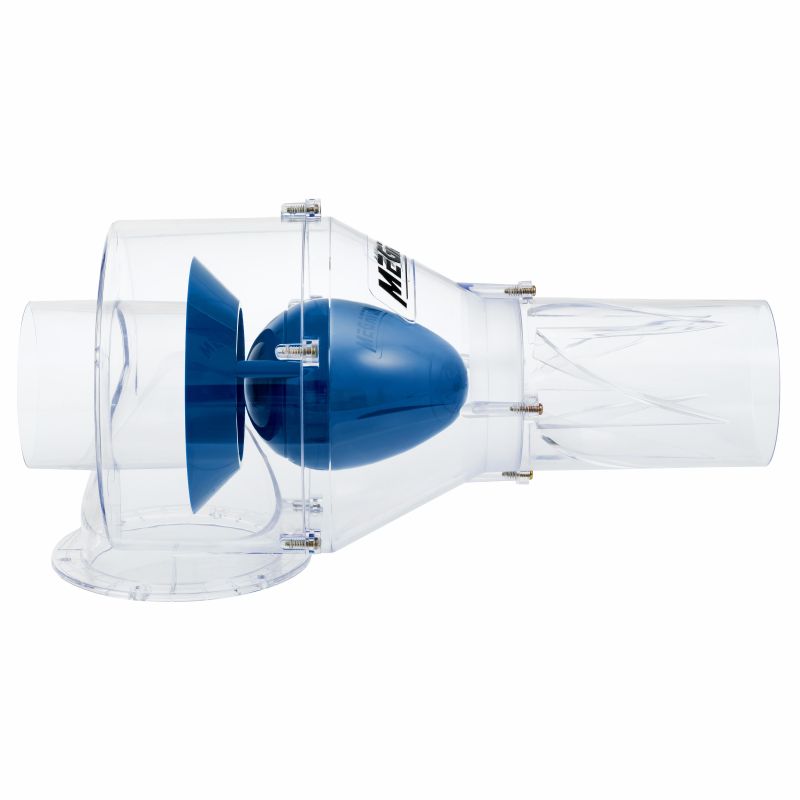

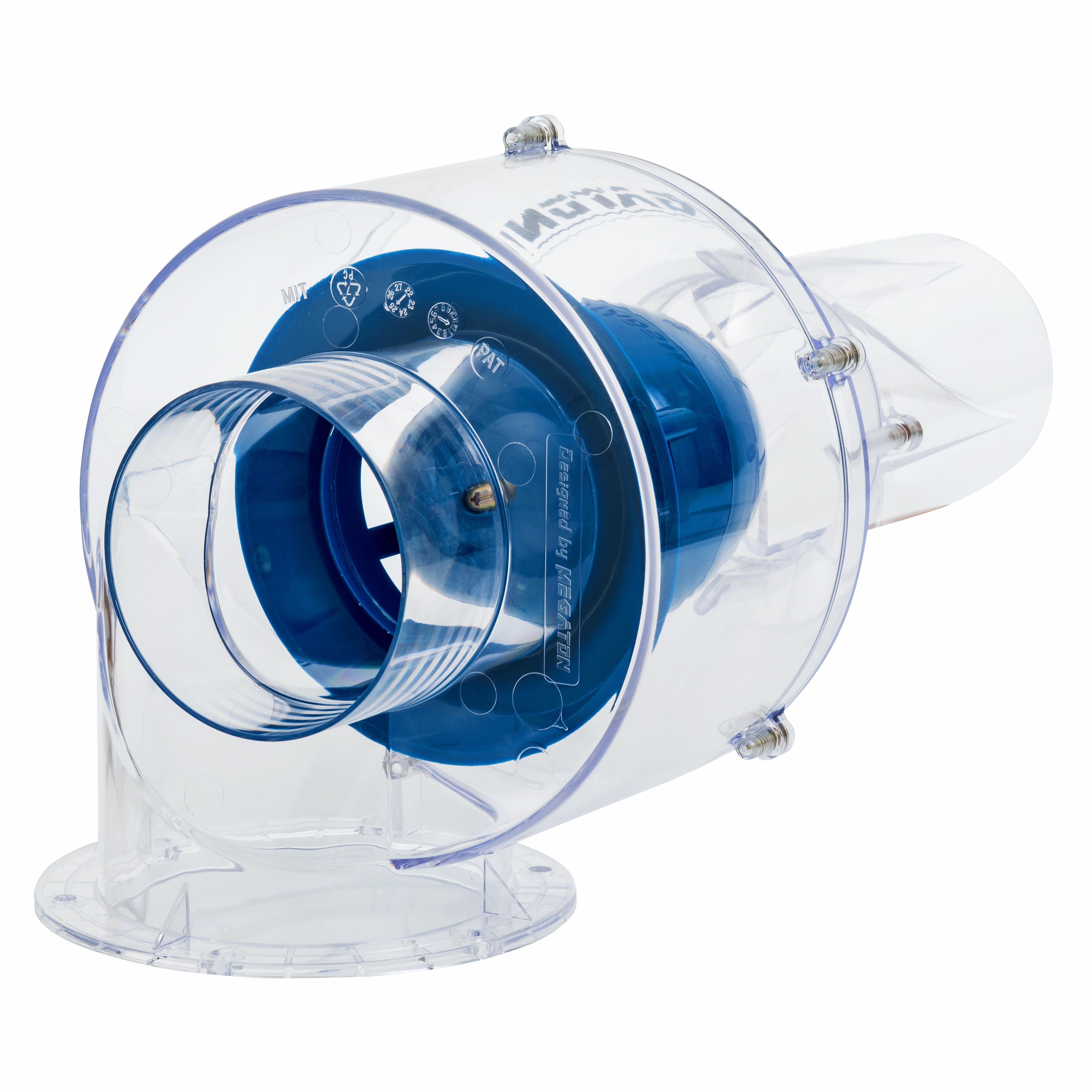

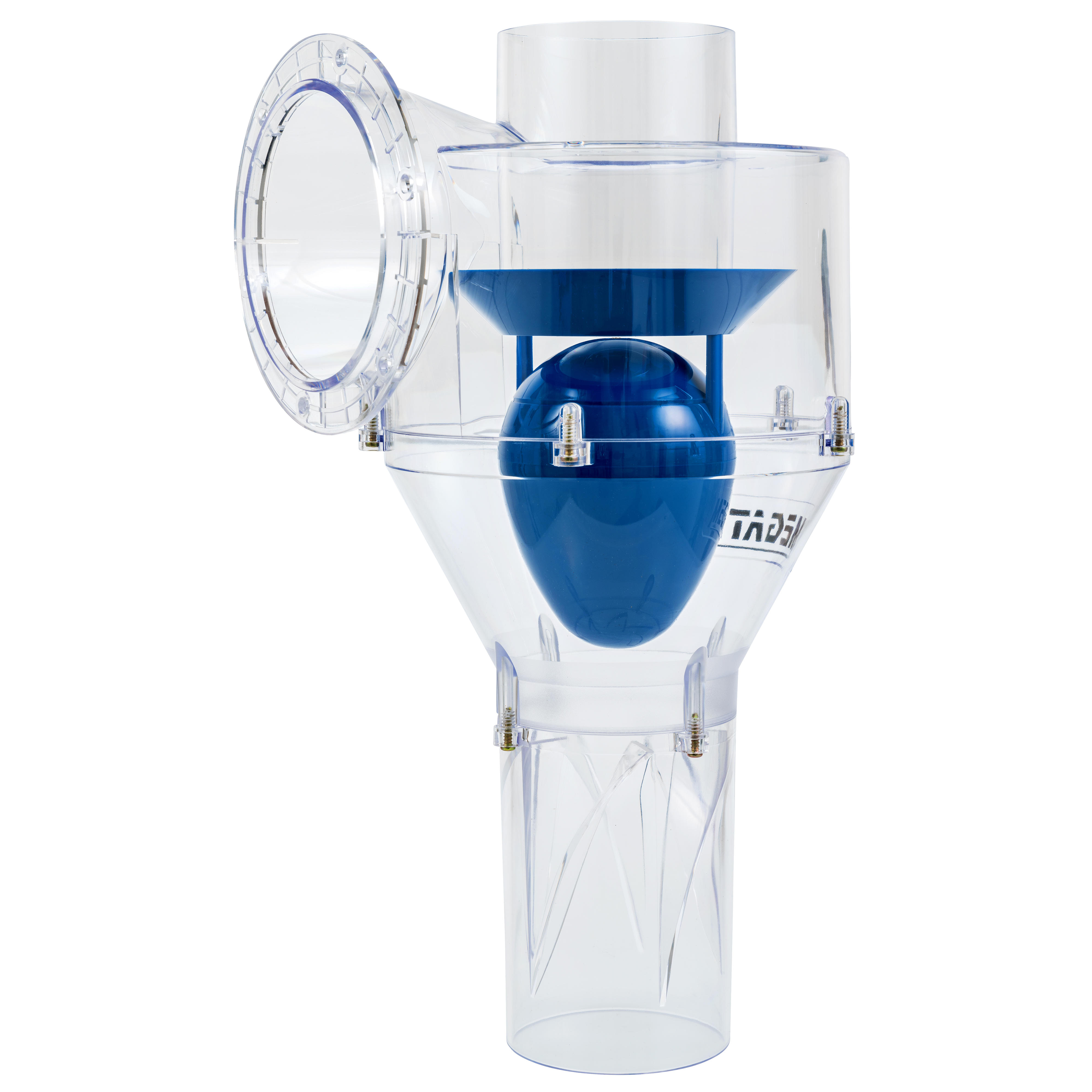

Vortex CPS-147M Cyclone Separator
Product no.:
725116
Brand:
Sonstige
€129.00 €108.40
per piece
Delivery time approx. 3-5 working days
- Machine/Accessory Accessories
- Machine type Extraction unit
- Material Polycarbonate
- Nominal diameter 1 100 mm
- Nominal diameter 2 100 mm
Description
Increases efficiency and extends operating life
The separator ensures your extraction system works efficiently over the long-term,minimises wear and simplifies the disposal of dust and chips.

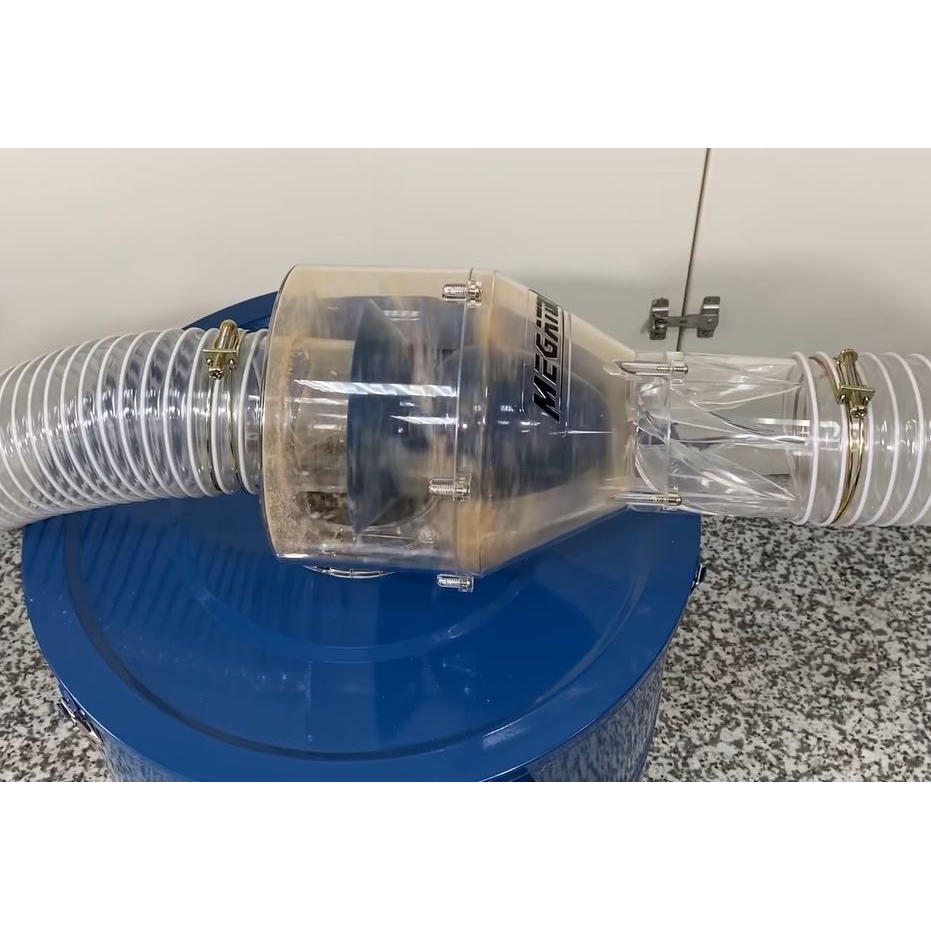

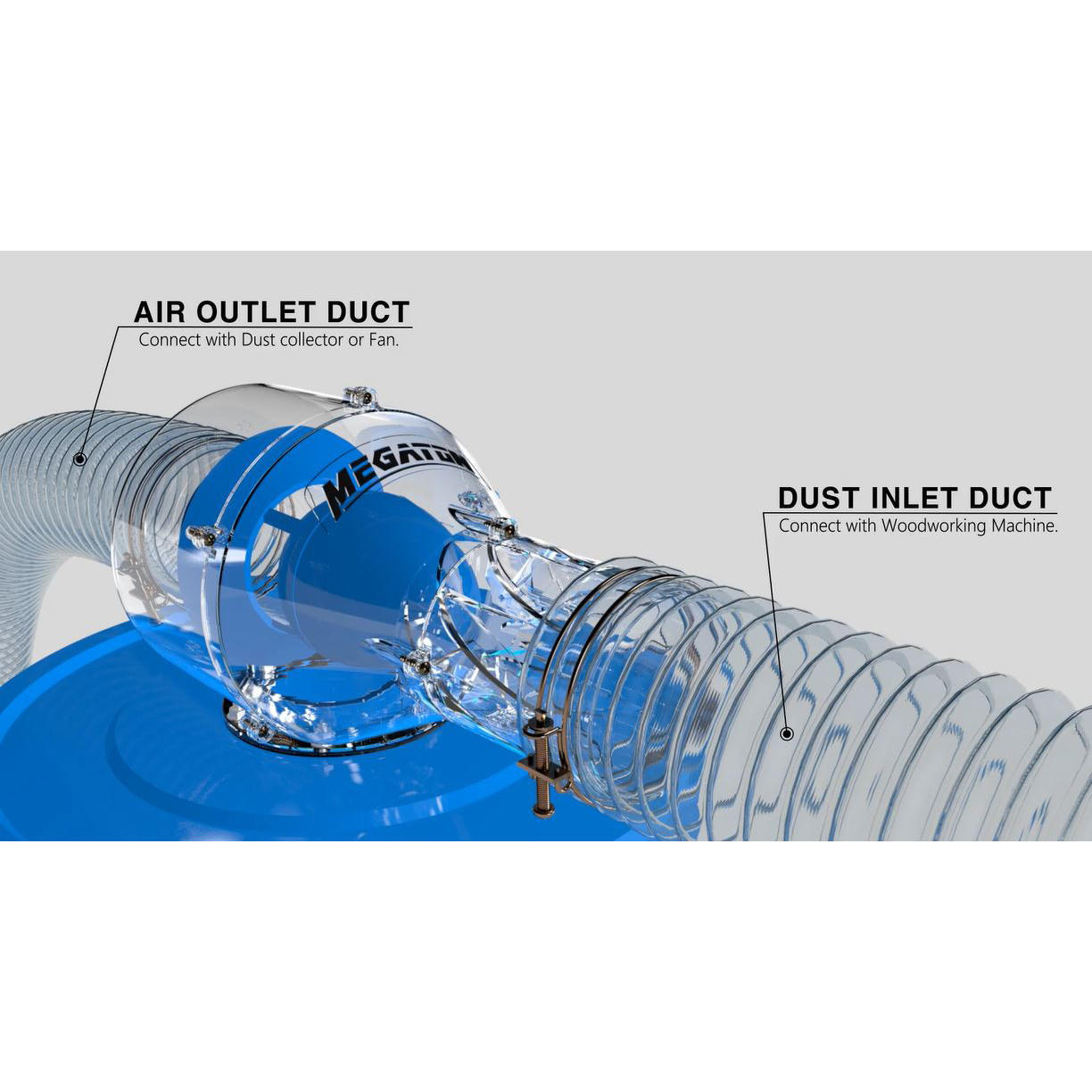

Positioned between the extraction system and the woodworking machine, the Vortex CPS-147M separates up to 97 % of dust and shavings before they reach the extraction system, contaminate the filter material, and lead to a pressure drop.

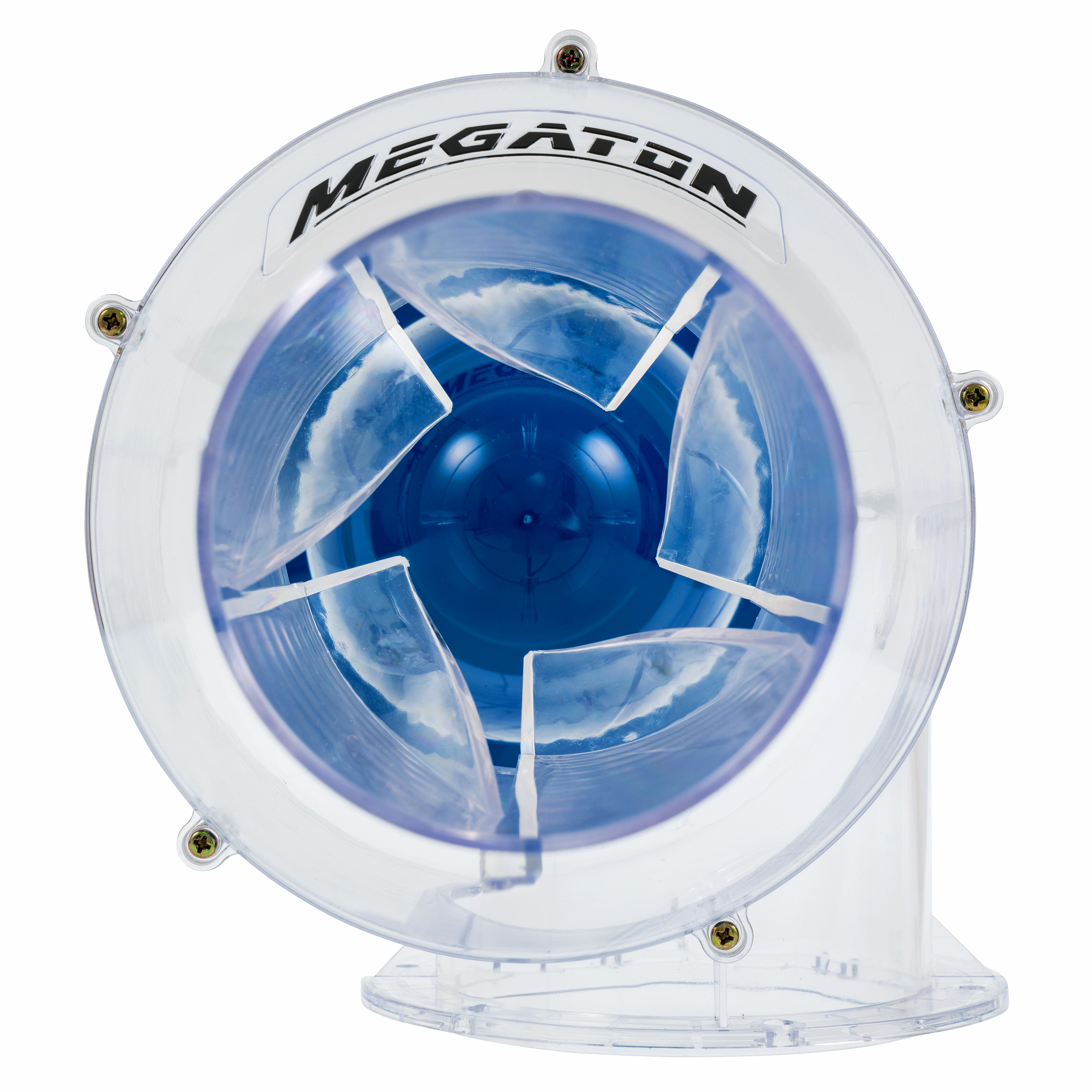

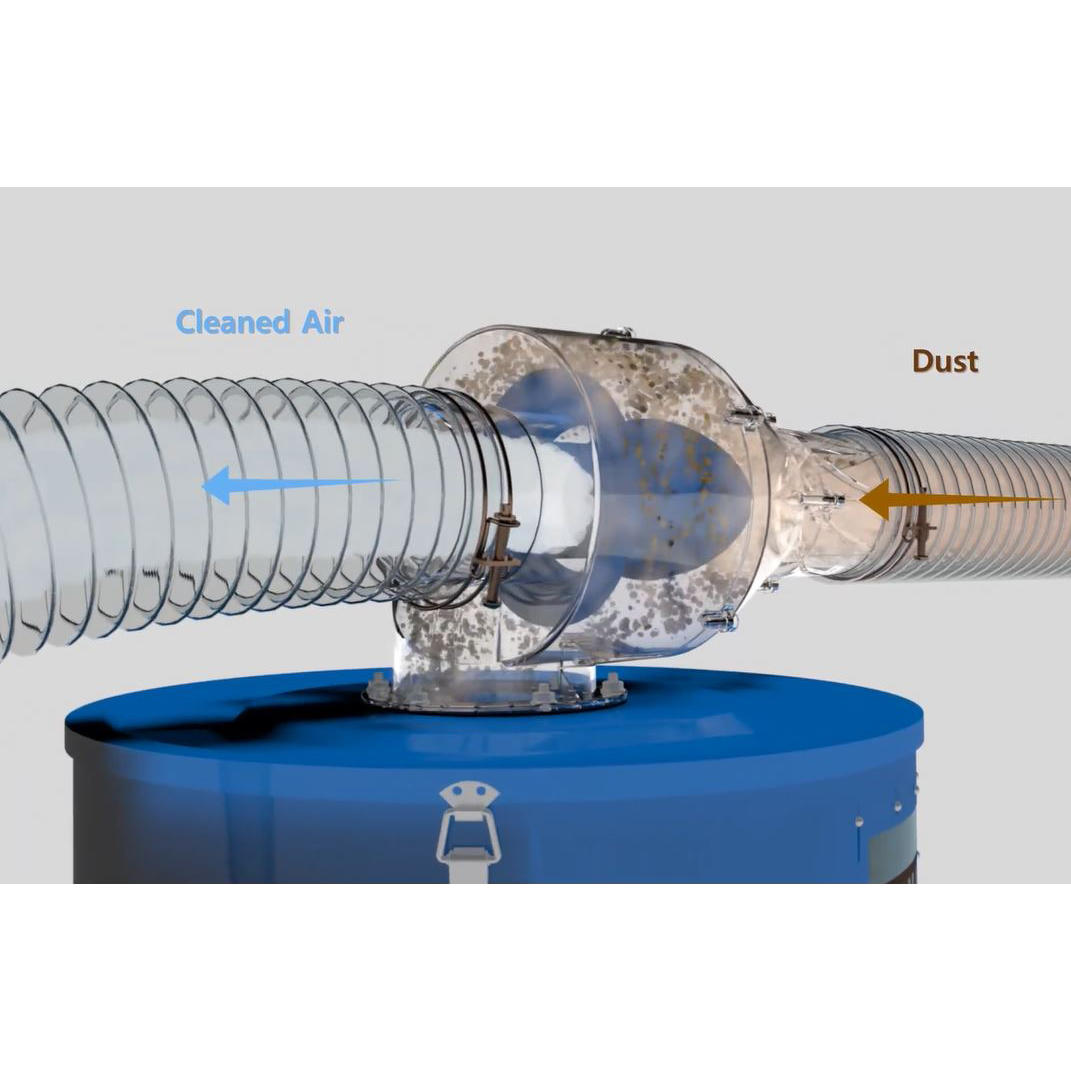

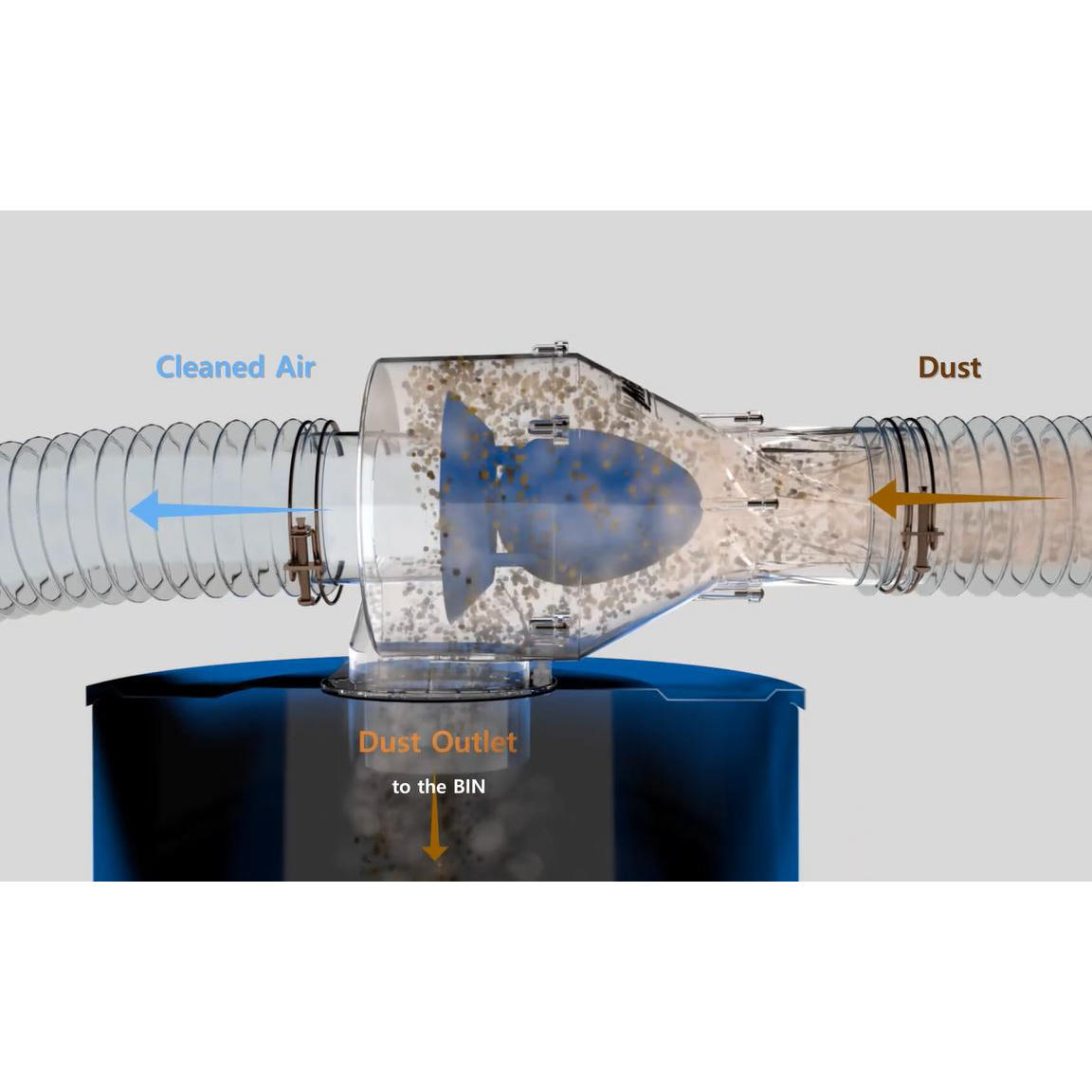

Thanks to the sophisticated design of the deflectors inside the separator, a centrifugal force is generated, which brings dust, shavings, and small offcuts into a vortex, causing them to fall down due to gravity into a separate collection container (bin, box, custom-built silo).
For extraction hoses with a diameter of 100 mm.
Note: Collection containers must be operated with a tightly sealed lid. A drilling template for creating an opening for the cyclone is included.
Benefits:
Positioned between the extraction system and the woodworking machine, the Vortex CPS-147M separates up to 97 % of dust and shavings before they reach the extraction system, contaminate the filter material, and lead to a pressure drop.
Thanks to the sophisticated design of the deflectors inside the separator, a centrifugal force is generated, which brings dust, shavings, and small offcuts into a vortex, causing them to fall down due to gravity into a separate collection container (bin, box, custom-built silo).
For extraction hoses with a diameter of 100 mm.
Note: Collection containers must be operated with a tightly sealed lid. A drilling template for creating an opening for the cyclone is included.
Benefits:
- The extraction system’s filter material is contaminated less, thus requires less cleaning and less frequent replacement.
- The system’s performance is consistent over a long period, as the filter material clogs less.
- The fan and suction hoses of the extraction system are less stressed and worn, which significantly increases the lifespan (fans and suction hoses in extraction systems are wear parts).
- Emptying the shavings from, for example, a bin, is easier for many users than dismantling the chip bags from the extraction system.

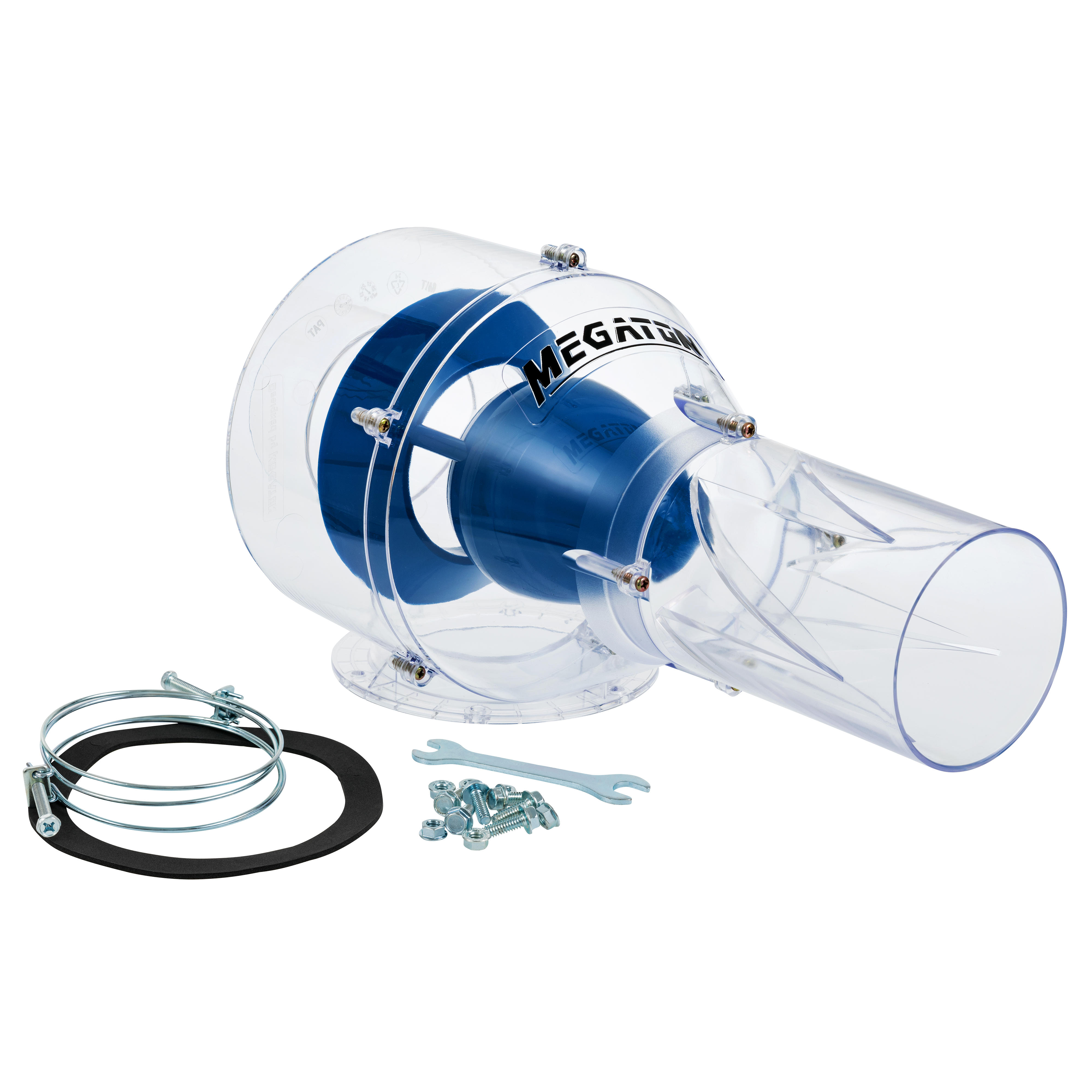

Scope of delivery
- Separator
- Gasket
- 2 Hose clamps
- Drilling template
Properties
| Machine/Accessory: | Accessories |
|---|---|
| Machine type: | Extraction unit |
| Material: | Polycarbonate |
| Nominal diameter 1: | 100 mm |
| Nominal diameter 2: | 100 mm |
| Nominal diameter 3: | 100 mm |
| Version: | CPS-147M |
Properties
| Machine/Accessory: | Accessories |
|---|---|
| Machine type: | Extraction unit |
| Material: | Polycarbonate |
| Nominal diameter 1: | 100 mm |
| Nominal diameter 2: | 100 mm |
| Nominal diameter 3: | 100 mm |
| Version: | CPS-147M |
