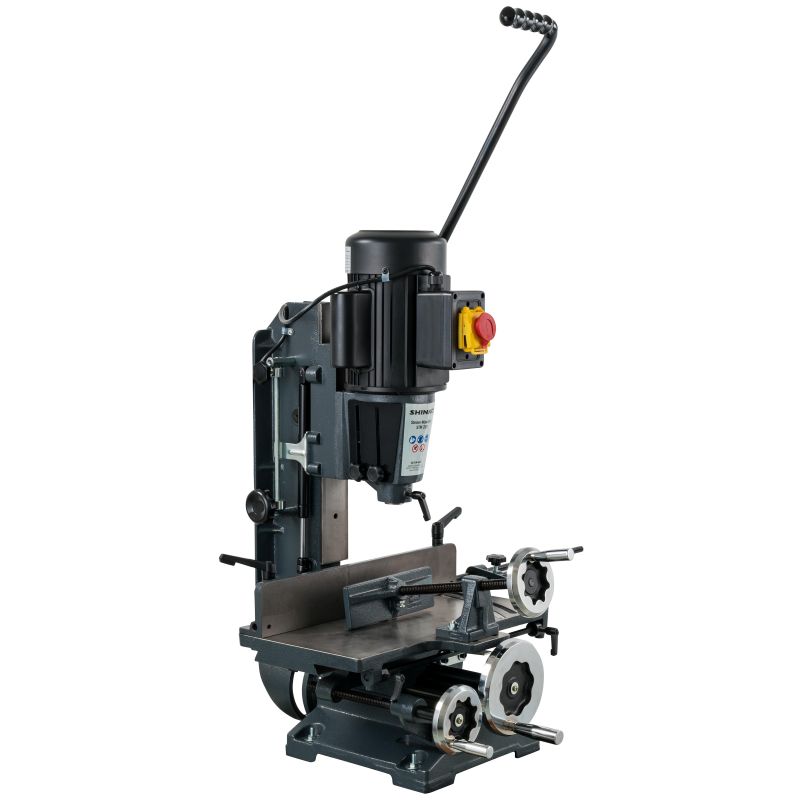

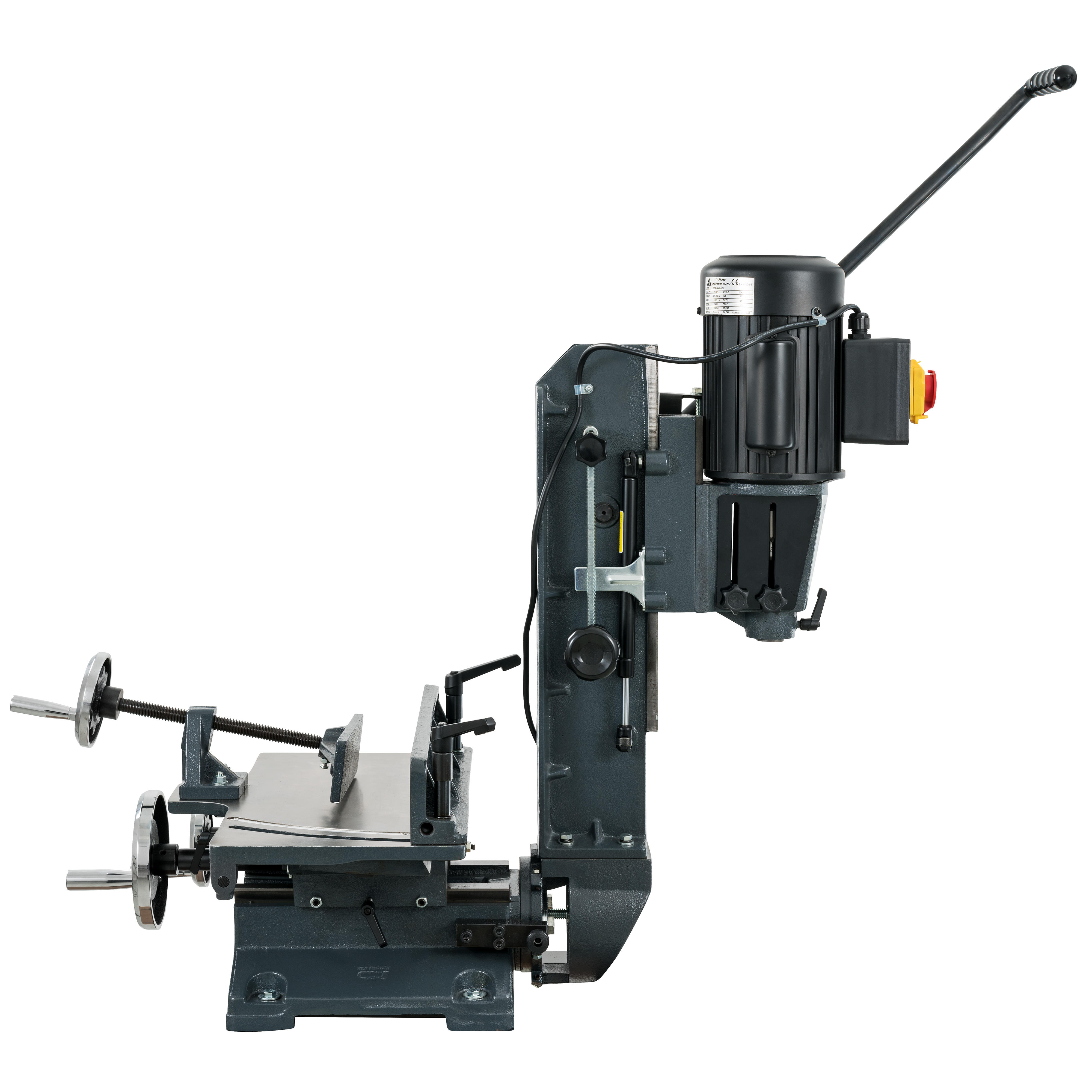

Shinko® Mortising Machine STM 200
Product no.:
790949
Brand:
Shinko
€1,199.00 €1,007.56
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
- Chuck Capacity 2-13 mm
- Chuck Type Keyed drill chuck
- Maschine/Zubehör Machine
- Maschinen-Typ Mortising machines
- Motor voltage 230 V / 50 Hz
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
Description
Cut square mortises quickly and easily

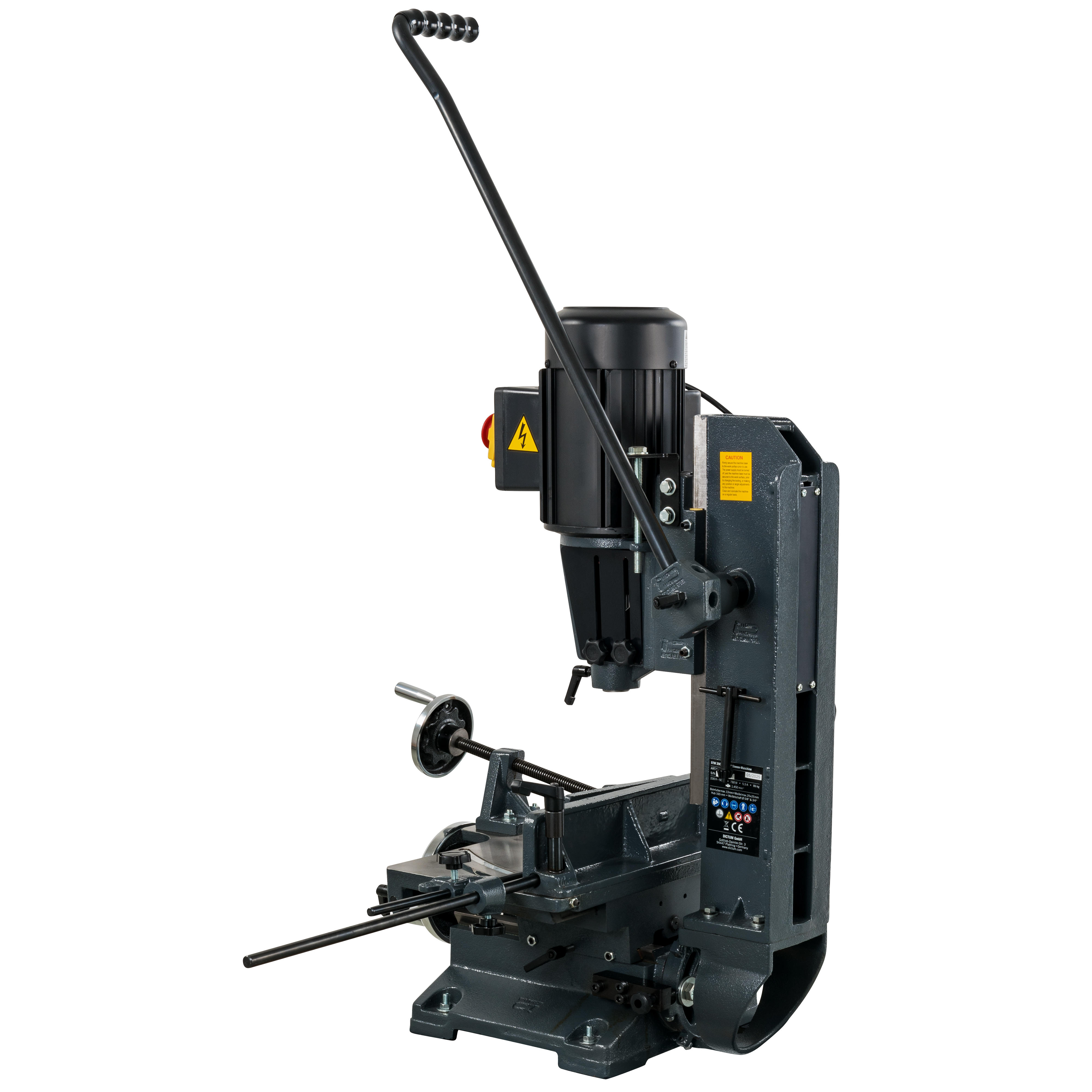

This cast-iron mortising machine ensures vibration-free operation combined with precision, efficiency, and long service life. The mortising bits are easy to handle and produce clean, sharp-edged mortises without chipping. Numerous adjustment options – essential for series production and precise repetition – make this machine the perfect companion in any woodworking shop.

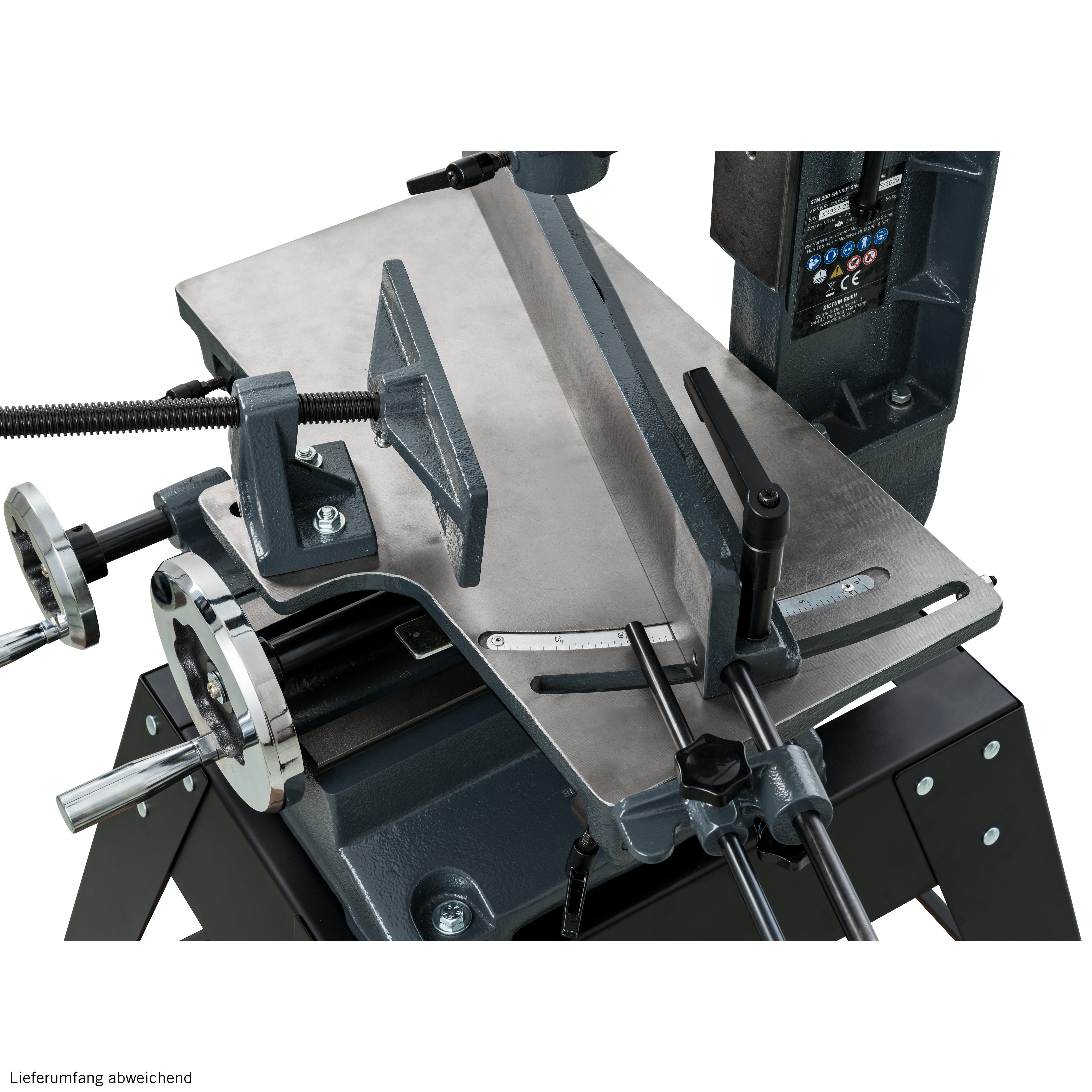

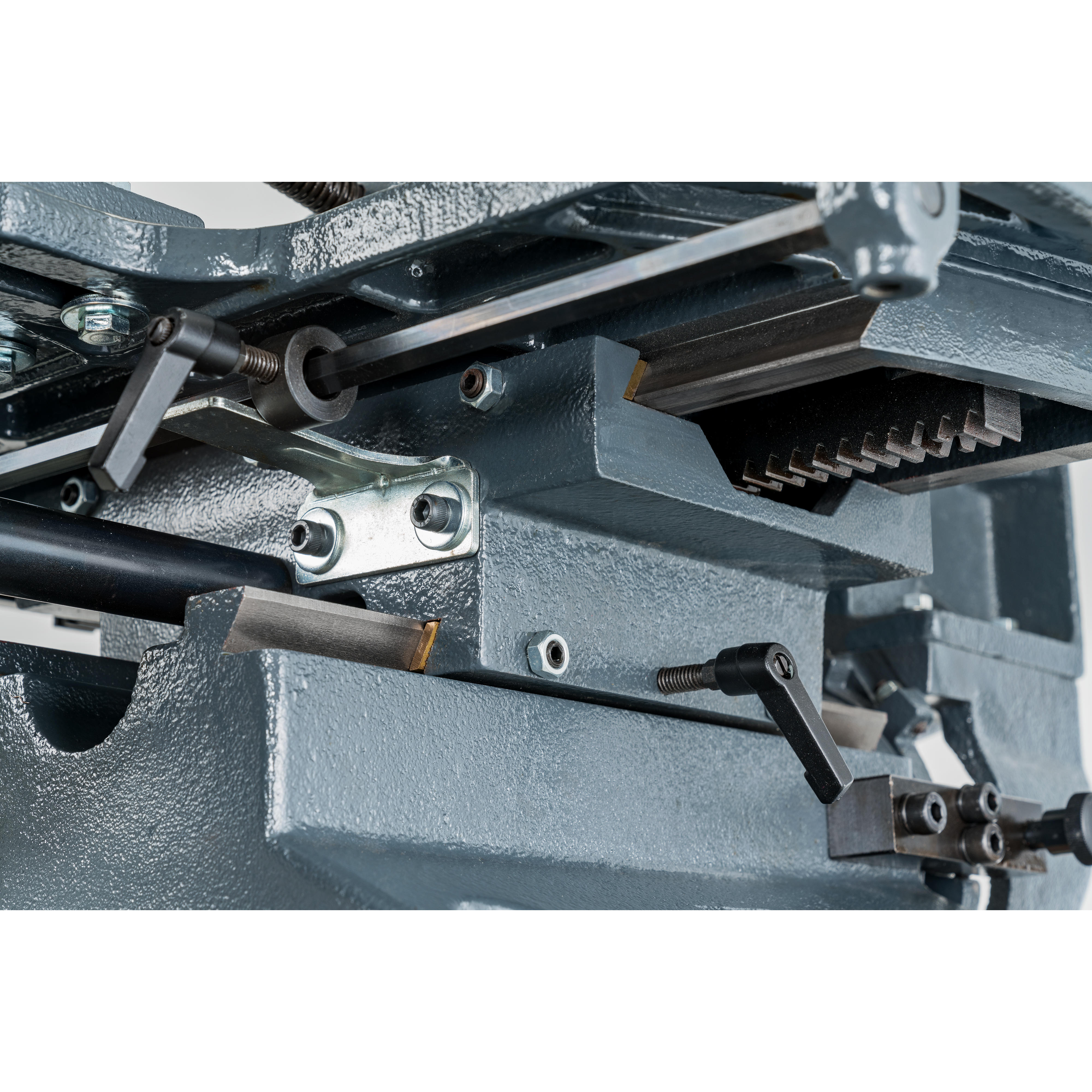

The sturdy cross slide with workpiece fence and adjustable dovetail guides can be moved along the X and Y axes using two handwheels.

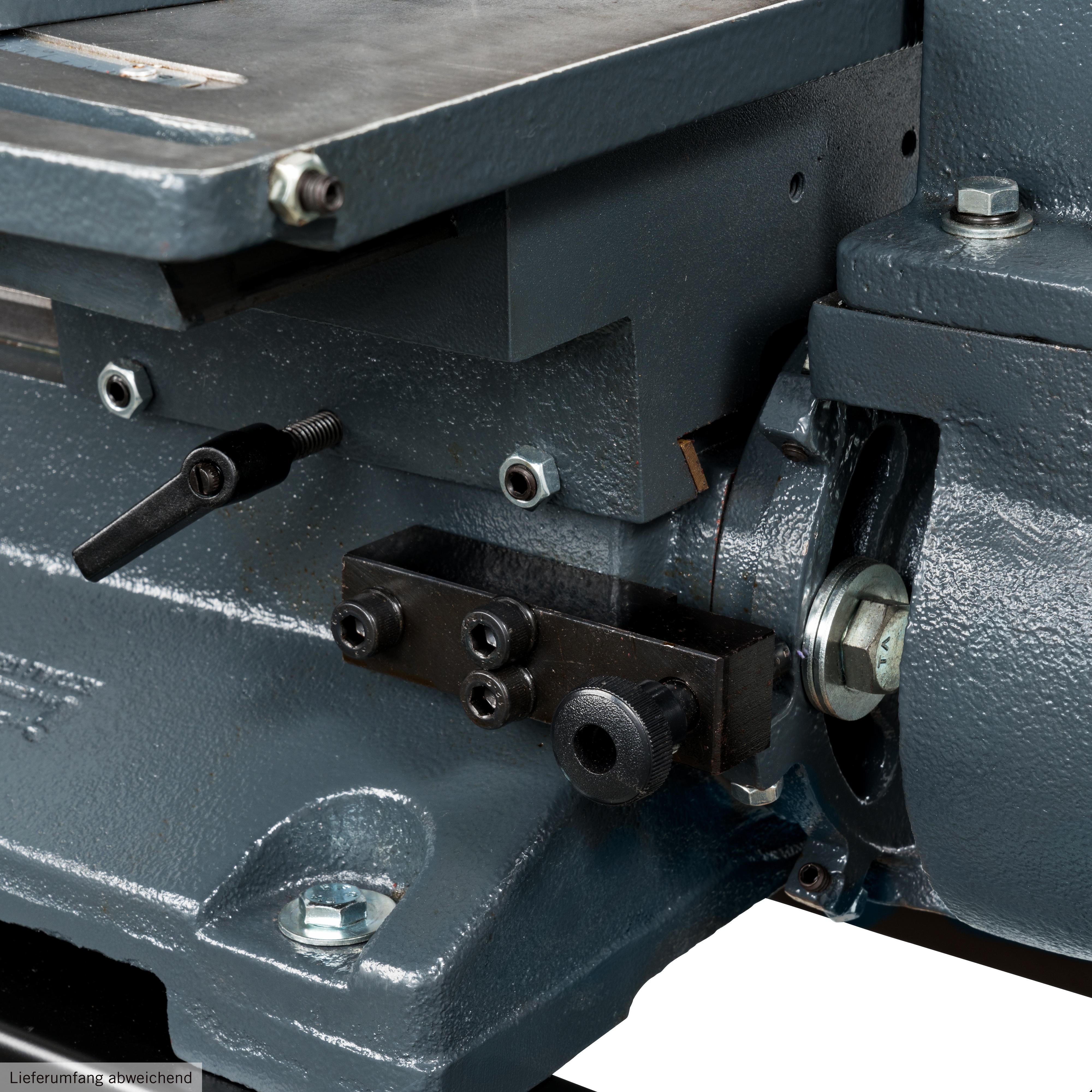

Adjustable stops allow you to set the required mortise position, depth, angle, clamping height, and travel of the workpiece, ensuring mortises can be reproduced quickly and accurately.
The depth setting of the mortising bit is operated via a hand lever with an integrated gas spring to assist the mortising process. For comfortable handling, you can adjust six lever positions.

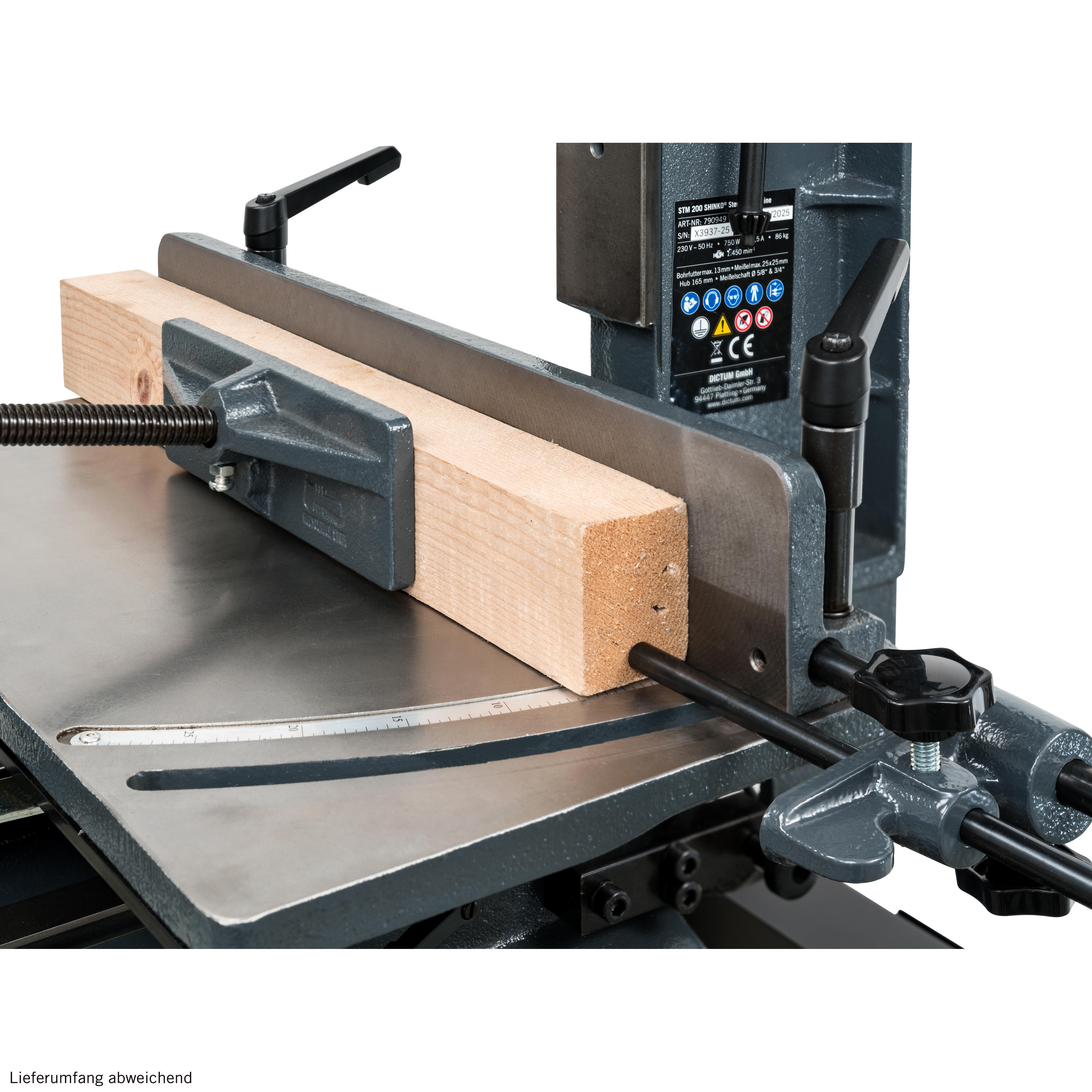

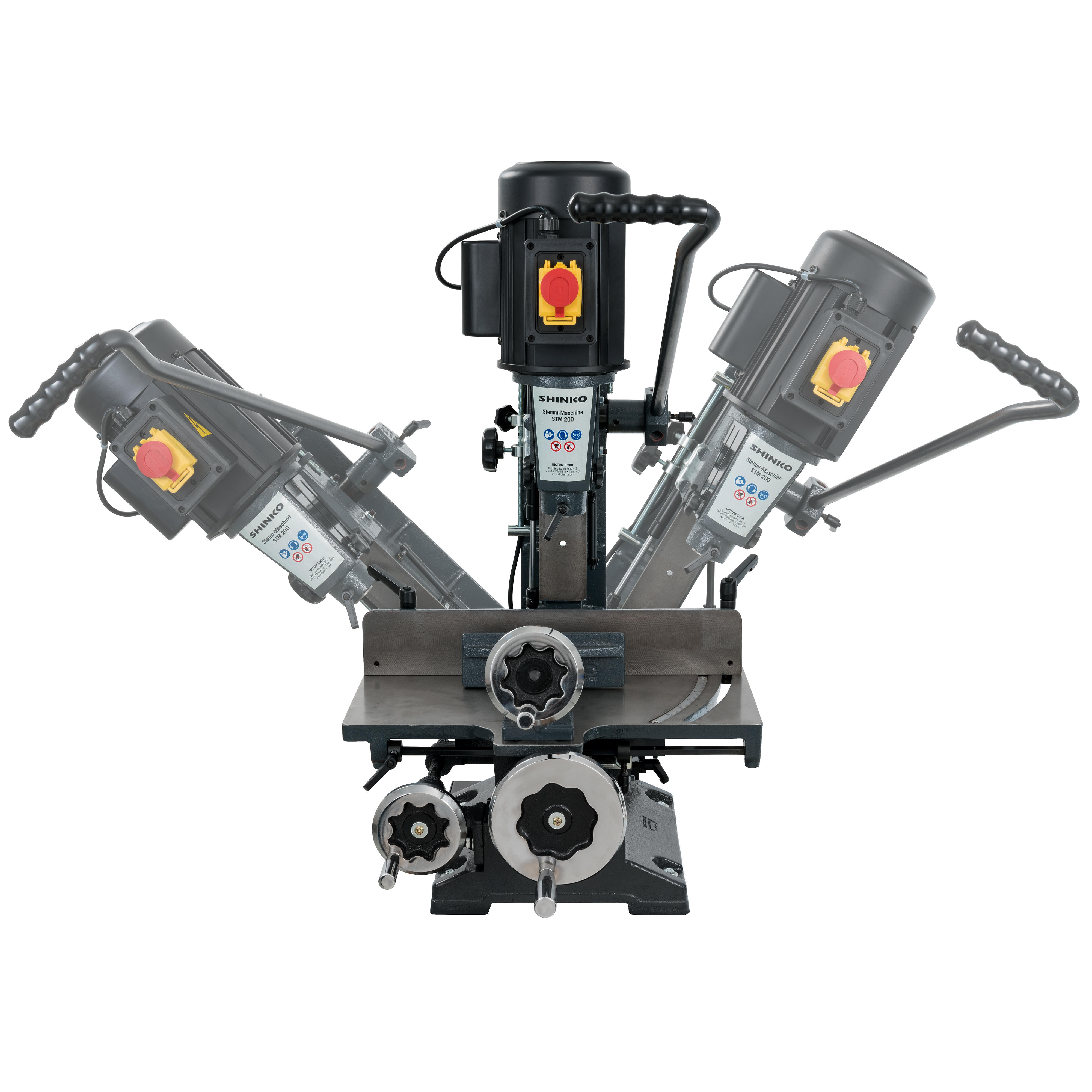

The STM 200 allows angled mortises to be cut with ease – whether at an angle to the edge or the surface of the workpiece. The fence on the cross slide can be set at an angle, for example when cutting inclined mortises for louvre doors. In addition, the entire drill column can be tilted 30° to the right or 45° to the left, for example when working on angled table or chair legs.
That’s not all – the column can also be rotated by 180°, allowing even large workpieces to be machined with ease, such as milling the lock cases of interior doors.

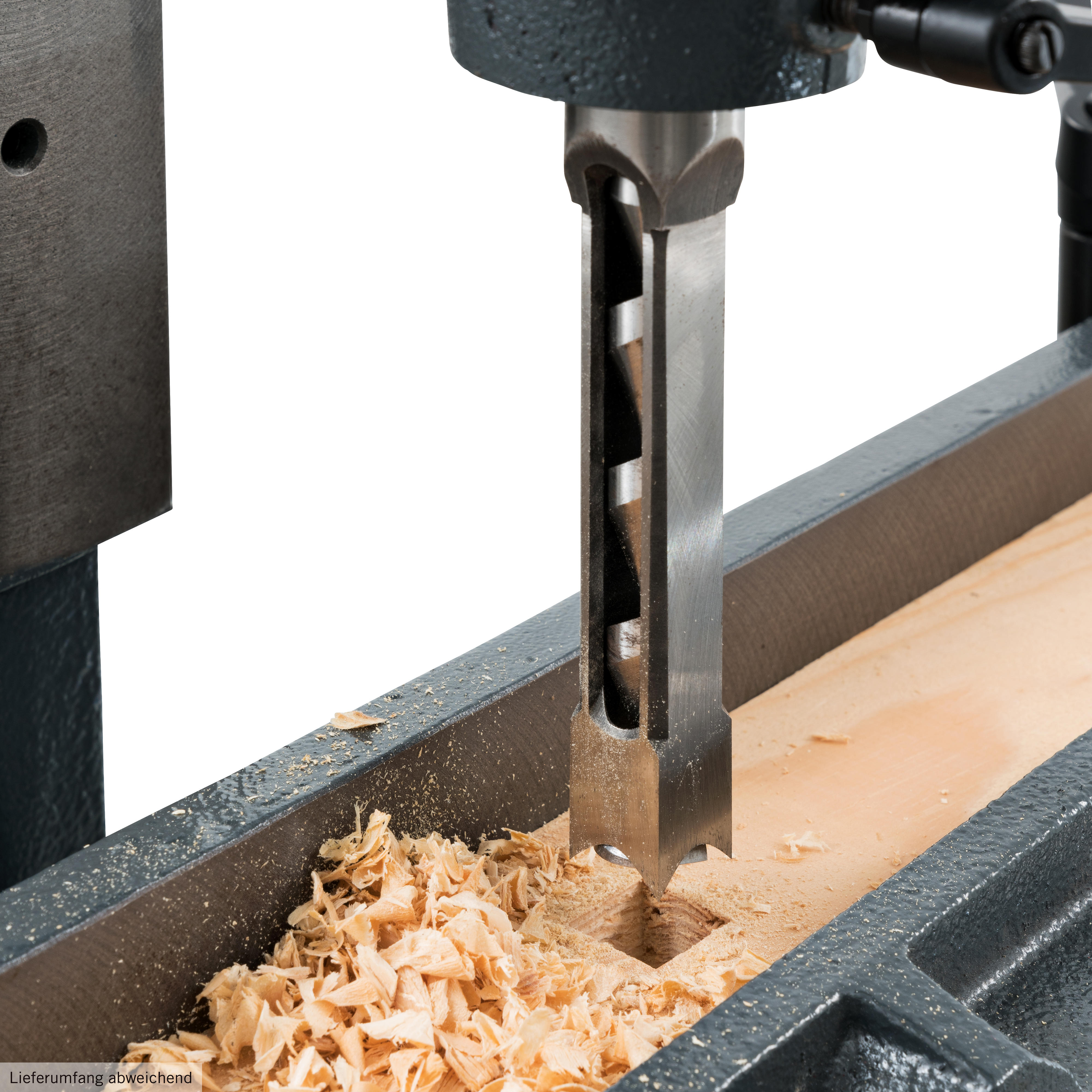

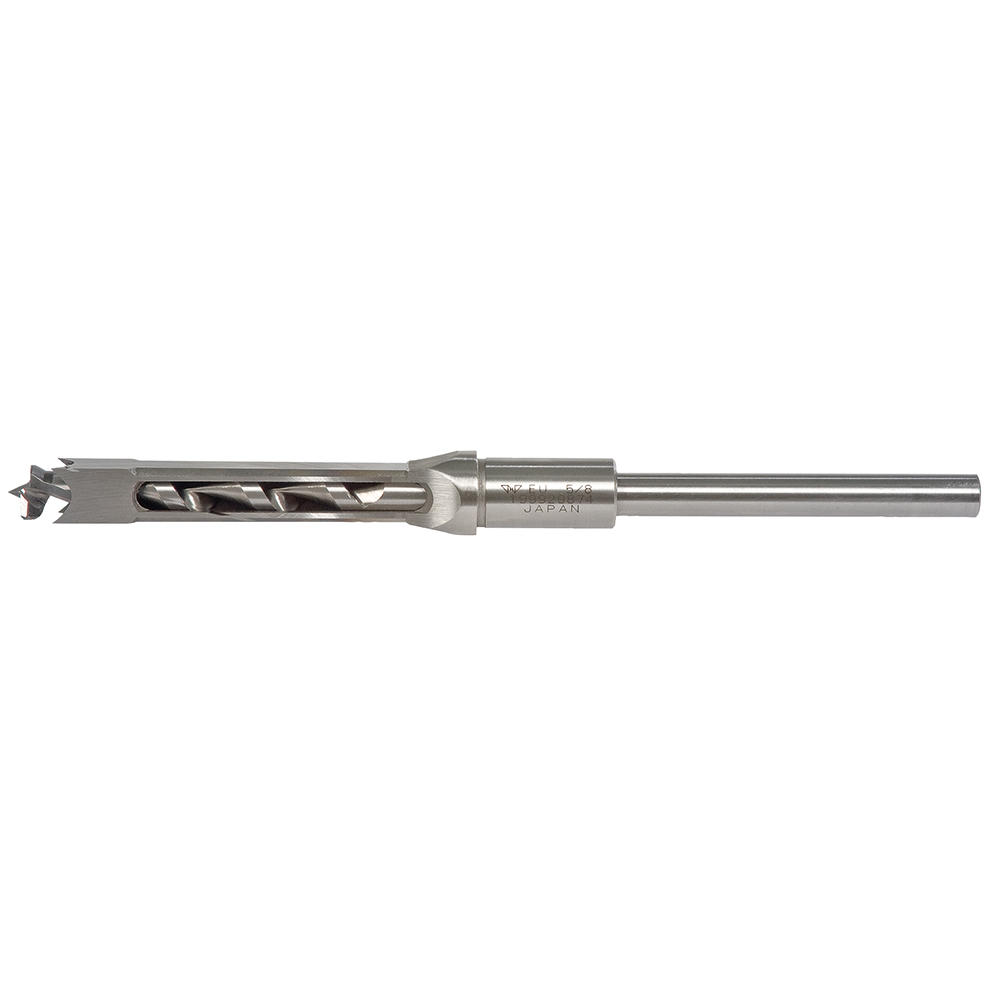

Mortising bits (available separately): max. 25 × 25 mm for softwood, 19 × 19 mm for hardwood.
Advantages:
For mortising bits with ⅝ or ¾ inch shanks. Drilling stroke 165 mm, maximum reach (fence to drill centre) 78 mm, maximum workpiece height 200/250 mm, table travel X/Y 355/125 mm, table size 487 × 252 mm, drilling head tilt range left 45° / right 30°.
The sturdy cross slide with workpiece fence and adjustable dovetail guides can be moved along the X and Y axes using two handwheels.
Adjustable stops allow you to set the required mortise position, depth, angle, clamping height, and travel of the workpiece, ensuring mortises can be reproduced quickly and accurately.
The depth setting of the mortising bit is operated via a hand lever with an integrated gas spring to assist the mortising process. For comfortable handling, you can adjust six lever positions.
The STM 200 allows angled mortises to be cut with ease – whether at an angle to the edge or the surface of the workpiece. The fence on the cross slide can be set at an angle, for example when cutting inclined mortises for louvre doors. In addition, the entire drill column can be tilted 30° to the right or 45° to the left, for example when working on angled table or chair legs.
That’s not all – the column can also be rotated by 180°, allowing even large workpieces to be machined with ease, such as milling the lock cases of interior doors.
Mortising bits (available separately): max. 25 × 25 mm for softwood, 19 × 19 mm for hardwood.
Advantages:
- Solid cast-iron construction
The machine is made almost entirely of cast iron, ensuring maximum stability, robustness, and durability. - Easy operation
Its similarity to a pillar drill, combined with a cross slide and mortising bits, makes the machine simple and efficient to use. - Variable workpiece fences
A cross stop for repeatable mortising positions and a pivoting depth stop allow efficient and precise work. - Gas-assisted milling head
Safe positioning and lifting of the machine head are ensured by a gas spring, which also helps reduce operator fatigue. - Flexible workpiece processing
The tiltable fence and column enable a wide range of working positions – ideal for angled mortises or large workpieces. - Repeatable accuracy
Multiple stops guarantee repeatable, precise mortising operations with high efficiency.
For mortising bits with ⅝ or ¾ inch shanks. Drilling stroke 165 mm, maximum reach (fence to drill centre) 78 mm, maximum workpiece height 200/250 mm, table travel X/Y 355/125 mm, table size 487 × 252 mm, drilling head tilt range left 45° / right 30°.
Scope of delivery

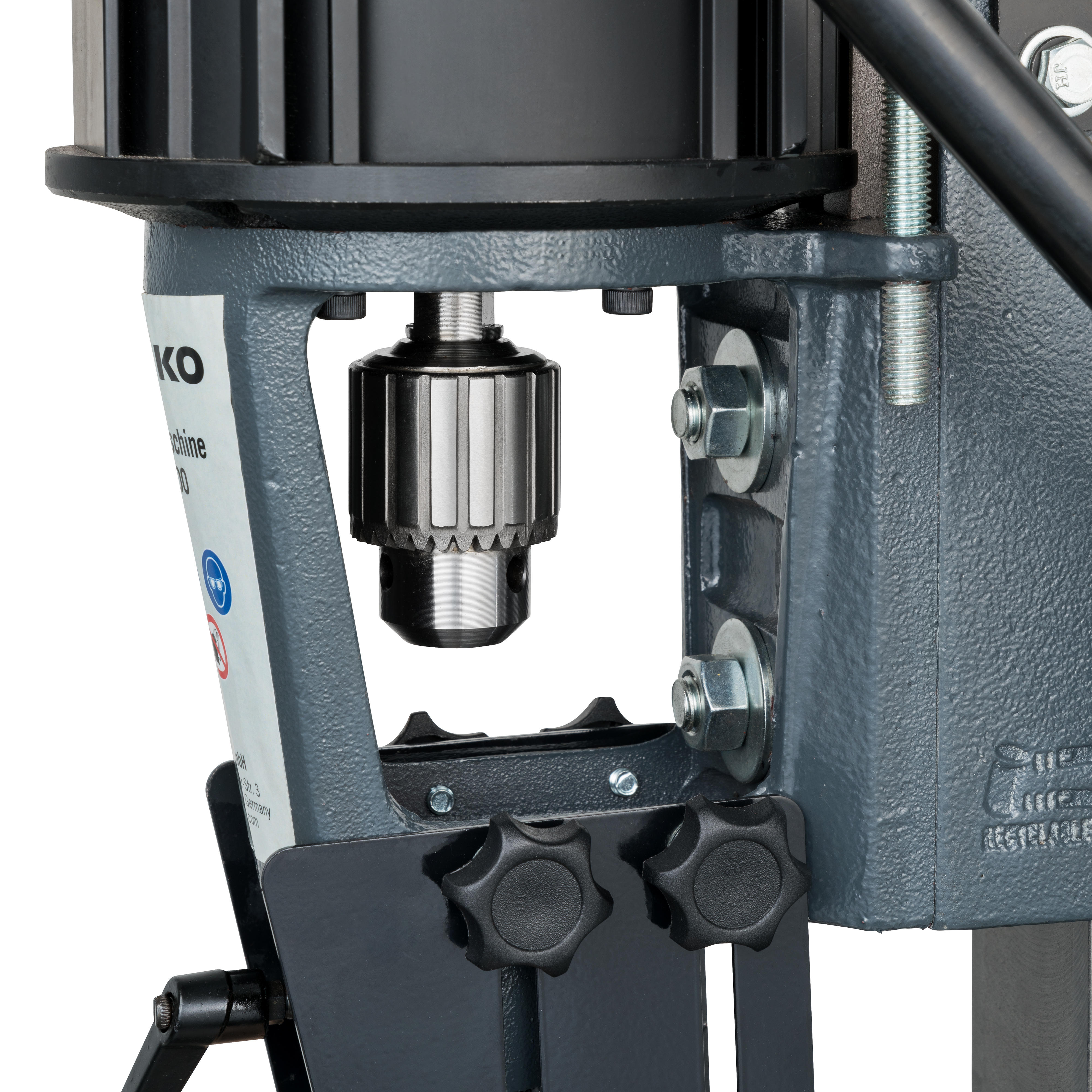

- Keyed drill chuck 2–13 mm with chuck key
- ⅝ inch (15.87 mm) reducing sleeve
- ¾ inch (19.05 mm) reducing sleeve
- Rip fence
- Hex key
Properties
| Chuck Capacity: | 2-13 mm |
|---|---|
| Chuck Type: | Keyed drill chuck |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Mortising machines |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 750 W |
| Power source: | Corded |
| Weight: | 86 kg |
Properties
| Chuck Capacity: | 2-13 mm |
|---|---|
| Chuck Type: | Keyed drill chuck |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Mortising machines |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 750 W |
| Power source: | Corded |
| Weight: | 86 kg |
