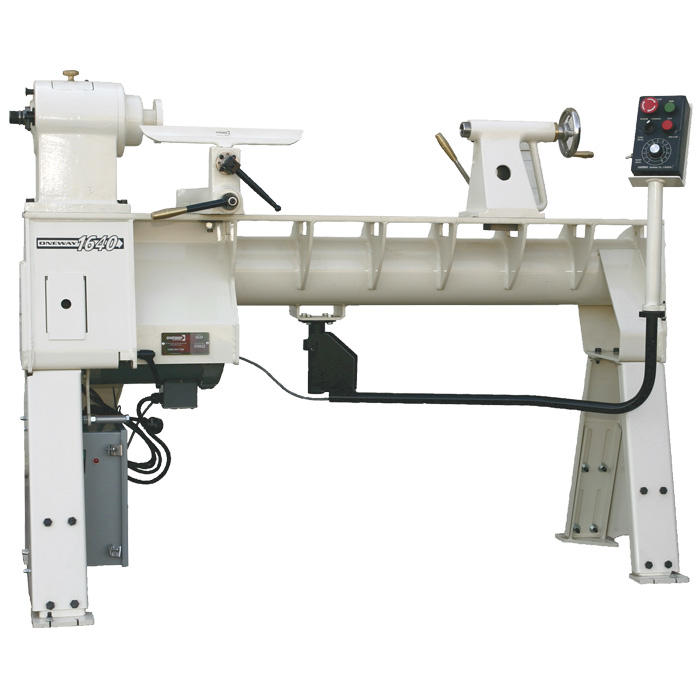

Oneway 1640 Lathe
Product no.:
705554
Brand:
Oneway
€4,369.00 €3,671.43
per piece(s)
Bulky goods – delivery time will be provided by our customer service.
Delivery mid November 2025
- Centre height 203 mm
- Distance between centres 1016 mm
- Engine power 1.5 kW (2 hp)
- Height Working height / axle centre adjustable from 1066 to 1168 mm
- Hollow spindle #2 MT inner cone
Bulky goods – delivery time will be provided by our customer service.
Delivery mid November 2025
Description
Medium-weight professional lathe with external turning option for universal use. Good value for money. The vertically adjustable base frame with torsion-resistant bed is very heavy and absorbs optimally vibrations. On the outboard spindle you can work smoothly on big bowls. The patented clamping mechanism makes it easy to lock the tool rest and tailstock into position without a key.
Specifications:
Specifications:
- Height of centre over bed 203 mm
- Distance between centres 1016 mm
- Two speed levels, variable speed 14-700 / 51-2585 rpm
- Hollow spindle (#2 MT inner cone) with M33 x 3.5 DIN 800 thread, three spindle bearings
- Spindle indexing 48 x 7.5°
- Tailstock #3 MT quill (100 mm travel) and measuring scale
- Three-phase motor 1.5 kW (2 hp)
- Motor rating 230 V
- Gentle ramp up/down
- Switch unit with toggle switch (anti-clockwise/clockwise rotation)
- Working height/axis centre adjustable from 1066-1168 mm in 25 mm steps
- Length 1524 mm
- Width 793 mm
- Weight 272 kg
- Cast iron tool rest base with patented clamping mechanism
- Cast iron tailstock
- Steel faceplate Ø 101 mm
- Tool rest of globular cast iron 355 mm
- Oneway #3 MT live centre system
- Oneway #2 MT drive centre with thrust bearing and cutting ring
- Knockout rod
- Comes with German and English instructions
Oneway®
Fitted with the latest technology, these high-precision lathes manufactured in Canada guarantee a long life and are a pleasure to use. The innovative design combines the benefits of cast materials and the advantages of stable welded-steel constructions.
Properties
| Centre height: | 203 mm |
|---|---|
| Distance between centres: | 1016 mm |
| Engine power: | 1.5 kW (2 hp) |
| Height: | Working height / axle centre adjustable from 1066 to 1168 mm |
| Hollow spindle: | #2 MT inner cone |
| Mains connection: | 230 V |
| Morse taper: | #2 MT / #3 MT |
| Overall length: | 1524 mm |
| Reversing switch: | Forward/reverse switch |
| Speed: | 14-700 / 51-2585 rpm |
| Speed control: | double belt pulley / electronic speed control |
| Spindle indexing: | 48 x 7.5° |
| Tailstock: | #3 MT quill |
| Tailstock stroke: | 100 mm |
| Thread: | M33 x 3.5 DIN 800 |
| Tool support: | 355 mm |
| Typ: | Floor-standing lathe |
| Weight: | 272 kg |
Properties
| Centre height: | 203 mm |
|---|---|
| Distance between centres: | 1016 mm |
| Engine power: | 1.5 kW (2 hp) |
| Height: | Working height / axle centre adjustable from 1066 to 1168 mm |
| Hollow spindle: | #2 MT inner cone |
| Mains connection: | 230 V |
| Morse taper: | #2 MT / #3 MT |
| Overall length: | 1524 mm |
| Reversing switch: | Forward/reverse switch |
| Speed: | 14-700 / 51-2585 rpm |
| Speed control: | double belt pulley / electronic speed control |
| Spindle indexing: | 48 x 7.5° |
| Tailstock: | #3 MT quill |
| Tailstock stroke: | 100 mm |
| Thread: | M33 x 3.5 DIN 800 |
| Tool support: | 355 mm |
| Typ: | Floor-standing lathe |
| Weight: | 272 kg |
