Pégas® Scroll Bandsaw SRP10 DUAL
Product no.:
716430
Brand:
Pégas
€829.00 €696.64
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 3-5 working days
- Blade length 1950 mm
- Blade width min./max. 1 to 13 mm
- Cutting Speed 660 and 840 m/min
- Dimensions (L x W x H) 1570 x 790 x 620 mm (incl. stand). Machine height 930 mm.
- Exhaust Nozzle Ø 63 mm
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 3-5 working days
Description

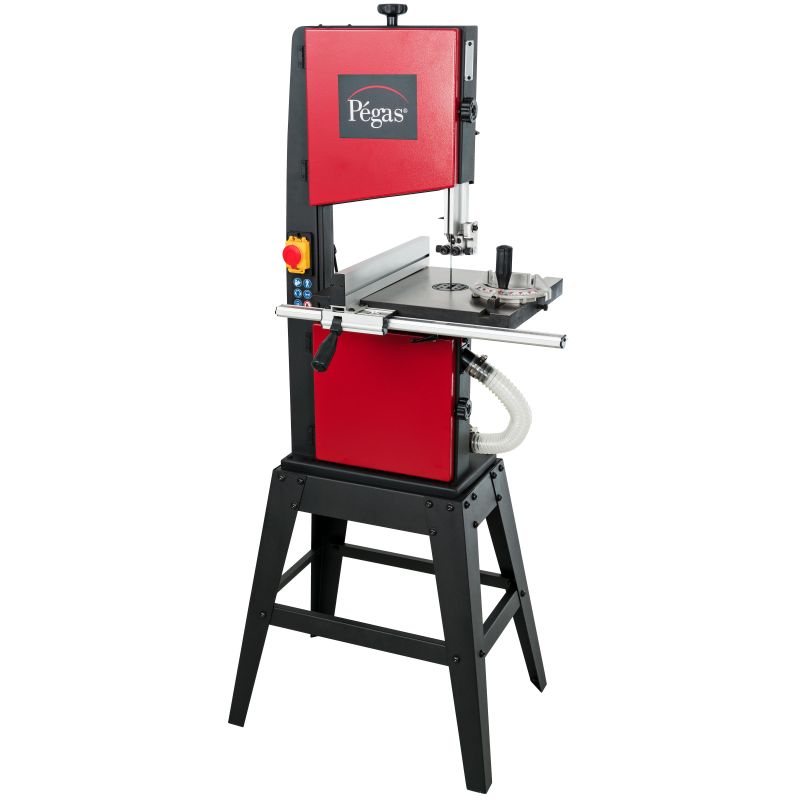

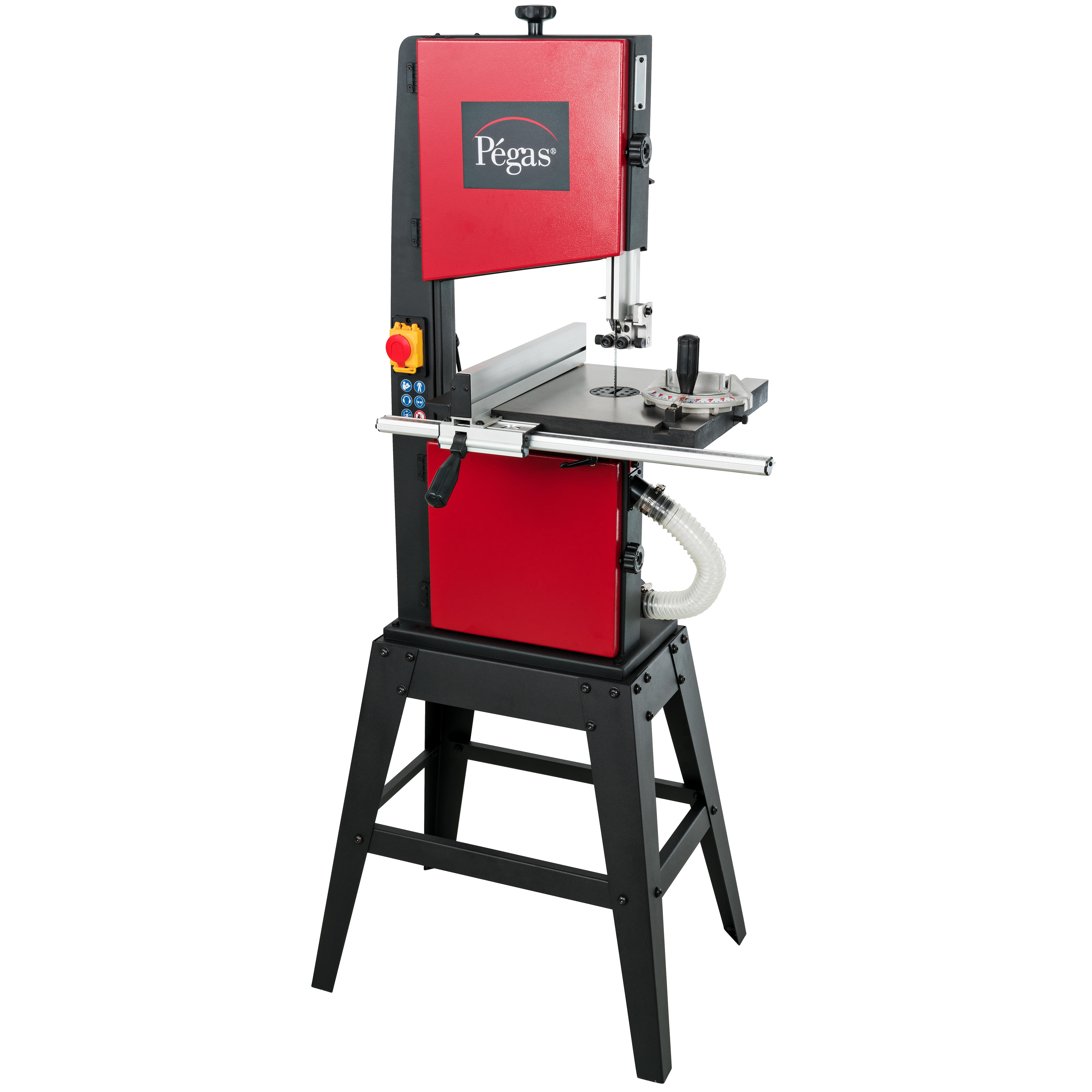

The SRP10 DUAL bandsaw by Pégas combines two machines in one – a scroll bandsaw and a standard bandsaw. With the optional sanding belt guide (available separately), the machine can also be converted into a belt sander, providing even greater versatility.
Switching between the classic blade guide, the Pégas precision guiding system, or the sanding belt setup takes just a few minutes.

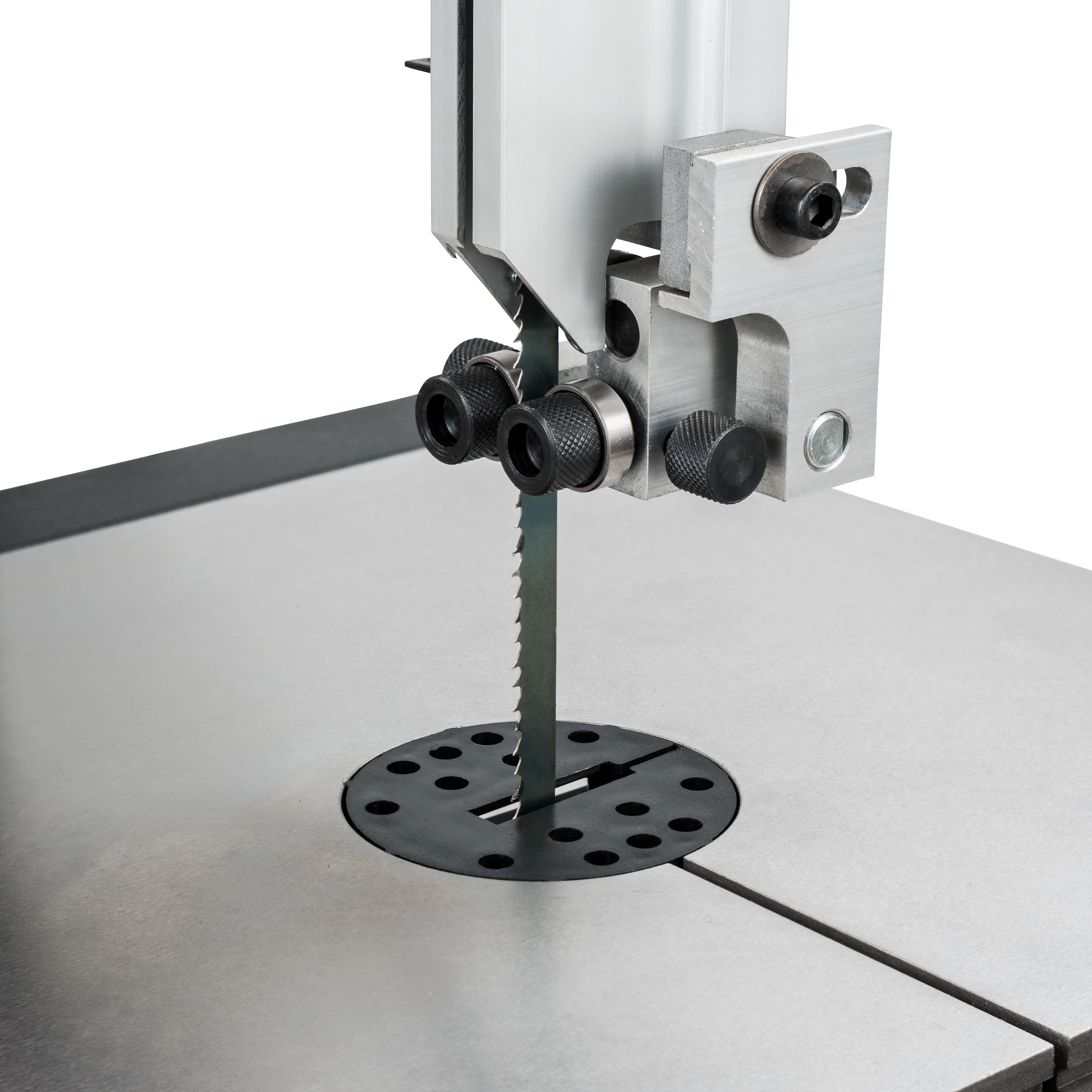

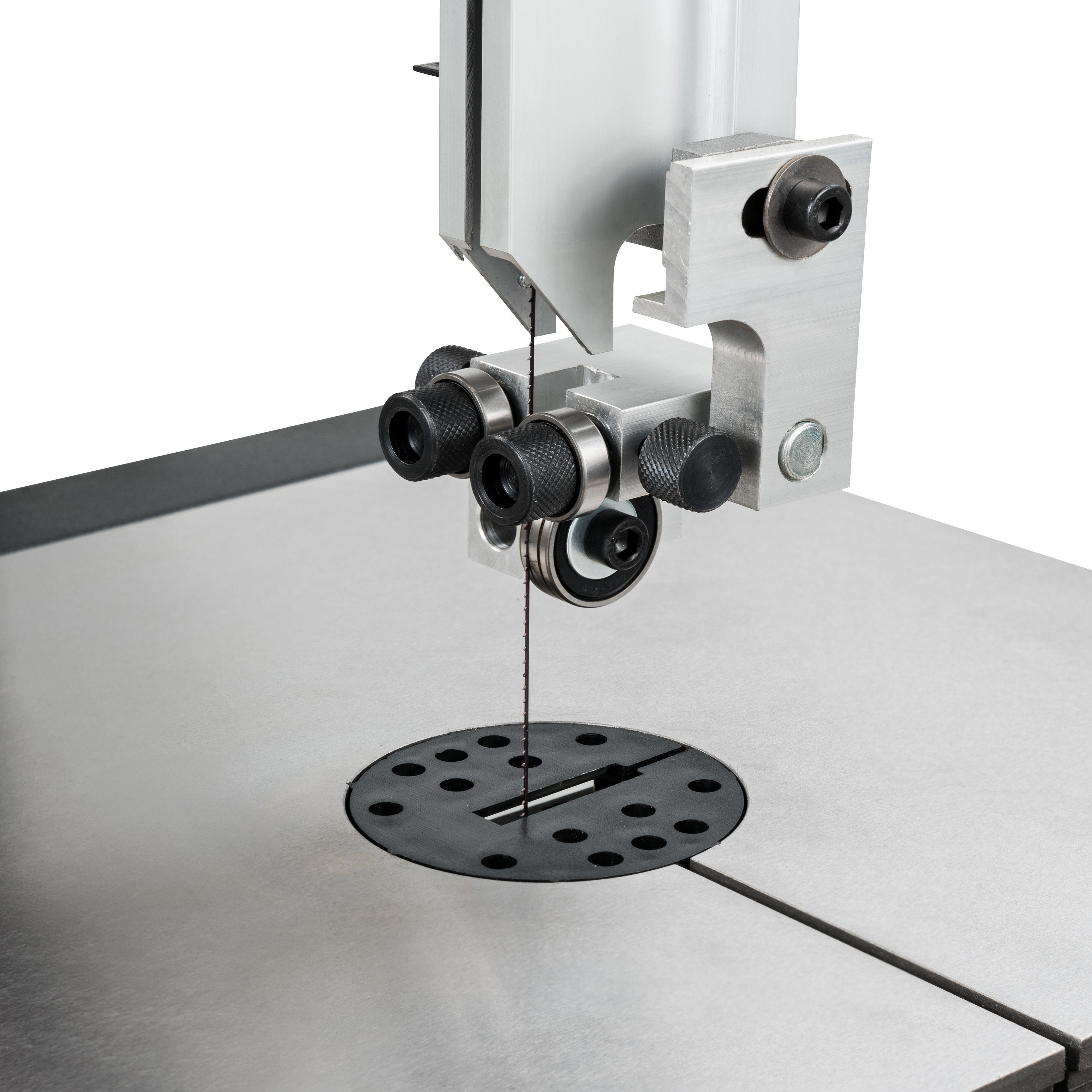

Scroll bandsaw: Equipped with the world’s finest and most precise saw blades, this bandsaw enables intricate woodworking, comparable only to what is typically achieved with scroll saws. The specially developed precision guiding system features roller bearings with guide grooves tailored to the respective scroll bandsaw blade. This ensures that the ultra-thin scroll bandsaw blades, ranging from 1.02 to 3 mm in width, are perfectly guided, prevented from twisting, and capable of performing the most delicate cuts, even for complex shapes and tight radii of less than 2 mm.

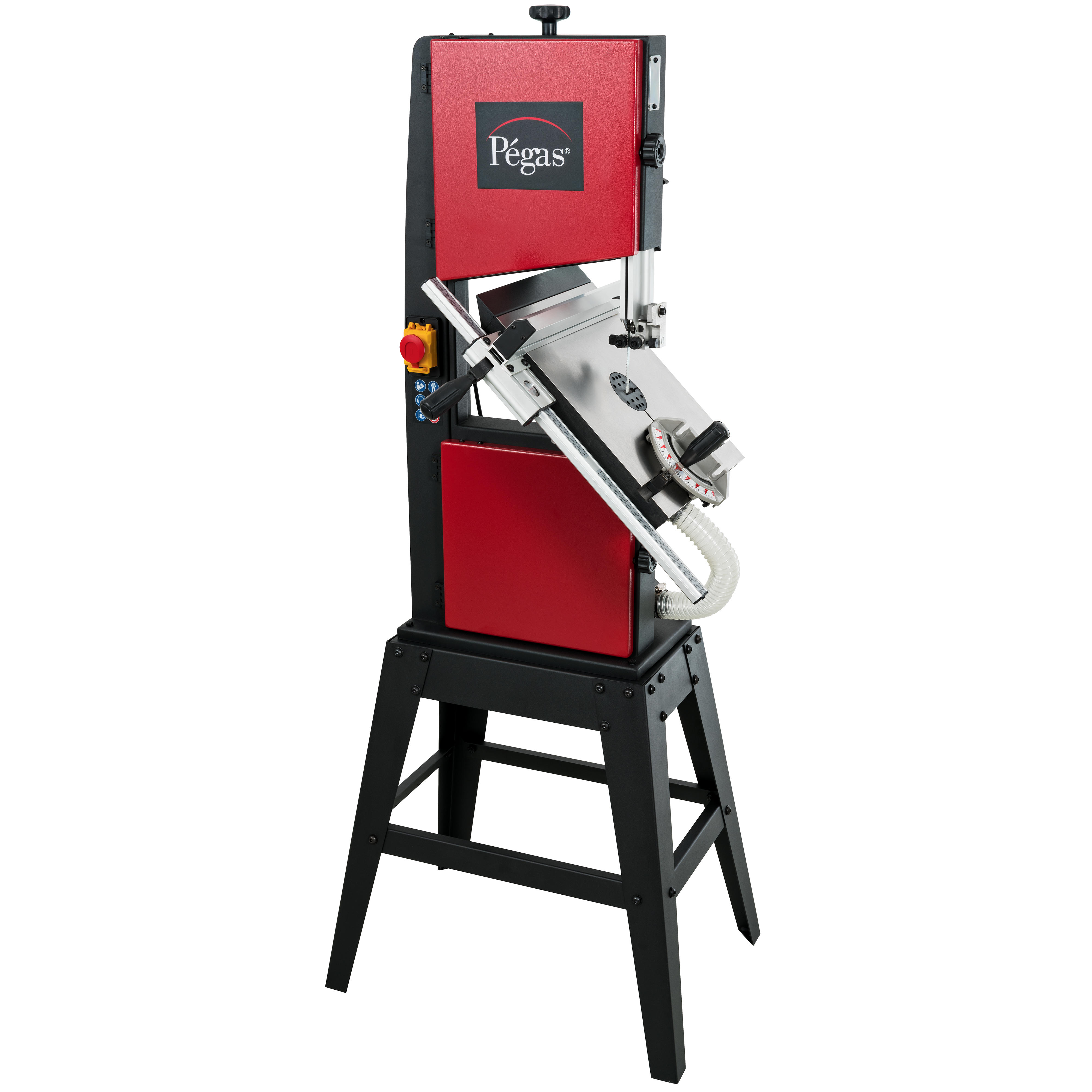

Standard bandsaw: When converted and equipped with the included standard blade guide, blades ranging from 6 to 13 mm in width can be used. The wider and sturdier saw blades facilitate rougher cutting tasks, rip cuts, and straight kerfs. The machine offers all the features typically expected from a bandsaw. The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the supplied mitre gauge (-60° to +60°). The rip fence made of aluminium profile includes an integrated magnifying glass for easier reading of the mm/inch scale.

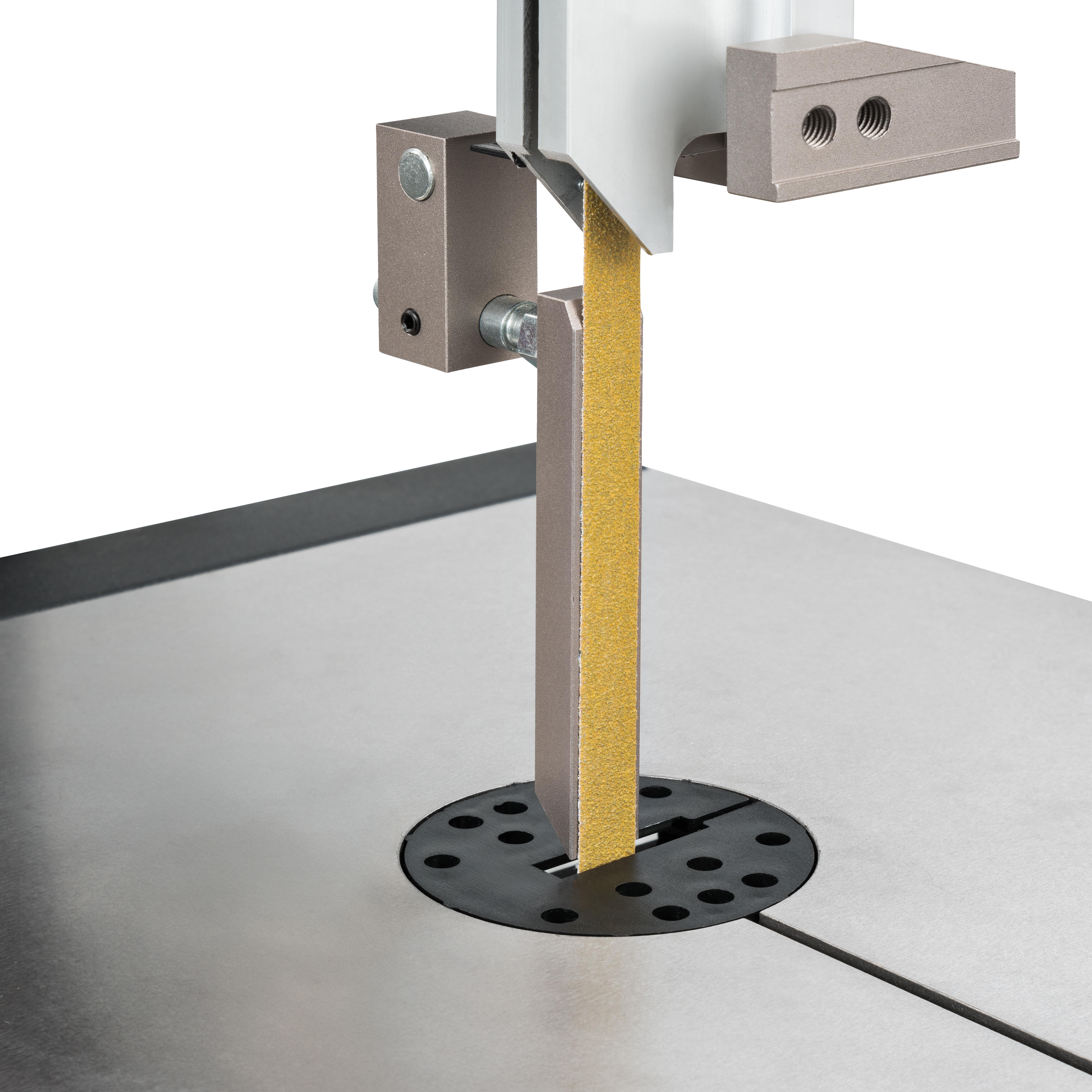

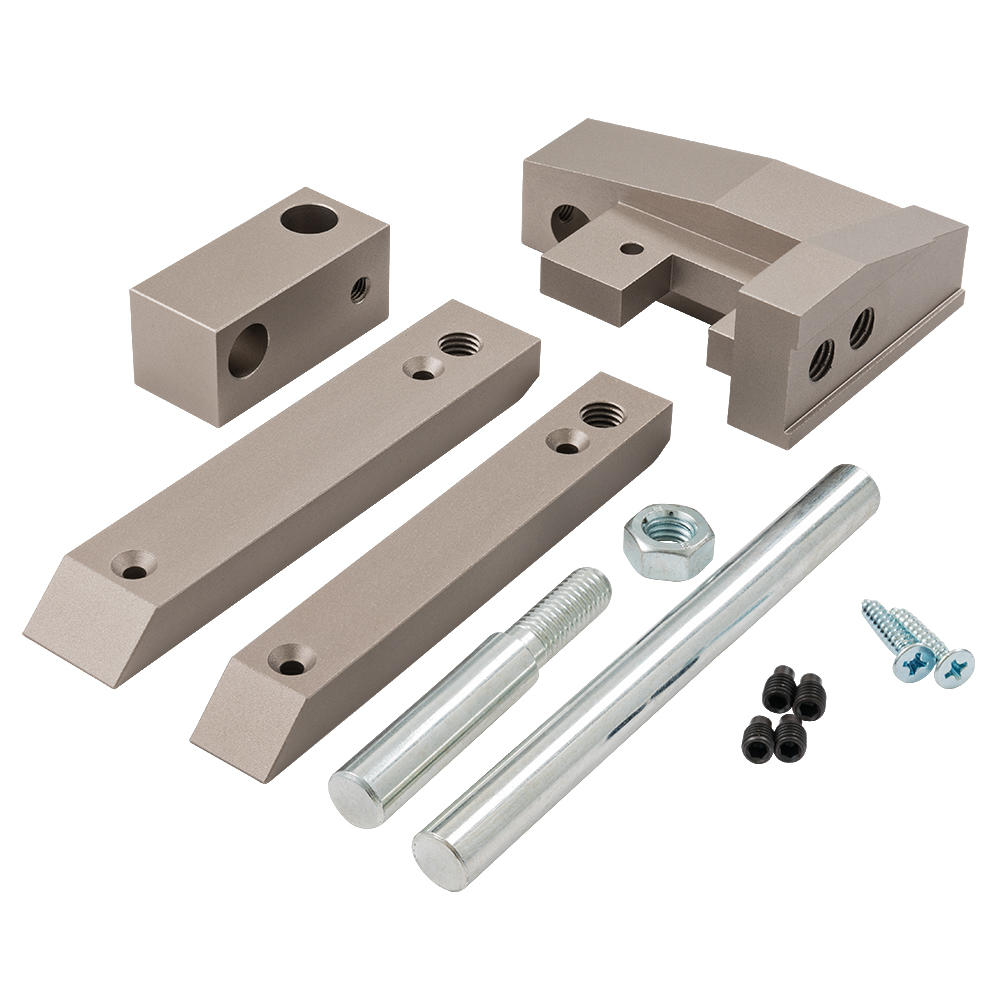

Belt sander: The optional DICTUM sanding belt guide No. 714784 transforms the SRP10 DUAL into a fully functional belt sander. The narrow sanding belts are ideal for fine work on tight curves and corners. Thanks to the specially designed mounting saddle (adapter bracket No. 801056 required), the sanding belt guide can be attached to the Pégas SRP10 DUAL and used in combination with both bandsaw guiding systems.
Further benefits:
Switching between the classic blade guide, the Pégas precision guiding system, or the sanding belt setup takes just a few minutes.
Scroll bandsaw: Equipped with the world’s finest and most precise saw blades, this bandsaw enables intricate woodworking, comparable only to what is typically achieved with scroll saws. The specially developed precision guiding system features roller bearings with guide grooves tailored to the respective scroll bandsaw blade. This ensures that the ultra-thin scroll bandsaw blades, ranging from 1.02 to 3 mm in width, are perfectly guided, prevented from twisting, and capable of performing the most delicate cuts, even for complex shapes and tight radii of less than 2 mm.
Standard bandsaw: When converted and equipped with the included standard blade guide, blades ranging from 6 to 13 mm in width can be used. The wider and sturdier saw blades facilitate rougher cutting tasks, rip cuts, and straight kerfs. The machine offers all the features typically expected from a bandsaw. The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the supplied mitre gauge (-60° to +60°). The rip fence made of aluminium profile includes an integrated magnifying glass for easier reading of the mm/inch scale.
Belt sander: The optional DICTUM sanding belt guide No. 714784 transforms the SRP10 DUAL into a fully functional belt sander. The narrow sanding belts are ideal for fine work on tight curves and corners. Thanks to the specially designed mounting saddle (adapter bracket No. 801056 required), the sanding belt guide can be attached to the Pégas SRP10 DUAL and used in combination with both bandsaw guiding systems.
Further benefits:

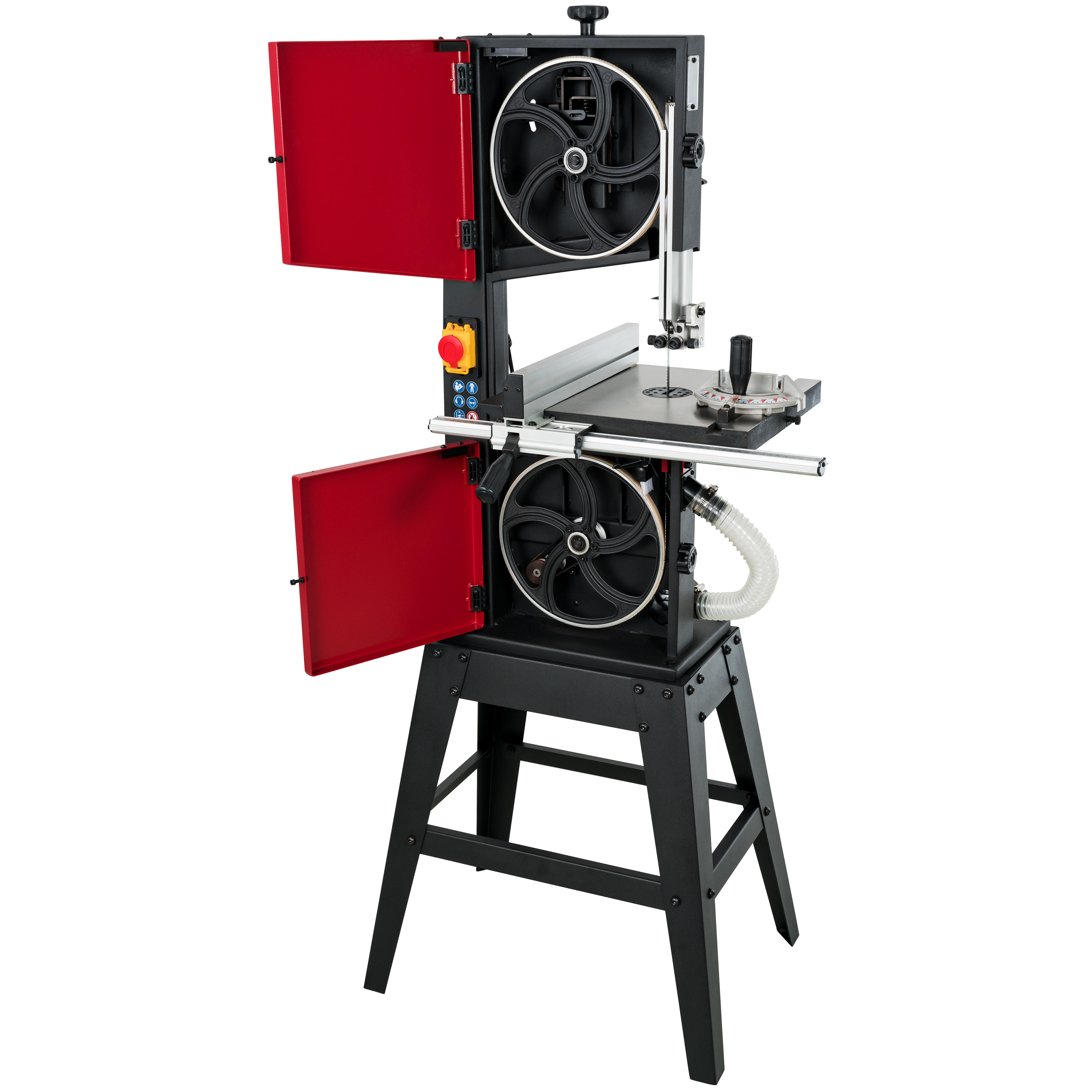

- The machine, including the two doors, is made entirely of sheet steel.
- Safety switches on the doors prevent the machine from operating when a door is open.
- The on/off switch with undervoltage release prevents unintentional start-up.
- Two blade speeds ensure optimal work results.
- Balanced aluminium wheels with rubber coating.
Scope of delivery
- Fine-cut bandsaw blade No. 9 (1950 × 1.34 × 0.44 × 2.43 mm)
- Fine-cut bandsaw blade No. 12 (1950 × 2 × 0.5 × 2.85 mm)
- Two ball-bearing blade guides (each with a groove guide for blades No. 9 and No. 12)
- 12.5 mm standard bandsaw blade
- Table inserts for scroll sawing, 2 pieces
- Rip fence
- Mitre gauge
- Sheet-steel stand
- Push stick
- Operating tool
- Multilingual instructions (DE/EN/FR)
Properties
| Blade length: | 1950 mm |
|---|---|
| Blade width min./max.: | 1 to 13 mm |
| Cutting Speed: | 660 and 840 m/min |
| Dimensions (L x W x H): | 1570 x 790 x 620 mm (incl. stand). Machine height 930 mm. |
| Exhaust Nozzle Ø: | 63 mm |
| Maschine/Zubehör: | Machines |
| Maschinen-Typ: | Bandsaws |
| Max. depth of cut: | 135 mm |
| Max. width of cut with fence: | 170 mm |
| Max. width of cut without fence: | 260 mm |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 550 W |
| Power source: | Corded |
| Sound power level (LWA): | 83.1 dB(A) |
| Sound pressure level (LpA ): | 74 dB(A) |
| Table height: | 1035 mm |
| Table size: | 350 x 330 mm |
| Table tilt: | -5 to +45° |
| Weight: | 45 kg |
| Wheel ø: | 270 mm |
Properties
| Blade length: | 1950 mm |
|---|---|
| Blade width min./max.: | 1 to 13 mm |
| Cutting Speed: | 660 and 840 m/min |
| Dimensions (L x W x H): | 1570 x 790 x 620 mm (incl. stand). Machine height 930 mm. |
| Exhaust Nozzle Ø: | 63 mm |
| Maschine/Zubehör: | Machines |
| Maschinen-Typ: | Bandsaws |
| Max. depth of cut: | 135 mm |
| Max. width of cut with fence: | 170 mm |
| Max. width of cut without fence: | 260 mm |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 550 W |
| Power source: | Corded |
| Sound power level (LWA): | 83.1 dB(A) |
| Sound pressure level (LpA ): | 74 dB(A) |
| Table height: | 1035 mm |
| Table size: | 350 x 330 mm |
| Table tilt: | -5 to +45° |
| Weight: | 45 kg |
| Wheel ø: | 270 mm |
