Festool Cordless Edge Router OFKC 500 R3 EB-Basic
Product no.:
730953
Brand:
Festool
€469.00 €394.12
per piece
Delivery time approx. 3-5 working days
- Machine/Accessory Machines
- Machine type Edge routers
-
Noise and vibration values
Routing: Uncertainty (vibration) K 1.50 m/s²
Routing: Uncertainty (noise) K 1.50 dB
Routing: Total vibration average, Ah 2.50 m/s²
Routing: Standards series EN 60745-2-17
Routing: A-weighted sound pressure level, LpA 82.00 dB(A)
Routing: A-weighted sound power level, LWA 90.00 dB(A) - Power source Cordless
-
Technical features
Idle engine speed 10 000 - 25 000 min⁻¹
Max. cutter diameter 28.00 mm
Cutter stroke (fine-tuning) 10.00 mm
Dust extraction connection diameter 27 mm
Product weight without accessories 1.30 kg
Transport weight incl. accessories 3.50 kg
Drive type Battery
Battery voltage (rated voltage) 18 V
Description
Ergonomic, easy, quick. The cordless edge router for hassle-free jobs.
A well-balanced centre of gravity and the sleek design make for tilt-proof routing. The cordless drive gives you greater agility and flexibility. Our cordless edge router delivers precise and clean routing results thanks to a depth adjustment that's accurate to 1/10 mm and a stable connection between the router and the drive. So, edge routing is super easy and straightforward, with no need for reworking.
Lightweight, slim design for comfy working. Perfectly matched cutters for the base opening stop you from tipping over while routing into the material. This lets you route safely and quickly without having to redo anything.

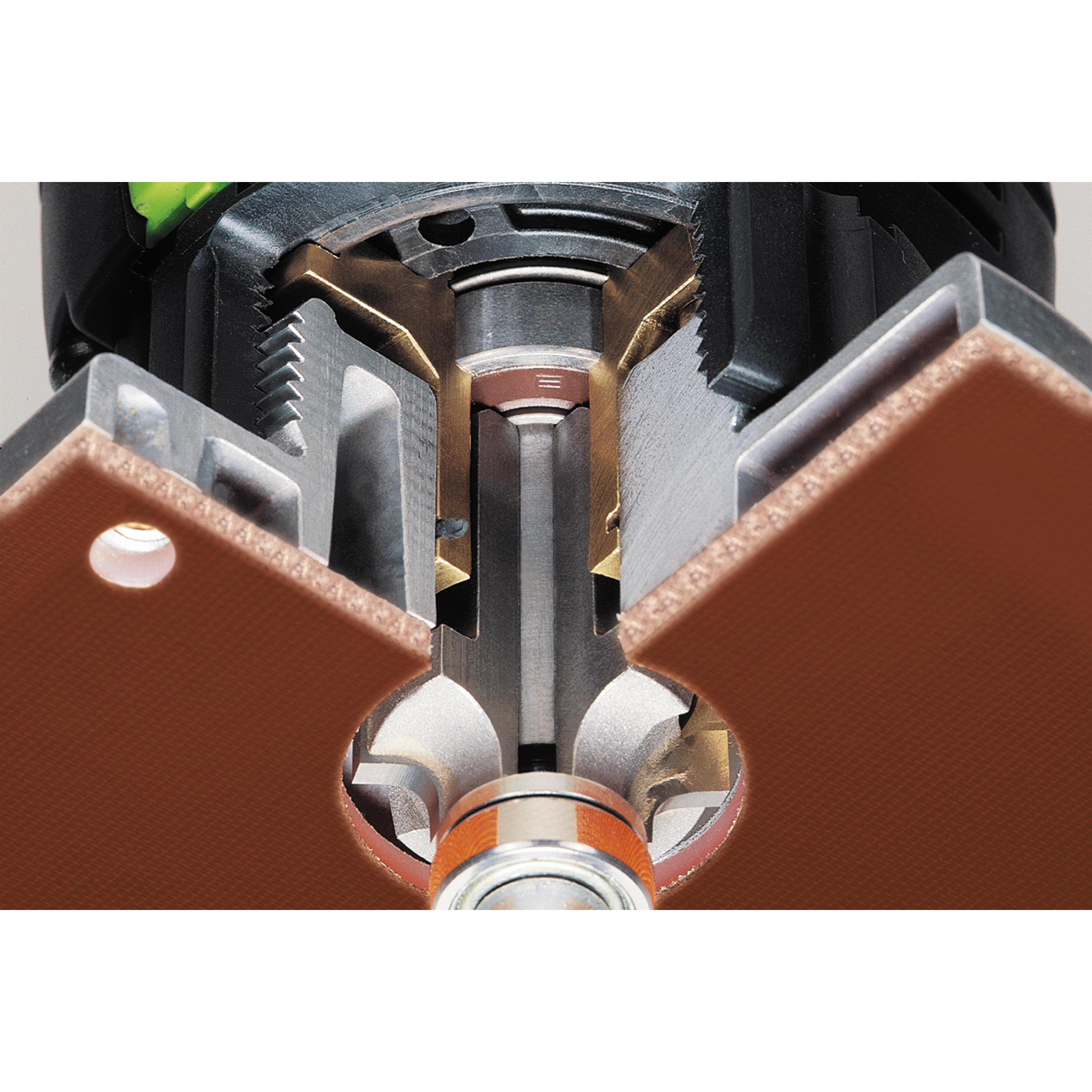

You can fine-tune the height precisely in 0.1 mm increments. Having the cutter mounted directly on the spindle boosts run-out accuracy and gives you a tidy finish. The flush ball bearing attachment on the cutter keeps the height low and lets you route in rebates or from the stack of panels.
Your benefits:
Mobile: Comfortably route edges without cables.
Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
No mess-ups: Perfect matching of all OFK 500 cutters (R1-6, chamfers, flush) for base runner drilling.
Hard fibre base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
Precision: Great run-out accuracy thanks to a solid link between the cutter and the drive.
Cutter change: Quick and easy thanks to spindle stop.
Handy: Slim build, lightweight and a well-balanced centre of gravity.
Space to move: The ball bearing brake made from spring steel gives you more room to move when working without dust extraction.
All-round support: The see-through dust extraction attachment with built-in ball bearing brake leads, slows down and sucks it all up.
Convenient: The vacuum kicks off automatically thanks to the Bluetooth® battery pack.
RPM control: Adjustable to your liking. Cuts down on scorch marks.
Powerful: With a quiet, brushless EC-TEC motor.
Long-lasting: Keeping an eye on the motor's temperature.
Main applications:
Rounding and chamfering square timber, door frames and boards
Flush trimming of edge veneer and strip material
Lightweight, slim design for comfy working. Perfectly matched cutters for the base opening stop you from tipping over while routing into the material. This lets you route safely and quickly without having to redo anything.
You can fine-tune the height precisely in 0.1 mm increments. Having the cutter mounted directly on the spindle boosts run-out accuracy and gives you a tidy finish. The flush ball bearing attachment on the cutter keeps the height low and lets you route in rebates or from the stack of panels.
Your benefits:
Mobile: Comfortably route edges without cables.
Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
No mess-ups: Perfect matching of all OFK 500 cutters (R1-6, chamfers, flush) for base runner drilling.
Hard fibre base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
Precision: Great run-out accuracy thanks to a solid link between the cutter and the drive.
Cutter change: Quick and easy thanks to spindle stop.
Handy: Slim build, lightweight and a well-balanced centre of gravity.
Space to move: The ball bearing brake made from spring steel gives you more room to move when working without dust extraction.
All-round support: The see-through dust extraction attachment with built-in ball bearing brake leads, slows down and sucks it all up.
Convenient: The vacuum kicks off automatically thanks to the Bluetooth® battery pack.
RPM control: Adjustable to your liking. Cuts down on scorch marks.
Powerful: With a quiet, brushless EC-TEC motor.
Long-lasting: Keeping an eye on the motor's temperature.
Main applications:
Rounding and chamfering square timber, door frames and boards
Flush trimming of edge veneer and strip material
Scope of delivery

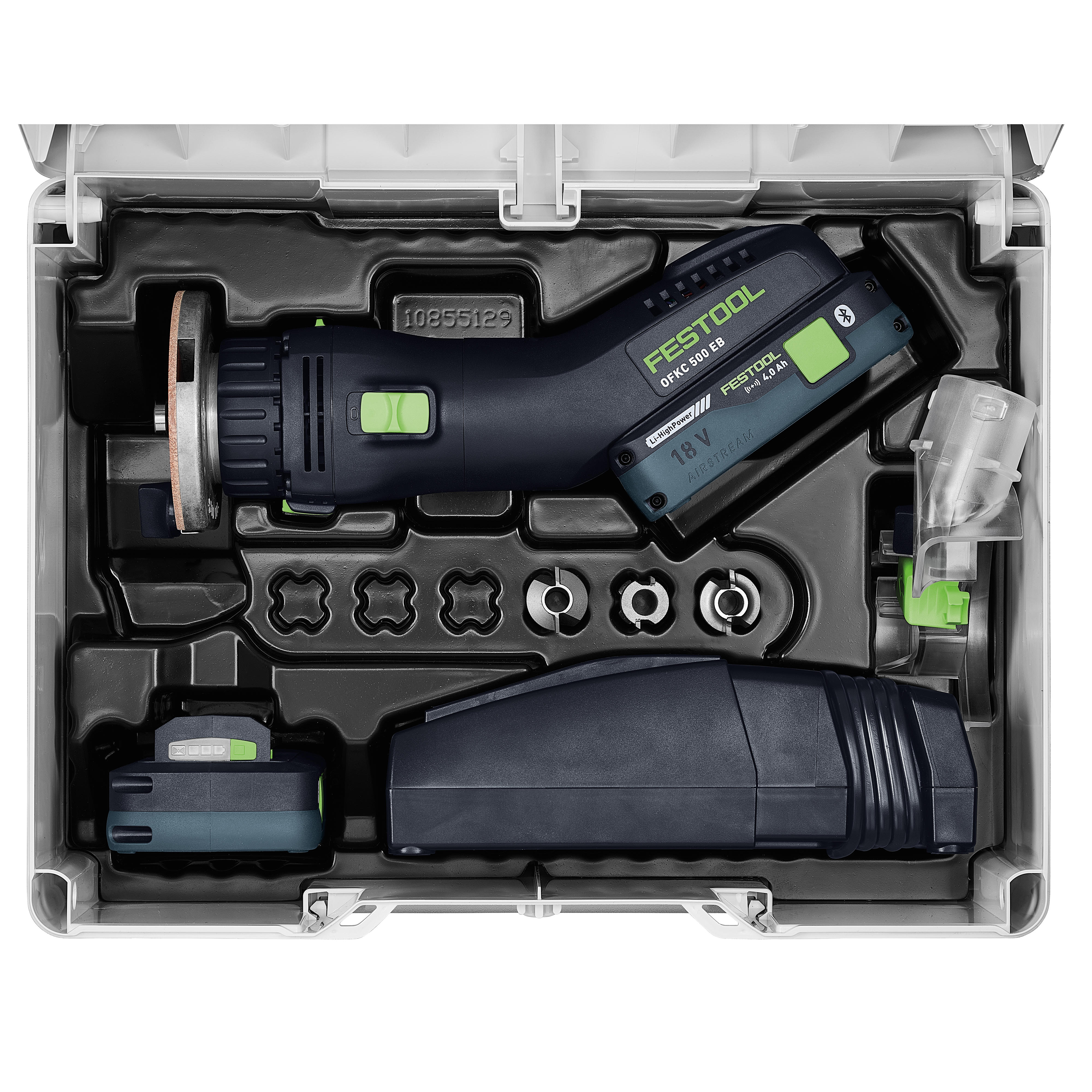

Roundover cutter HW R3-OFK 500 Z1, ball bearing guide KLS-D 15,8-OFK, dust extraction attachment with a ball bearing brake, spring plate ball-bearing brake, Systainer SYS3 M 187Properties
| Machine/Accessory: | Machines |
|---|---|
| Machine type: | Edge routers |
| Noise and vibration values: |
Routing: Uncertainty (vibration) K 1.50 m/s² Routing: Uncertainty (noise) K 1.50 dB Routing: Total vibration average, Ah 2.50 m/s² Routing: Standards series EN 60745-2-17 Routing: A-weighted sound pressure level, LpA 82.00 dB(A) Routing: A-weighted sound power level, LWA 90.00 dB(A) |
| Power source: | Cordless |
| Technical features: |
Idle engine speed 10 000 - 25 000 min⁻¹ Max. cutter diameter 28.00 mm Cutter stroke (fine-tuning) 10.00 mm Dust extraction connection diameter 27 mm Product weight without accessories 1.30 kg Transport weight incl. accessories 3.50 kg Drive type Battery Battery voltage (rated voltage) 18 V |
Properties
| Machine/Accessory: | Machines |
|---|---|
| Machine type: | Edge routers |
| Noise and vibration values: |
Routing: Uncertainty (vibration) K 1.50 m/s² Routing: Uncertainty (noise) K 1.50 dB Routing: Total vibration average, Ah 2.50 m/s² Routing: Standards series EN 60745-2-17 Routing: A-weighted sound pressure level, LpA 82.00 dB(A) Routing: A-weighted sound power level, LWA 90.00 dB(A) |
| Power source: | Cordless |
| Technical features: |
Idle engine speed 10 000 - 25 000 min⁻¹ Max. cutter diameter 28.00 mm Cutter stroke (fine-tuning) 10.00 mm Dust extraction connection diameter 27 mm Product weight without accessories 1.30 kg Transport weight incl. accessories 3.50 kg Drive type Battery Battery voltage (rated voltage) 18 V |
