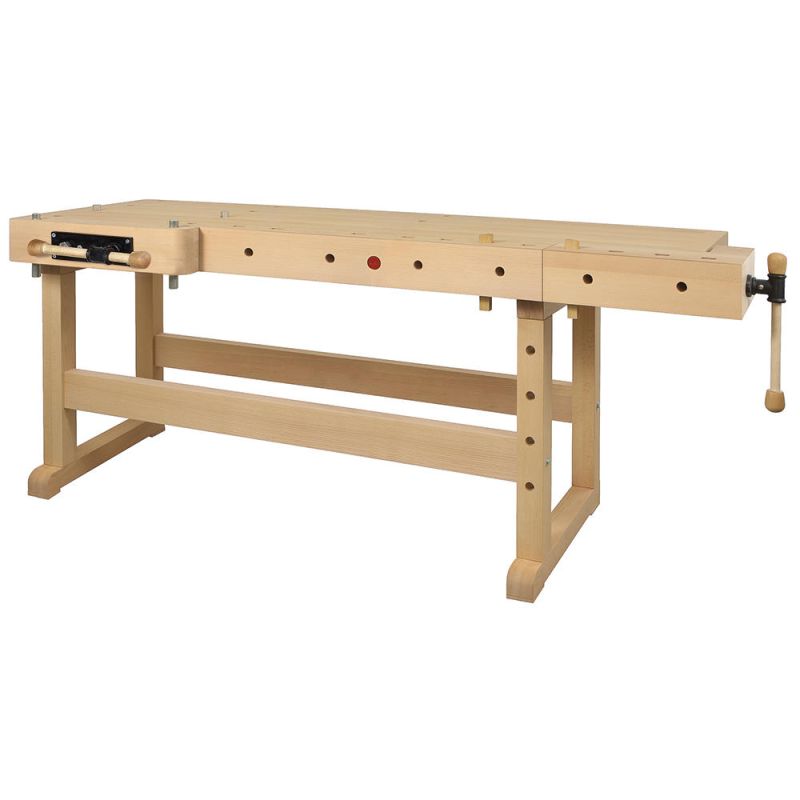

DICTUM® Workbench »Deluxe 2000«
Product no.:
706440
Brand:
DICTUM
€2,175.00 €1,827.73
per piece(s)
Bulky goods – delivery time will be provided by our customer service.
Back in stock soon
- Handle rod Ø 25 mm
- Height 900 mm
- Overall dimensions 2205 x 770 mm
- Weight 130 kg
- Worktop dimensions 2000 x 605 mm
Bulky goods – delivery time will be provided by our customer service.
Back in stock soon
Description
Heavy, solid multi-purpose workbench for all applications. With this high-quality professional workbench of a perfect workmanship, we offer a variety of clamping options to make your work easier. We use high-quality vice mechanisms for our twin-screw front vice, the manufacturing tolerance and material thickness of which makes them the most durable vices worldwide.
Design:
Design:

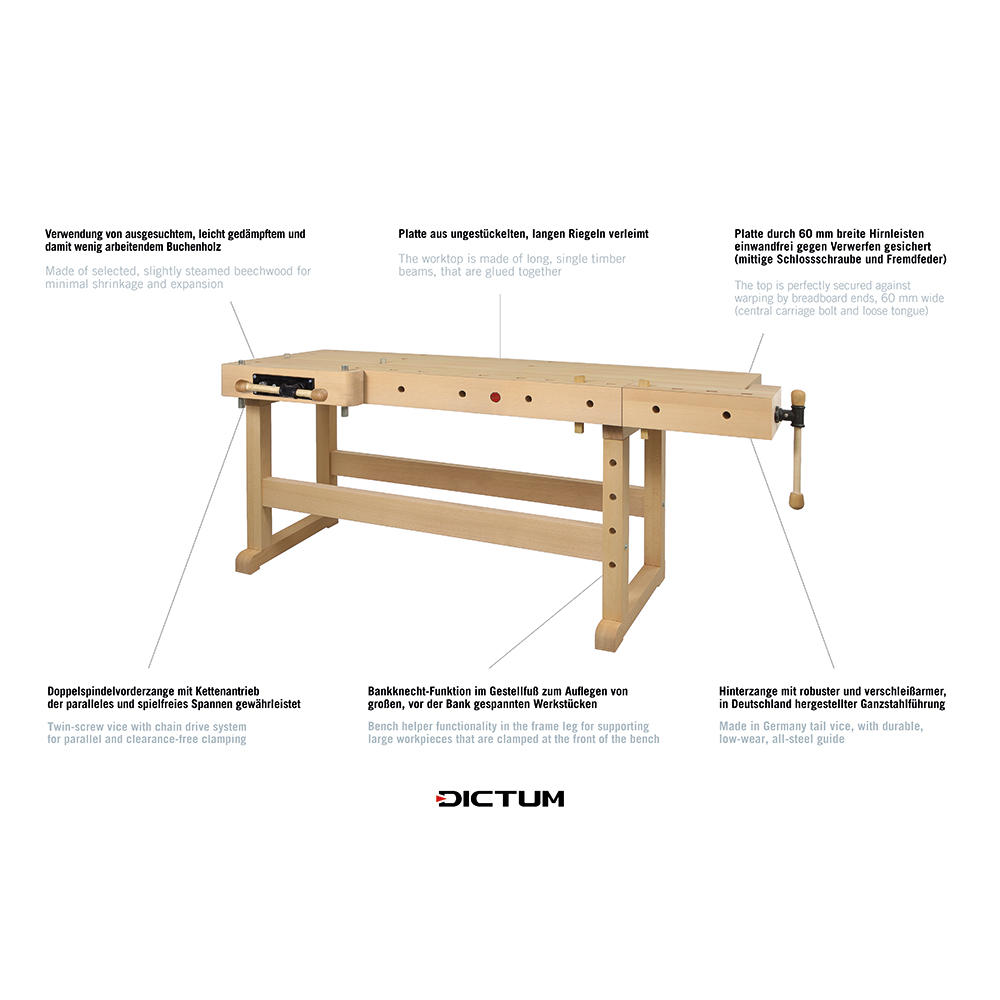

- Made of selected, slightly steamed beechwood for minimal shrinkage and expansion
- Heavy weight guarantees optimum stability
- The worktop is made of long, single timber beams, that are glued together
- The top is perfectly secured against warping by breadboard ends, 60 mm wide (central carriage bolt and loose tongue)
- Extra high bench apron of 132 mm for larger pressure surface at the jaws
- Workbench base made of solid beechwood
- Top and base untreated

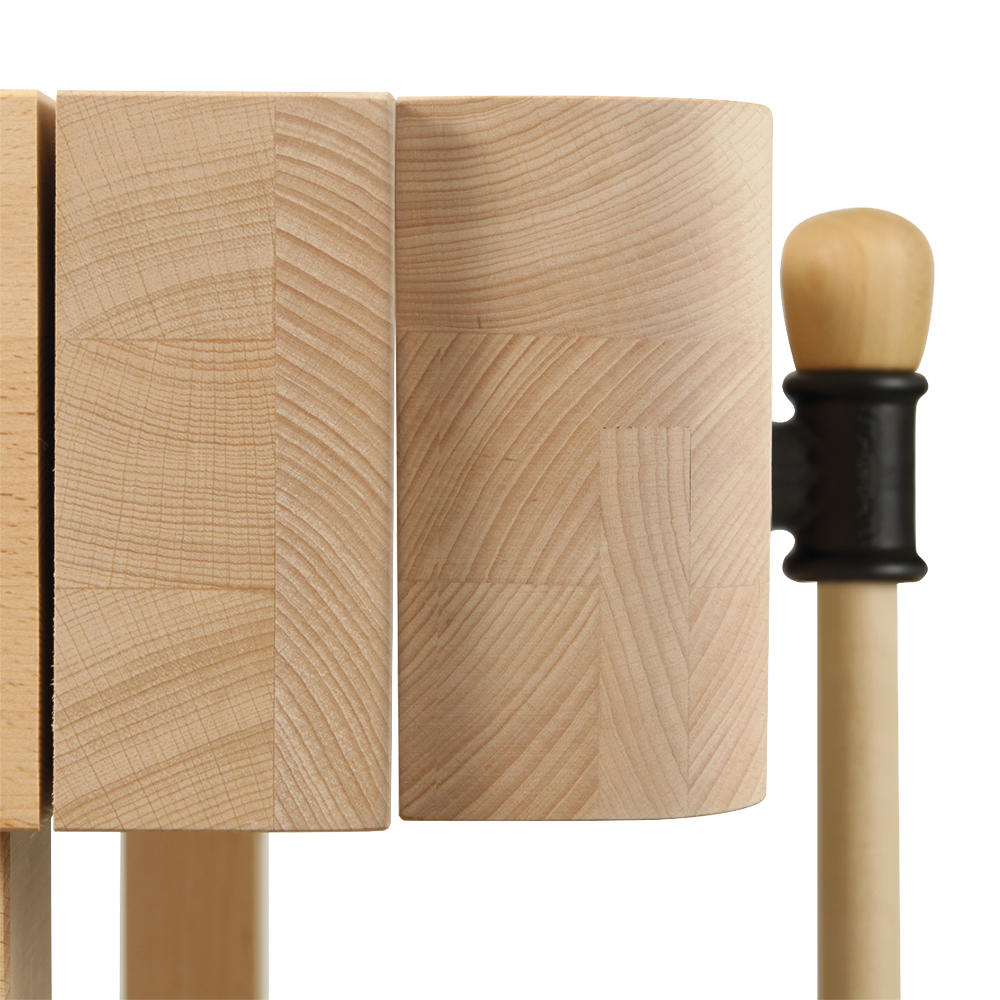

- Multi-bonded, warp-free jaws
- High-quality vice mechanisms from selected manufacturers

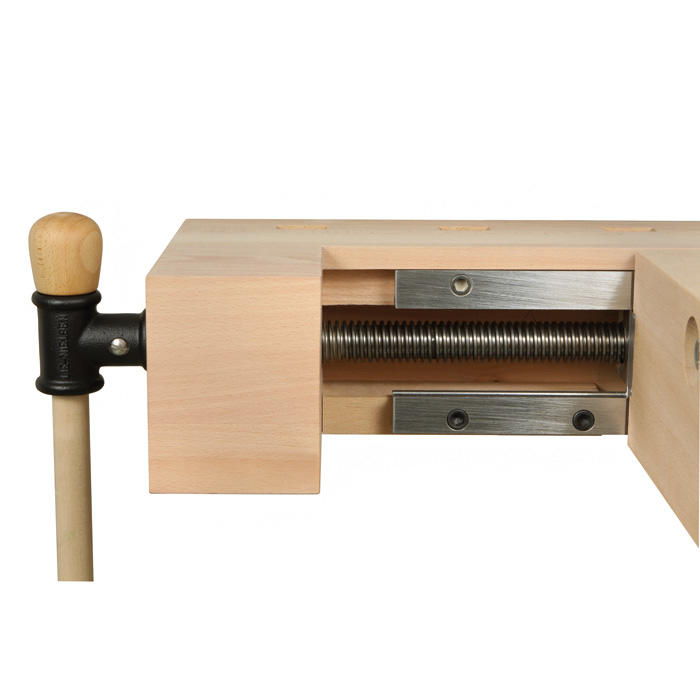

- Made in Germany tail vice, 490 mm long, with durable, low-wear, all-steel guide, maximum opening 210 mm, spindle Ø 28 mm

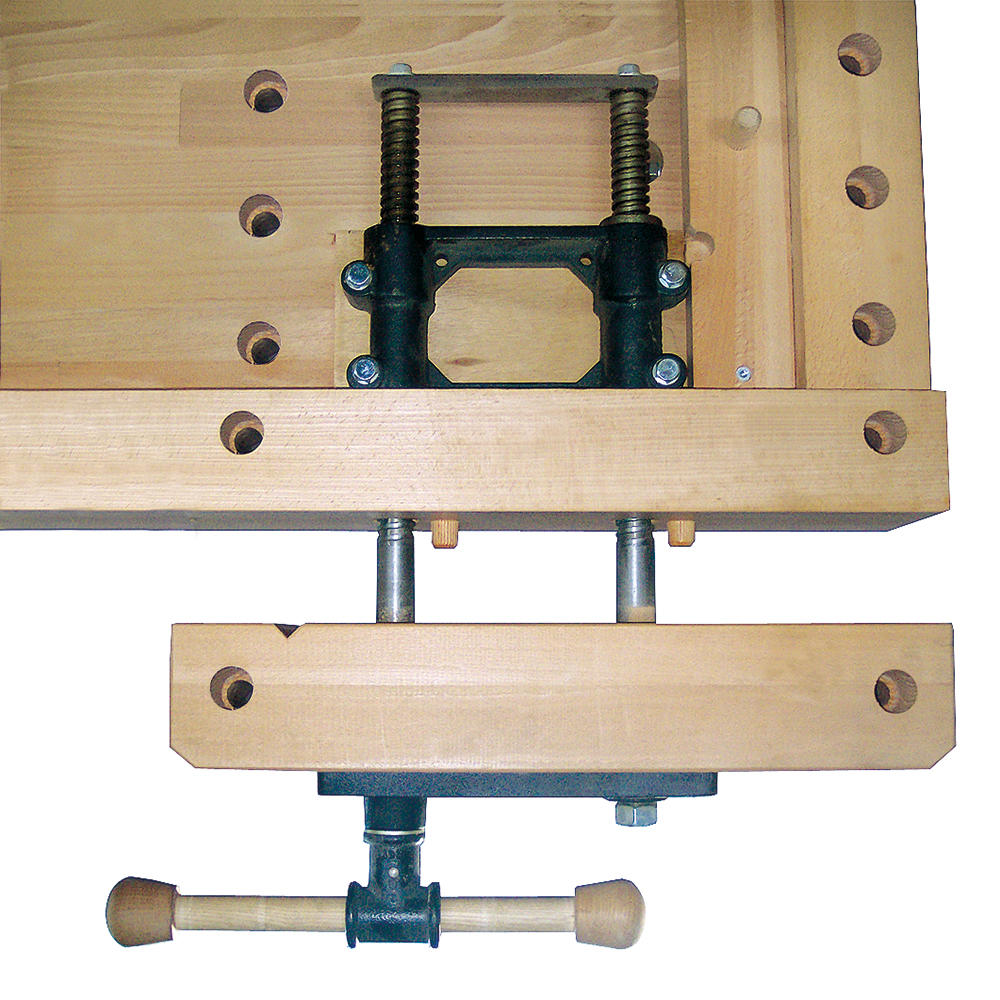

- Twin-screw vice with chain drive system for parallel and clearance-free clamping. Maximum opening 200 mm, jaw length 610 mm, spindle Ø 30 mm, spindle distance 210 mm
- Obliquely joined front vice for maximum surface pressure

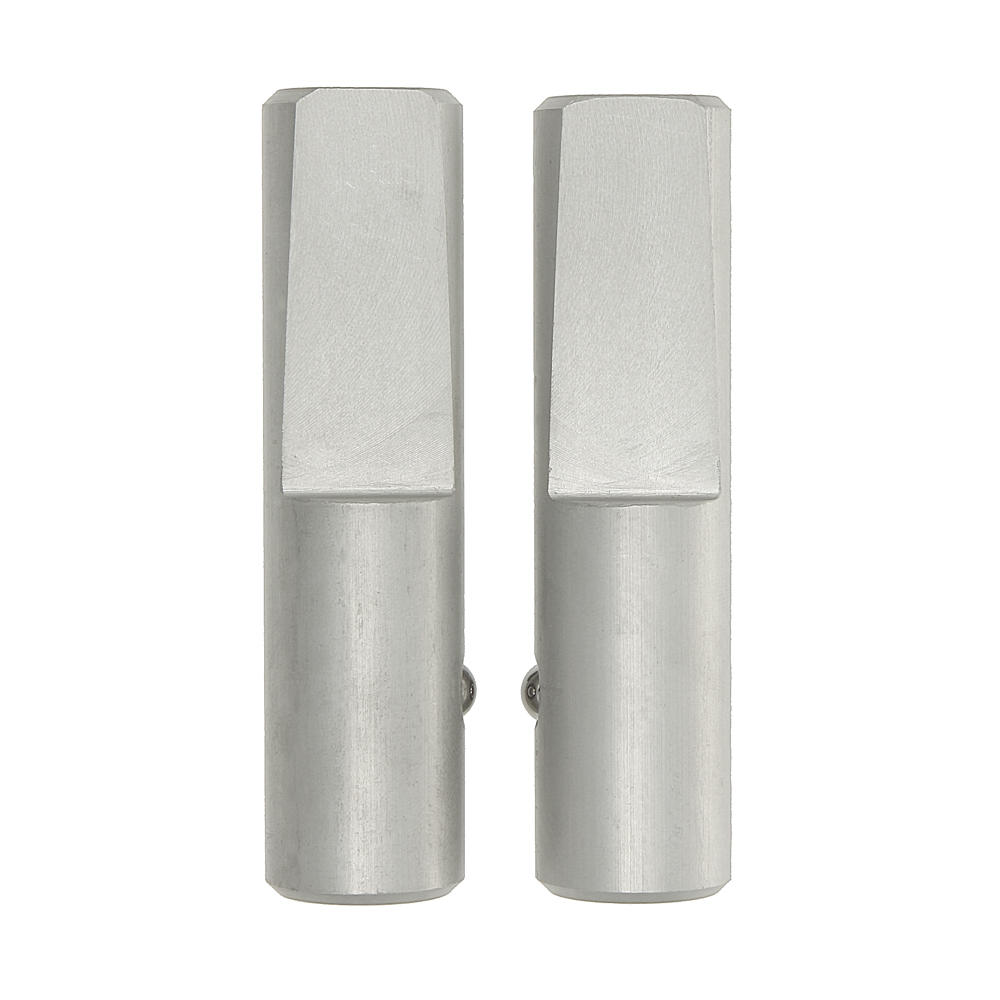

- Six dog holes of Ø 25 mm on bench apron and tail vice for clamping workpieces at the front of the bench top, including two aluminium front bench dogs
- Bench helper functionality in the frame leg for supporting large workpieces that are clamped at the front of the bench

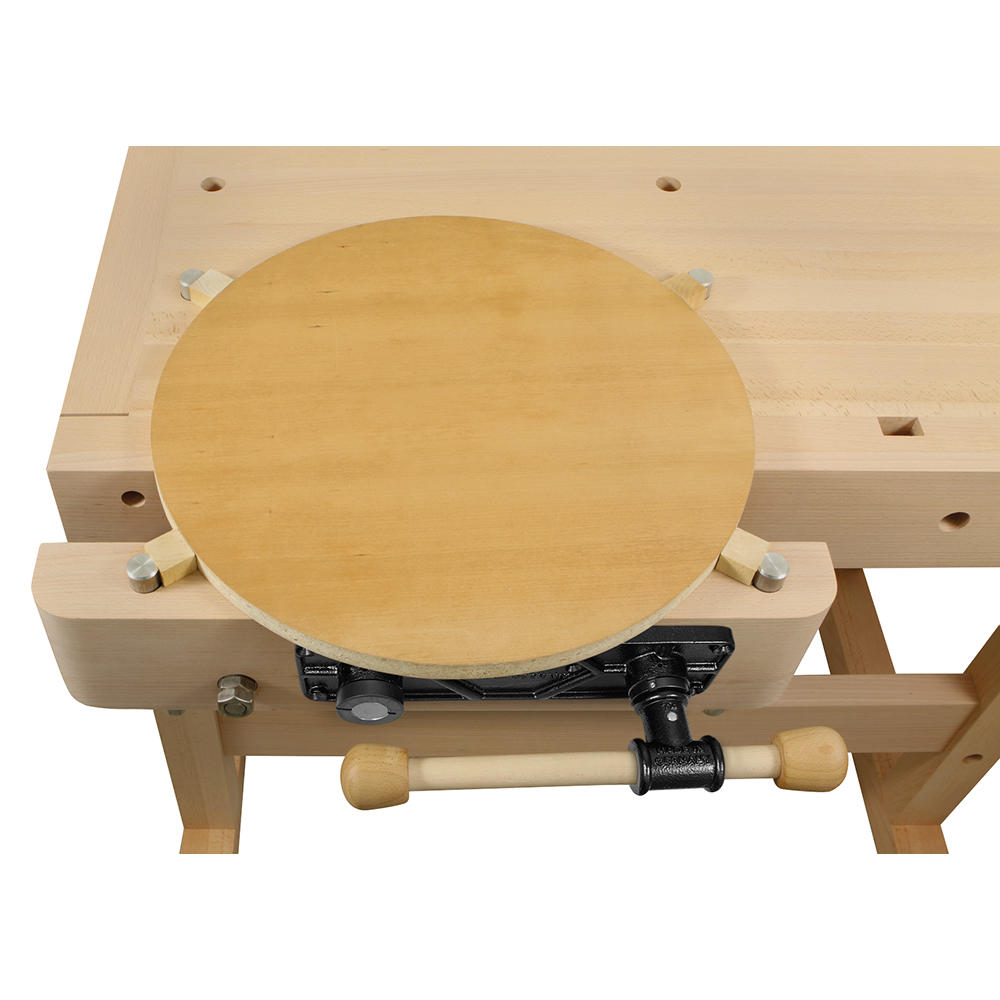

- Workpiece support and workpiece fastener in the front vice (removable) to prevent pressure points on the edge of the workpiece

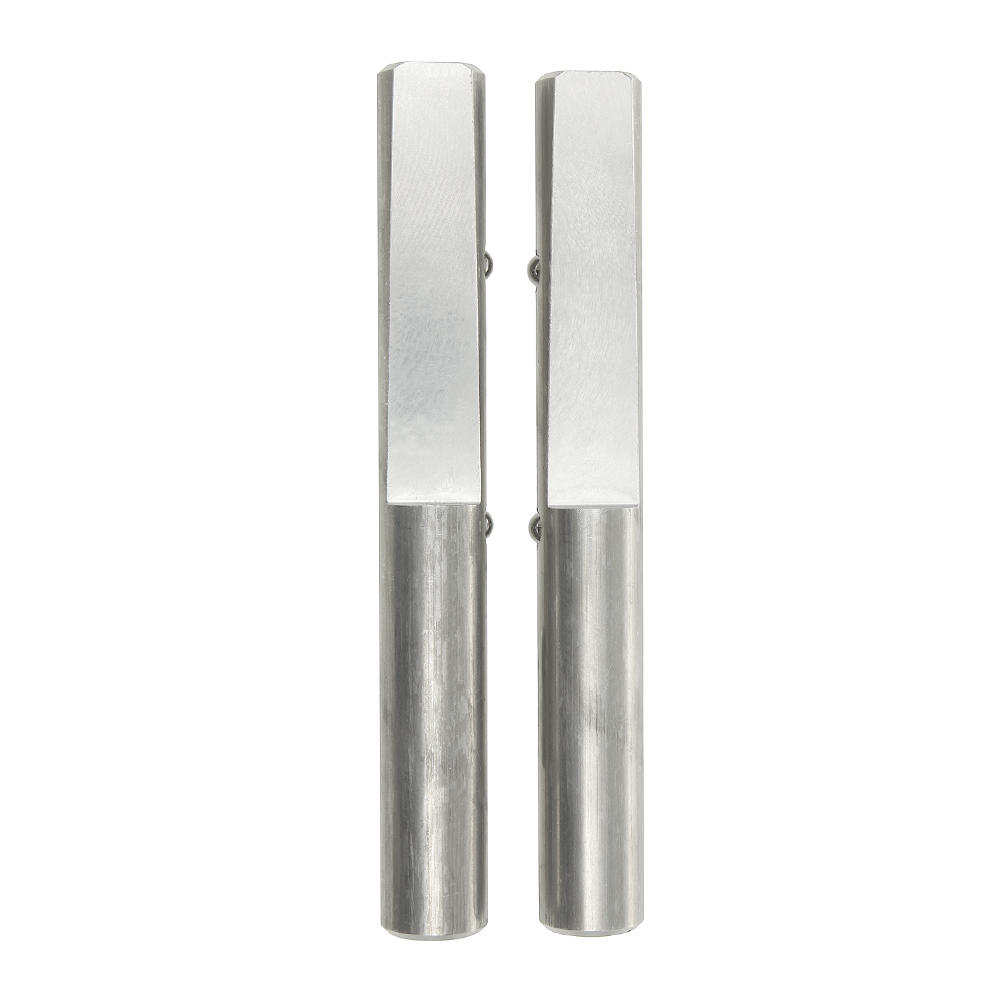

- Ten dog holes of Ø 25 mm in front of and on the front vice, including four round, retractable, aluminum bench dogs for clamping irregularly formed workpieces

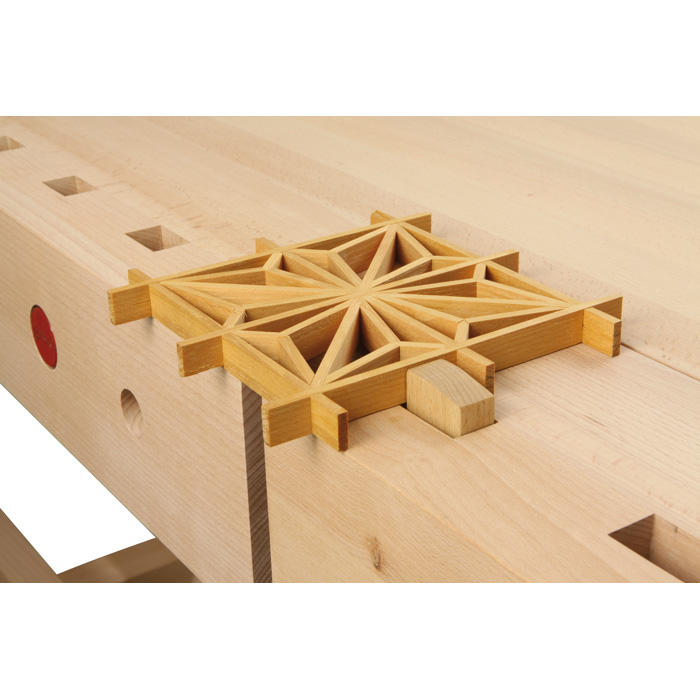

- 12 dog holes for square bench dogs, incl. two wooden, square bench dogs for clamping delicate workpieces and two square aluminium bench dogs to ensure powerful clamping for rougher work
Properties
| Handle rod Ø: | 25 mm |
|---|---|
| Height: | 900 mm |
| Overall dimensions: | 2205 x 770 mm |
| Weight: | 130 kg |
| Worktop dimensions: | 2000 x 605 mm |
| Worktop thickness: | 132 / 65 mm |
Properties
| Handle rod Ø: | 25 mm |
|---|---|
| Height: | 900 mm |
| Overall dimensions: | 2205 x 770 mm |
| Weight: | 130 kg |
| Worktop dimensions: | 2000 x 605 mm |
| Worktop thickness: | 132 / 65 mm |
