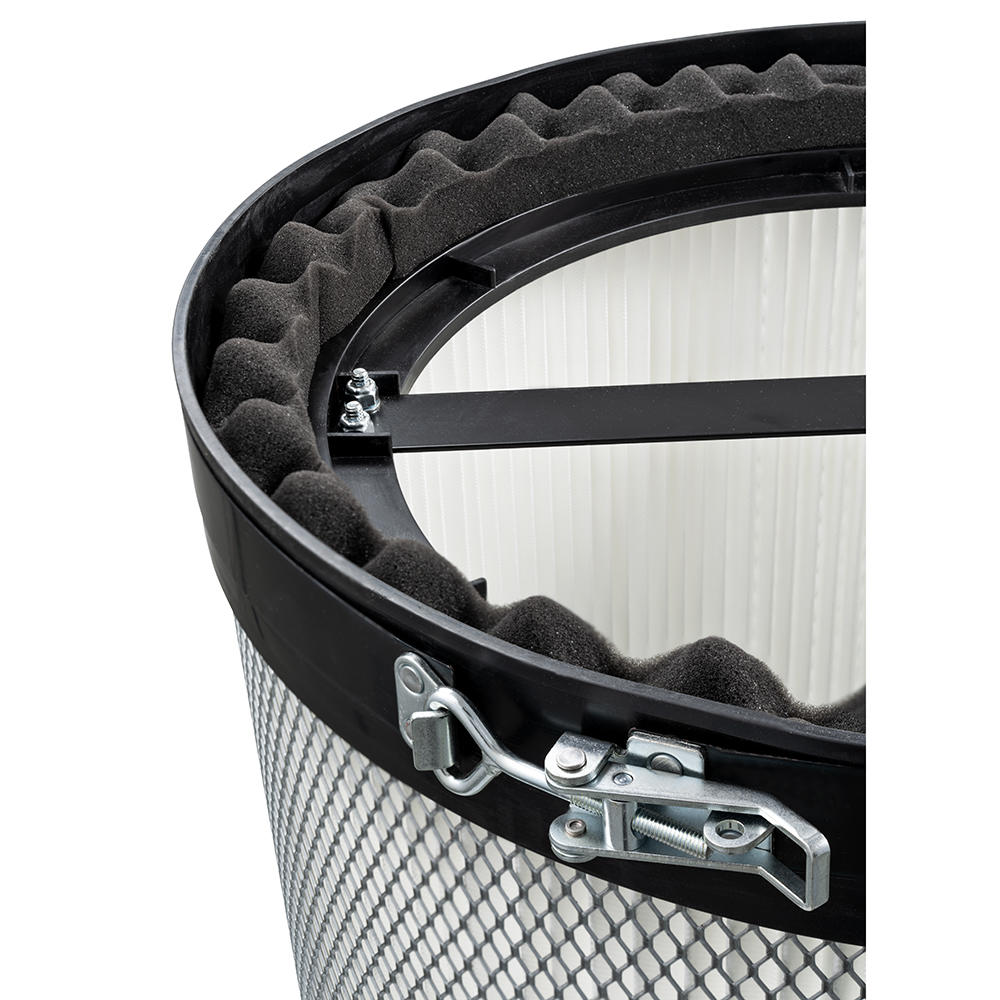

Fine Dust Filter Cartridge with Cleaning Mechanism, Ø 510 x 500 mm
Product no.:
725037
Brand:
DICTUM
€359.00 €301.68
per piece(s)
In stock, delivery time approx. 3-5 working days
- Absaugstutzen-Ø 510 mm
- Filter Surface Area 5 m²
- Filter efficiency 99.99 % of all suspended particles with a size ≥ 1 microns in size
- Fits DICTUM Absauganlagen SA 2200 / 5200-Twin
- Länge 500 mm
Additional charge for bulky items (outside Germany)
Description
Removes 99.99 % of all suspended particles ≥ 1 micron in size
Filter surface 5 m², cartridge dimensions Ø 510 mm x length 500 mm.

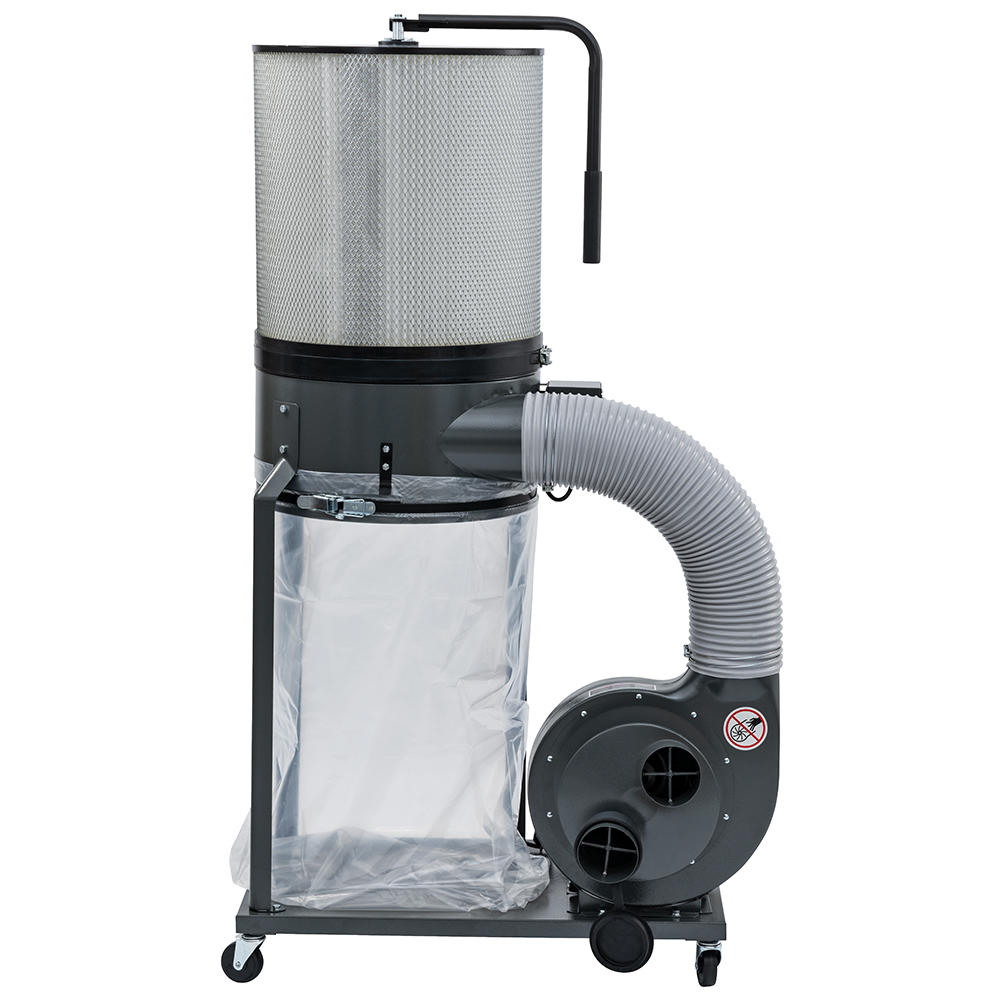

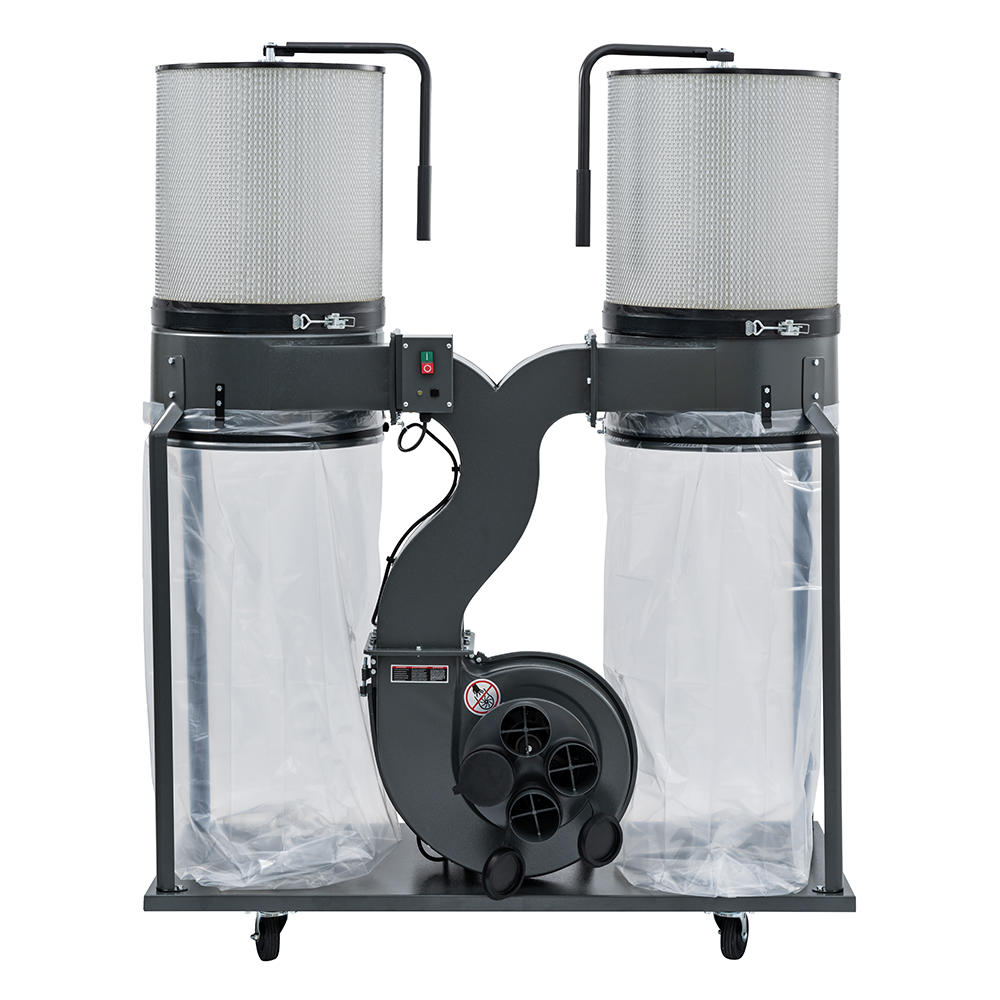

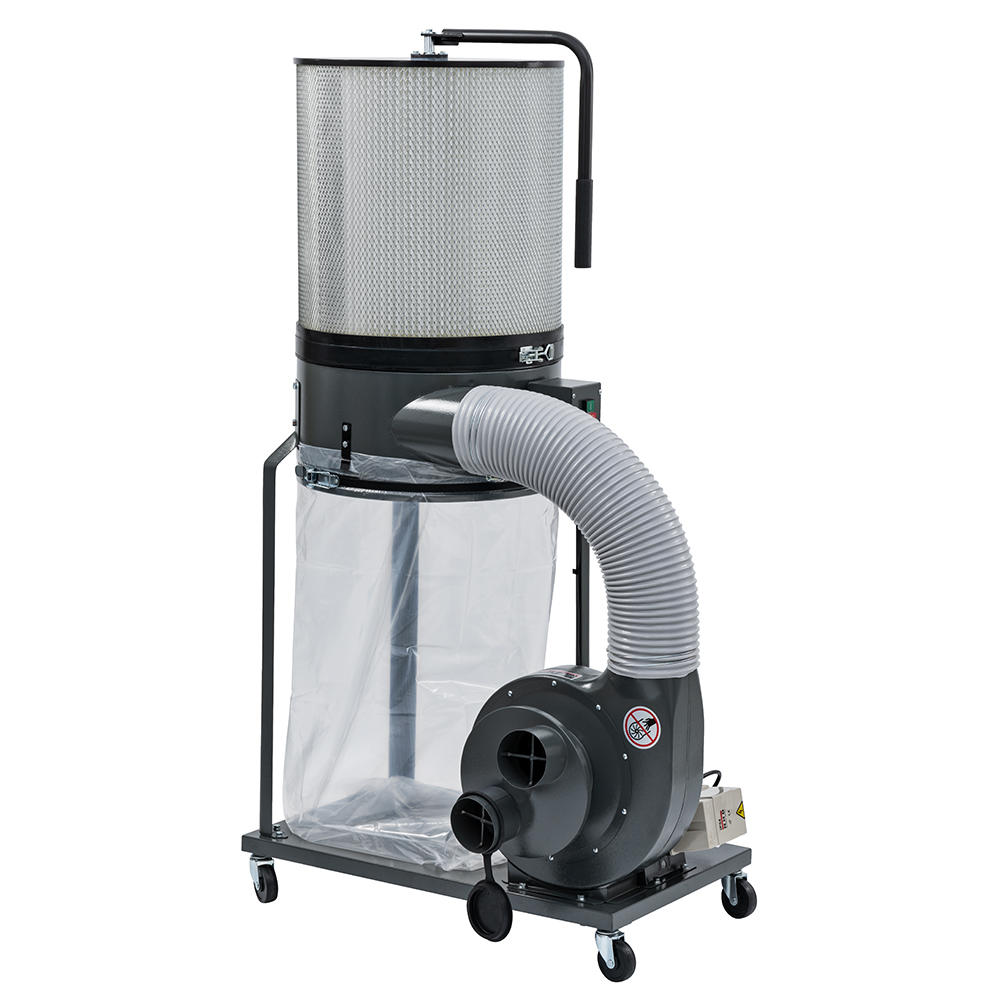

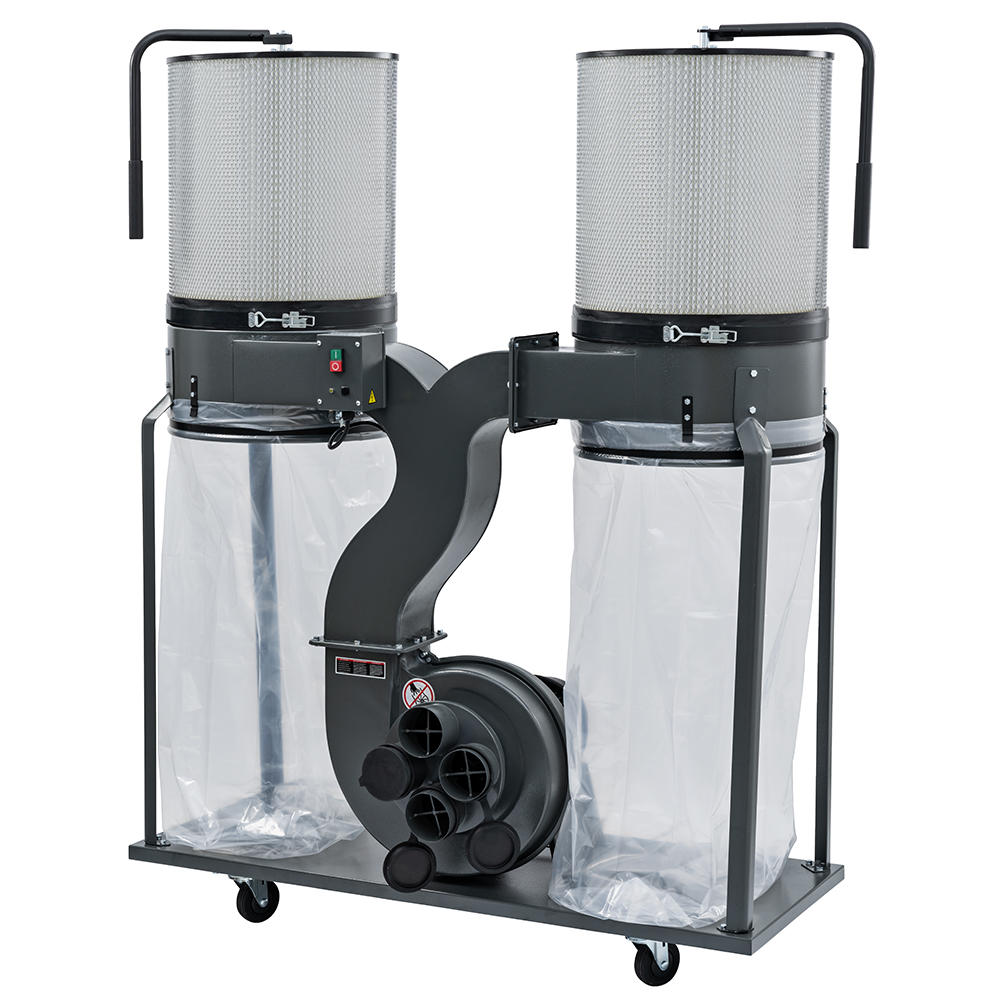

Fits DICTUM® Extraction Unit SA 2200 (No. 725034) and SSA 5200 Twin (No. 725036).

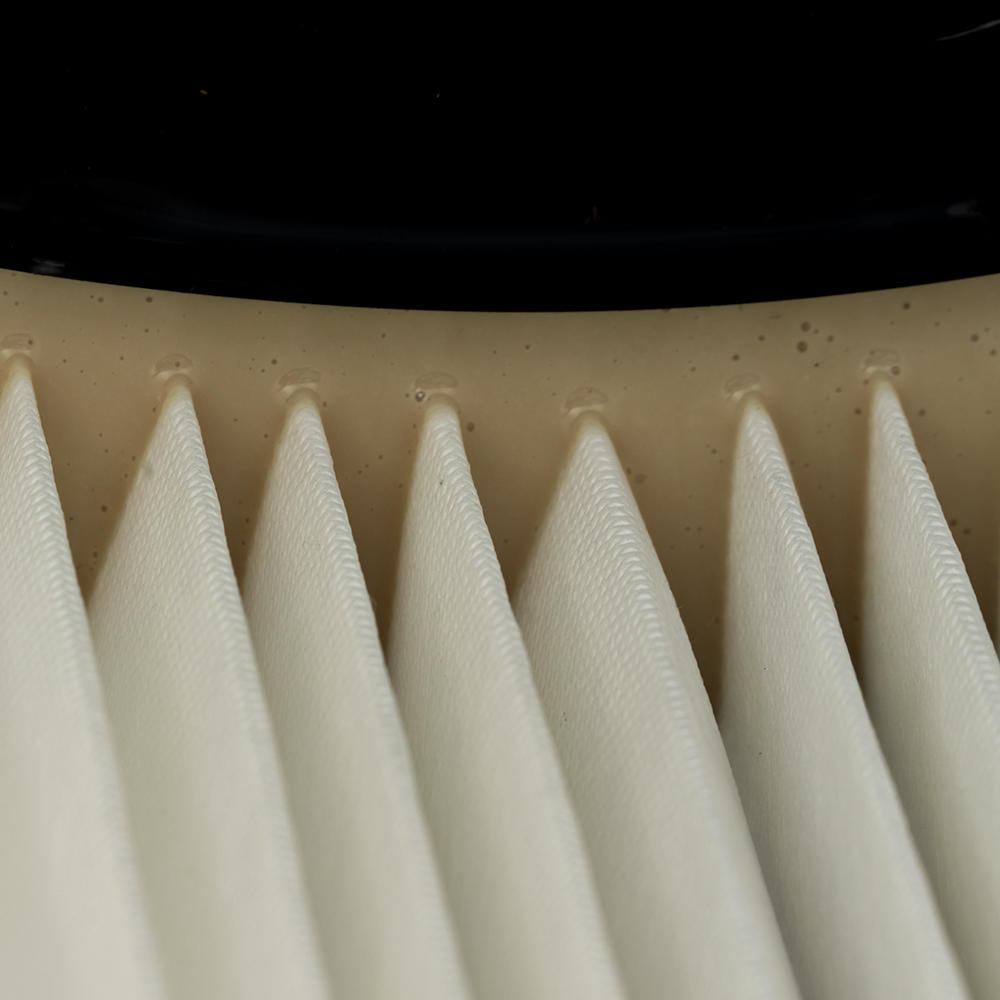

Fine dust microfilter with a mesh or pore size of 1 micron (μm or micrometre). The numerous fins in the filter material increase the filter surface size compared to filter bags. Clogged filter pores lead to reduced extraction performance. Fine dust from sanding work in particular settles on the inside of the filter, so the filter surface should be as large as possible.
Benefits of fine dust filter cartridges:
Benefits of fine dust filter cartridges:
- More than twice the filter surface compared to filter bags (Nos. 725040, 725041, 725042), low installation height
- Fine filter pores filter 99.99 % of all suspended particles ≥ 1 micron in size from the exhaust air

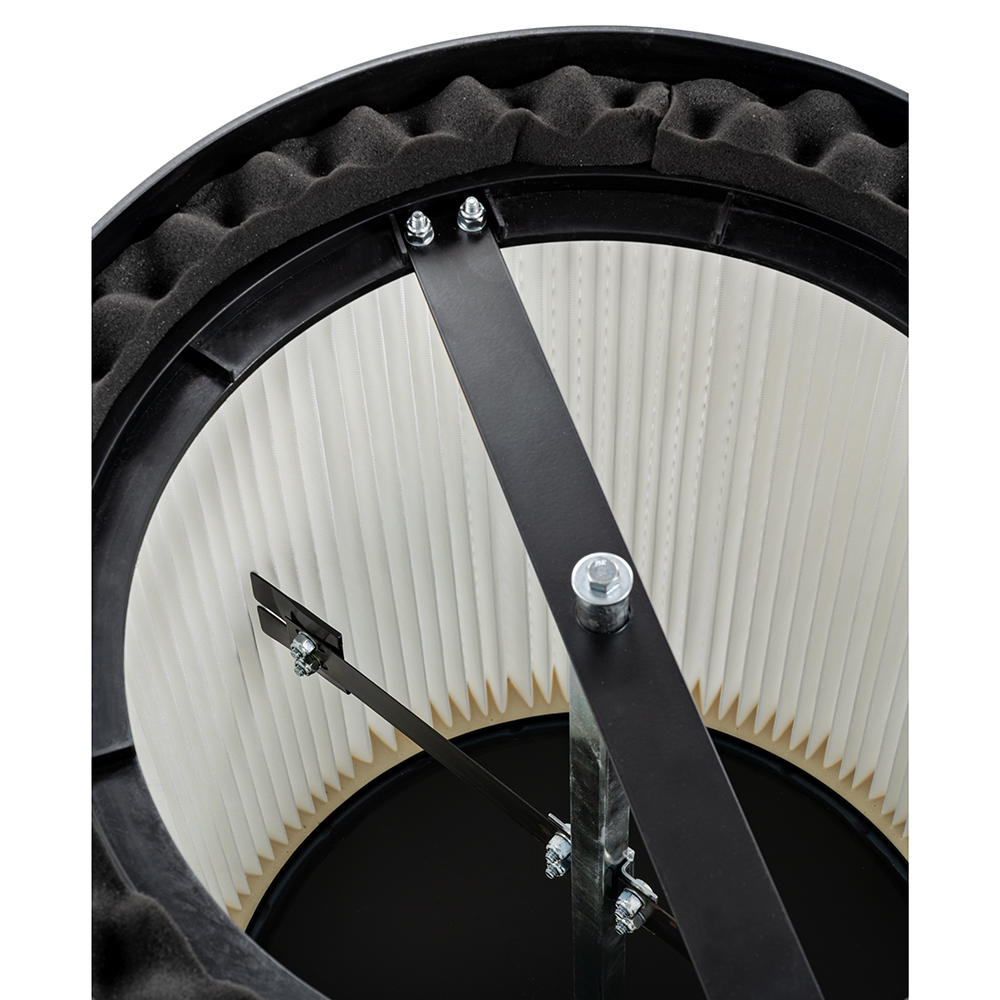

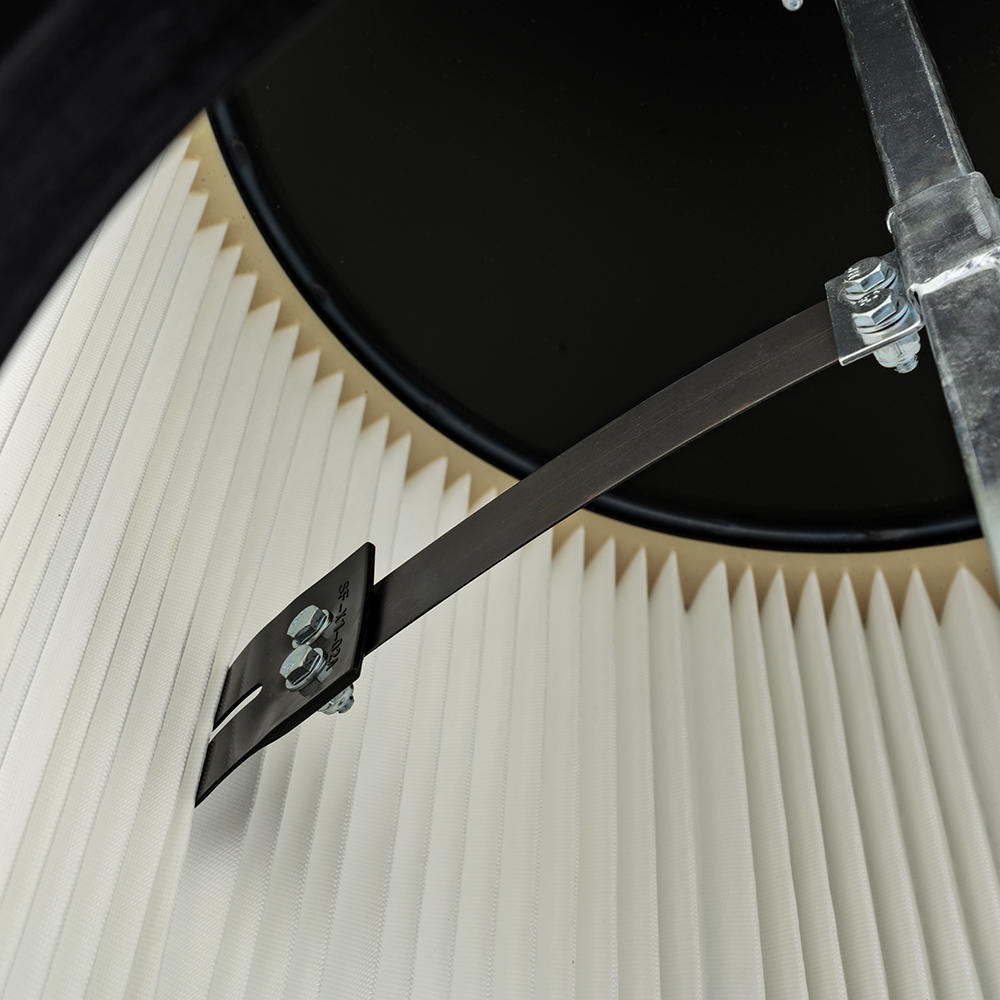

- Simple and efficient cleaning of the filter fins through a paddle wheel system
- Suitable for extracting from sanding machines
- The system extracts more efficiently due to less pressure resistance
- Reduces the overall height of the system* with improved filter performance (*in comparison to filter bags).
Properties
| Absaugstutzen-Ø: | 510 mm |
|---|---|
| Filter Surface Area: | 5 m² |
| Filter efficiency: | 99.99 % of all suspended particles with a size ≥ 1 microns in size |
| Fits: | DICTUM Absauganlagen SA 2200 / 5200-Twin |
| Länge: | 500 mm |
| Maschine/Zubehör: | Accessories |
| Staubklasse: | M |
Properties
| Absaugstutzen-Ø: | 510 mm |
|---|---|
| Filter Surface Area: | 5 m² |
| Filter efficiency: | 99.99 % of all suspended particles with a size ≥ 1 microns in size |
| Fits: | DICTUM Absauganlagen SA 2200 / 5200-Twin |
| Länge: | 500 mm |
| Maschine/Zubehör: | Accessories |
| Staubklasse: | M |
