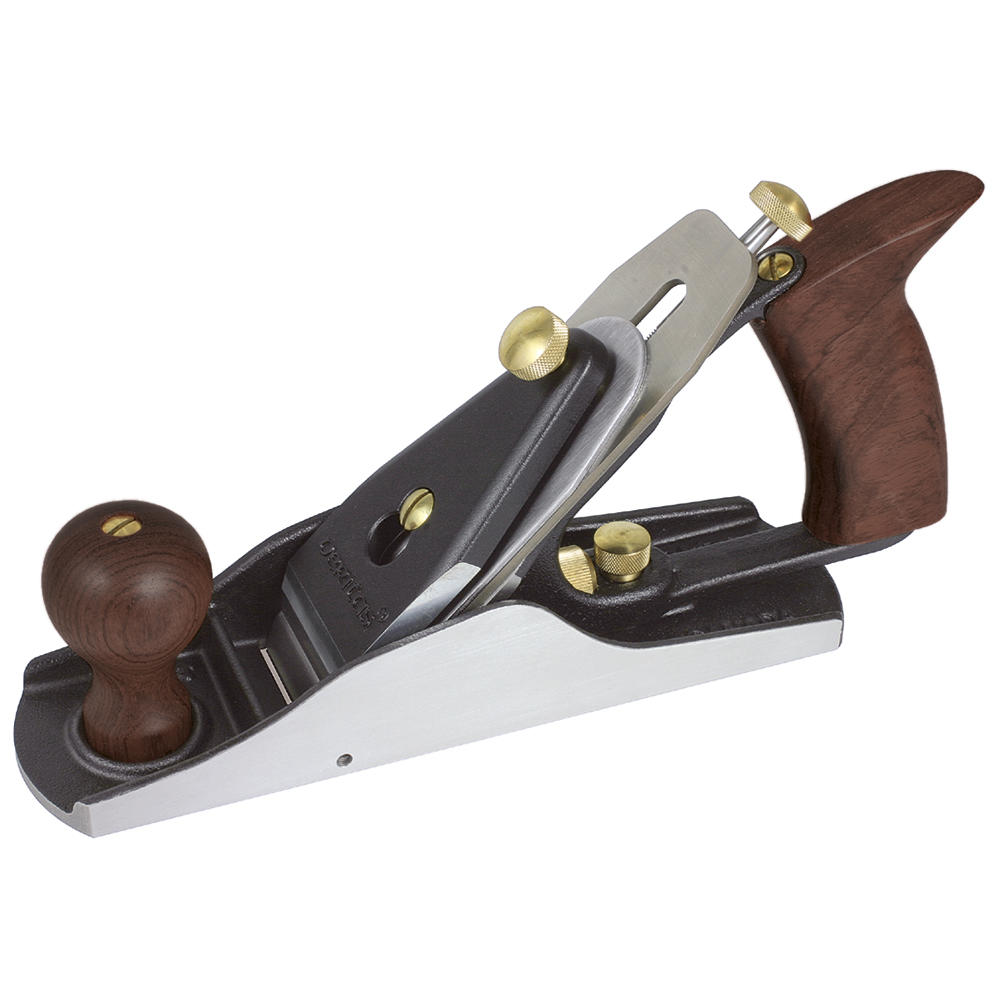

Veritas® Smoothing Plane No. 4, PM-V11™ Blade

Veritas® Smoothing Plane No. 4, PM-V11™ Blade
Veritas® Smoothing Plane No. 4, PM-V11™ Blade
Veritas® Smoothing Plane No. 4, PM-V11™ Blade
Product no.:  703883
Brand:  Veritas

€366.00 €307.56

per piece

Delivery time 2-3 business days
  • Blade material PM-V11™
  • Blade thickness 3.2 mm
  • Blade width 51 mm
  • Design / cutting angle Bevel down / cutting angle 40°-45°
  • Overall length 240 mm
Share product
Additional content

Description

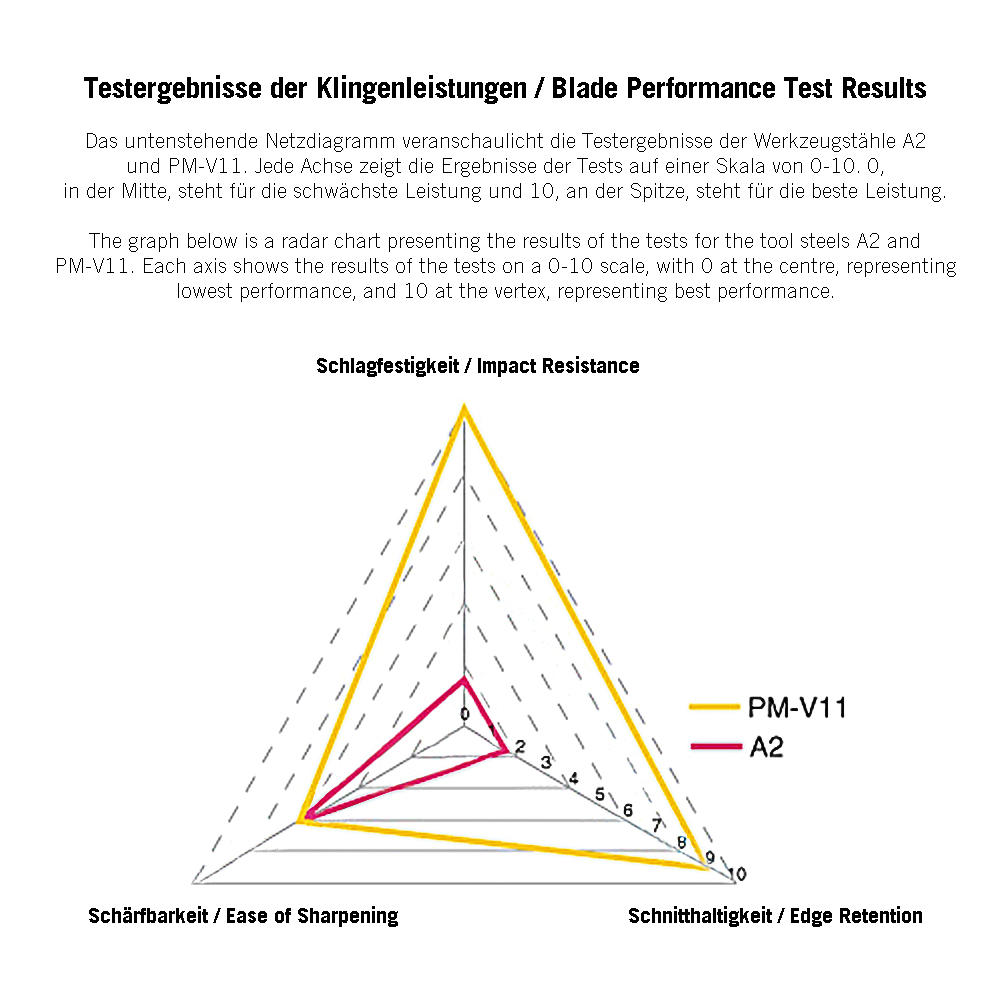

PM-V11™ Steel
PM-V11 steel is made from a new, powder metallurgy steel alloy. With its ultra-fine and homogeneous material structure and extreme hardness (HRC 61-63), this steel has double the edge-retention capacity of A2 steel. The extremely hard-wearing blades allow a razor-sharp edge and are highly durable even at a bevel angle of less than 20°. All blades come with a 2° microbevel and can be sharpened on conventional waterstones.

The standard smoothing plane is capable of taking the finest shavings from the most difficult woods. With the central adjusting screw, the blade feed and lateral position can be adjusted quickly and precisely. The rear handle and frog form a movable unit that defines the mouth opening without requiring any re-adjustment of the cutting depth.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.

Properties

Blade material: PM-V11™
Blade thickness: 3.2 mm
Blade width: 51 mm
Design / cutting angle: Bevel down / cutting angle 40°-45°
Overall length: 240 mm
Plane body: Spheroidal cast iron
Purpose: Smoothing (fine finishing)
Type: Bench planes
Weight: 2 kg

Properties

Blade material: PM-V11™
Blade thickness: 3.2 mm
Blade width: 51 mm
Design / cutting angle: Bevel down / cutting angle 40°-45°
Overall length: 240 mm
Plane body: Spheroidal cast iron
Purpose: Smoothing (fine finishing)
Type: Bench planes
Weight: 2 kg
