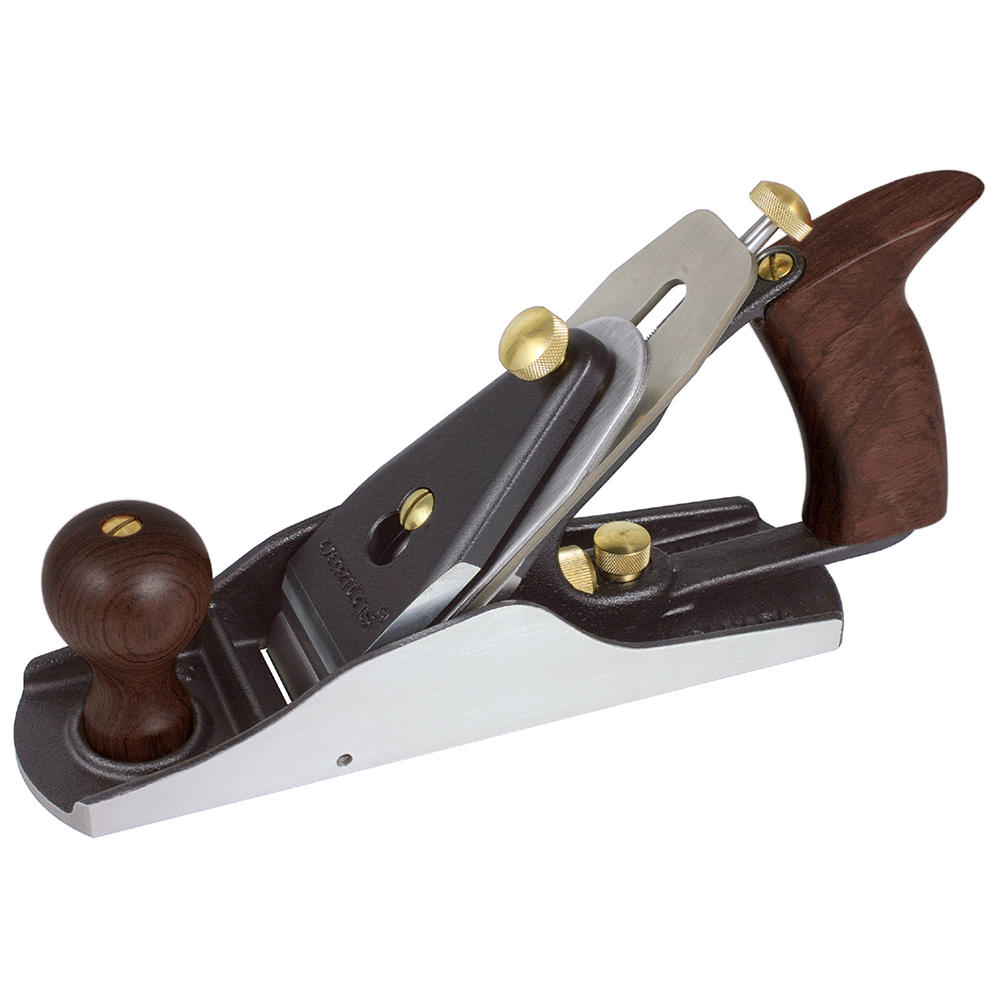

Veritas® Smoothing Plane No. 4, A2 Blade
Product no.:
703680
Brand:
Veritas
€325.00 €273.11
per piece
Delivery time 2-3 business days
- Blade material A2 steel
- Blade thickness 3.2 mm
- Blade width 51 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Overall length 240 mm
Description
The standard smoothing plane is capable of taking the finest shavings from the most difficult woods. With the central adjusting screw, the blade feed and lateral position can be adjusted quickly and precisely. The rear handle and frog form a movable unit that defines the mouth opening without requiring any re-adjustment of the cutting depth.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Bench planes |
| Weight: | 2 kg |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Bench planes |
| Weight: | 2 kg |
Manufacturer
Veritas Tools steht seit Jahrzehnten für Präzision, Innovation und kompromisslose Qualität – ein Synonym für feinste Handwerkskunst, das weltweit von Holzliebhabern und Profis gleichermaßen geschätzt wird.
Additional content
-
EXPERT KNOWLEDGE Planes
