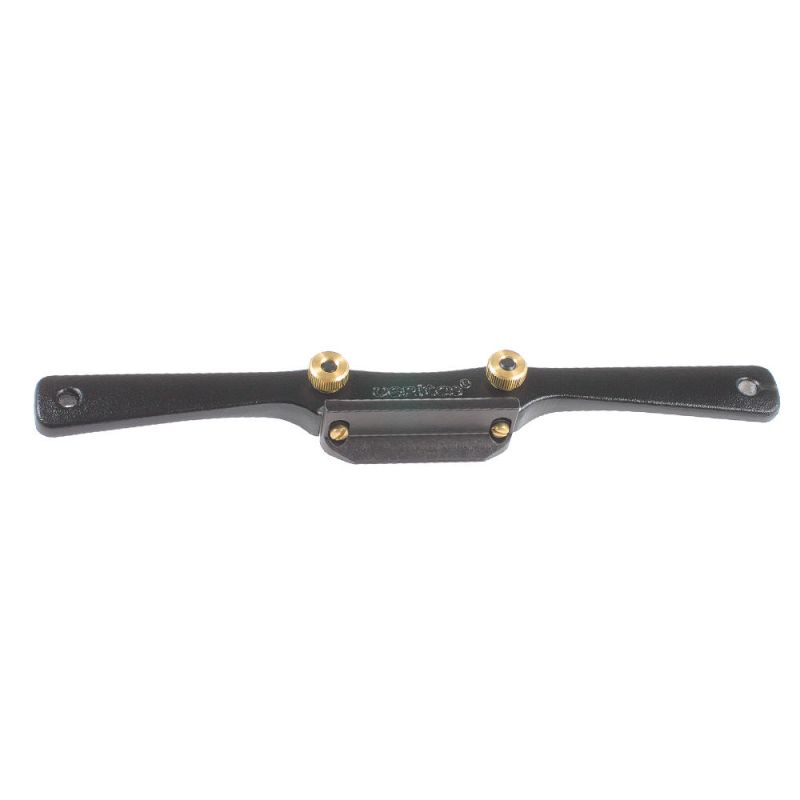

Veritas® Low-Angle Spokeshave, PM-V11™ blade
Product no.:
703923
Brand:
Veritas
€99.90 €83.95
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material PM-V11™
- Blade thickness 3.2 mm
- Blade width 60 mm
- Design / cutting angle Others
- Form Others
Description
A modern version with innovative technology and new materials. Ideal for working on curved and straight workpieces with a difficult grain. The blade, set with the bevel facing up (20° basic bevel with a 25° micro bevel), forms a cutting angle of 30° with the 5° slant of the curved sole. The thickness of the shavings can be adjusted by the toe piece, the mouth opening and by moving the blade. By flipping the toe piece 180°, you can change from a straight sole to a curved sole for concave work. Aluminium body, anodised.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | PM-V11™ |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Others |
| Form: | Others |
| Overall length: | 265 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | For irregular grain patterns |
| Sole shape: | straight |
| Typ: | Spokeshaves |
| Weight: | 200 g |
Properties
| Blade material: | PM-V11™ |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Others |
| Form: | Others |
| Overall length: | 265 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | For irregular grain patterns |
| Sole shape: | straight |
| Typ: | Spokeshaves |
| Weight: | 200 g |
Accessories
Spare parts
Similar items
Ähnliche Artikel
Frequently bought together
Upselling
Matching items
Passend dazu
Manufacturer
Veritas
Veritas Tools Inc., based in Ottawa, Canada, is a world leader in woodworking tool design innovation and is the manufacturing arm of Lee Valley Tools Ltd., a leading North American retailer of fine tools. Lee Valley Manufacturing Ltd. was incorporated in 1985 and later became Veritas® Tools Inc. Today, with 250 products and more than 100 patents in lines that include woodworking planes, sharp
| Name: | Veritas |
|---|---|
| Mailing address: | Morrison Drive 1080 K2H 1C4 Ottawa Canada |
| Homepage: | https://www.veritastools.ca/en-ca |
