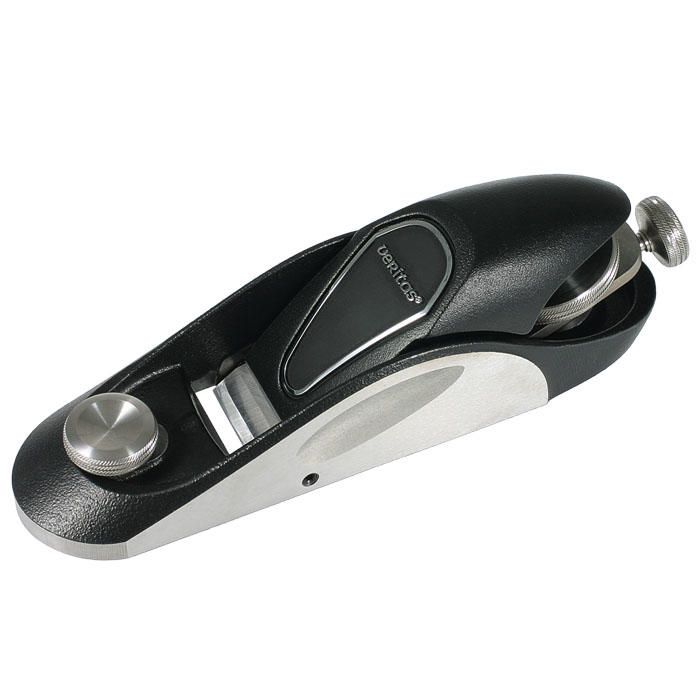

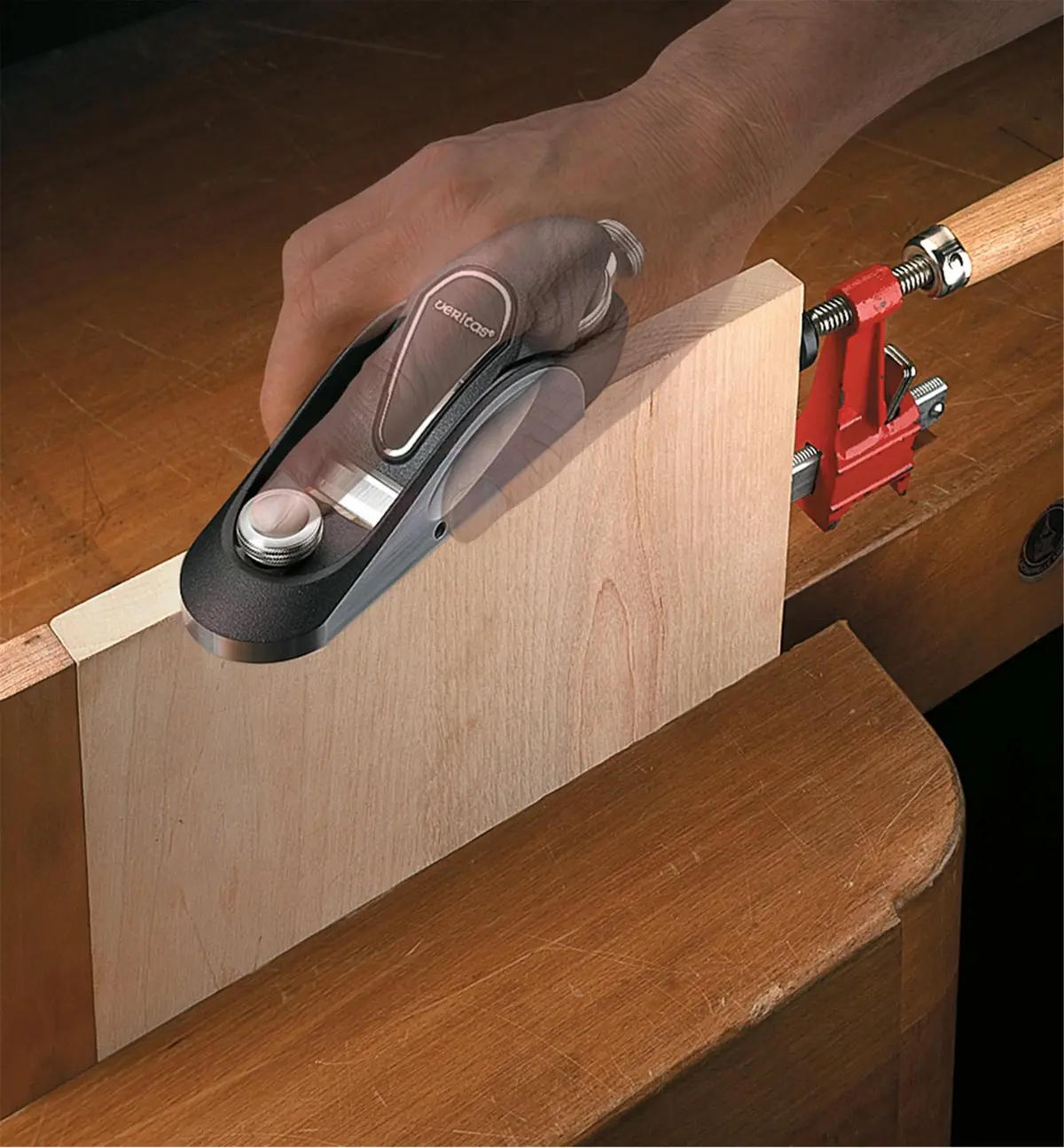

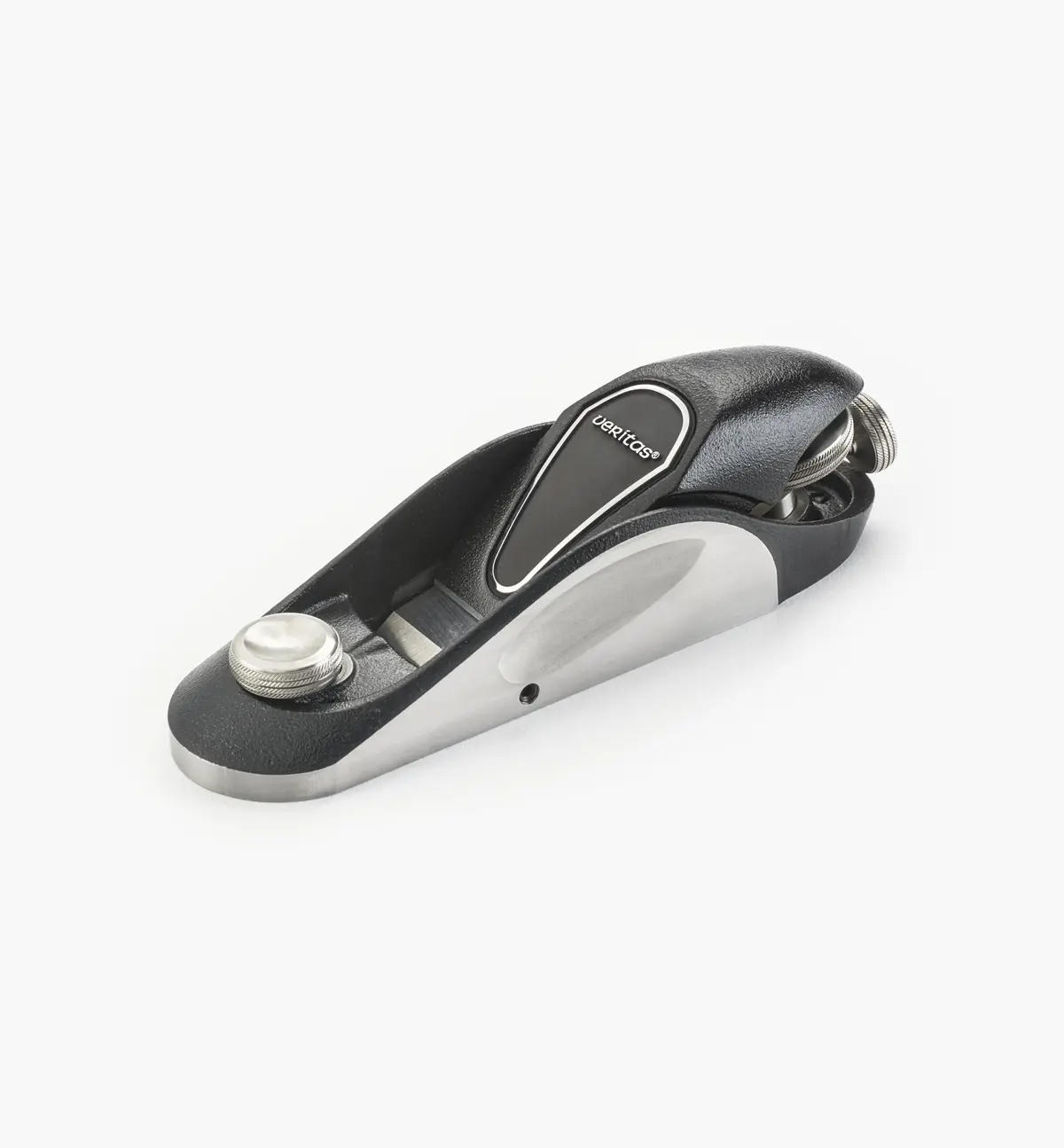

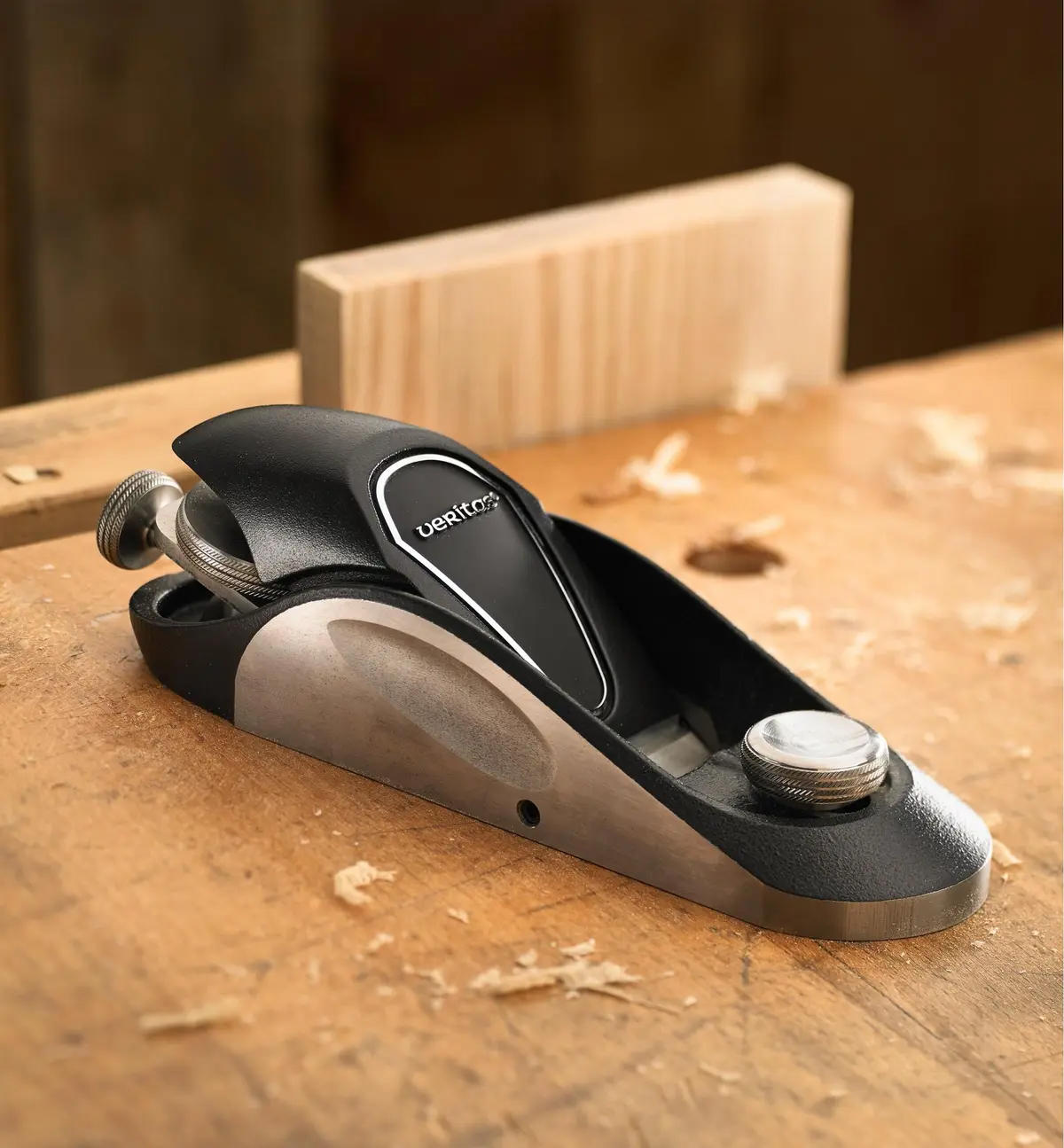

Veritas® Block Plane DX60, A2 Blade
Product no.:
703674
Brand:
Veritas
€263.00 €221.01
per piece(s)
Delivery time 2-3 business days
- Blade material A2 steel
- Blade thickness 3.5 mm
- Blade width 35 mm
- Design / cutting angle Bevel up / cutting angle 35°-37° (end grain processing)
- Overall length 170 mm
Description
Futuristic design with advantages
This standard version is made of spheroidal cast iron and has a pressure-injection diecast cap. Plane body and cap are powder-coated. Stainless steel adjustment screws.

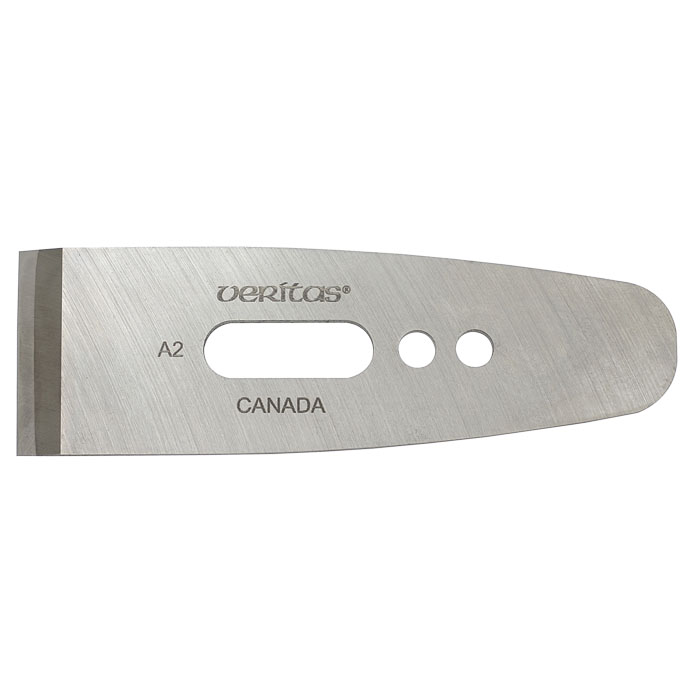

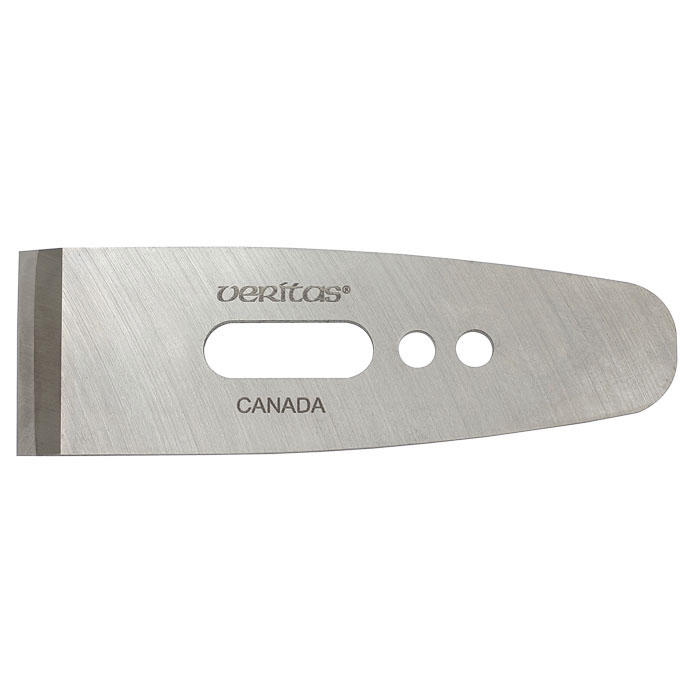

Thanks to its streamlined shape this plane is comfortable in the hand. The lever cap is integrated with the body form; the large contact area for the palm and the finger grip indentations on the side wings provide good comfort and control. Large stainless-steel adjustment and locking screws make setting easy. The extra thick A2 or PM-V11 steel blade is set at a 12° angle in the milled frog. It features a single central knob for feed and lateral adjustment like the legendary Norris planes. Ductile cast iron body, perfectly flat sole, square to the sides. Blade angle 12°, bevel angle 23°, resulting in a cutting angle of 35°. Please note: The plane is supplied in two parts (plane body and blade).
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.5 mm |
| Blade width: | 35 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 170 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | For irregular grain patterns |
| Typ: | Block planes |
| Weight: | 800 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.5 mm |
| Blade width: | 35 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 170 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | For irregular grain patterns |
| Typ: | Block planes |
| Weight: | 800 g |
