UJK Universal Dovetail Jig
Description

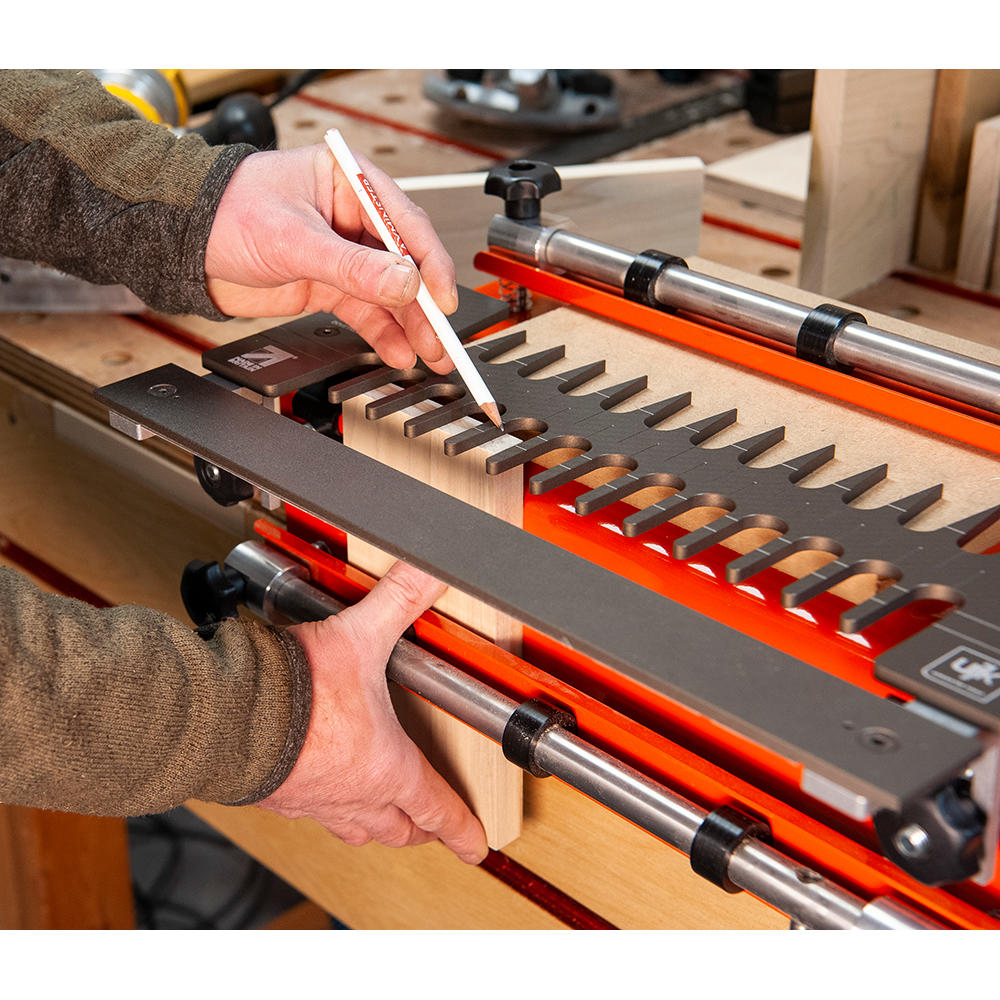

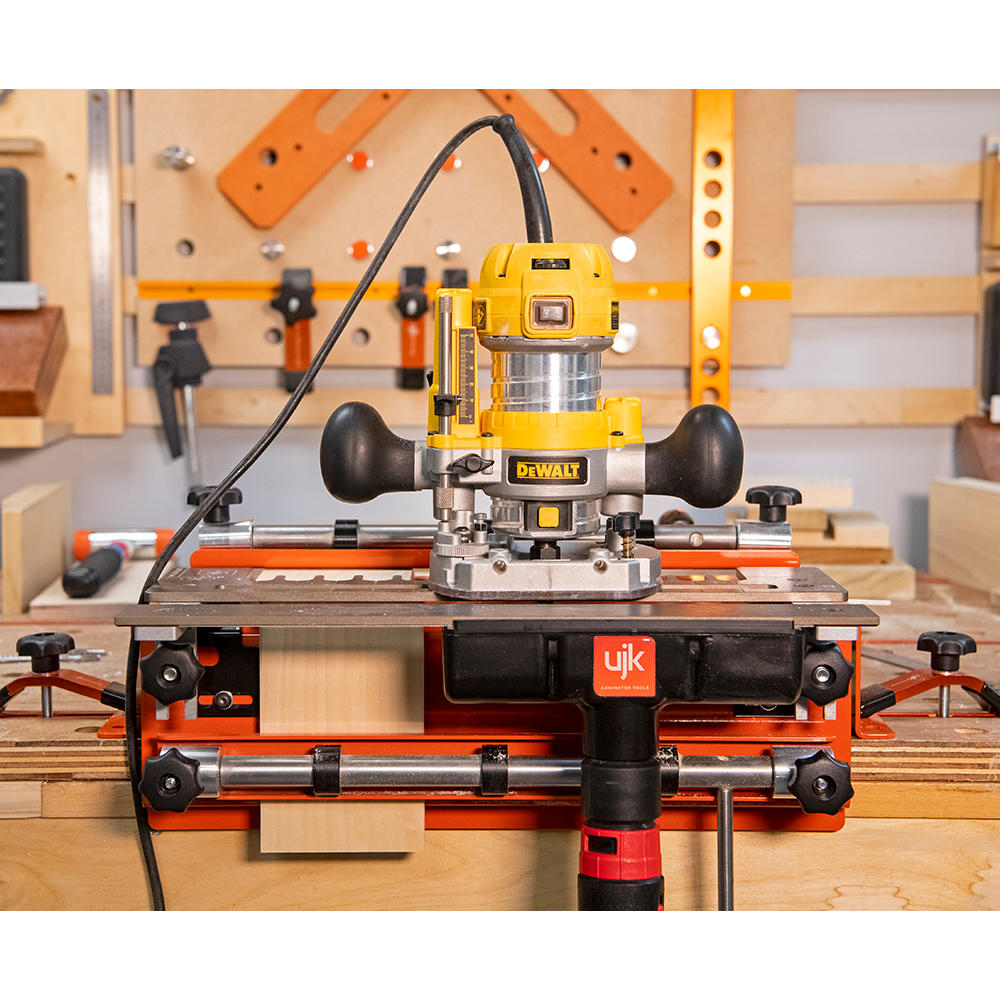

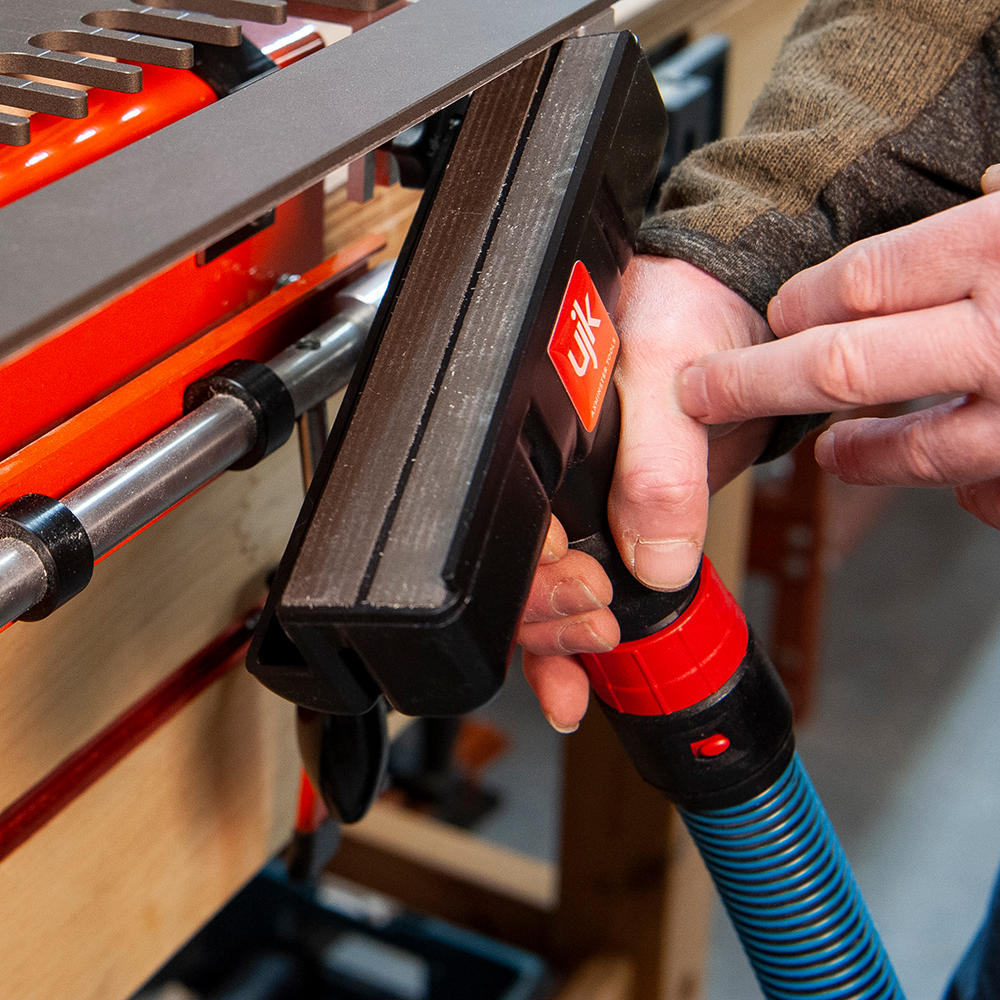

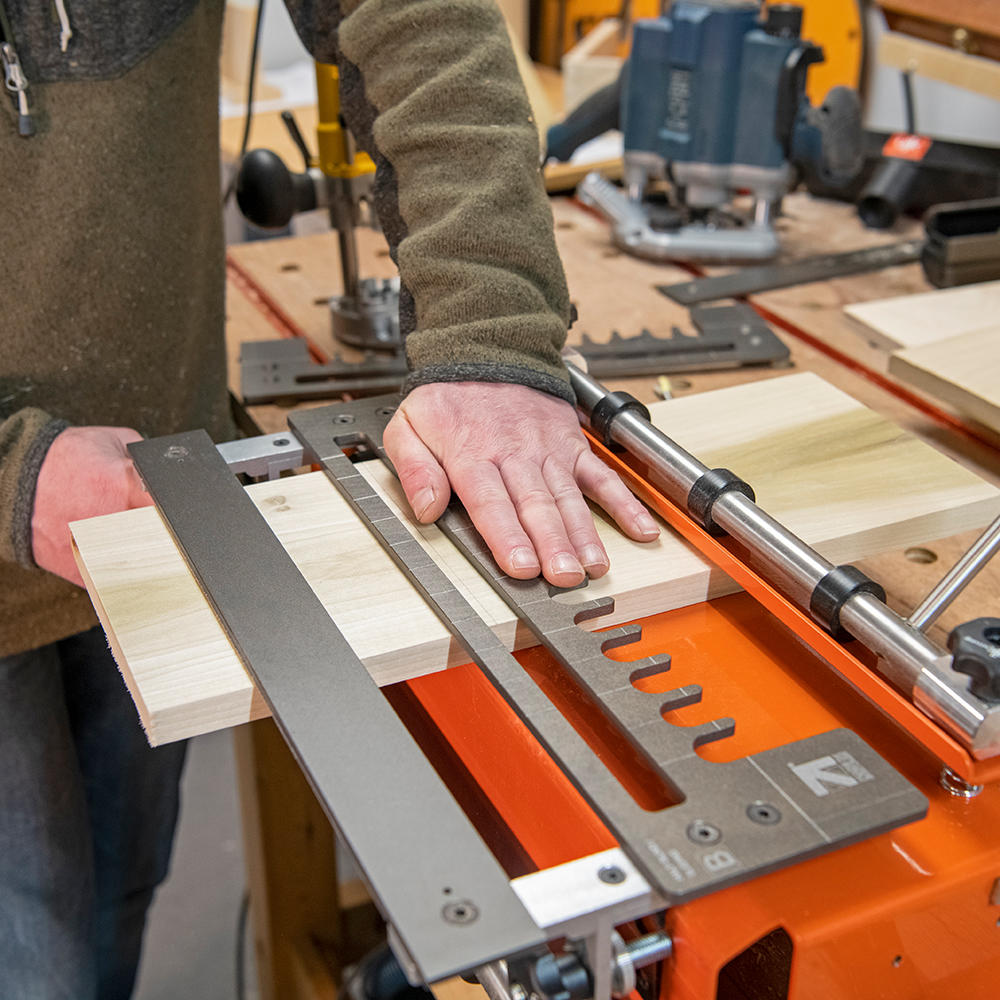

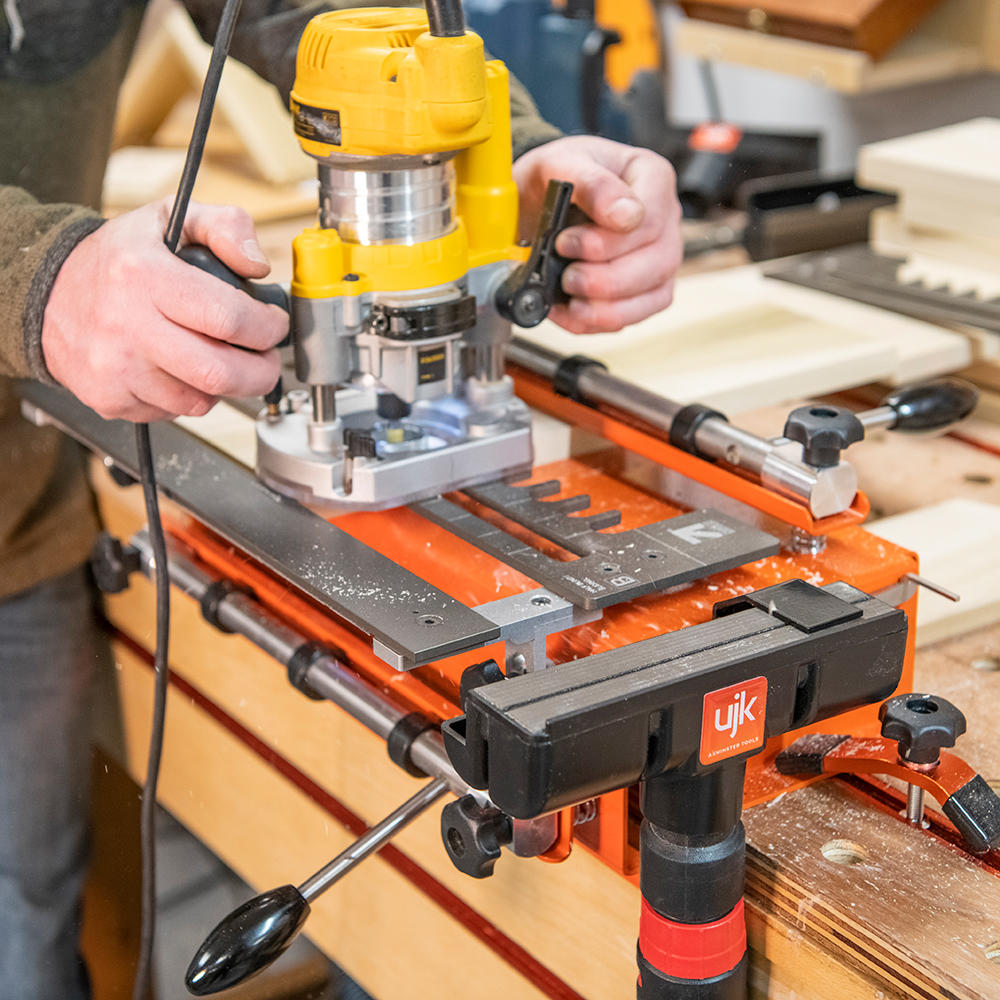

A combination of precision and sturdiness. The frame of the device is formed from 3 mm thick sheet steel. The hard-anodised surface of the precision-milled aluminium milling templates ensures durability and accuracy. The jig has an additional support rail in front of the template to provide the router with a wider support surface. An extraction funnel is held magnetically to the support rail and can be easily detached or attached when inserting the workpieces. Adjustable quick clamps hold the workpieces quickly and securely in position.
Possible joint types:
For material widths up to 300 mm and material thicknesses 6-28 mm.
Max. workpiece cross-sections:
Scope of delivery:
Attention: depending on the router used, an adapter may be necessary to fit the copying sleeves.
Possible joint types:

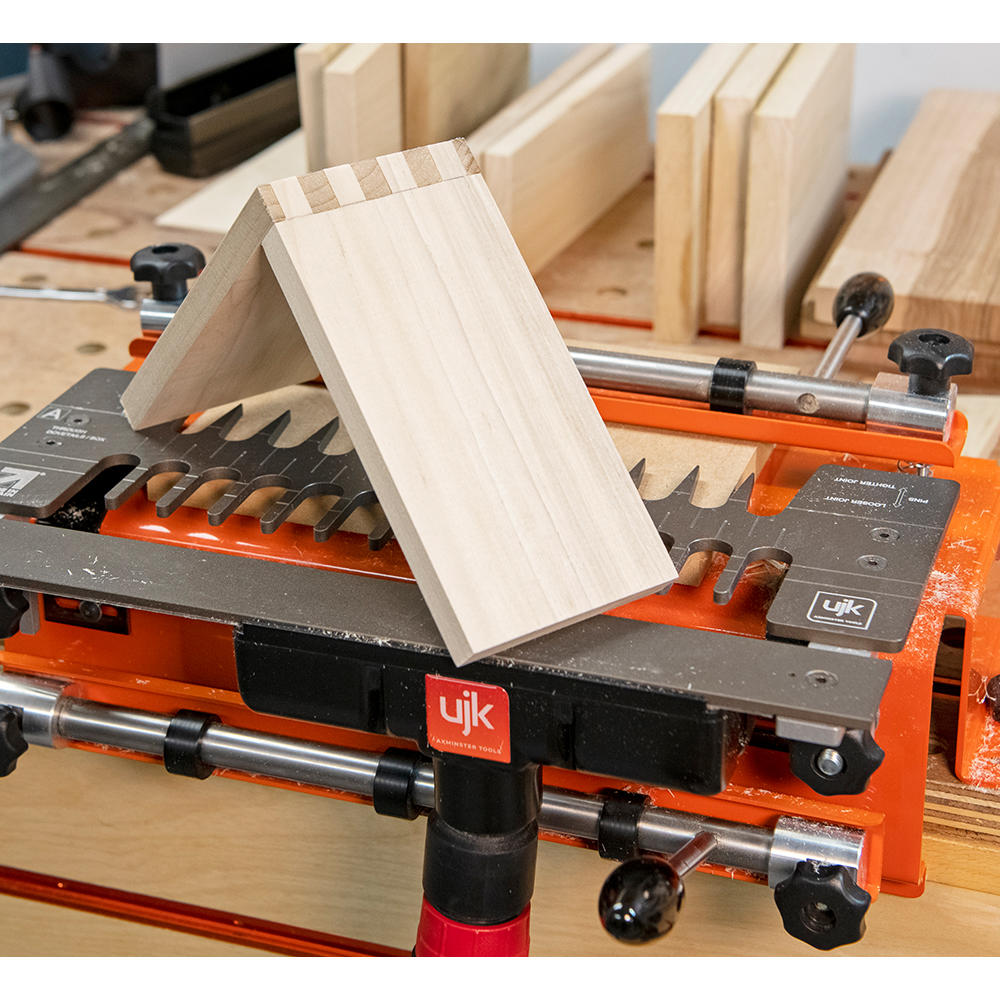

- Dovetails
- Half-blind dovetails
- Comb joints
- Sliding dovetail joints
- Tongue-and-groove joints
- Overleap joints
For material widths up to 300 mm and material thicknesses 6-28 mm.
Max. workpiece cross-sections:
- Half-blind dovetails 300 x 13-25 mm
- Dovetails 300 x 10-25 mm
- Comb joints 300 x 6-25 mm
- Tongue-and-groove joints 290 x 10-25 mm
- Sliding dovetail joints 290 x 13.5-25 mm

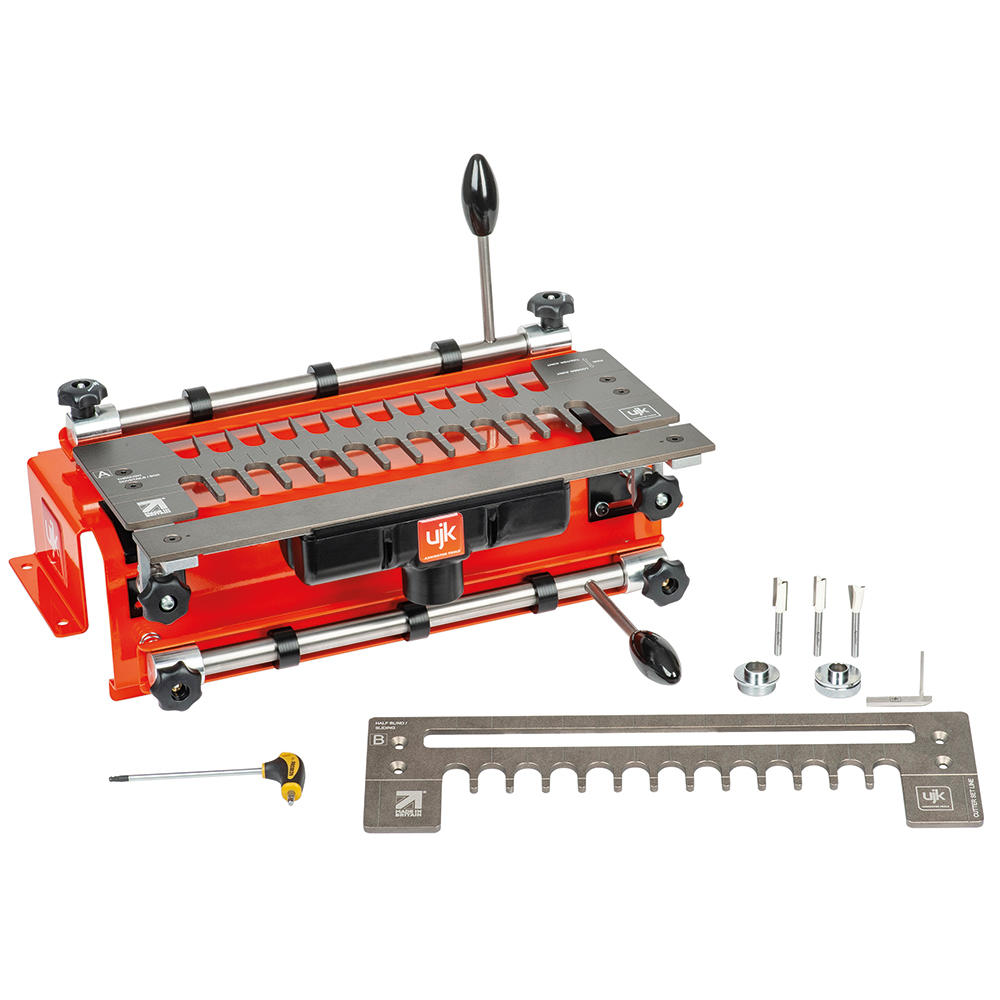

Scope of delivery:
- Jig for half-blind and sliding dovetails
- Jig for dovetails and comb joints
- Axcaliber TC cutter 7° dovetail cutter, with ¼ inch shank
- Axcaliber TC cutter 10.39 mm groove cutter, with ¼ inch shank
- Axcaliber TC cutter 12.5 mm groove cutter, with ¼ inch shank
- Reducing sleeve 8 mm to ¼ inch
- 2 copying sleeves with American-style threaded ring, Ø 19.1 mm & 15.9 mm
- Magnetic dust extraction funnel with Ø 40/45 mm connection
- Magnetic setting gauge
- 4 mm hex key
Attention: depending on the router used, an adapter may be necessary to fit the copying sleeves.
Accessories
Zubehör
Manufacturer
UJK
The ujk technology brand was launched by Axminster in 2012 to offer a range of carefully selected products. The range includes routing, measuring and wood jointing products.
