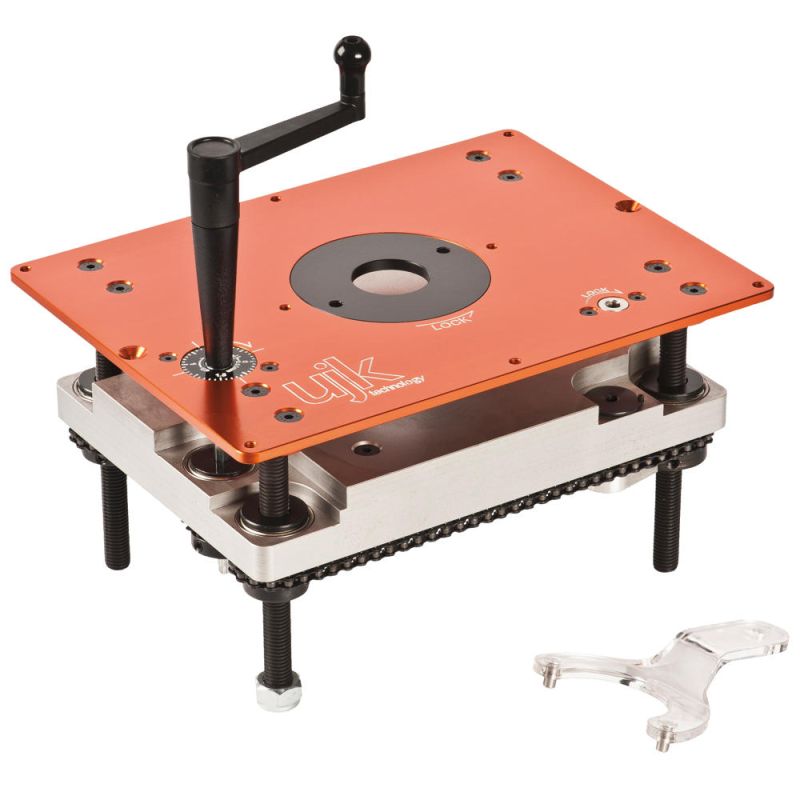

UJK Router Elevator
Product no.:
706573
Brand:
UJK
€599.00 €503.36
per piece(s)
Delivery time approx. 3-5 working days
- Dimensions 305 x 229 x 165 mm
- Fits Ausschnitte 305 x 229 x 6 mm
- Machine/Accessory Accessories
- Machine type Router tables
- Weight 6 kg
Description

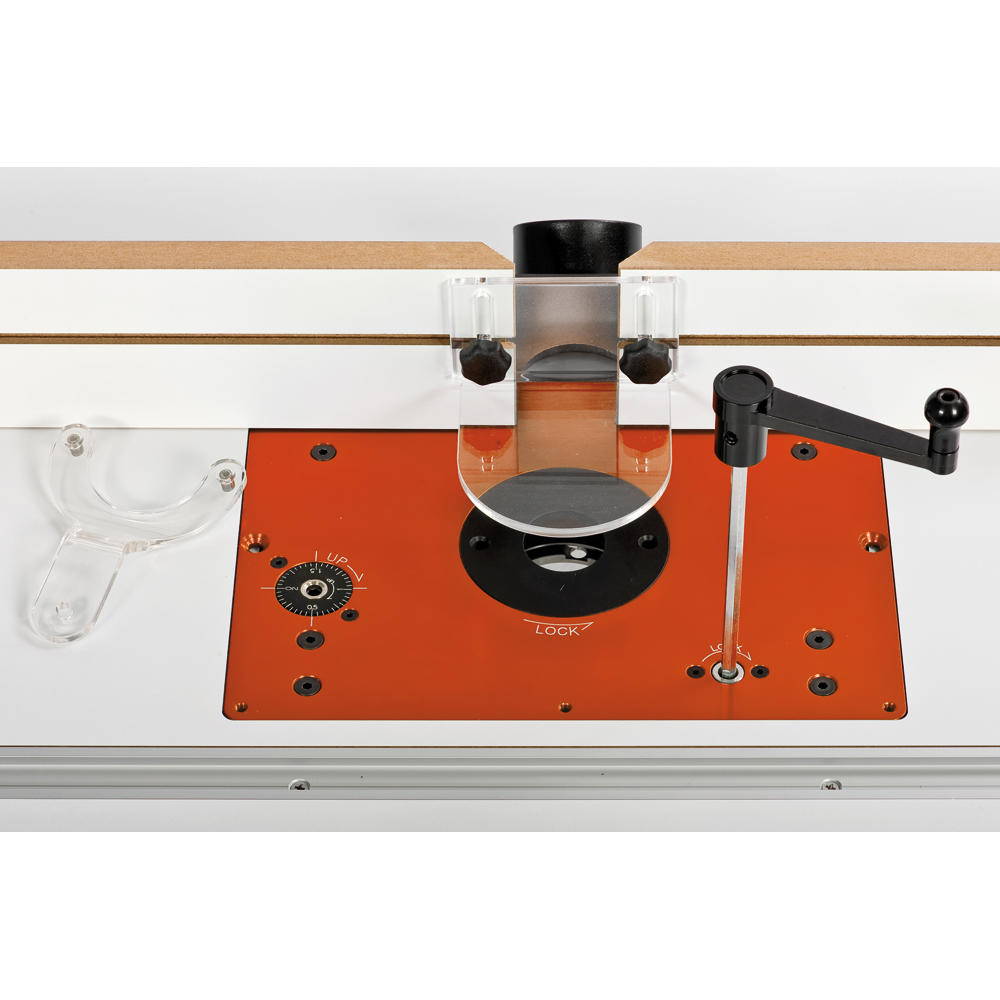

Raising and lowering a router in a table set-up can be a chore if you have to reach under the table each time you need to change the depth of cut. Being able to carry out this operation from above the table makes work so much easier. The UJK router elevator is a solution for fast, accurate production on many router table installations. This compact design was developed to fit straight into UJK router tables and most table set-ups can accommodate this size of insert (305 x 229 x 6 mm).

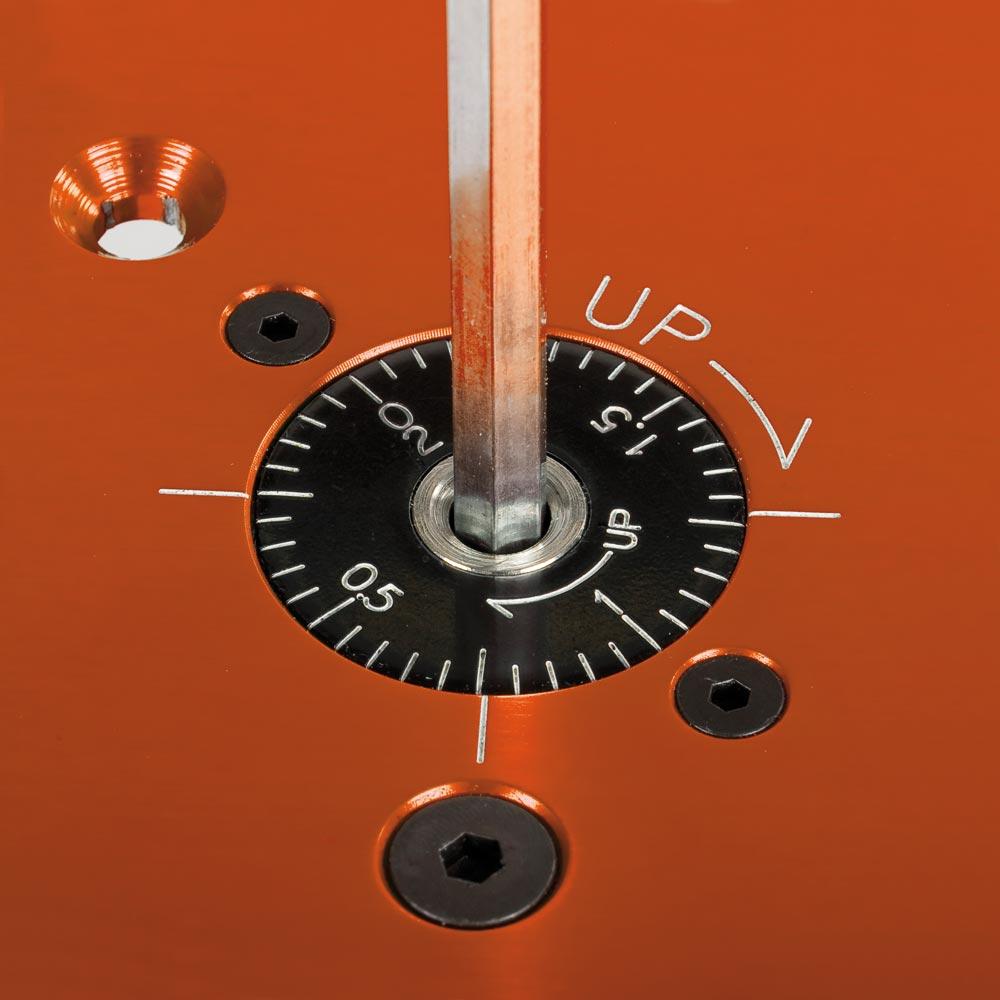

Height adjustment is carried out by inserting a handle through a measurement dial set into the machine table. Each rotation of the handle raises or lowers the cutter by exactly 2 mm and the integral scale is graduated into 0.05 mm increments enabling very accurate adjustments to be carried out. A locking mechanism is fitted so that the height of the router can be securely locked in any desired position. The router elevator is supported on all four corners by a substantial threaded rod which means that the router stays very stable in use. The rise and fall mechanism is chain driven which is an endless loop connecting the four sprockets. Routers are attached to the router elevator either directly or with the use of the supplied adaptor plate. Additional machine screws may be required according to the router type.
Your benefits:
Height adjustment is carried out by inserting a handle through a measurement dial set into the machine table. Each rotation of the handle raises or lowers the cutter by exactly 2 mm and the integral scale is graduated into 0.05 mm increments enabling very accurate adjustments to be carried out. A locking mechanism is fitted so that the height of the router can be securely locked in any desired position. The router elevator is supported on all four corners by a substantial threaded rod which means that the router stays very stable in use. The rise and fall mechanism is chain driven which is an endless loop connecting the four sprockets. Routers are attached to the router elevator either directly or with the use of the supplied adaptor plate. Additional machine screws may be required according to the router type.
Your benefits:
- Fast and accurate height adjustment from above the table
- 90 mm of height adjustment

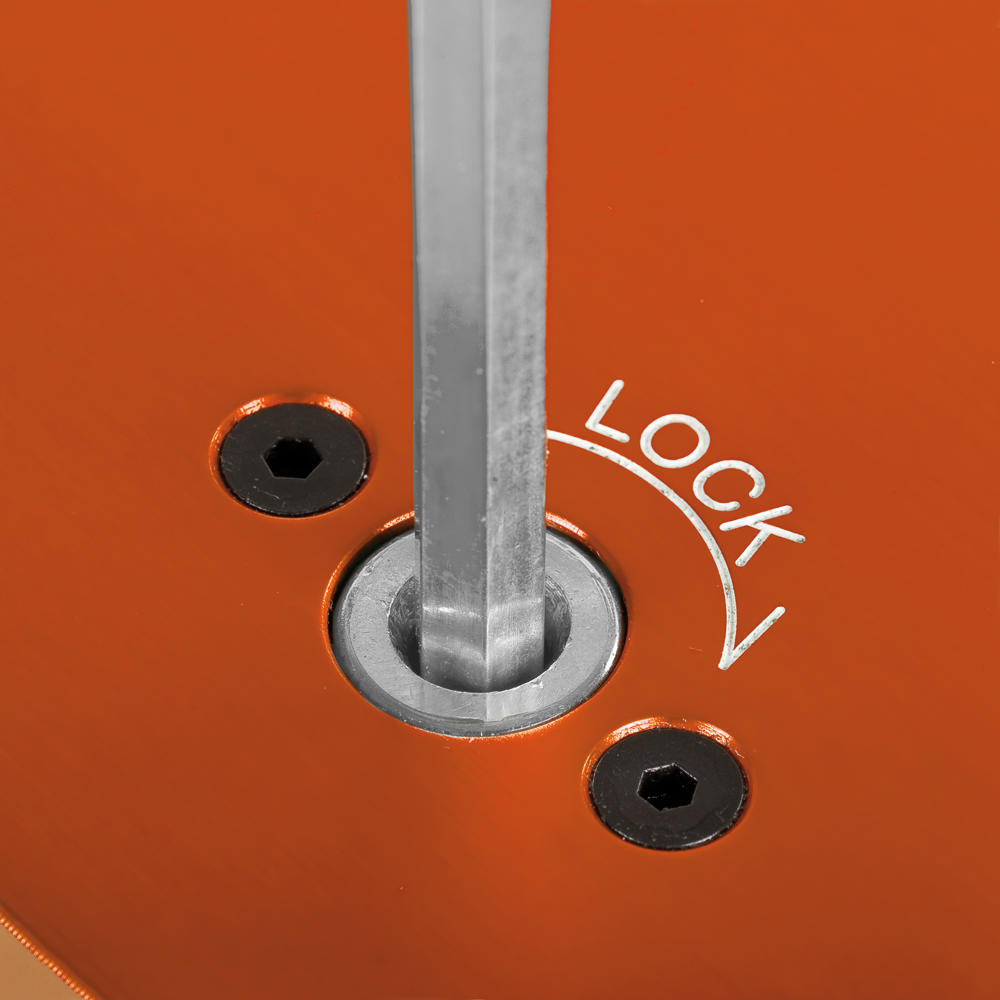

- Height lock fitted for added security
- Backlash-free pillar guide

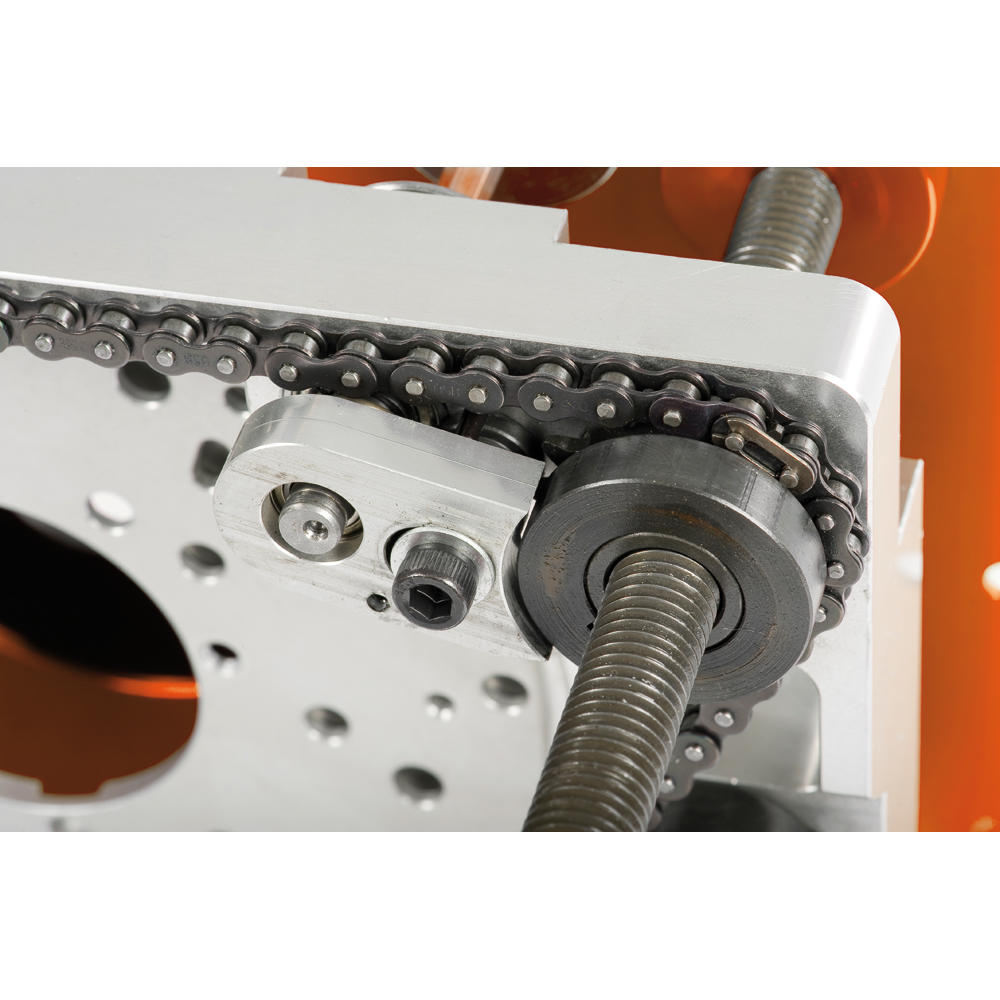

- Circumferential chain drive
- Router height adjustments from above the table
- Fits straight into all UJK router tables
- Made of cast aluminium, mounting plate precision-ground and anodized
- Aperture size 305 x 229 x 6 mm required
- Elevator height (reduced cutting depth) 14.5 mm
- Comes with detailed English and German fitting instructions
Scope of delivery
- Twist Lock insert ring 38 mm
- Crank
- Y-key
- Operation tool
- Includes German and English instructions
Properties
| Dimensions: | 305 x 229 x 165 mm |
|---|---|
| Fits: | Ausschnitte 305 x 229 x 6 mm |
| Machine/Accessory: | Accessories |
| Machine type: | Router tables |
| Weight: | 6 kg |
Properties
| Dimensions: | 305 x 229 x 165 mm |
|---|---|
| Fits: | Ausschnitte 305 x 229 x 6 mm |
| Machine/Accessory: | Accessories |
| Machine type: | Router tables |
| Weight: | 6 kg |
Accessories
Zubehör
Similar items
Frequently bought together
Manufacturer
UJK
The ujk technology brand was launched by Axminster in 2012 to offer a range of carefully selected products. The range includes routing, measuring and wood jointing products.
