Tools for Measuring and Marking, 6-piece Set
Description
Tried-and-tested measuring and marking tools, safely stored and always at hand in a wooden case

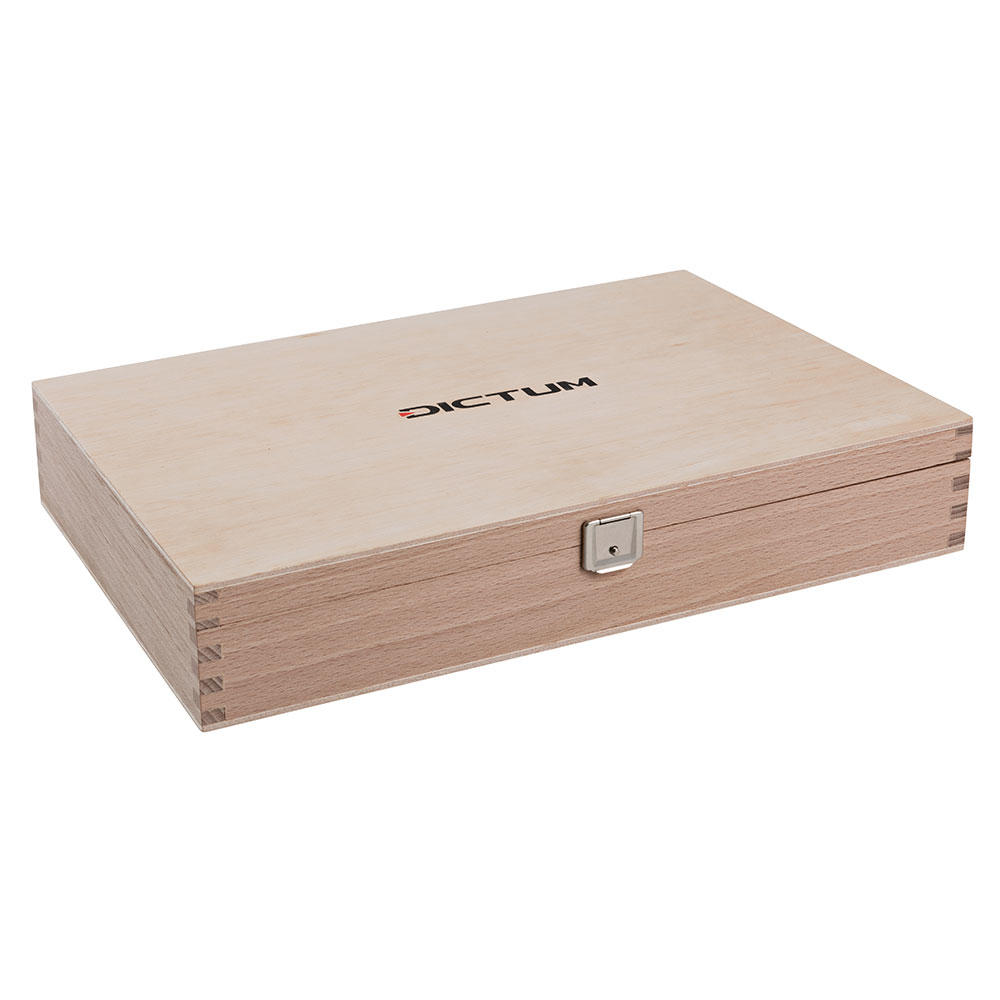

This practical measuring and marking set is the perfect basic equipment for professionals and demanding woodworkers alike – an ideal gift e.g. as a recognition for passing the Journeyman's examination. All measuring and marking tools are stored safely and dust-protected in the dovetailed wooden case made of native German beech.

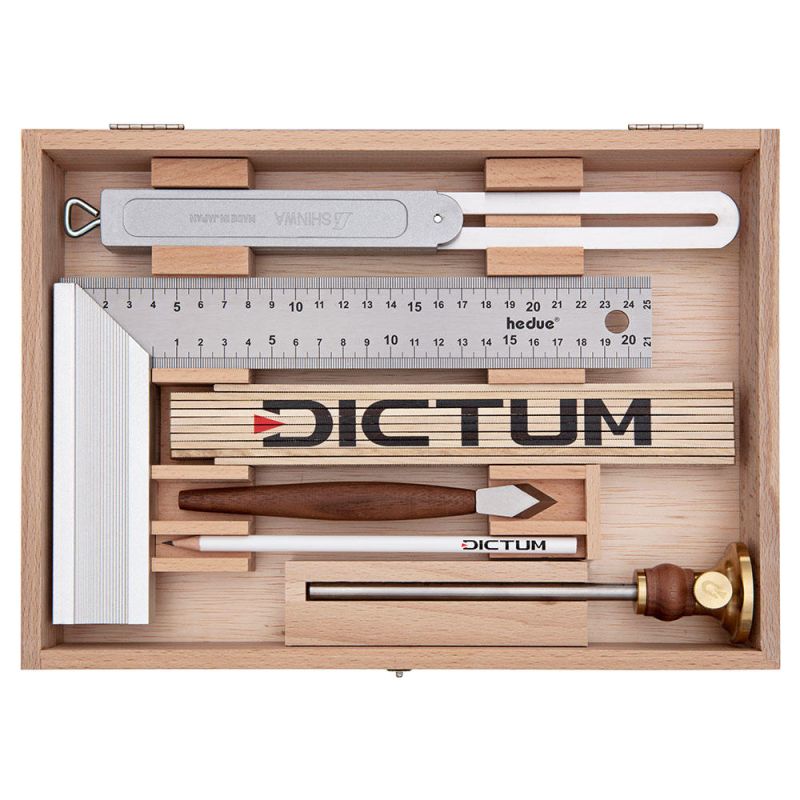

Content:
- Carpenter's Try Square Aluminium (No. 707339) with stainless steel tongue and etched millimetre scale. Stock made of aluminium, chamfered edges for scribing 45° mitres. Accuracy 0.2 mm per 100 mm.
- The Hattori marking knife (No. 717102) with prism-shaped blade is ideal for universal scribing to the left or right of a guide. The blade is hardened to 59 HRC and firmly fastened to the pencil-shaped precious wood handle with a stick tang. Suitable for both left- and right-handed users.
- As well as a high marking accuracy, the DICTUM Marking Gauge (No. 717175) has an impressive rounded wooden insert for a warm, ergonomic grip. To keep the gauge true even on difficult grain, the marking head is designed as a disc blade. A deeply etched shaft scale for quick set-up as well as the roll-stop face on the brass fence complete this high-grade marking tool. Hardened metal shaft.
- Japanese Shinwa precision sliding bevel (No. 717146) with aluminium stock. Chrome-plated steel blade. The locking mechanism is positioned in the upper part of the stock to prevent it from interfering during use.
- DICTUM® Cabinetmaker's Pencil (No. 707355) with a hard graphite lead (2H), white varnish and sharpened.
- DICTUM® White Beech Folding Rule (No. 708034) with 3.4 mm thick segments and hidden, hardened spring steel catch. Millimetre scale on both sides. 100 g. Accuracy class III (+/- 1.4 mm per 2 m).
