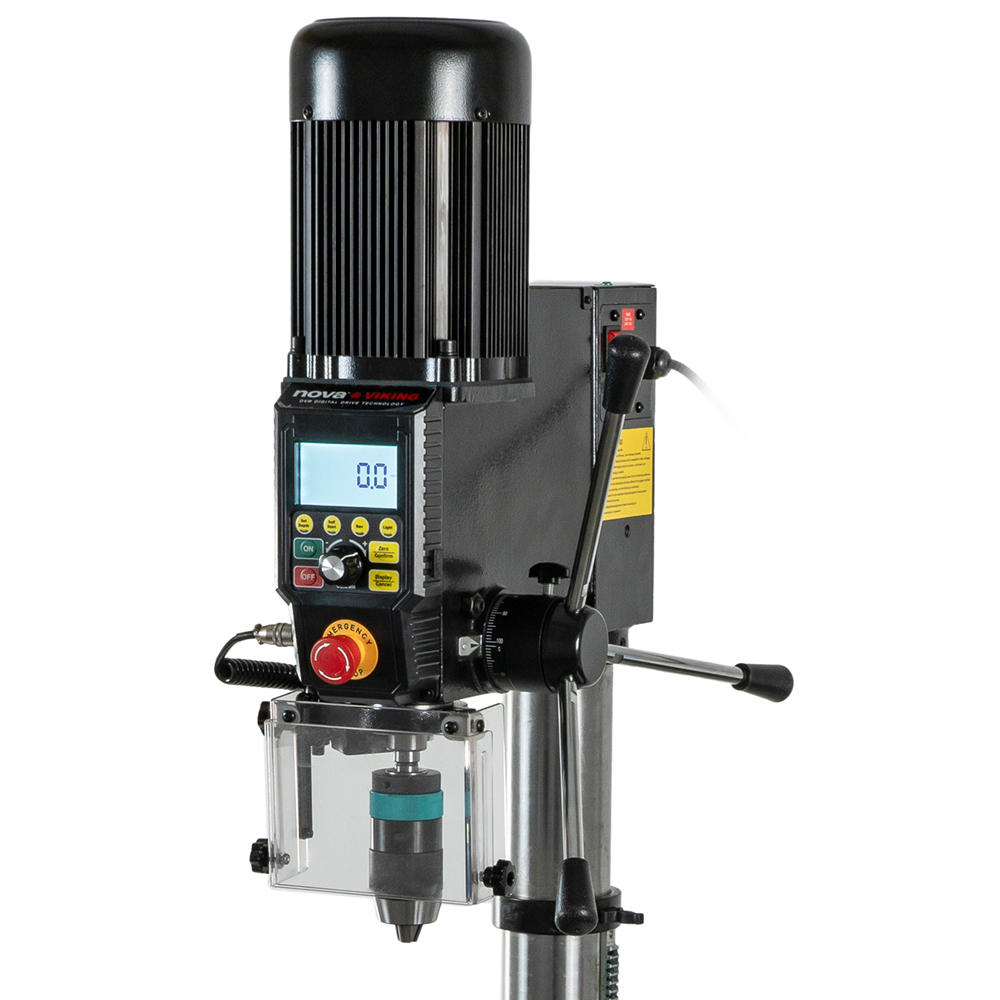

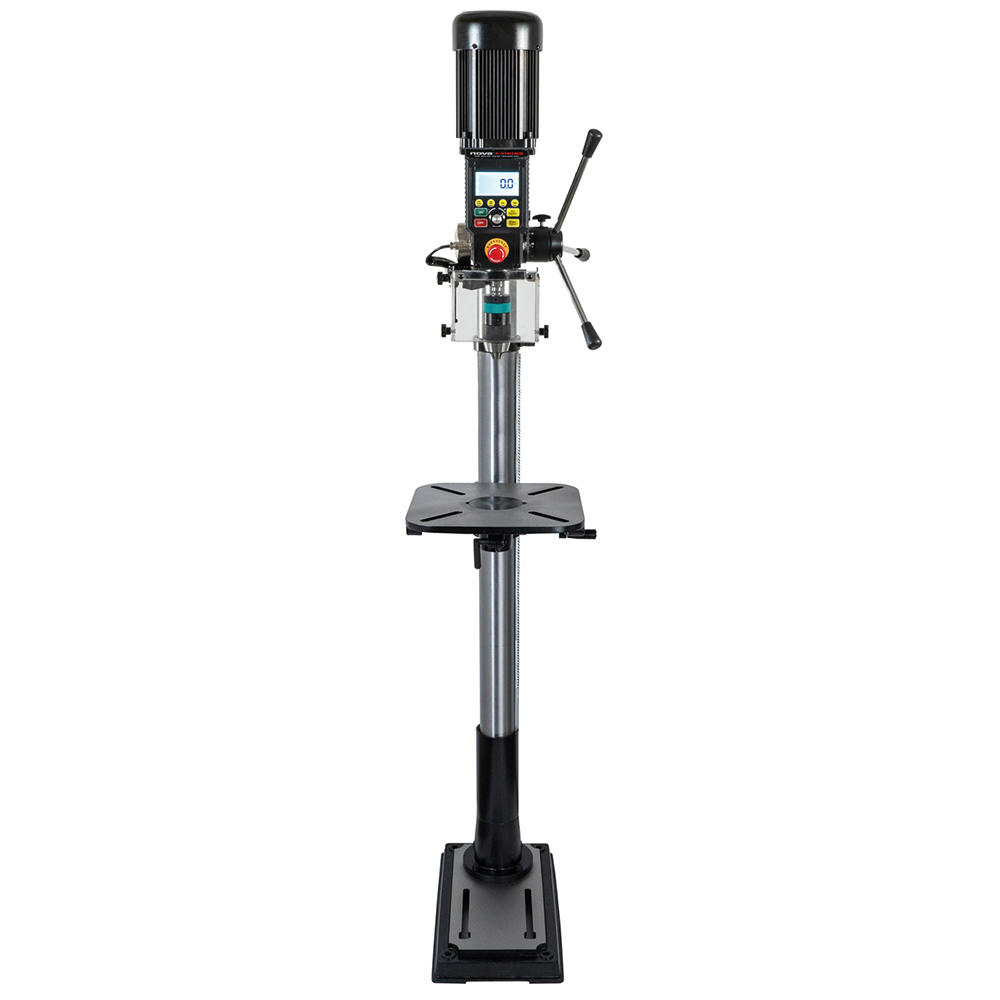

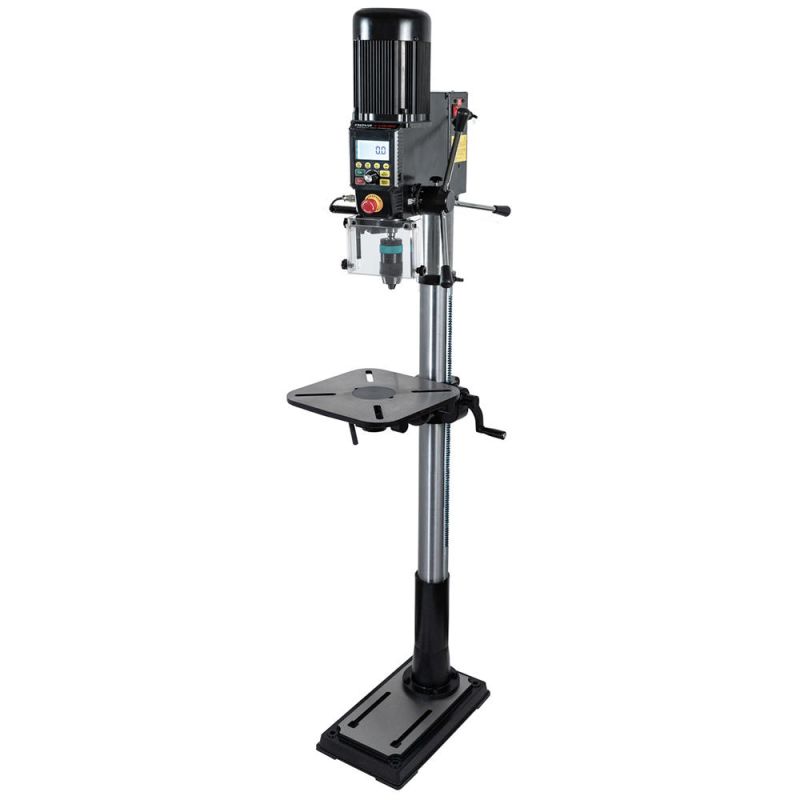

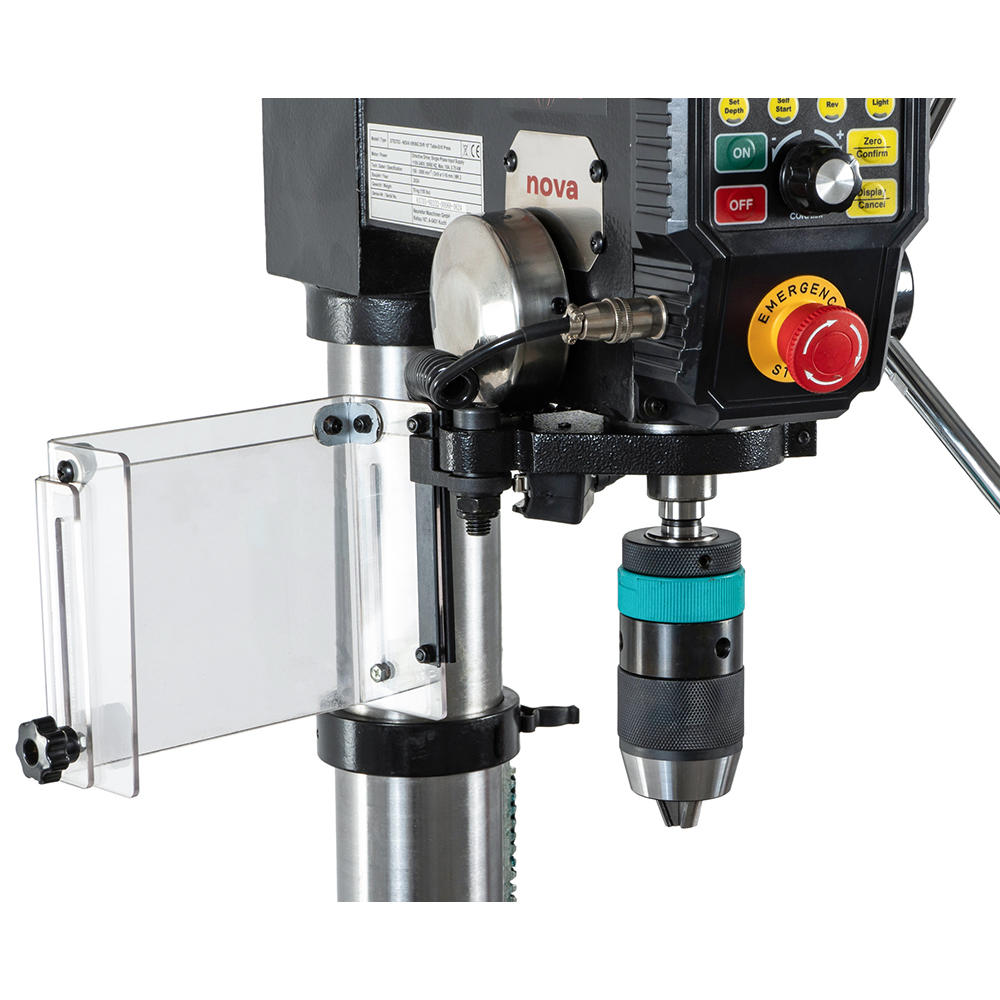

Teknatool Nova Viking DVR Column Drill Press, 16 Inch
€1,429.00 €1,200.84
per piece(s)- Arbeitstisch (LxB) 320 x 320 mm
- Bohrfutterspannweite 1-16 mm
- Bohrfuttertyp Quick-release drill chuck with locking function
- Drehzahlbereiche 150-3000 rpm
- Machine/Accessory Machine, Machines
Description
The compact DVR 16 inch drill
Floor version with long column, distance spindle to work table 772 mm, distance spindle to foot 1283 mm, weight 80 kg.
Your advantages:
- The 1 HP DVR Smart Digital Motor constantly monitors all factors and ensures uninterrupted maximum and consistent motor torque.
- The sensor-controlled digital motor calculates the ideal speed which is permanently monitored and readjusted.
- Electronic depth stop with automatic switch-off when drilling depth is reached.
- Automatic self-start for one-hand operation. Drill starts automatically when lowering the spindle.

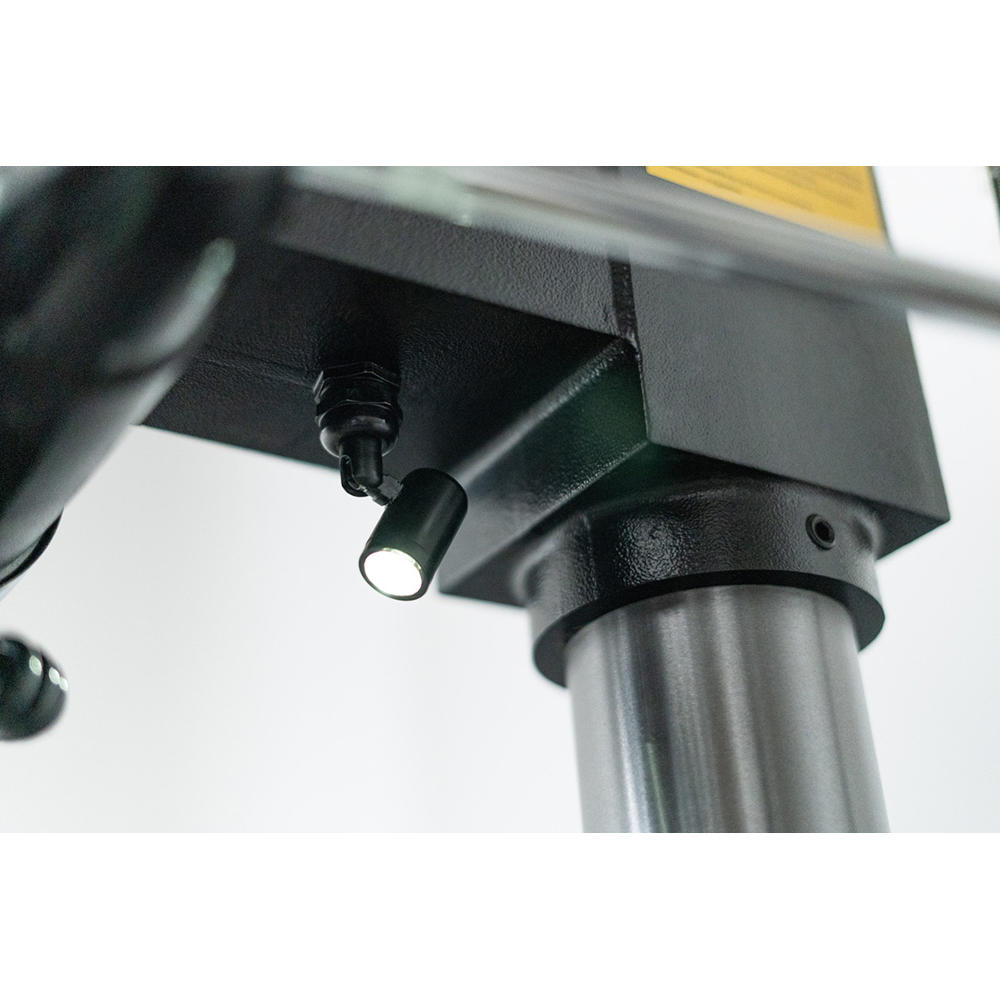

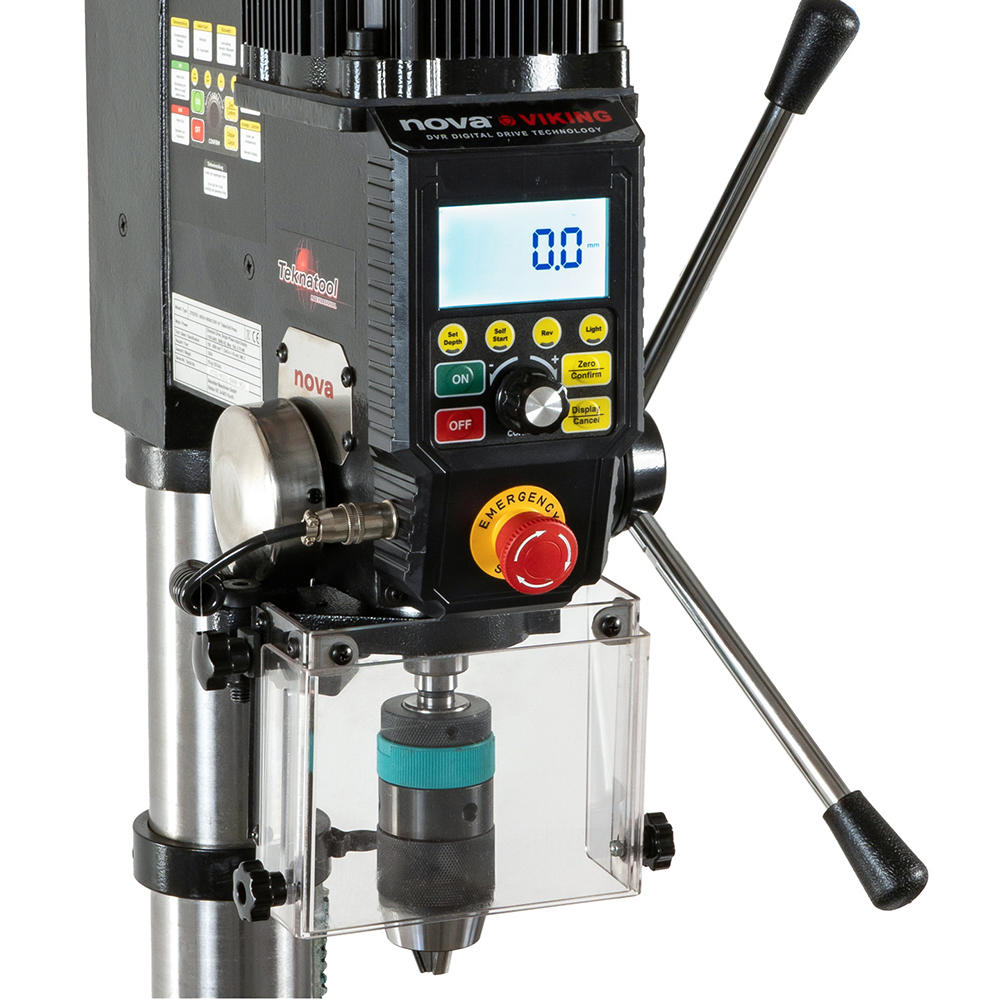

- Large digital display and optional LED lighting for the work area.
- Forward and reverse action for versatile application options.

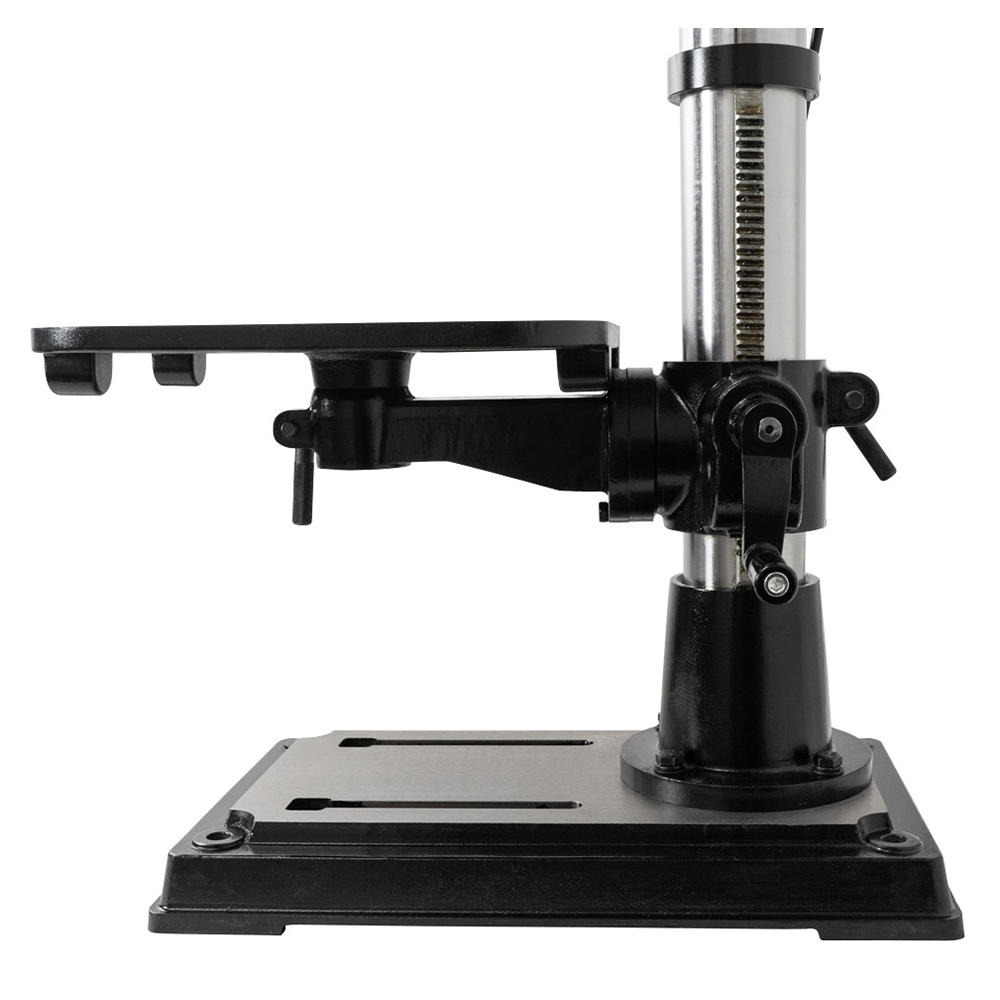

- Tilting and rotating benchtop made of grey cast iron with integrated clamping possibilities for optional accessories.
Technical specifications:
- DVR Motor with direct drive (without belt)
- Power 1 HP (750 Watt)
- Speed range 150-5000 rpm
- Forward/reverse switch
- #2 MT spindle cone
- Distance between centre of drill hole and column 203 mm
- Spindle stroke 114 mm
- Table dimensions 320 x 320 mm
- Work table continuously tiltable
- Jaw opening chuck 1-16 mm
- Quill diameter 60 mm
Scope of delivery
Includes high-quality quick-release drill chuck with locking function, clamping range 1–16 mm.Properties
| Arbeitstisch (LxB): | 320 x 320 mm |
|---|---|
| Bohrfutterspannweite: | 1-16 mm |
| Bohrfuttertyp: | Quick-release drill chuck with locking function |
| Drehzahlbereiche: | 150-3000 rpm |
| Machine/Accessory: | Machine Machines |
| Machine type: | Column drill press |
| Max. distance spindle to base: | 1283 mm |
| Max. distance spindle to table: | 772 mm |
| Motor voltage: | 230 V / 50 Hz |
| Overall height: | 1860 mm |
| Pinolenhub / Bohrtiefe : | 114 mm |
| Power input: | 750 W |
| Power source: | Corded |
| Quill diameter: | 60 mm |
| Speed control: | Direct drive, stepless |
| Spindle taper: | #2 MT |
| Swing: | 203 mm |
| Table tilt: | -45° to +45° |
| Version: | Floor version with long column |
| Weight: | 80 kg |
Properties
| Arbeitstisch (LxB): | 320 x 320 mm |
|---|---|
| Bohrfutterspannweite: | 1-16 mm |
| Bohrfuttertyp: | Quick-release drill chuck with locking function |
| Drehzahlbereiche: | 150-3000 rpm |
| Machine/Accessory: | Machine Machines |
| Machine type: | Column drill press |
| Max. distance spindle to base: | 1283 mm |
| Max. distance spindle to table: | 772 mm |
| Motor voltage: | 230 V / 50 Hz |
| Overall height: | 1860 mm |
| Pinolenhub / Bohrtiefe : | 114 mm |
| Power input: | 750 W |
| Power source: | Corded |
| Quill diameter: | 60 mm |
| Speed control: | Direct drive, stepless |
| Spindle taper: | #2 MT |
| Swing: | 203 mm |
| Table tilt: | -45° to +45° |
| Version: | Floor version with long column |
| Weight: | 80 kg |
Manufacturer
Teknatool
Teknatool has been producing innovative machines and woodworking tools since 1980. In 1983, the company developed one of the first modern jaw chucks for woodturners. Since then, Teknatool has gained a reputation worldwide in particular for its four-jaw chucks. Sold under a renowned international brand, these chucks are now being used by tens of thousands of woodturners and distinguish themselves through their robustness and extensive range of jaws. Teknatool chucks are considered especially safe because the jaws do not protrude beyond the base body and are secured against accidental unscrewing or exceeding the maximum clamping distance.
