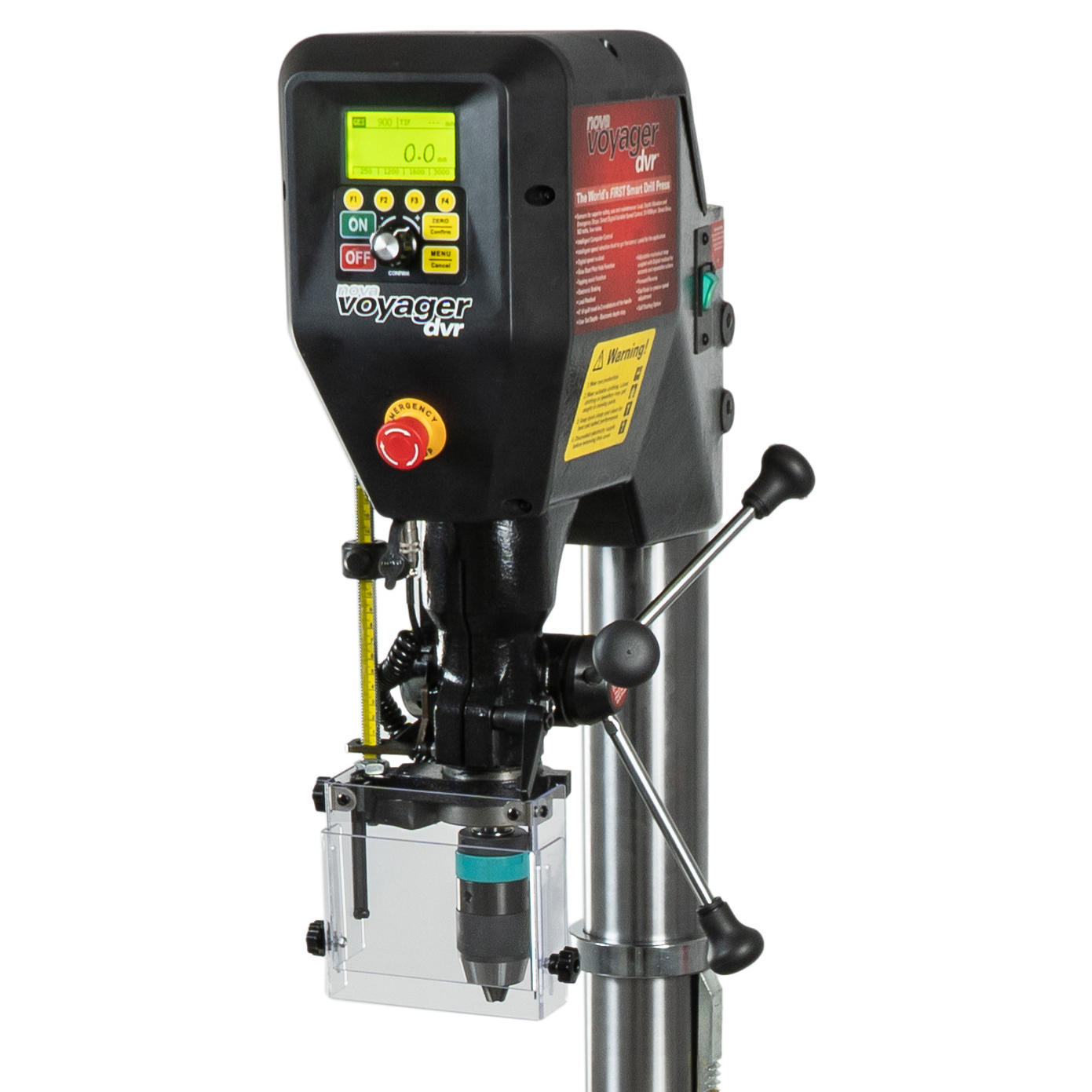

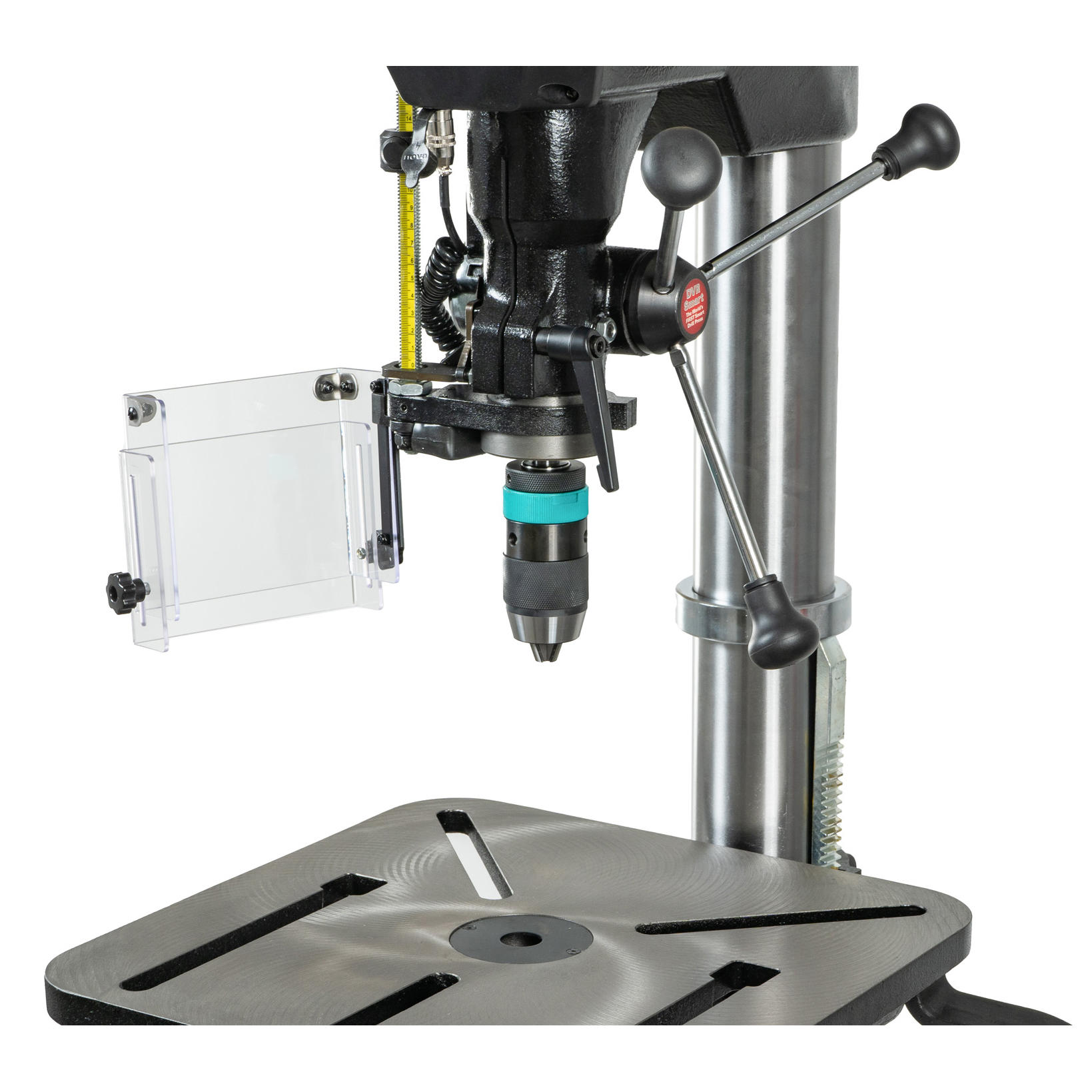

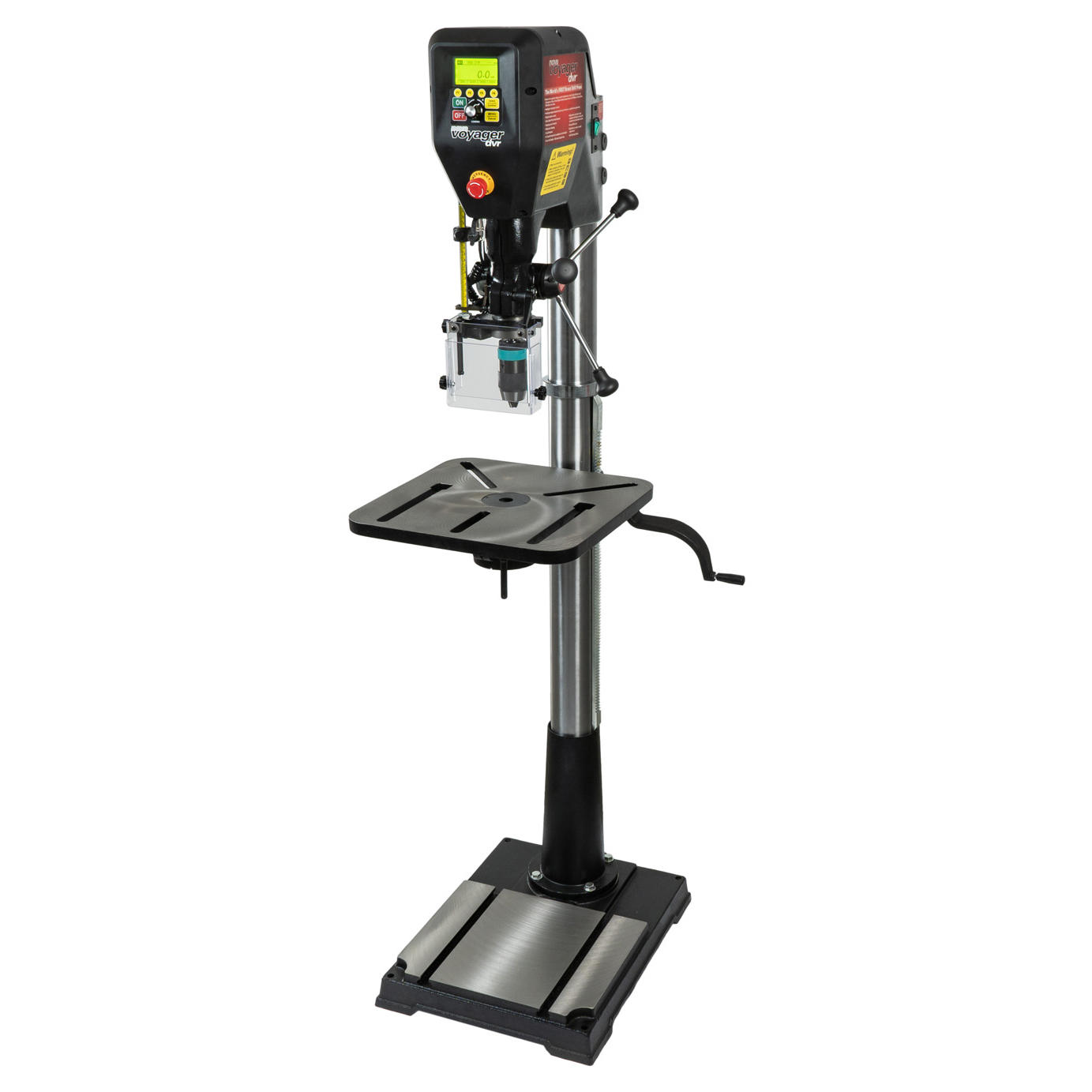

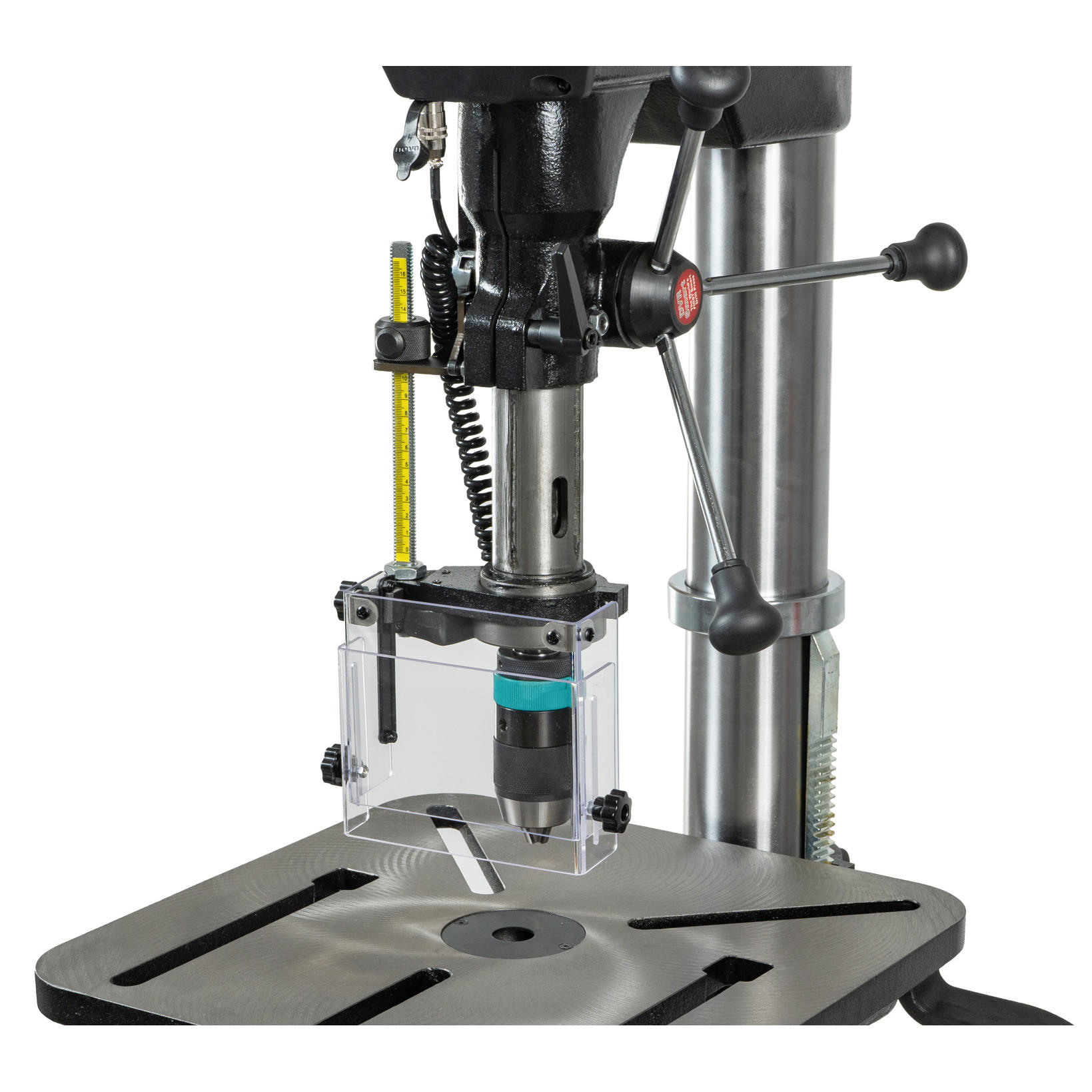

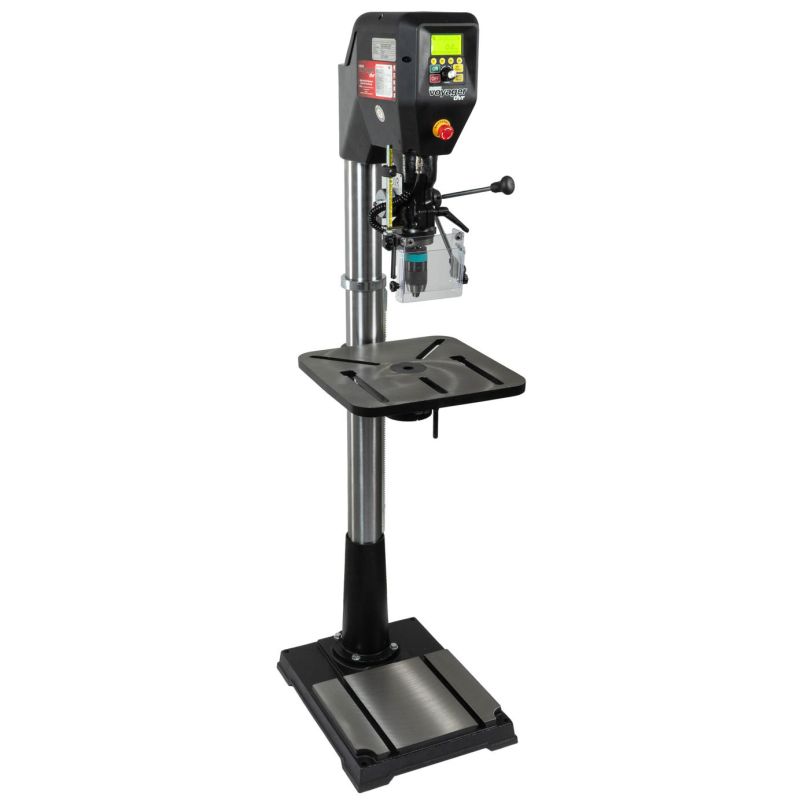

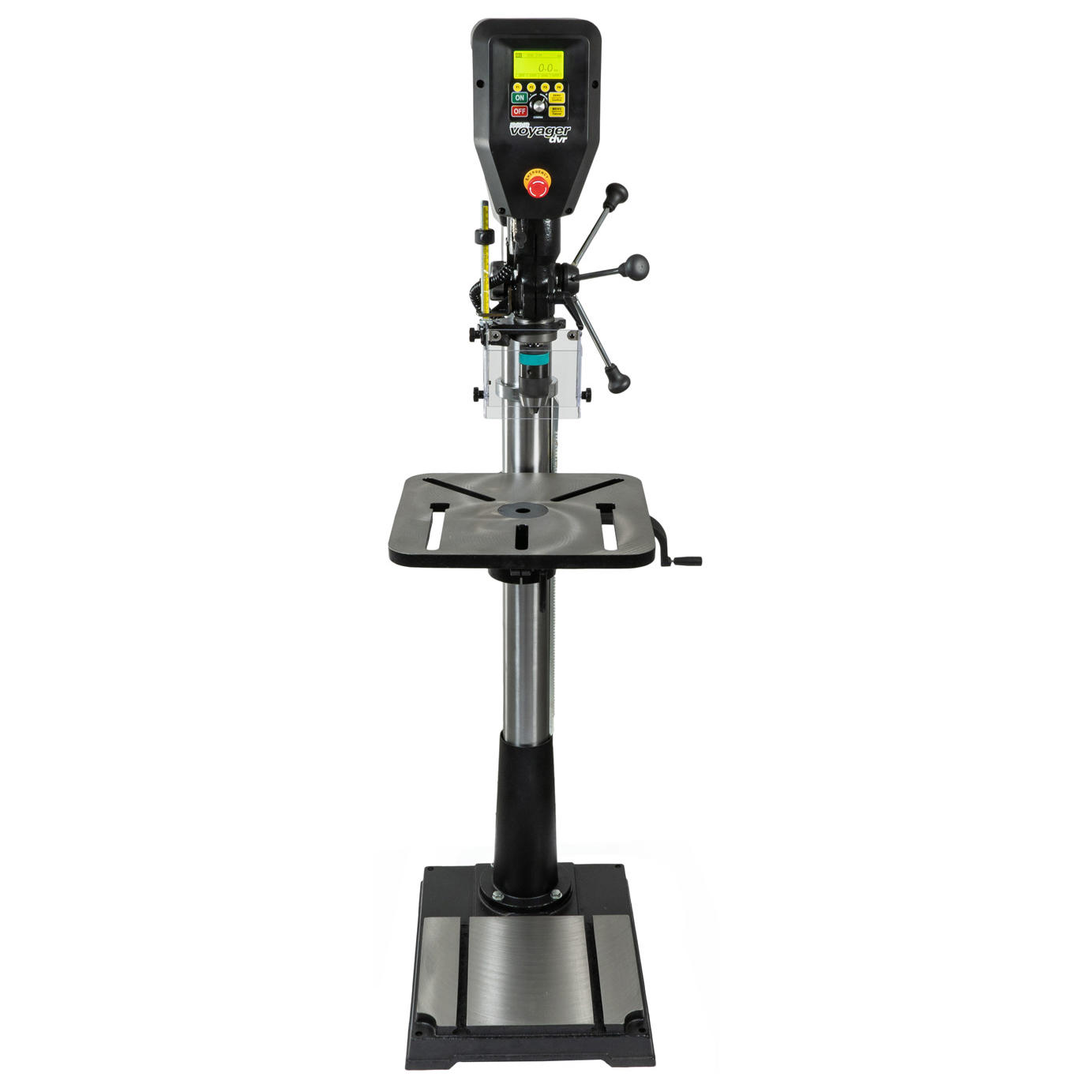

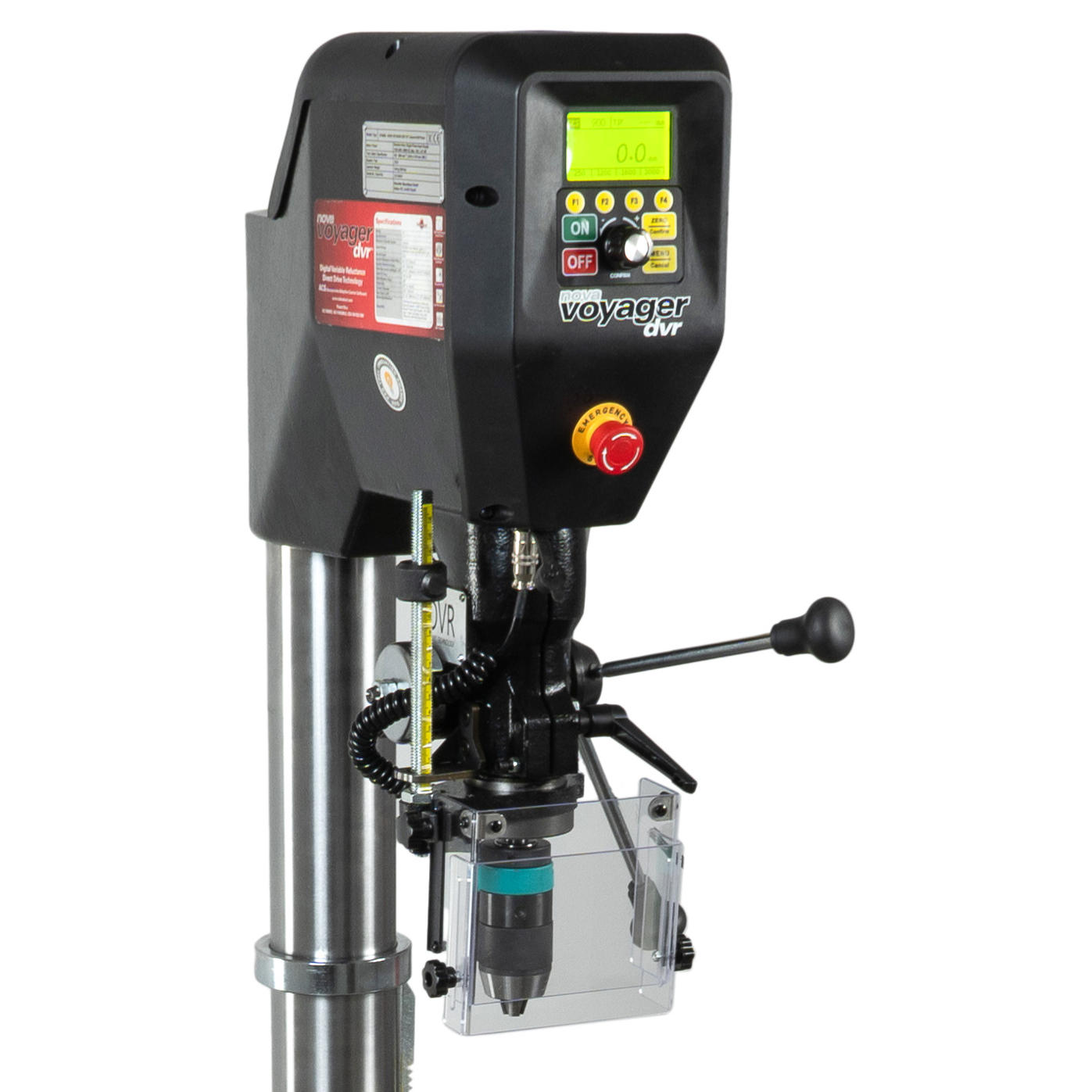

Teknatool Nova Voyager DVR Drill Press, 18 inch
Product no.:
720706
Brand:
Teknatool
€1,995.00 €1,676.47
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
- Abmessungen (HxBxT) 1794 x 448 x 578 mm
- Abstand max. Spindel - Standfuß 1220 mm
- Abstand max. Spindel - Tisch 724 mm
- Arbeitstisch (LxB) 419 x 419 mm
- Chuck Capacity 1-16 mm
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
Description
An innovative drill press with unique features for boring in various materials. The machine may be operated manually or automatically by setting variables with the help of an LCD display. The machine can calculate, for example, the optimum rotation speed depending on drill bit type, diameter and material to be drilled.
The 1.5 kW (2 HP), digitally controlled, magnetic DVR (Digital Variable Reluctance) motor ensures continuous monitoring of the running motor in order to adjust the strength of the magnetic field needed to maintain a constant speed and torque.
The menu provides many additional settings: bore depth setting, automatic start and stop function, left/right rotation, the saving of eight rotation speeds as favourites, metric/imperial units, countersink function (prevents the drill from wandering), thread cutting function, as well as diverse safety features.
Advantages:
Includes German and English operating instructions.
Technical specifications:
The 1.5 kW (2 HP), digitally controlled, magnetic DVR (Digital Variable Reluctance) motor ensures continuous monitoring of the running motor in order to adjust the strength of the magnetic field needed to maintain a constant speed and torque.
The menu provides many additional settings: bore depth setting, automatic start and stop function, left/right rotation, the saving of eight rotation speeds as favourites, metric/imperial units, countersink function (prevents the drill from wandering), thread cutting function, as well as diverse safety features.
Advantages:
- No overheating and wear through the smooth starting of the motor; solid steel rotor with no wire windings, brushes or permanent magnets
- No pulleys or drive belts to get dirty
- The ideal rotation speed can be calculated by the computer or set steplessly by turning a rotary knob for settings between 50 and 5500 rpm
- The computer controls the speed and keeps it constant while drilling
- The DVR drive maximises the effectiveness of the motor torque without interruption
Includes German and English operating instructions.
Technical specifications:
- Speed range 50-5500 rpm
- #2 MT spindle cone
- Three preset PI coefficient curves: SOFT, NORMAL, HARD
- Distance from spindle to worktable 155-724 mm
- Distance from spindle to foot 1220 mm
- Spindle stroke 152 mm

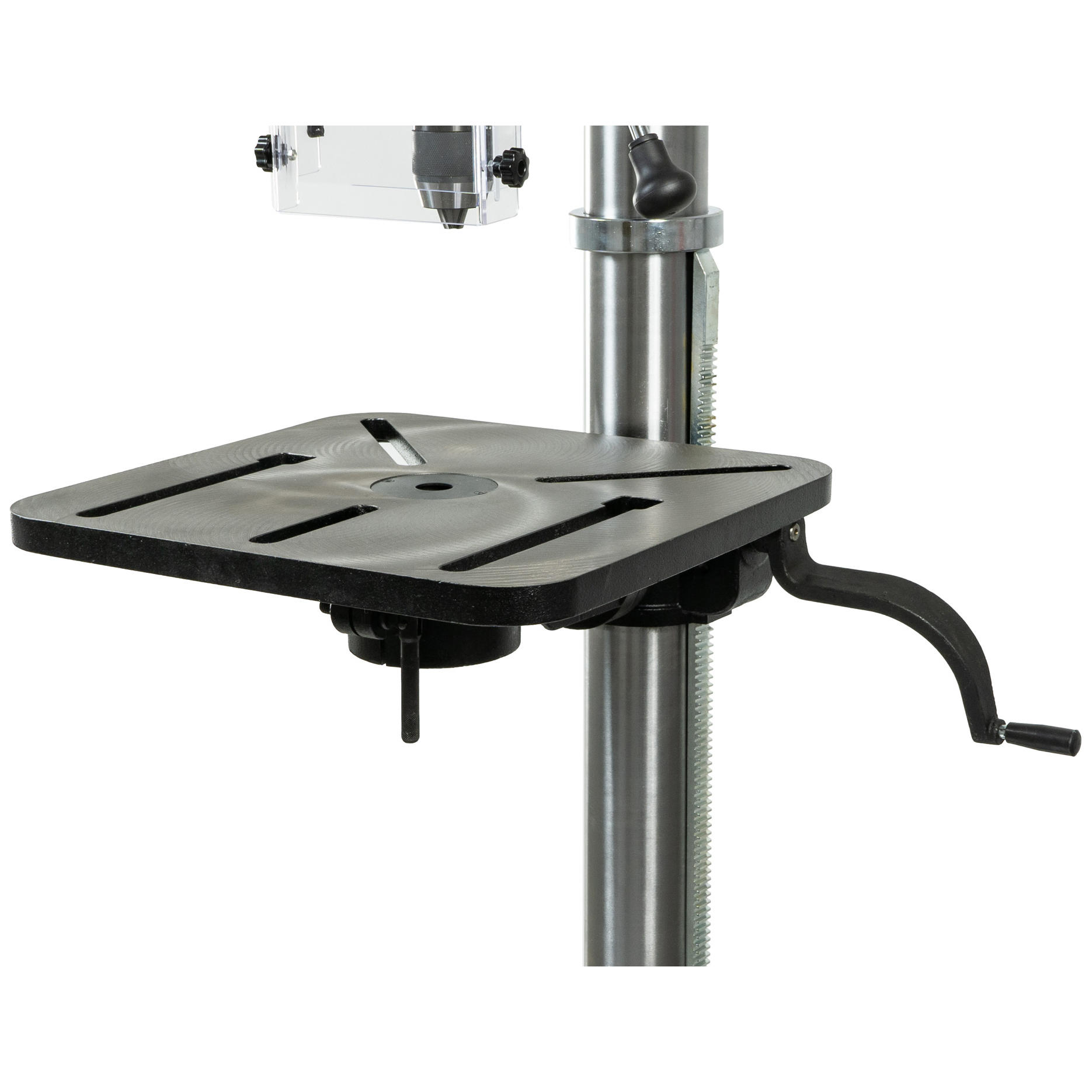

- Worktable dimension 419 x 419 mm
- Stepless tilting work table -45° to +45°
- Chuck span 3-16 mm
- Column diameter 92 mm
- Pedestal (L x W) 565 x 445 mm
- Overall dimensions (H x W x D) 1,794 x 448 x 578 mm
Scope of delivery
- Keyed chuck with #2 MT cone (assembled)
- Arbor #2 MT (assembled)
- Chuck key
- Taper drift
- Data cable
Properties
| Abmessungen (HxBxT): | 1794 x 448 x 578 mm |
|---|---|
| Abstand max. Spindel - Standfuß: | 1220 mm |
| Abstand max. Spindel - Tisch: | 724 mm |
| Arbeitstisch (LxB): | 419 x 419 mm |
| Chuck Capacity: | 1-16 mm |
| Chuck Type: | Keyed chuck |
| Column diameter: | 92 mm |
| Gewindeschneidfunktion: | Yes |
| Jaw depth: | 228.5 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Column drill presses |
| Motor voltage: | 230 V / 50 Hz |
| No load speed: | 50 - 3000 U/min. |
| Overall height: | 1794 mm |
| Pinolenhub / Bohrtiefe : | 152 mm |
| Power source: | Corded |
| Rated input: | 1470 W |
| Speed control: | Direct drive, stepless |
| Spindelaufnahme: | MK2 |
| Standfuß (LxB): | 565 x 445 mm |
| Table tilt: | -45° to +45° |
| Weight: | 140 kg |
Properties
| Abmessungen (HxBxT): | 1794 x 448 x 578 mm |
|---|---|
| Abstand max. Spindel - Standfuß: | 1220 mm |
| Abstand max. Spindel - Tisch: | 724 mm |
| Arbeitstisch (LxB): | 419 x 419 mm |
| Chuck Capacity: | 1-16 mm |
| Chuck Type: | Keyed chuck |
| Column diameter: | 92 mm |
| Gewindeschneidfunktion: | Yes |
| Jaw depth: | 228.5 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Column drill presses |
| Motor voltage: | 230 V / 50 Hz |
| No load speed: | 50 - 3000 U/min. |
| Overall height: | 1794 mm |
| Pinolenhub / Bohrtiefe : | 152 mm |
| Power source: | Corded |
| Rated input: | 1470 W |
| Speed control: | Direct drive, stepless |
| Spindelaufnahme: | MK2 |
| Standfuß (LxB): | 565 x 445 mm |
| Table tilt: | -45° to +45° |
| Weight: | 140 kg |
Accessories
Zubehör
Manufacturer
Teknatool
Teknatool has been producing innovative machines and woodworking tools since 1980. In 1983, the company developed one of the first modern jaw chucks for woodturners. Since then, Teknatool has gained a reputation worldwide in particular for its four-jaw chucks. Sold under a renowned international brand, these chucks are now being used by tens of thousands of woodturners and distinguish themselves through their robustness and extensive range of jaws. Teknatool chucks are considered especially safe because the jaws do not protrude beyond the base body and are secured against accidental unscrewing or exceeding the maximum clamping distance.
