Teknatool Nova Viking DVR Benchtop Drill Press, 16 Inch
€1,329.00 €1,116.81
per piece(s)For international delivery, please contact our customer service at +49 (0)9931 4058-901.
- Arbeitstisch (LxB) 320 x 320 mm
- Chuck Type Quick-release drill chuck with locking function
- Drehzahlbereiche 150-3000 rpm
- Drill chuck clamping range 1-16 mm
- Machine/Accessory Machine, Machines
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
Description
The compact DVR 16 inch drill
Bench version with short column, distance spindle to work table 321 mm, distance spindle to foot 575 mm, weight 70 kg.
Your advantages:
- The 1 HP DVR Smart Digital Motor constantly monitors all factors and ensures uninterrupted maximum and consistent motor torque.
- The sensor-controlled digital motor calculates the ideal speed which is permanently monitored and readjusted.
- Electronic depth stop with automatic switch-off when drilling depth is reached.
- Automatic self-start for one-hand operation. Drill starts automatically when lowering the spindle.

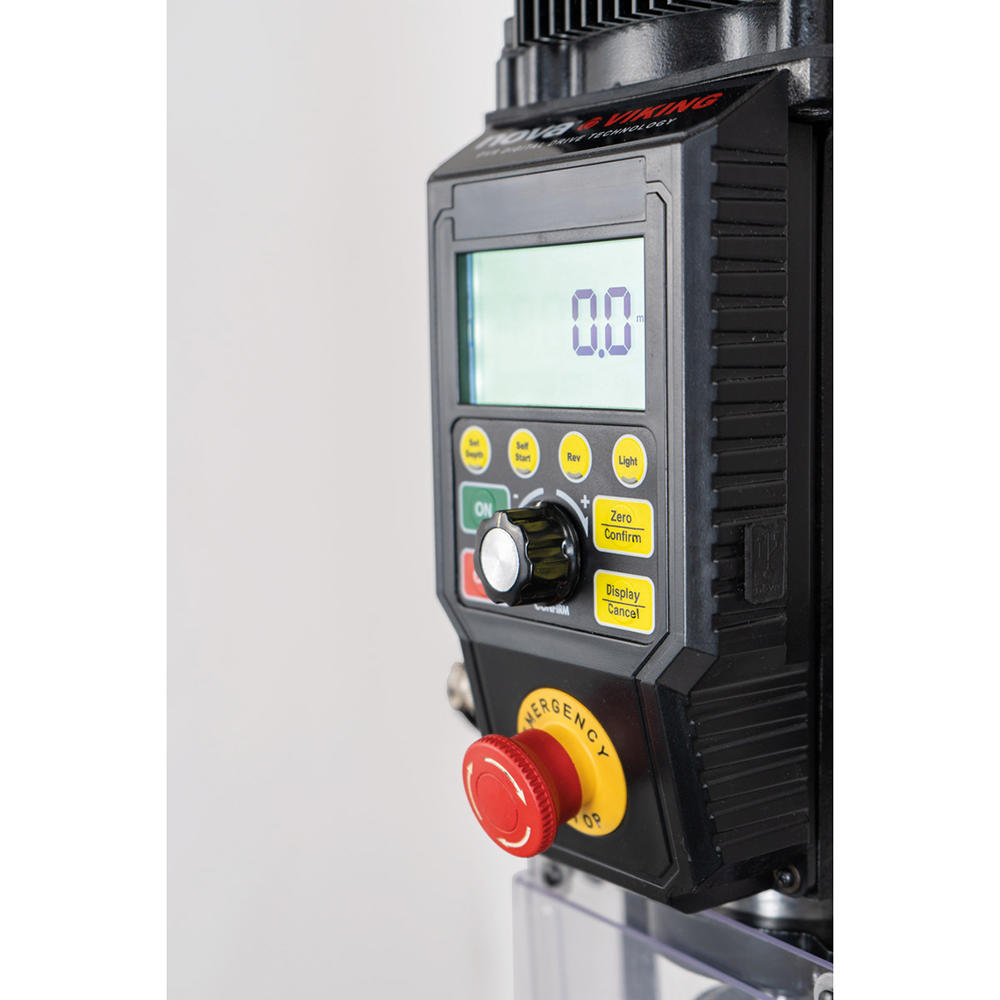

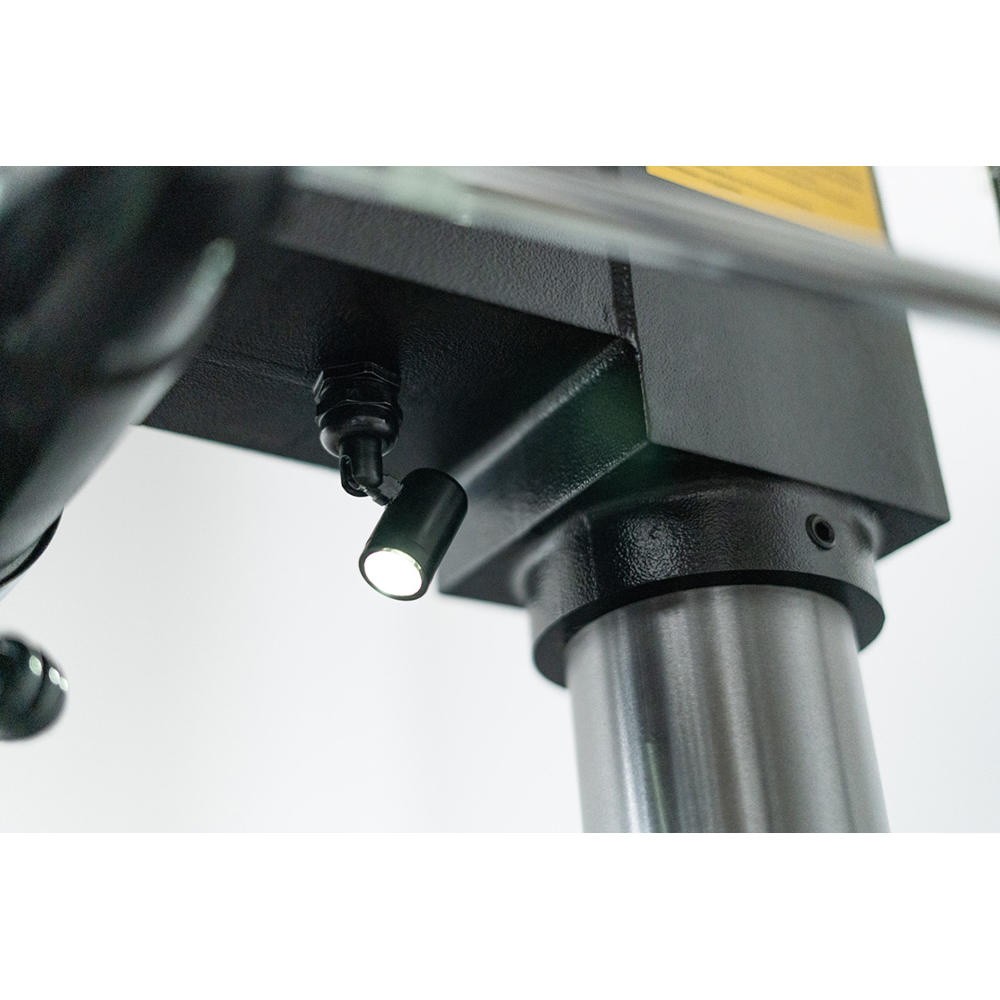

- Large digital display and optional LED lighting for the work area.
- Forward and reverse action for versatile application options.

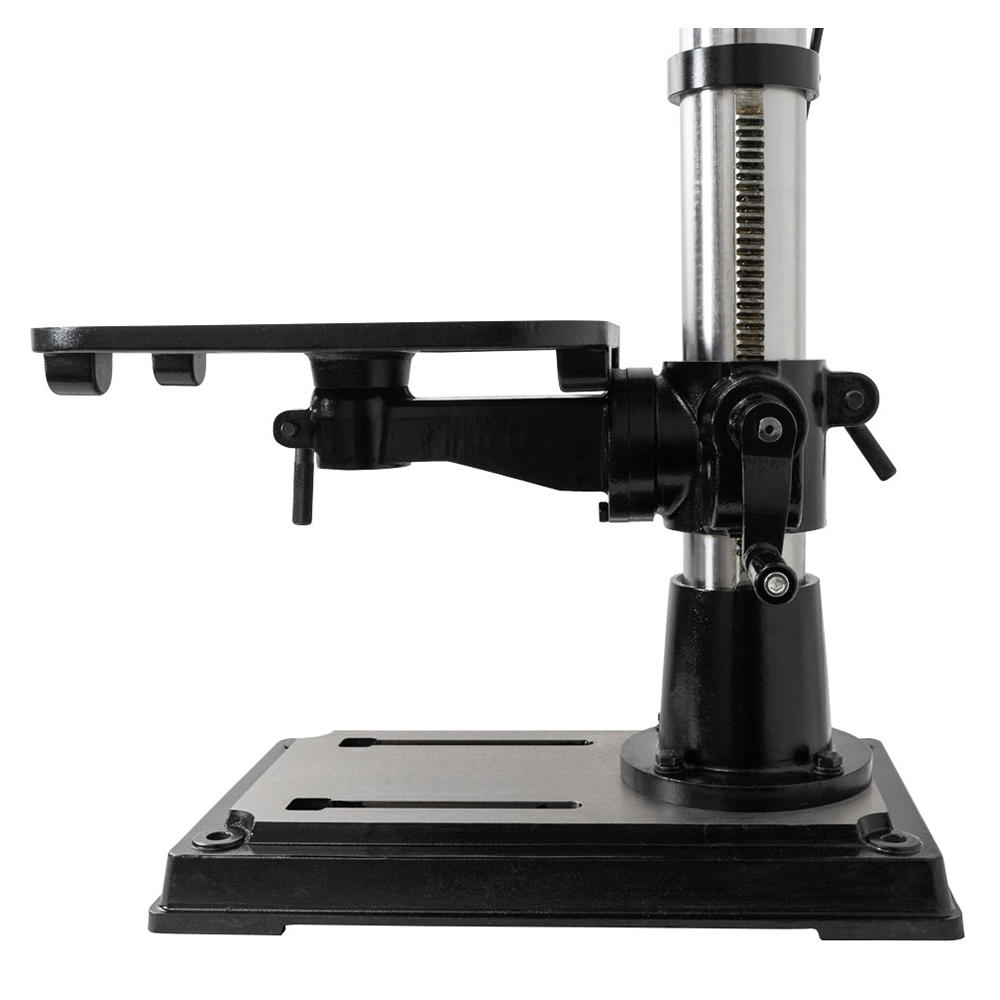

- Tilting and rotating benchtop made of grey cast iron with integrated clamping possibilities for optional accessories.
Technical specifications:
- DVR Motor with direct drive (without belt)
- Power 1 HP (750 Watt)
- Speed range 150-5000 rpm
- Forward/reverse switch
- #2 MT spindle cone
- Distance between centre of drill hole and column 203 mm
- Spindle stroke 114 mm
- Table dimensions 320 x 320 mm
- Work table continuously tiltable
- Jaw opening chuck 1-16 mm
- Quill diameter 60 mm
Scope of delivery
Includes high-quality quick-release drill chuck with locking function, clamping range 1–16 mm.Properties
| Arbeitstisch (LxB): | 320 x 320 mm |
|---|---|
| Chuck Type: | Quick-release drill chuck with locking function |
| Drehzahlbereiche: | 150-3000 rpm |
| Drill chuck clamping range: | 1-16 mm |
| Machine/Accessory: | Machine Machines |
| Machine type: | Bench-top drill press Column drill press Pillar drilling machine / bench drill |
| Max. distance spindle to base: | 575 mm |
| Max. distance spindle to table: | 321 mm |
| Motor voltage: | 230 V / 50 Hz |
| Overall height: | 1150 mm |
| Pinolenhub / Bohrtiefe : | 114 mm |
| Power input: | 750 W |
| Power source: | Corded |
| Quill diameter: | 60 mm |
| Speed control: | Direct drive, stepless |
| Spindelaufnahme: | #2 MT |
| Swing: | 203 mm |
| Table tilt: | -45° to +45° |
| Version: | Bench version with short column |
| Weight: | 70 kg |
Properties
| Arbeitstisch (LxB): | 320 x 320 mm |
|---|---|
| Chuck Type: | Quick-release drill chuck with locking function |
| Drehzahlbereiche: | 150-3000 rpm |
| Drill chuck clamping range: | 1-16 mm |
| Machine/Accessory: | Machine Machines |
| Machine type: | Bench-top drill press Column drill press Pillar drilling machine / bench drill |
| Max. distance spindle to base: | 575 mm |
| Max. distance spindle to table: | 321 mm |
| Motor voltage: | 230 V / 50 Hz |
| Overall height: | 1150 mm |
| Pinolenhub / Bohrtiefe : | 114 mm |
| Power input: | 750 W |
| Power source: | Corded |
| Quill diameter: | 60 mm |
| Speed control: | Direct drive, stepless |
| Spindelaufnahme: | #2 MT |
| Swing: | 203 mm |
| Table tilt: | -45° to +45° |
| Version: | Bench version with short column |
| Weight: | 70 kg |
Manufacturer
Teknatool
Teknatool has been producing innovative machines and woodworking tools since 1980. In 1983, the company developed one of the first modern jaw chucks for woodturners. Since then, Teknatool has gained a reputation worldwide in particular for its four-jaw chucks. Sold under a renowned international brand, these chucks are now being used by tens of thousands of woodturners and distinguish themselves through their robustness and extensive range of jaws. Teknatool chucks are considered especially safe because the jaws do not protrude beyond the base body and are secured against accidental unscrewing or exceeding the maximum clamping distance.
