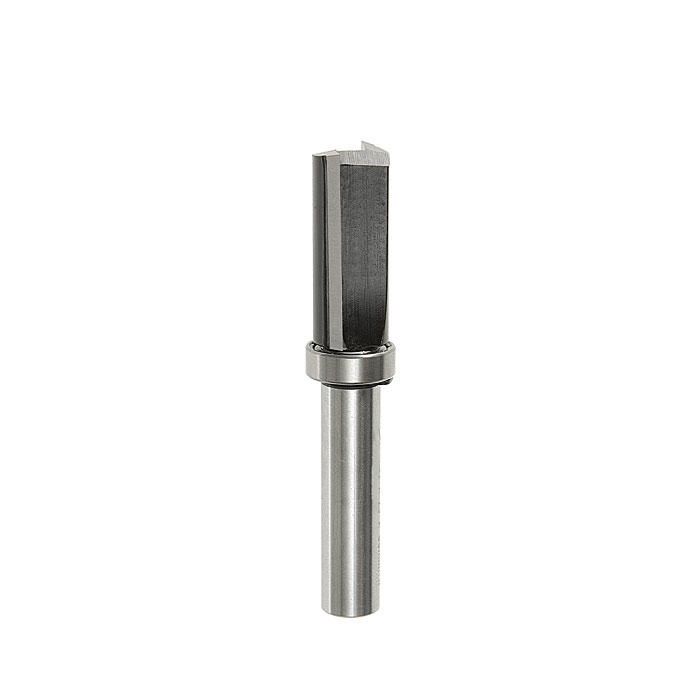

TC Straight Bit with Top Ball Bearing / Copy Cutter, Shank Ø 8 mm, Ø 16 mm
Product no.:
717677
Brand:
DICTUM
€56.60 €47.56
per piece
Delivery time 5-10 business days
- Bearing diameter 16 mm
- Cutter diameter 16 mm
- Cutting length 25 mm
- Machine/Accessory Accessories
- Machine type Routers
Description
Bottom- and side-cutting straight bit with bearing on the shank. Ideal for copying curved shapes along a template clamped on top of the workpiece. Can also be used as a trimming bit.
Safety first
- All bits comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications laser-engraved on shank
Tungsten carbide (TC) tipped router bits
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks ensure accurate concentricity
- Secure clamping in the collet (eccentricity is marked on the shank)
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Bearing diameter: | 16 mm |
|---|---|
| Cutter diameter: | 16 mm |
| Cutting length: | 25 mm |
| Machine/Accessory: | Accessories |
| Machine type: | Routers |
| Number of cutting edges: | 2 |
| Overall length: | 62 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
Properties
| Bearing diameter: | 16 mm |
|---|---|
| Cutter diameter: | 16 mm |
| Cutting length: | 25 mm |
| Machine/Accessory: | Accessories |
| Machine type: | Routers |
| Number of cutting edges: | 2 |
| Overall length: | 62 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
