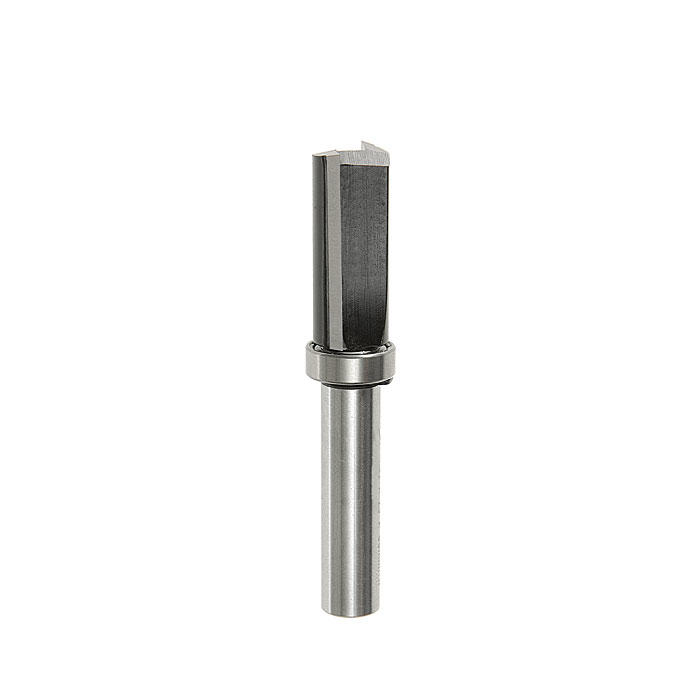

TC Straight Bit with Top Ball Bearing / Copy Cutter, Shank Ø 8 mm, Ø 12.7 mm
Product no.:
717676
Brand:
Sonstige
€44.10 €37.06
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade length 25 mm
- Kugellager-Ø 12.7 mm
- Maschine/Zubehör Accessories
- Maschinen-Typ Routers
- Overall length 62 mm
Description
Bottom- and side-cutting straight bit with bearing on the shank. Ideal for copying curved shapes along a template clamped on top of the workpiece. Can also be used as a trimming bit.
Safety first
- All bits comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications laser-engraved on shank
Tungsten Carbide (TC) tipped Router Bits
- Tungsten carbide is an extremely tough cutting material with high wear resistance
- Finest micro-grain quality for an extra-long edge life
- Where technically possible, the cutting edges are fitted at an angle to the shank
- Exactly ground shanks ensure precise rotation
- Secure fit in the collet (eccentricity indicated on shank)
- Perfect guidance along workpieces thanks to quality ball bearings
- All ball bearings can be replaced and are available as spare parts
Properties
| Blade length: | 25 mm |
|---|---|
| Kugellager-Ø: | 12.7 mm |
| Maschine/Zubehör: | Accessories |
| Maschinen-Typ: | Routers |
| Overall length: | 62 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 12.7 mm |
| Schneidenzahl: | 2 |
| Schneidstoff: | HW - Hartmetall |
Properties
| Blade length: | 25 mm |
|---|---|
| Kugellager-Ø: | 12.7 mm |
| Maschine/Zubehör: | Accessories |
| Maschinen-Typ: | Routers |
| Overall length: | 62 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 12.7 mm |
| Schneidenzahl: | 2 |
| Schneidstoff: | HW - Hartmetall |
