EXPERT KNOWLEDGE FESTOOL DOMINO / DOWEL JOINTERS

The Festool Domino is an innovative dowel joiner that offers a new dimension in the field of wood joining technology. In contrast to conventional methods, such as classic dowel drilling, the Domino router enables a particularly precise and stable connection of wooden workpieces. It is the ideal solution for woodworkers who value high processing quality and fast, uncomplicated assembly.

Many suppliers have placed jointing routers on the market in the shape of a flat dowel router. As the pioneer of these machines, the Manufacturer Lamello is certainly the best known. Matériau du manche have since followed suit and launched their own flat dowel routers as a connection system. The Festool Domino differs from this by replacing the milling disc with a cutter in the shape of an end mill.

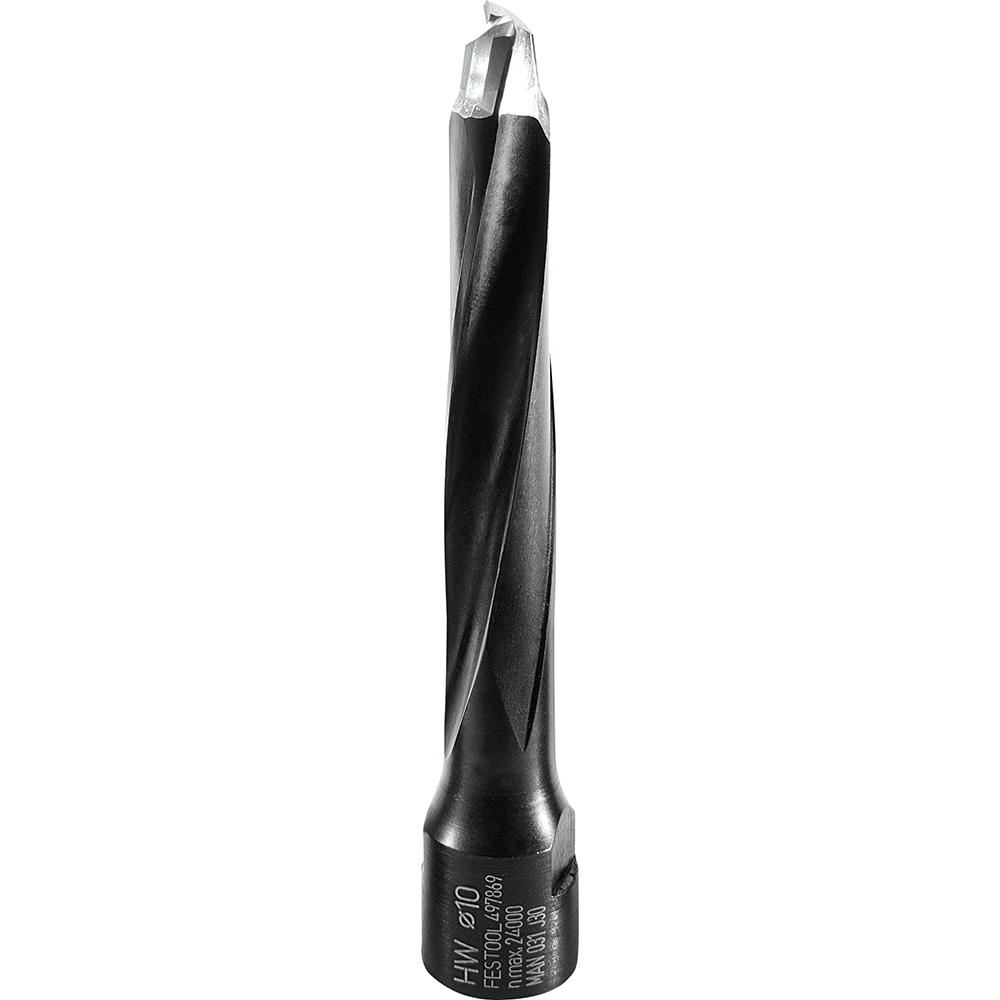

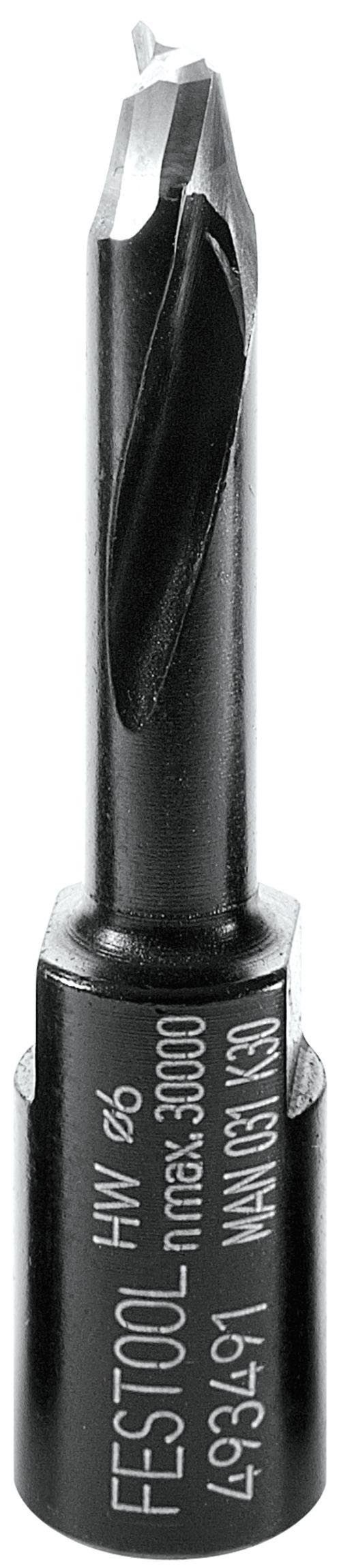

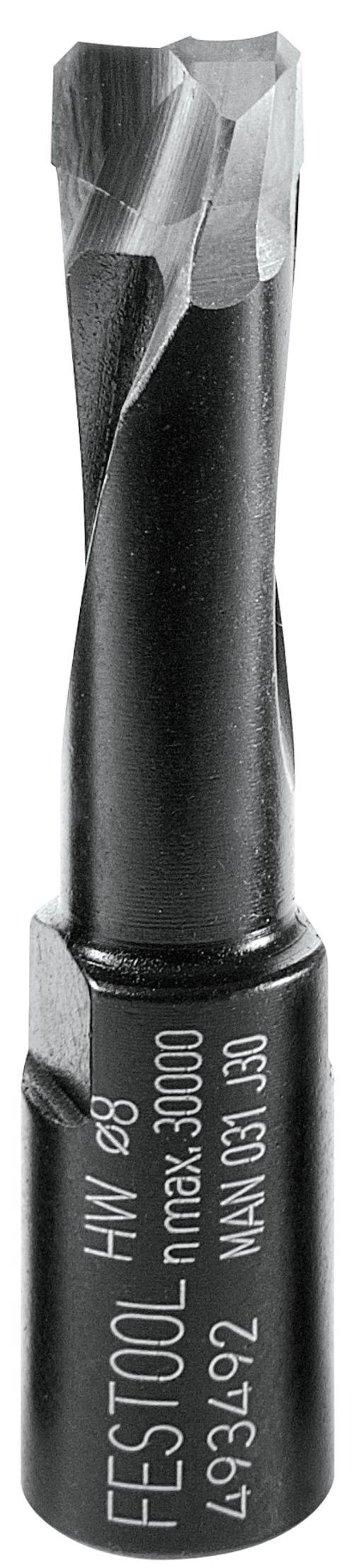

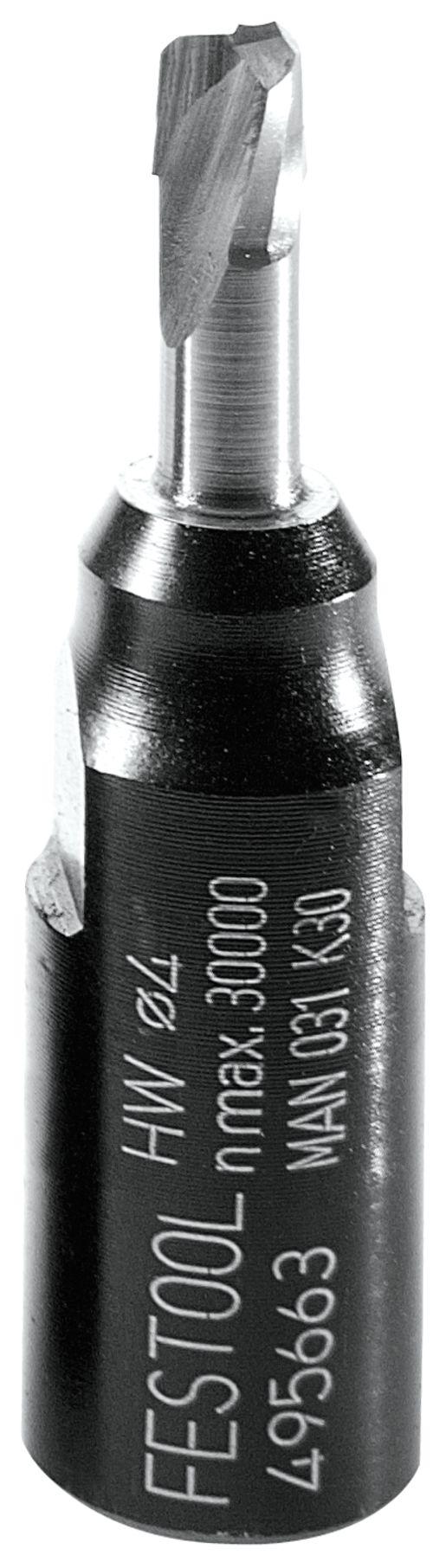

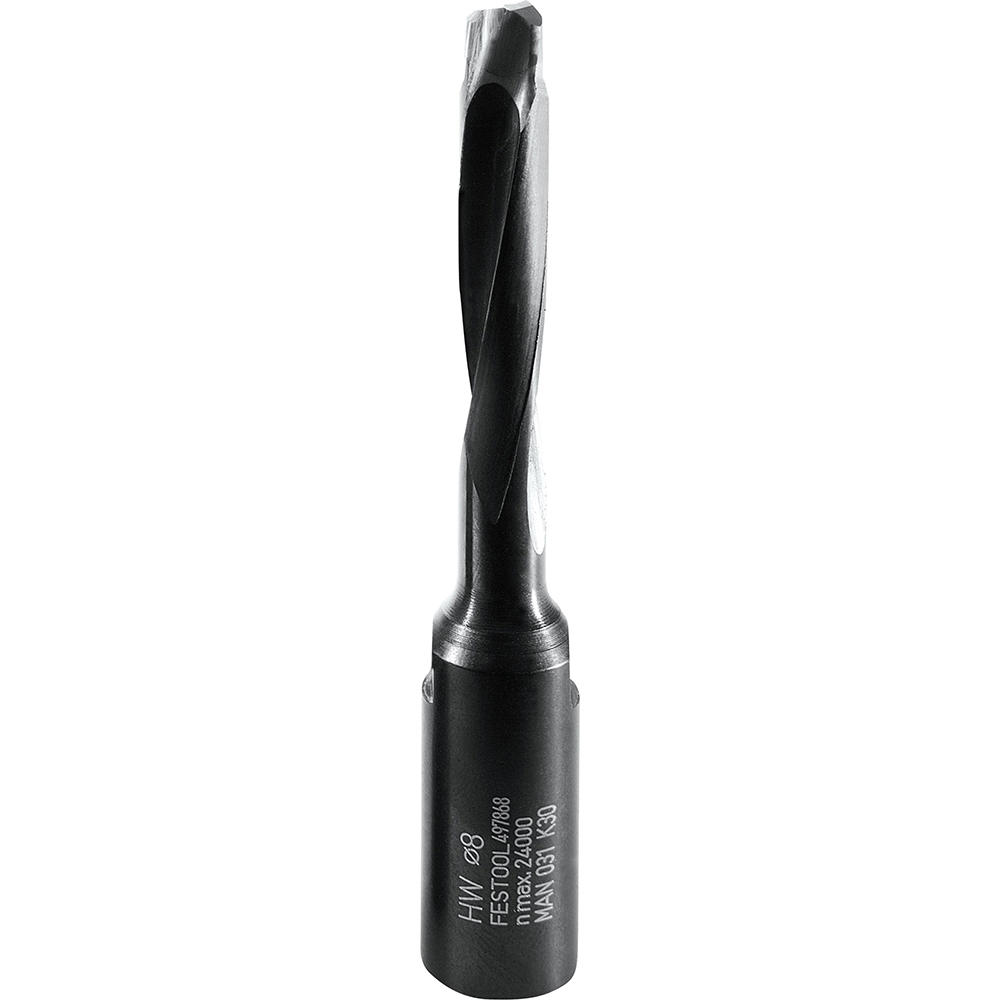

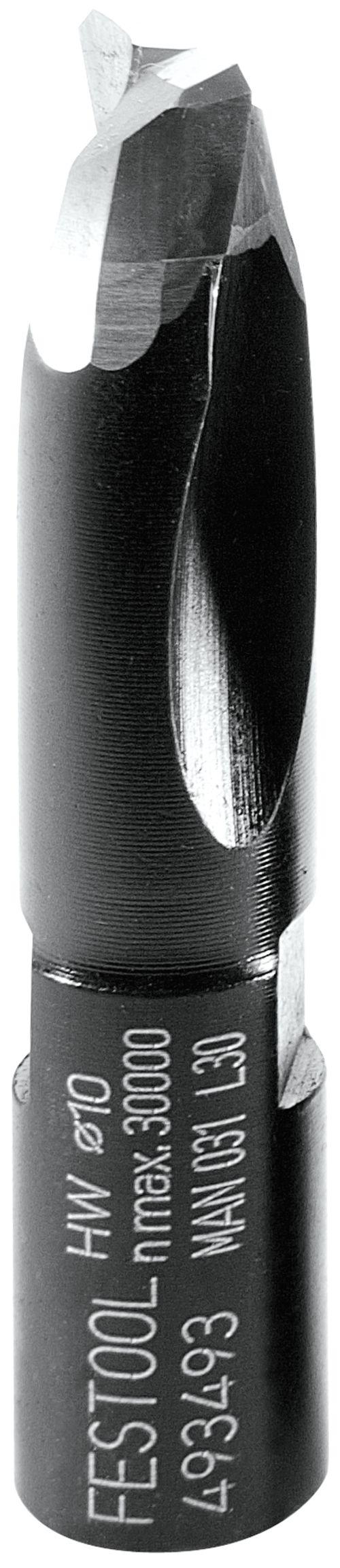

The Festool DOMINO dowel jointers is a milling cutter that offers a large non-rotating gluing surface and therefore high stability thanks to the special dowel geometry. The DOMINO Dowel jointers combines the advantages of the traditional flat dowel with the accuracy of a round dowel, making it the ideal solution for panel joints. In addition, this cutter is also ideal for other types of joints such as frame, rack and drawer joints.

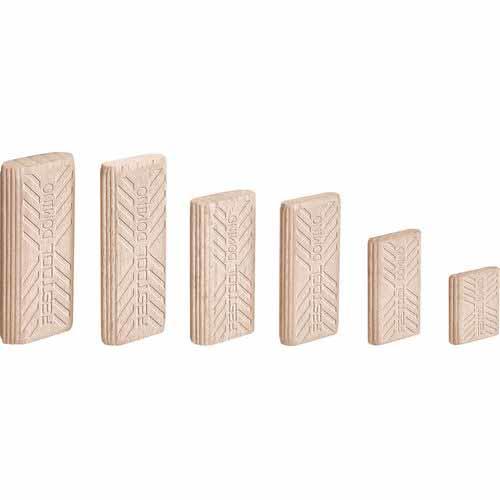

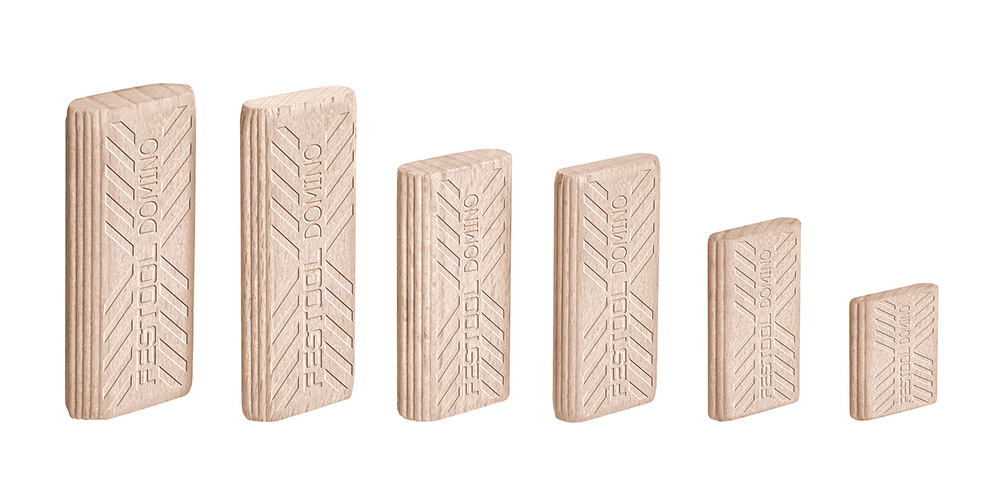

The machine supports a variety of dowel sizes, ranging from 4 x 20 mm to 10 x 50 mm, allowing for versatile use. The patented pendulum milling principle ensures precise milling without burn marks, while the ergonomic design guarantees comfortable working in any position. Precise stops, which can be adjusted quickly and easily, also contribute to exact results. The side stops are ideal for use with solid wood carcass furniture and connect the carcass parts with dowels made of beech to prevent them from twisting.

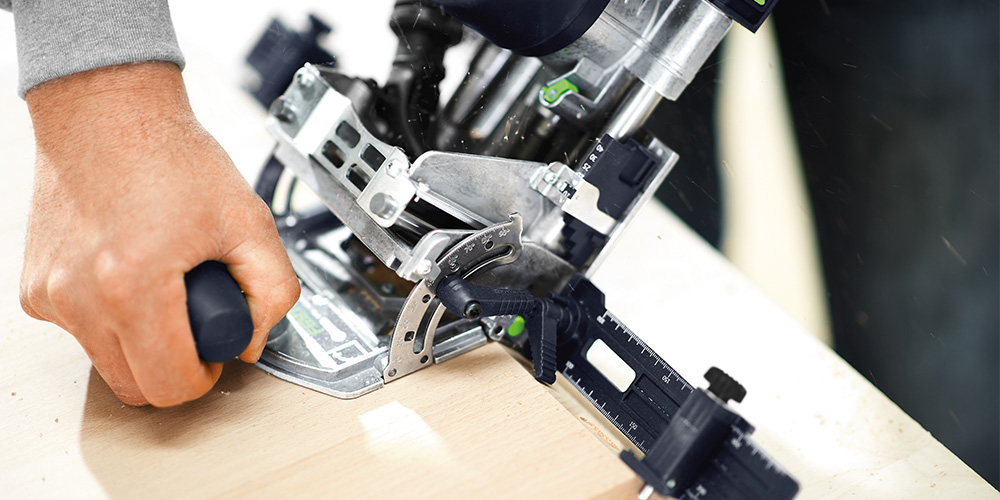

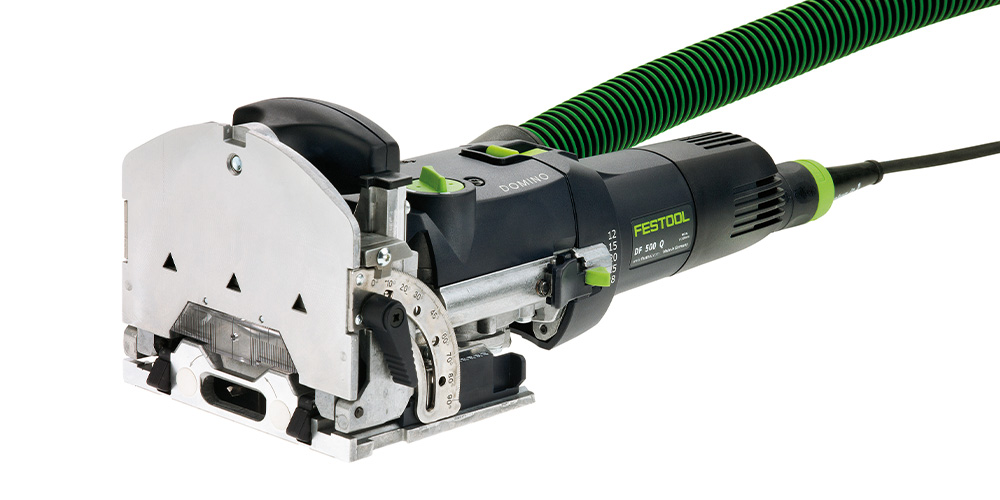

An outstanding feature of the DOMINO DF 500 is its innovative stop system. It allows precise working without time-consuming marking and measuring. The dowels can be positioned quickly and safely using stop latches. Recurring milling depths can be set precisely thanks to a locking lever, which saves time and enables clean work.

Another advantage is the slotted hole principle. While the first dowel is set with an exact fit, the subsequent dowels can be milled with some clearance to align components precisely. This ensures a twist-proof and stable connection from the very first dowel.

The Festool Domino dowel jointers impress with their precise adjustment of the routing depth and the position of the dowels with a high level of repeat accuracy, which is particularly advantageous in series production or when working with recurring cutting patterns.

Festool DF 500 and DF 700

The Festool mills milling machines DF 500 and DF 700 are both tools for the Production of precise, twist-proof wood joints, but they differ in their uses and specific functions. Both models are based on the innovative Domino technology, which uses oval dowels for a particularly stable joint, but the differences in size, functionality and range of application make each model unique.

Festool DF 500

The DF 500 is the smaller and more compact model of the two. It is particularly suitable for fine and precise wood joints in medium to small pieces of wood. With a flexible working range and dowel spacing and the ability to process dowels in sizes from 4 to 10 mm, it is ideal for furniture making, interior finishing and demanding fine woodwork.

The spacing of the dowels is freely selectable, depending on the width of the wood or the flats to be joined. As usual, the thickness of the dominoes is determined by the thickness of the wood. The exact routing depth can be set precisely with the DF 500 for both straight and diagonal joints, depending on the length of the domino dowels. It is ideal for the Production of furniture, doors, shelves and also for frame construction. Due to its handiness and relatively easy handling, it is also very popular with DIY enthusiasts and small workshops.

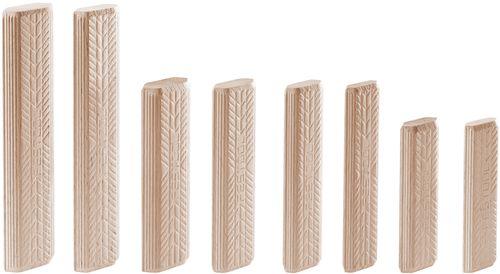

In comparison, the DF 700 is the more powerful model and offers greater versatility, especially for larger projects and thicker materials. With a maximum dowel size of up to 14 mm and a dowel spacing of up to 700 mm, it is even better suited for more solid wood joints and constructions where larger wooden parts are joined together and good stability is required. The DF 700 enables precise processing of larger workpieces, such as those often found in the construction of industrial-sized furniture or in high-quality furniture construction.

The larger dowel sizes and larger routing range make it a favourite choice for carpentry and joinery where more stable joints are required. Heavier components and larger workpieces can also be processed efficiently with the DF 700. Its stronger performance also offers greater pulling power, which is particularly advantageous for thick solid wood boards or when working with hardwoods.

The machine's ease of use is particularly noteworthy. Thanks to its ergonomic design and intuitive controls, even complex joints can be produced quickly and safely. Whether in joinery, furniture making or window frame production - the Festool Domino is a tool that not only makes work easier, but also saves a considerable amount of time.

Matériau du manche are the versatility of the system. The domino router can be used not only for classic wood joints, but also for the Production of stable furniture constructions that have to withstand particularly high loads. From thin-walled components from 12 mm thick, ideal for drawer sides with Books dowels, to weatherproof outdoor joints with Sipo dowels (mahogany type). These special dowels are resistant to moisture, mould and insect infestation and guarantee long-term stability even outdoors. With various accessories and a wide selection of Domino dowel sizes, the system can be adapted to almost any project. Naturally, both machines are supplied with accessories in a Systainer.

To summarise, the Festool DOMINO milling machines not only offer maximum precision and stability, but also enormous flexibility. With its extensive range of accessories and various dowel types, it is a tool for demanding wood joints - both indoors and outdoors. The Festool Domino is an excellent tool for professional craftsmen and ambitious DIY enthusiasts who value maximum precision.
