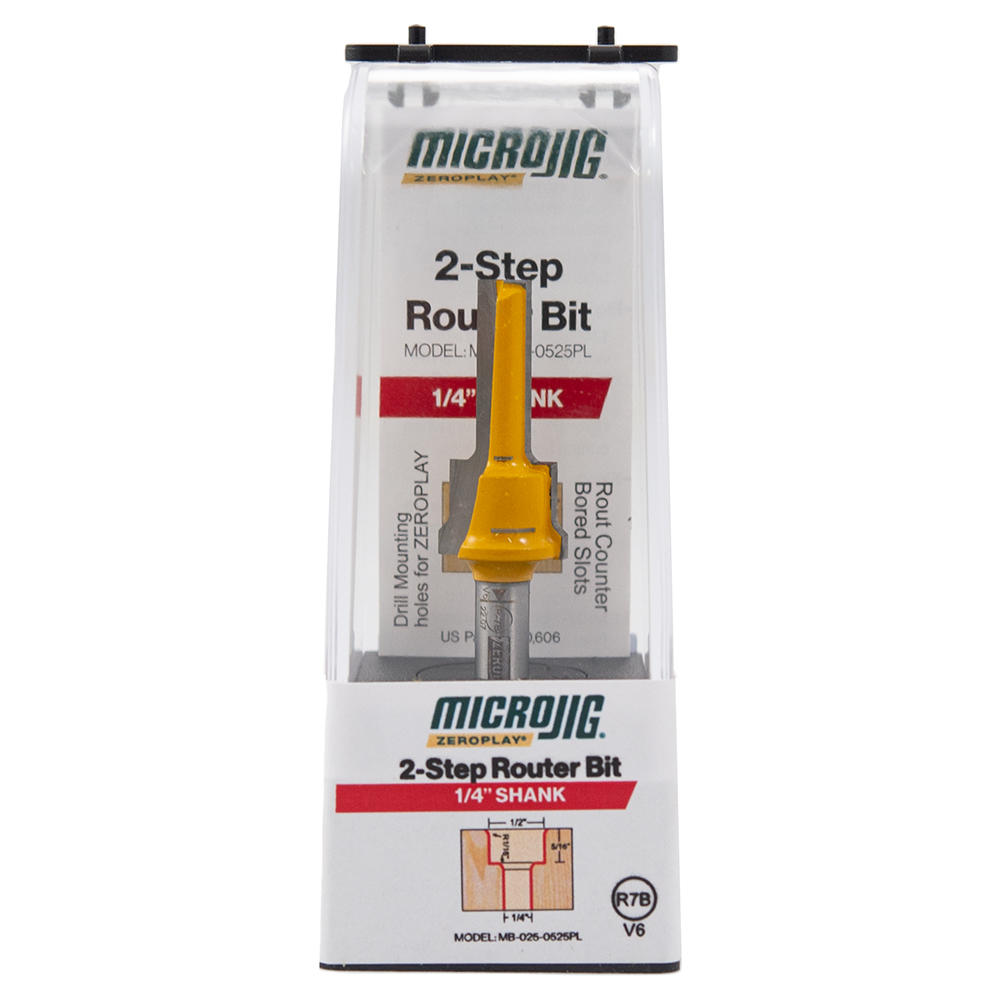

MICROJIG® Zeroplay 2-step Plunge Bit, 6.35 mm Shank
Product no.:
725029
Brand:
MICROJIG
€65.60 €55.13
per piece
Delivery time approx. 3-5 working days
- Cutter diameter 6.35 / 12.7
- Shank diameter 6.35 mm
- Shape Rundung R 1,6 mm an den Übergängen
Description
For routing and drilling

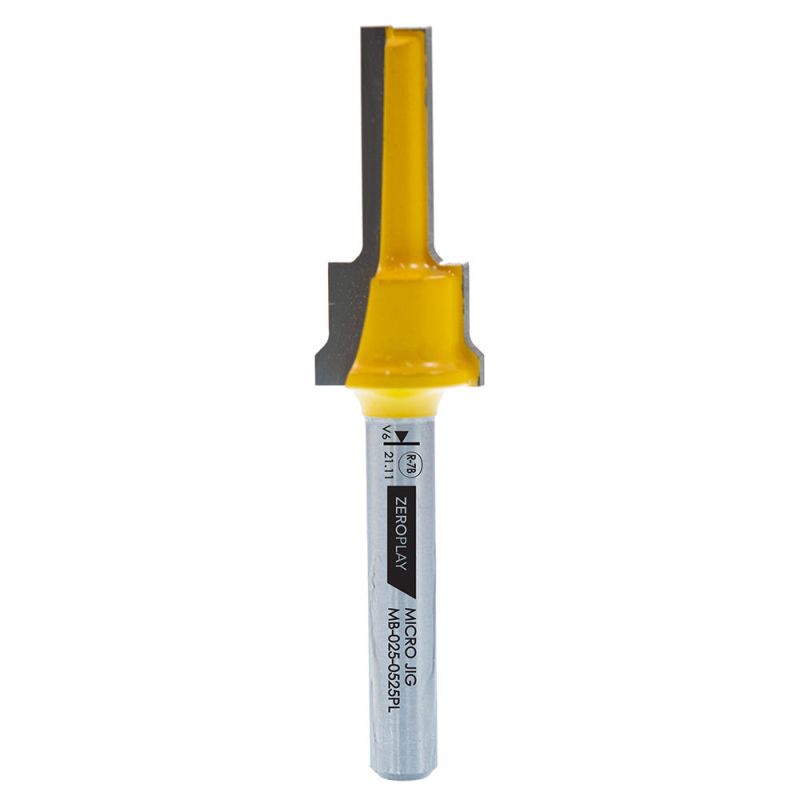

Stepped router bit for drilling and routing. Diameter a = 12.7 mm, diameter b = 6.35 mm. Rounding R 1.6 mm at the transitions for tear-free and visually appealing holes and slots.
Counterbored holes:
Use it in the drill press and obtain perfectly counterbored holes e.g. for countersinking mounting screws for making clamping devices or sleds as well as for general furniture making. Ideal in combination with MICROJIG® Zeroplay Mitre Bars (Nos. 725027, 725028).
Counterbored slots:
Use it on the router table or router and make retaining and stabilising strips as an alternative to laborious sliding dovetails. Wood screws screwed through stepped slots stabilise e.g. solid wood panels and prevent warping. Countersunk screw heads due to stepped hole shape.
Counterbored holes:
Use it in the drill press and obtain perfectly counterbored holes e.g. for countersinking mounting screws for making clamping devices or sleds as well as for general furniture making. Ideal in combination with MICROJIG® Zeroplay Mitre Bars (Nos. 725027, 725028).
Counterbored slots:
Use it on the router table or router and make retaining and stabilising strips as an alternative to laborious sliding dovetails. Wood screws screwed through stepped slots stabilise e.g. solid wood panels and prevent warping. Countersunk screw heads due to stepped hole shape.
Properties
| Cutter diameter: | 6.35 / 12.7 |
|---|---|
| Shank diameter: | 6.35 mm |
| Shape: | Rundung R 1,6 mm an den Übergängen |
Properties
| Cutter diameter: | 6.35 / 12.7 |
|---|---|
| Shank diameter: | 6.35 mm |
| Shape: | Rundung R 1,6 mm an den Übergängen |
Manufacturer
MICROJIG
A must for safe working on woodworking machines
Working safely with circular saws, especially when sawing thin strips, was the incentive to found MICROJIG. Founded in the USA in 1998, the company produces versatile and variably applicable safety accessories for pushing workpieces on circular bench saws, bandsaws, milling machines and power planers.
| Name: | MICROJIG |
|---|---|
| Mailing address: | 7212 Sandscove Ct. 32792 Winter Park United States |
| Homepage: | https://www.microjig.com |
