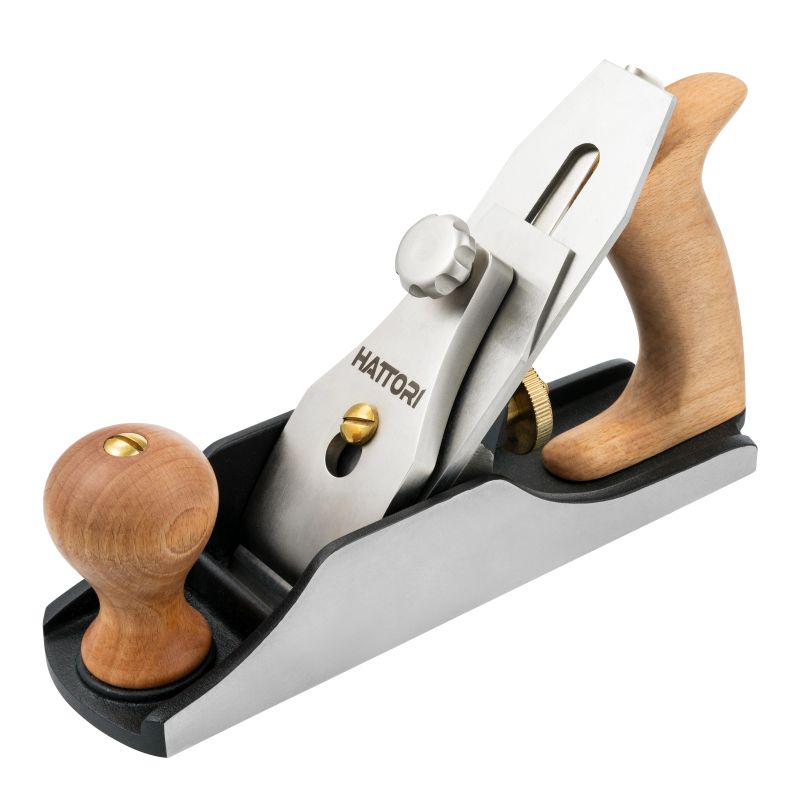

Hattori® Smoothing Plane No. 4, Tool Steel
Product no.:
745332
Brand:
Hattori
€109.00 €91.60
per piece
Delivery time approx. 3-5 working days
- Blade material Tool steel
- Blade thickness 3 mm
- Blade width 50 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Overall length 240 mm
Description
The standard smoothing plane is capable of taking the finest shavings even on woods with difficult grain direction.
Hattori® Bench Planes

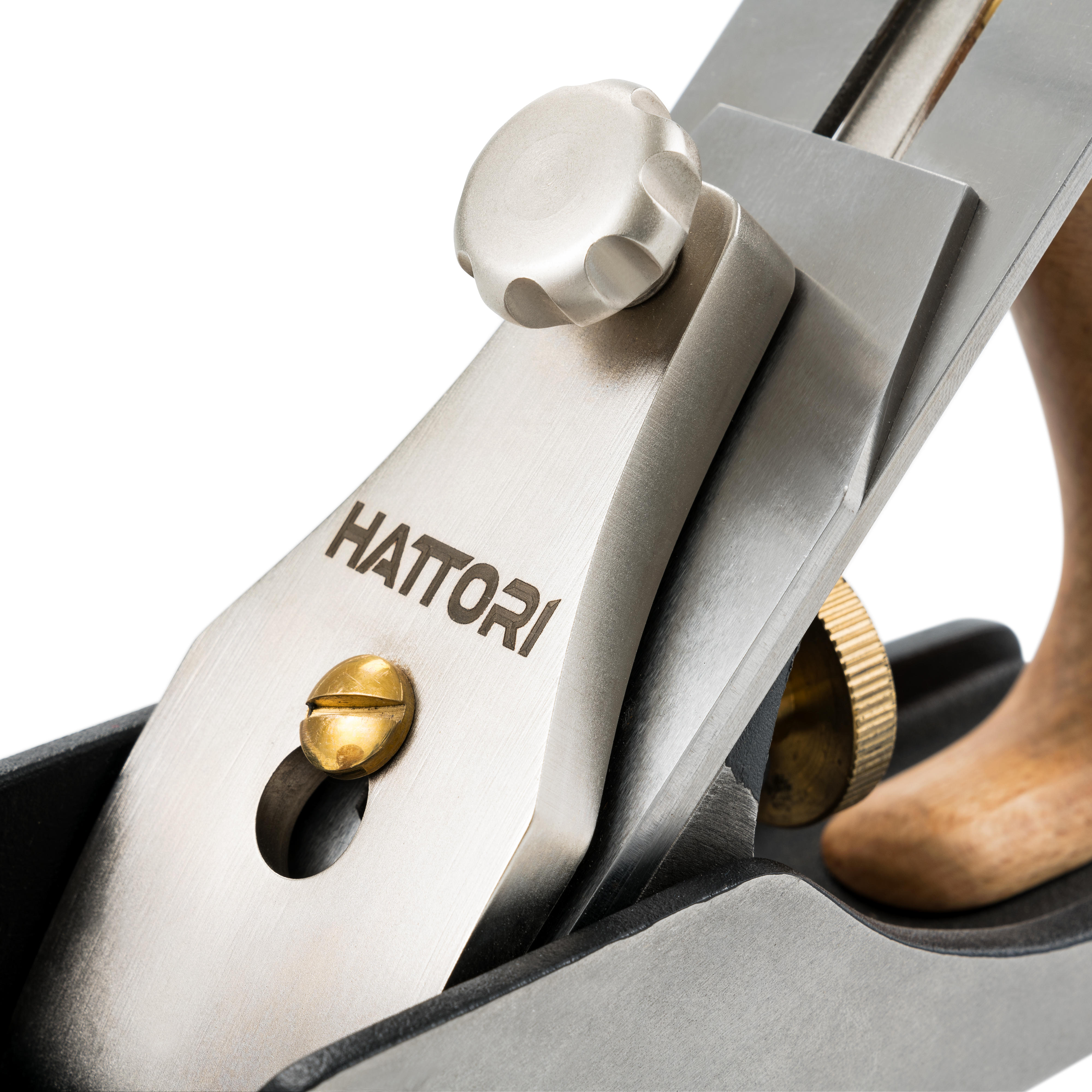

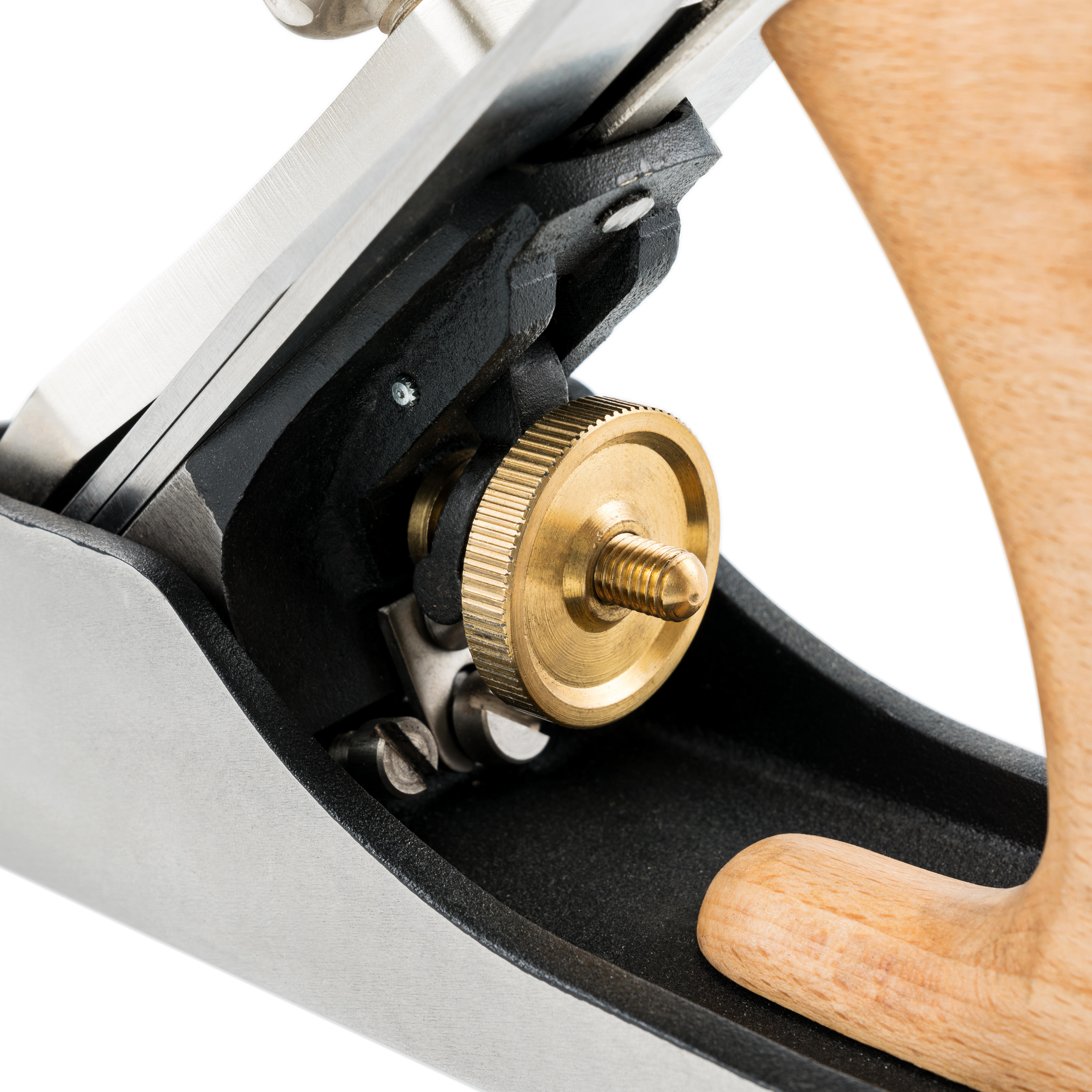

The Bedrock design allows the mouth to be adjusted without removing the cap iron and blade. Lateral blade adjustment via side lever. Plane blade made of 3 mm thick, low-alloy tool steel (58-62 HRC). Beech handles. Plane body made of spheroidal cast iron. Cutting angle 45°.
Properties
| Blade material: | Tool steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 50 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Bench planes |
| Weight: | 2.1 kg |
Properties
| Blade material: | Tool steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 50 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Overall length: | 240 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Bench planes |
| Weight: | 2.1 kg |
