DICTUM® TC T-slot Router Bits, 3-piece Set, Sizes M5/M6/M8
Product no.:
718408
Brand:
DICTUM
€114.00 €95.80
per piece
Product mid December 2026 Available
- Machine/Accessory Accessories
- Purpose Profile edges
Description

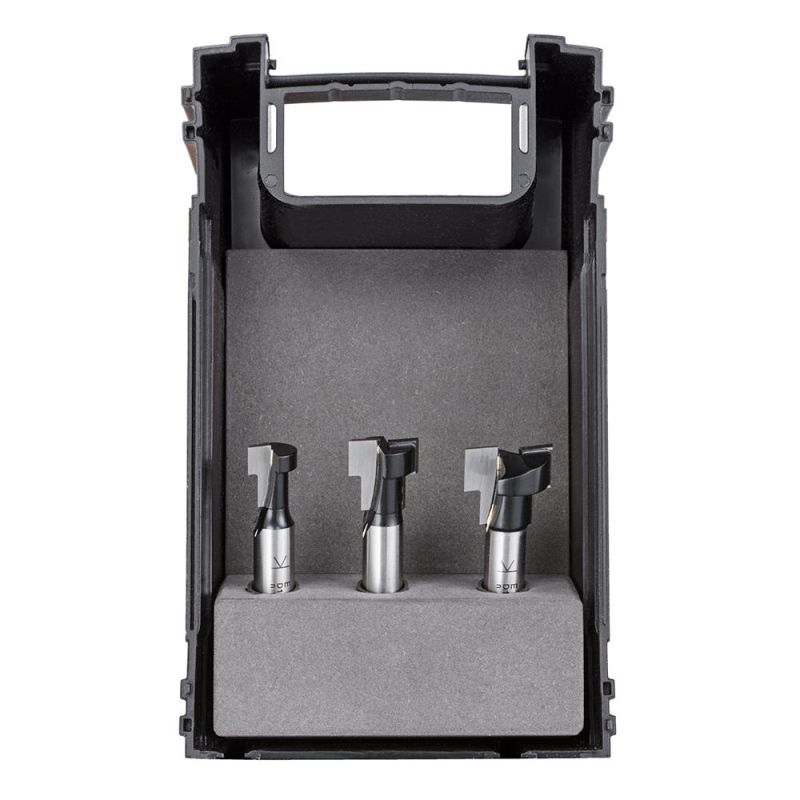

- T-slot cutter M5 (Ø D1/D2 = 8.5/5.6 mm, EWL1/2 = 7/4.5 mm)
- T-slot cutter M6 (Ø D1/D2 = 10.5/6.6 mm, EWL1/2 = 7/5.5 mm)
- T-slot cutter M8 (Ø D1/D2 = 13.5/8.6 mm, EWL1/2 = 7/7 mm)
For routing T-slots in workbench tops and similar applications. The dimensions are matched to the heads of metric hex bolts, which can be inserted directly into the routed slots without the need for aluminium tracks. Also suitable for T-slot nuts and hammerhead bolts. Undercut openings, such as keyhole hangers, can likewise be routed.

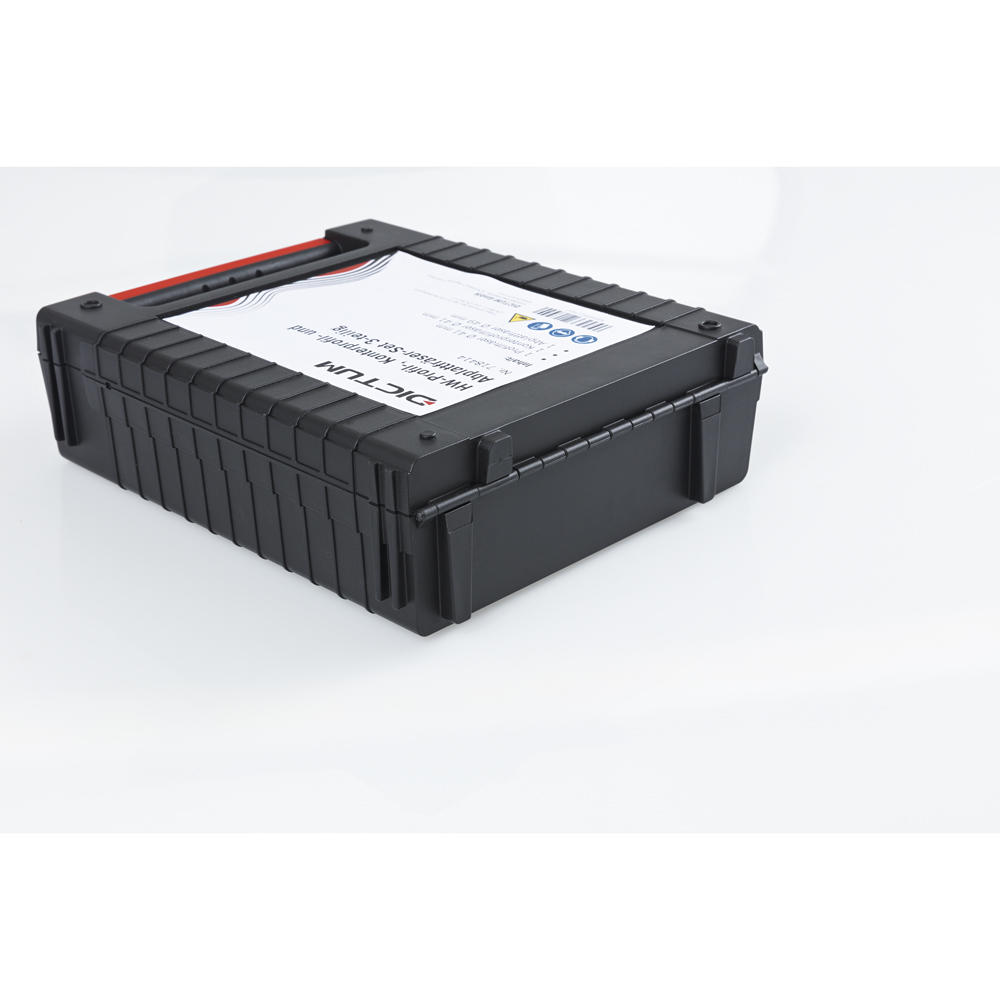

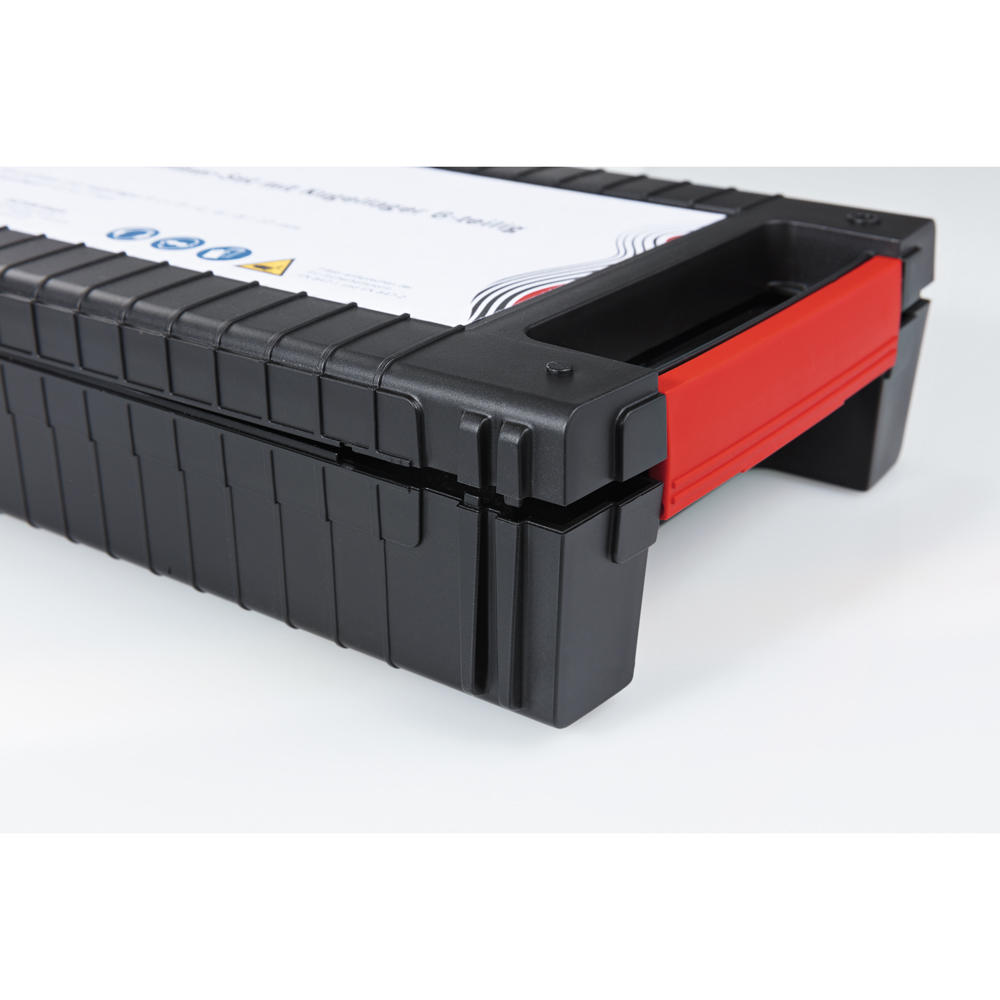

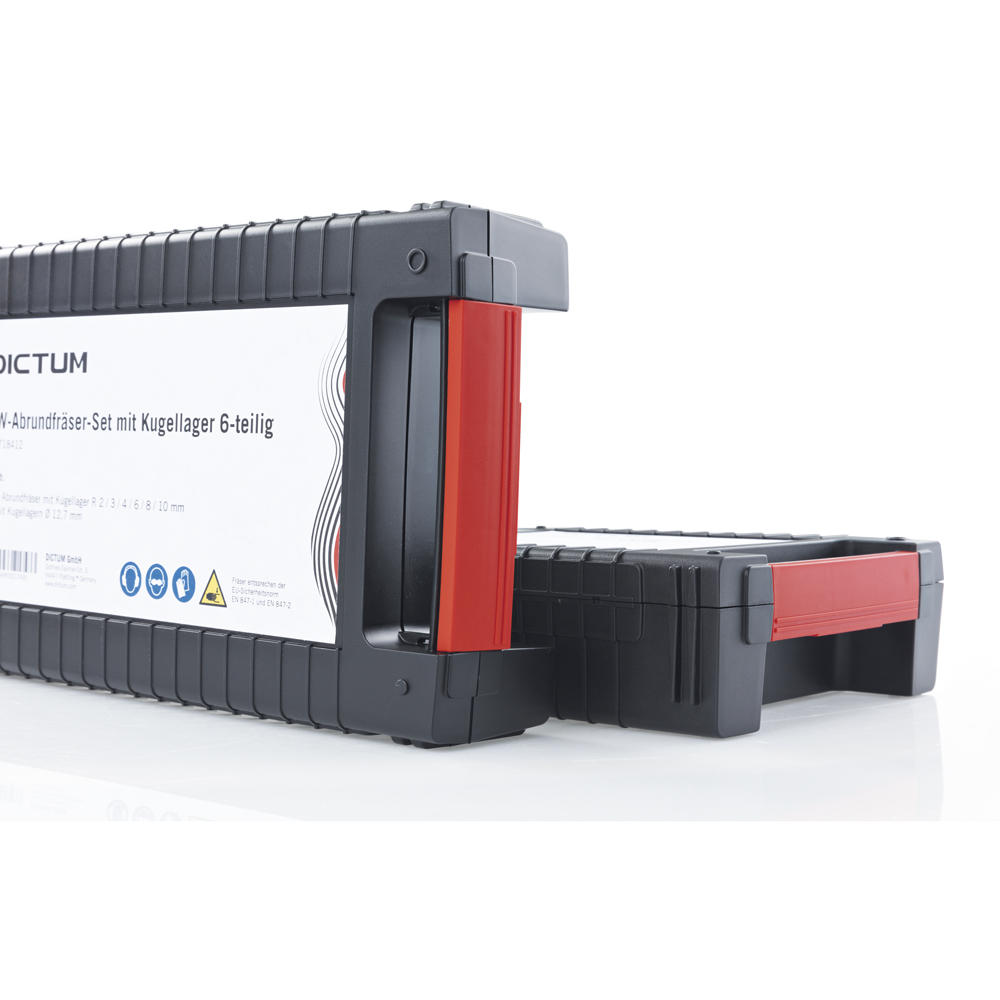

Carrying case with optimal functionality
High-quality injection-moulded case with high stability and optimum functionality for safe storage and transport. The wooden inlay in which the milling cutters are inserted can be removed, e.g. to attach it to a wall, to store it in a drawer or to place it freely on the workbench.
Tungsten carbide (TC) tipped router bits
- The router bits comply with EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications are laser-engraved on the shank
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks guarantee accurate concentricity
- Secure clamping in the collet
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Machine/Accessory: | Accessories |
|---|---|
| Purpose: | Profile edges |
Properties
| Machine/Accessory: | Accessories |
|---|---|
| Purpose: | Profile edges |
