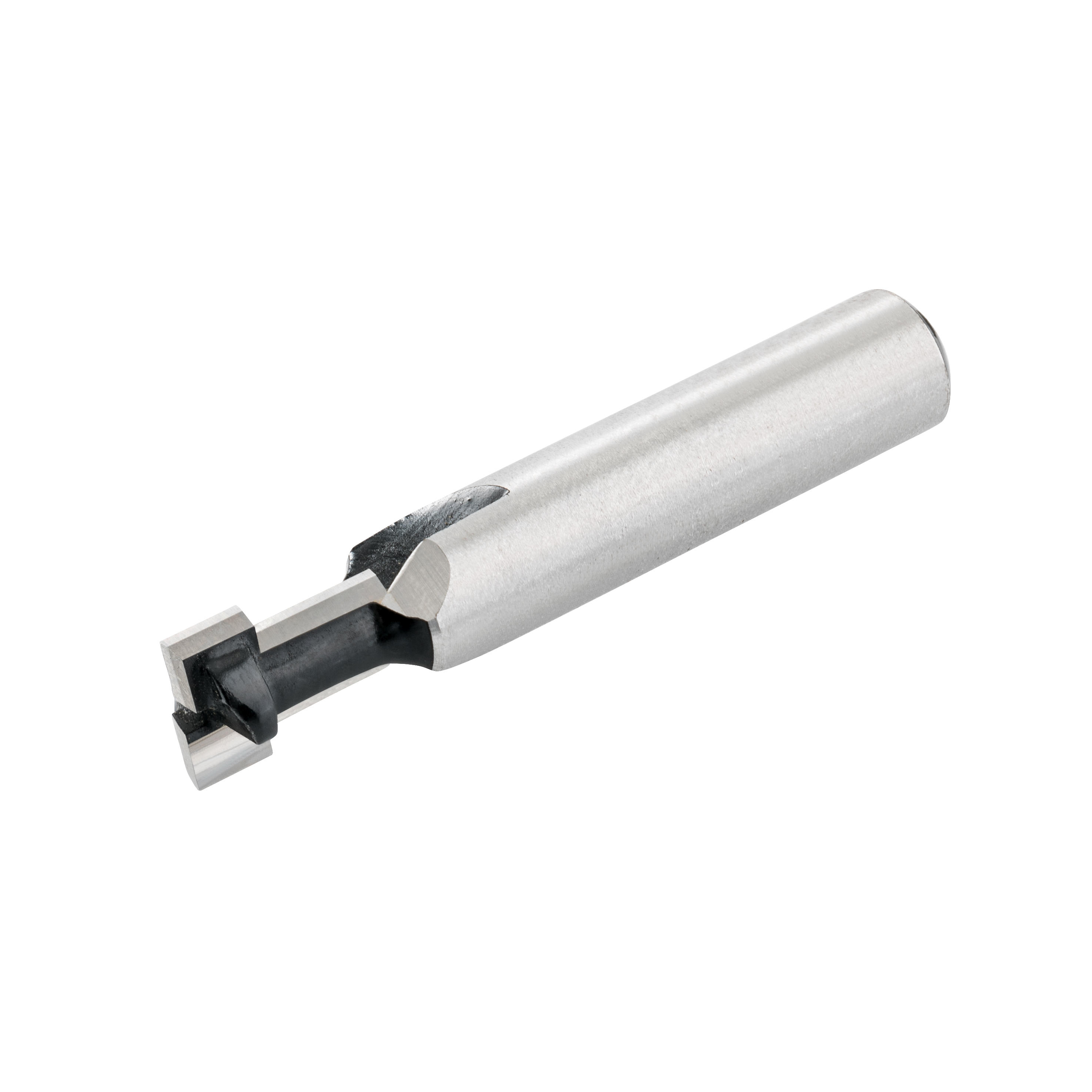

DICTUM® TC T-slot Router Bit, Shank Ø 8 mm, M5
Product no.:
721606
Brand:
DICTUM
€23.90 €20.08
per piece
Delivery time approx. 3-5 working days
- Cutter diameter 8.5 / 5.6 mm
- Cutting length 7 / 4.5 mm
- Form T-slot
- Number of cutting edges 2
- Overall length 46.5 mm
Description
T-slot cutter M5 (Ø D1/D2 = 8.5/5.6 mm, NL 1/2 = 7/4.5 mm)
For routing T-slots in workbench tops and similar applications. The dimensions are matched to the heads of metric hex bolts, which can be inserted directly into the routed slots without the need for aluminium tracks. Also suitable for T-slot nuts and hammerhead bolts. Undercut openings, such as keyhole hangers, can likewise be routed.
Safety first
- All bits comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed

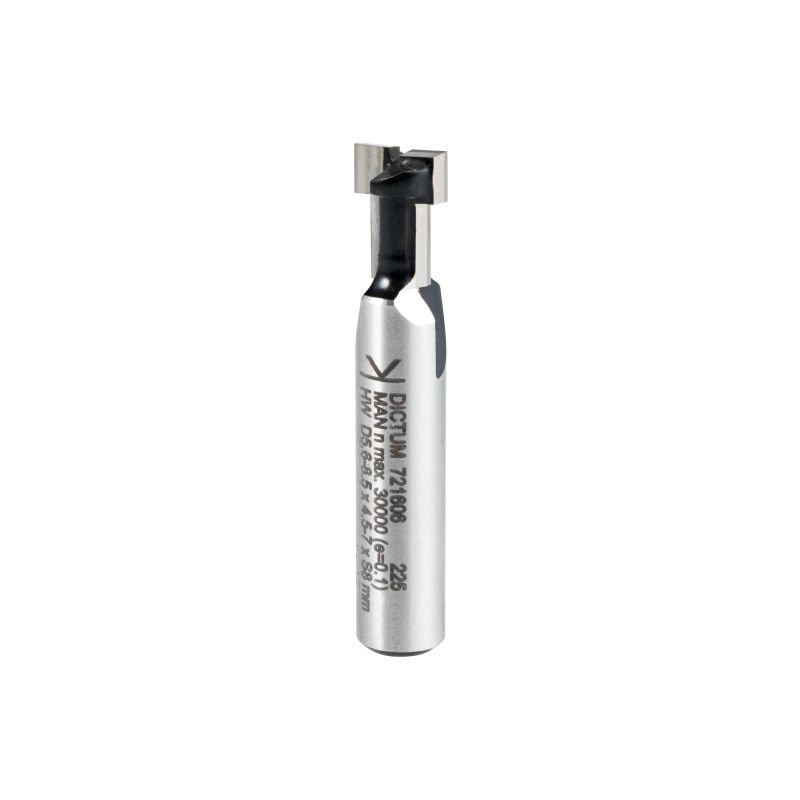

- Main specifications laser-engraved on shank
Tungsten carbide (TC) tipped router bits
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks ensure accurate concentricity
- Secure clamping in the collet (eccentricity is marked on the shank)
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Cutter diameter: | 8.5 / 5.6 mm |
|---|---|
| Cutting length: | 7 / 4.5 mm |
| Form: | T-slot |
| Number of cutting edges: | 2 |
| Overall length: | 46.5 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
Properties
| Cutter diameter: | 8.5 / 5.6 mm |
|---|---|
| Cutting length: | 7 / 4.5 mm |
| Form: | T-slot |
| Number of cutting edges: | 2 |
| Overall length: | 46.5 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
