DICTUM® TC Straight Router Bits with Bottom-cutting Edge, 6-piece Set
Product no.:
718569
Brand:
DICTUM
€97.00 €81.51
per Satz
In stock, delivery time approx. 3-5 working days
- Maschine/Zubehör Accessories
- Maschinen-Typ Routers
- Overall length 53-56 mm
- Schaft-Ø 8 mm
- Schneiden-Ø 6 / 8 / 10 / 12 / 16 / 20 mm
Description

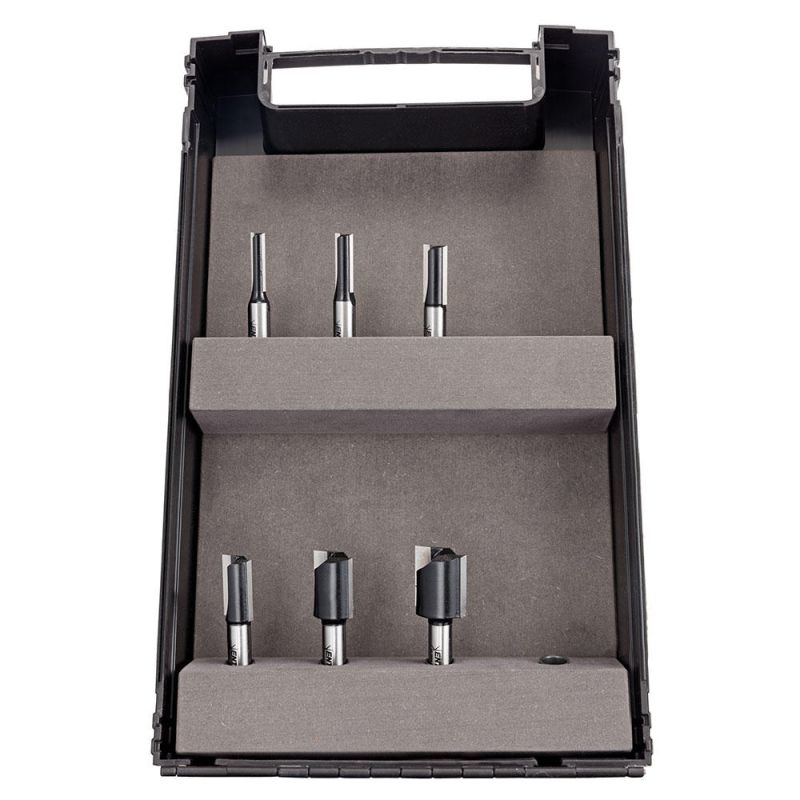

6 cutters Ø 6 / 8 / 10 / 12 / 16 / 20 mm. All cutters with 8 mm shank. Two extra slots (Ø 8 mm) in the case allow further cutters to be added to the set.
Side-cutting straight router bit with a ground bottom-cutting edge. Suitable for routing grooves, rabbets and slots. Ideal for softwood, hardwood and panel materials.

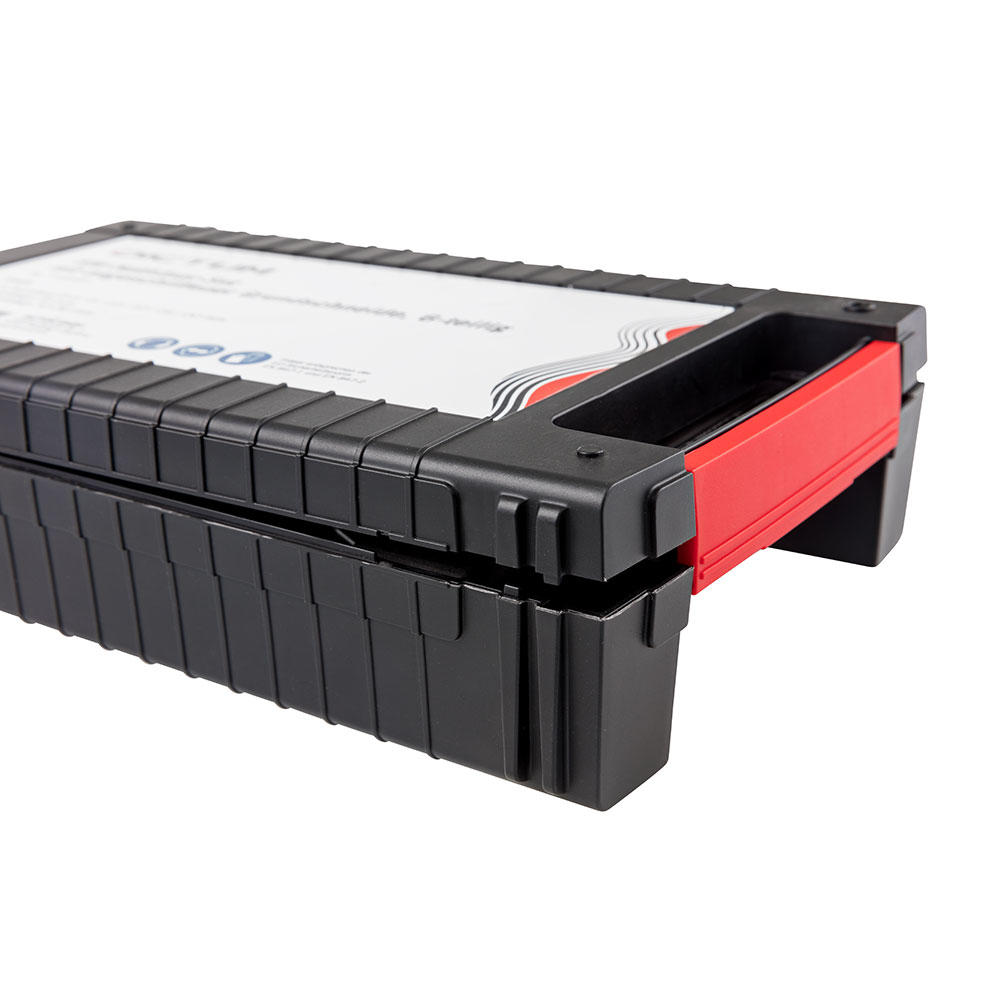

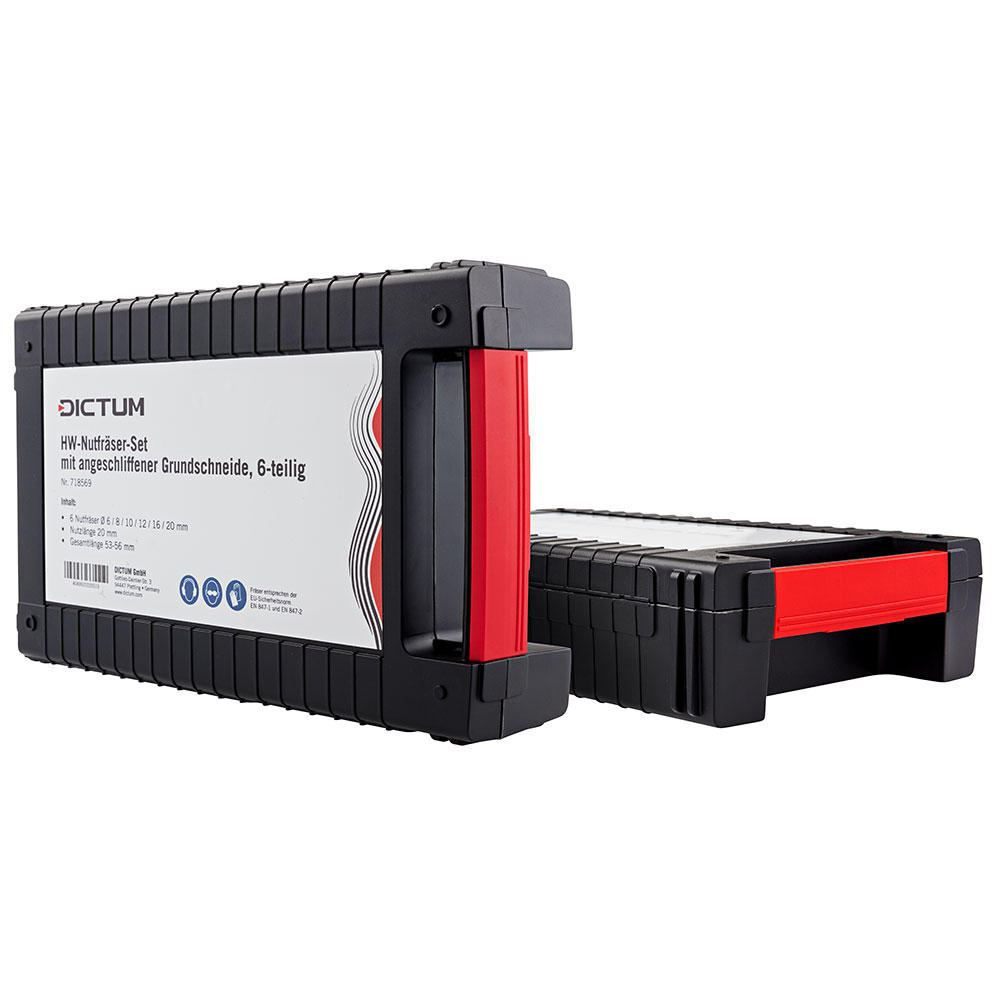

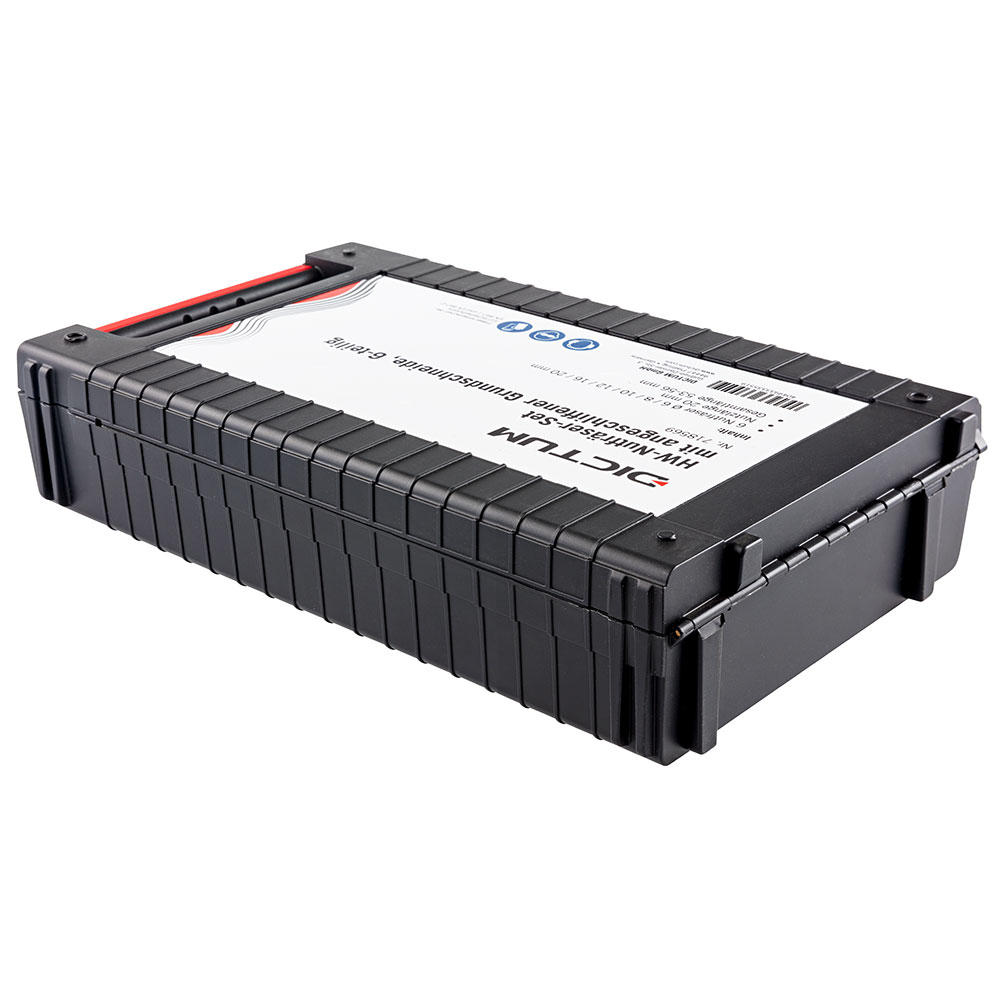

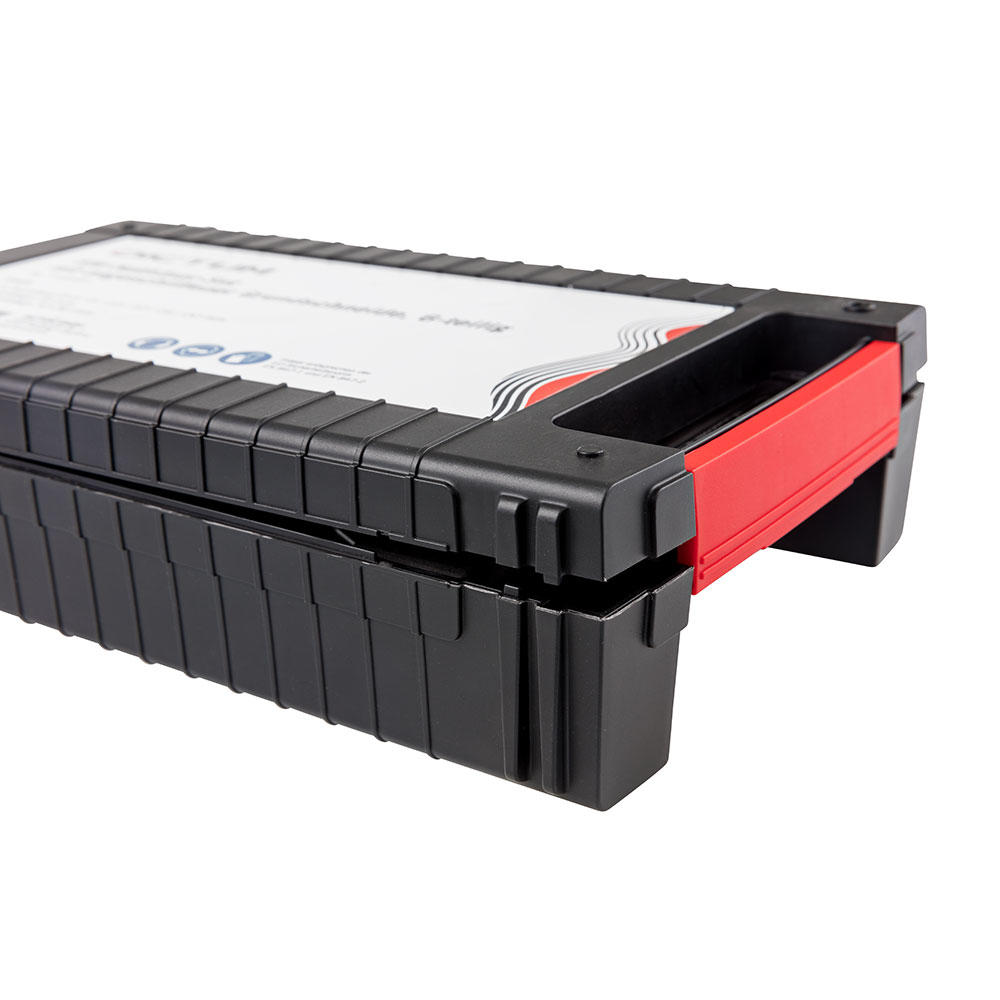

Carrying case with optimal functionality

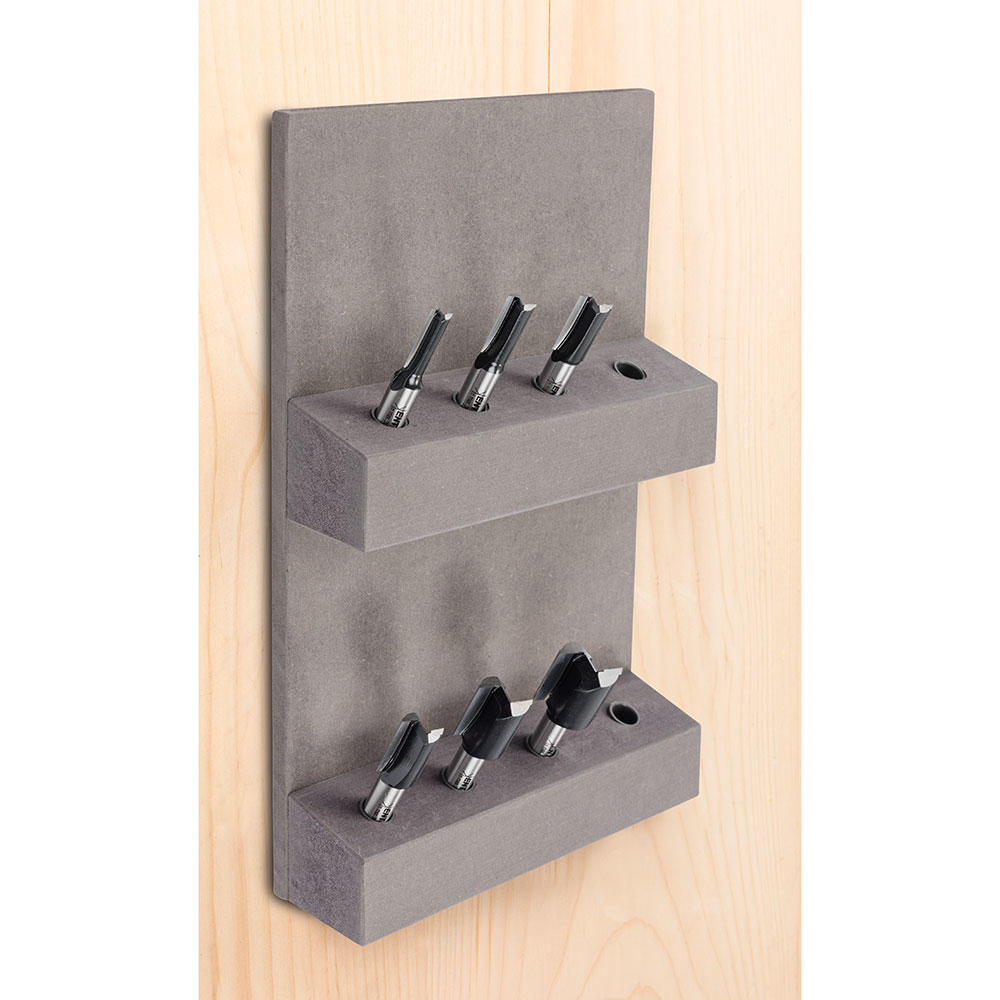

High-quality injection-moulded case with high stability and optimum functionality for safe storage and transport. The wooden inlay in which the milling cutters are inserted can be removed, e.g. to attach it to a wall, to store it in a drawer or to place it freely on the workbench.
Tungsten carbide (TC) tipped shank cutters
- The router bits comply with EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications are laser-engraved on the shank
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks guarantee accurate concentricity
- Secure clamping in the collet
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Maschine/Zubehör: | Accessories |
|---|---|
| Maschinen-Typ: | Routers |
| Overall length: | 53-56 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 6 / 8 / 10 / 12 / 16 / 20 mm |
| Schneidenlänge: | 20 mm |
| Schneidstoff: | HW - tungsten carbide |
Properties
| Maschine/Zubehör: | Accessories |
|---|---|
| Maschinen-Typ: | Routers |
| Overall length: | 53-56 mm |
| Schaft-Ø: | 8 mm |
| Schneiden-Ø: | 6 / 8 / 10 / 12 / 16 / 20 mm |
| Schneidenlänge: | 20 mm |
| Schneidstoff: | HW - tungsten carbide |
Manufacturer
DICTUM
DICTUM is dedicated to creating products which have a long service life and are free from substances that are harmful to the environment or health.
For more than 170 years, our corporate philosophy has embodied:
- The highest functional aesthetics
- A commitment to ergonomics
- The best materials
- Long-standing business relationships with manufacturers and suppliers
- Long-lasting products thanks to comprehensive services such as our
Sharpening service
Handle mounting service
Spare parts availability
| Name: | DICTUM |
|---|---|
| Mailing address: | Gottlieb-Daimler-Str. 3 94447 Plattling Deutschland |
| Homepage: | https://www.dictum.com |
| Email address: | [email protected] |
| Phone: | +49 (0)9931 4058-100 |
