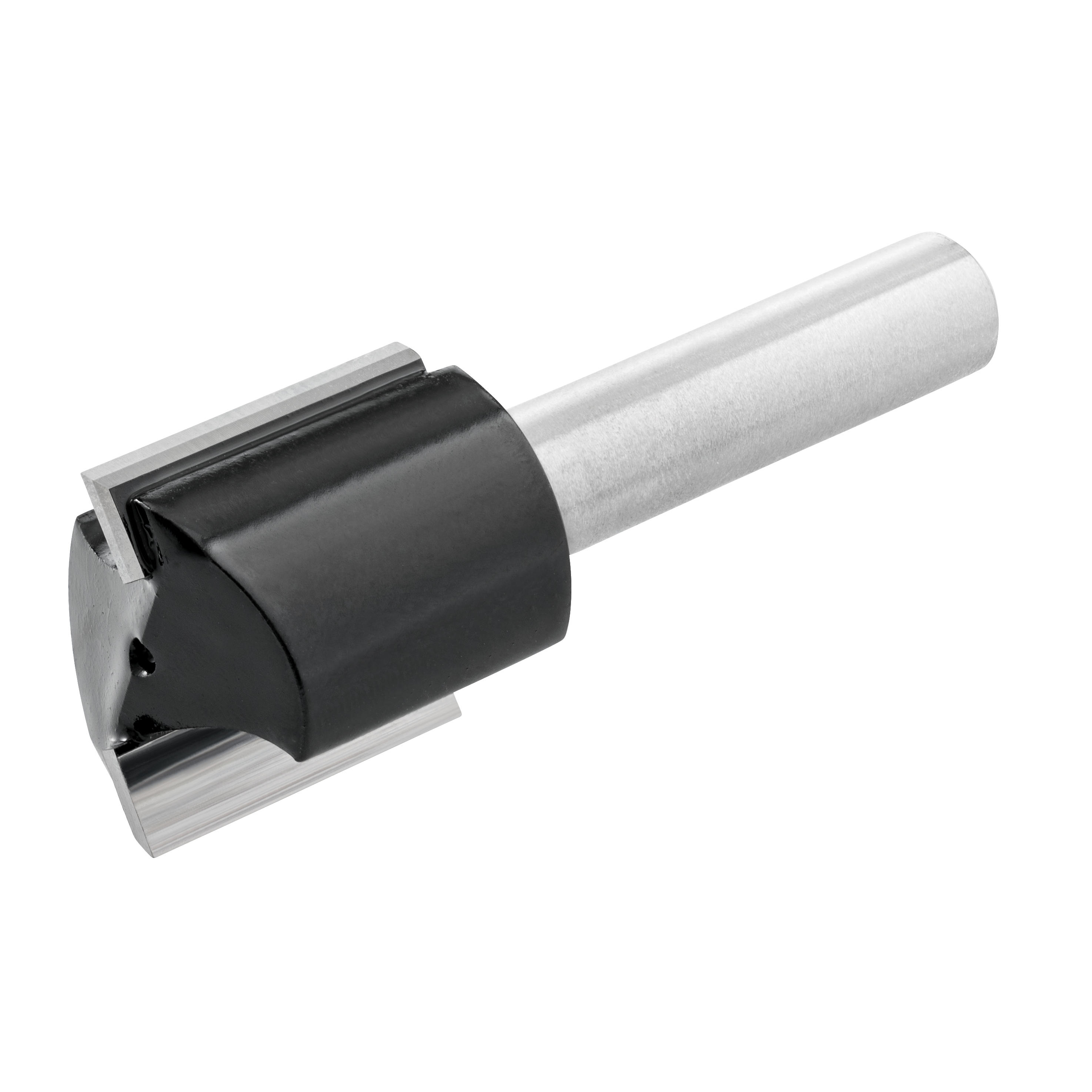

DICTUM® TC Straight Router Bit, Shank Ø 8 mm, Ø 20 mm
Product no.:
721572
Brand:
DICTUM
€31.40 €26.39
per piece
Delivery time approx. 3-5 working days
- Cutter diameter 20 mm
- Number of cutting edges 2
- Overall length 55 mm
- Schneidstoff HW - tungsten carbide
- Shank diameter 8 mm
Description
Router bit with two carbide side-cutting plates. Ideal for routing grooves and rabbets, hinge recesses and for template-guided flush trimming.
Suitable for hardwoods and softwoods, blockboard, veneered panels (MDF, chipboard, plywood) and laminate boards.
Suitable for hardwoods and softwoods, blockboard, veneered panels (MDF, chipboard, plywood) and laminate boards.
Safety first
- All bits comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed

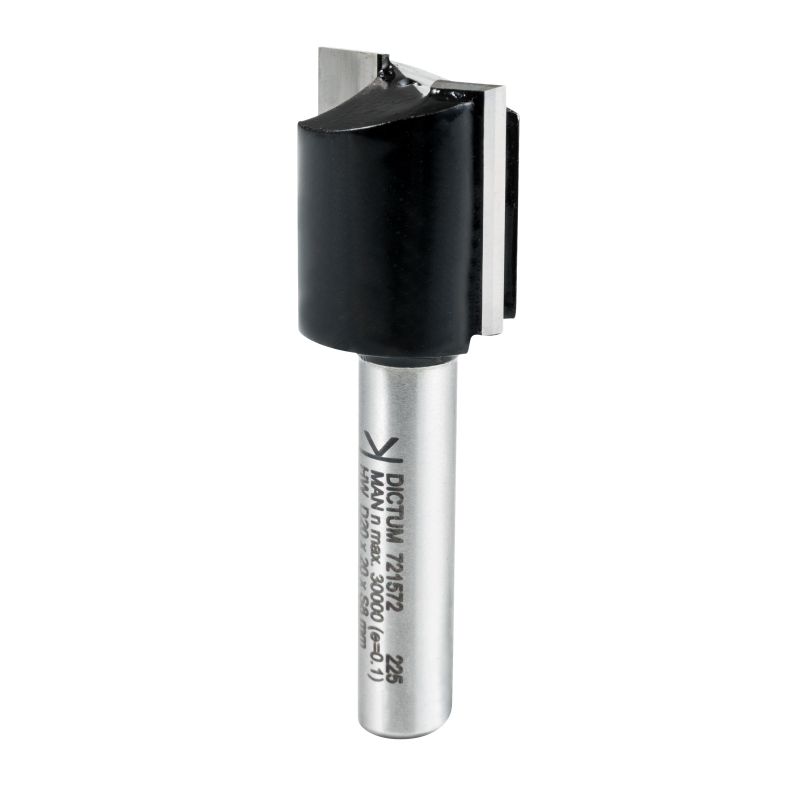

- Main specifications laser-engraved on shank
Tungsten carbide (TC) tipped router bits
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks ensure accurate concentricity
- Secure clamping in the collet (eccentricity is marked on the shank)
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Cutter diameter: | 20 mm |
|---|---|
| Number of cutting edges: | 2 |
| Overall length: | 55 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
| Shape: | straight |
Properties
| Cutter diameter: | 20 mm |
|---|---|
| Number of cutting edges: | 2 |
| Overall length: | 55 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
| Shape: | straight |
