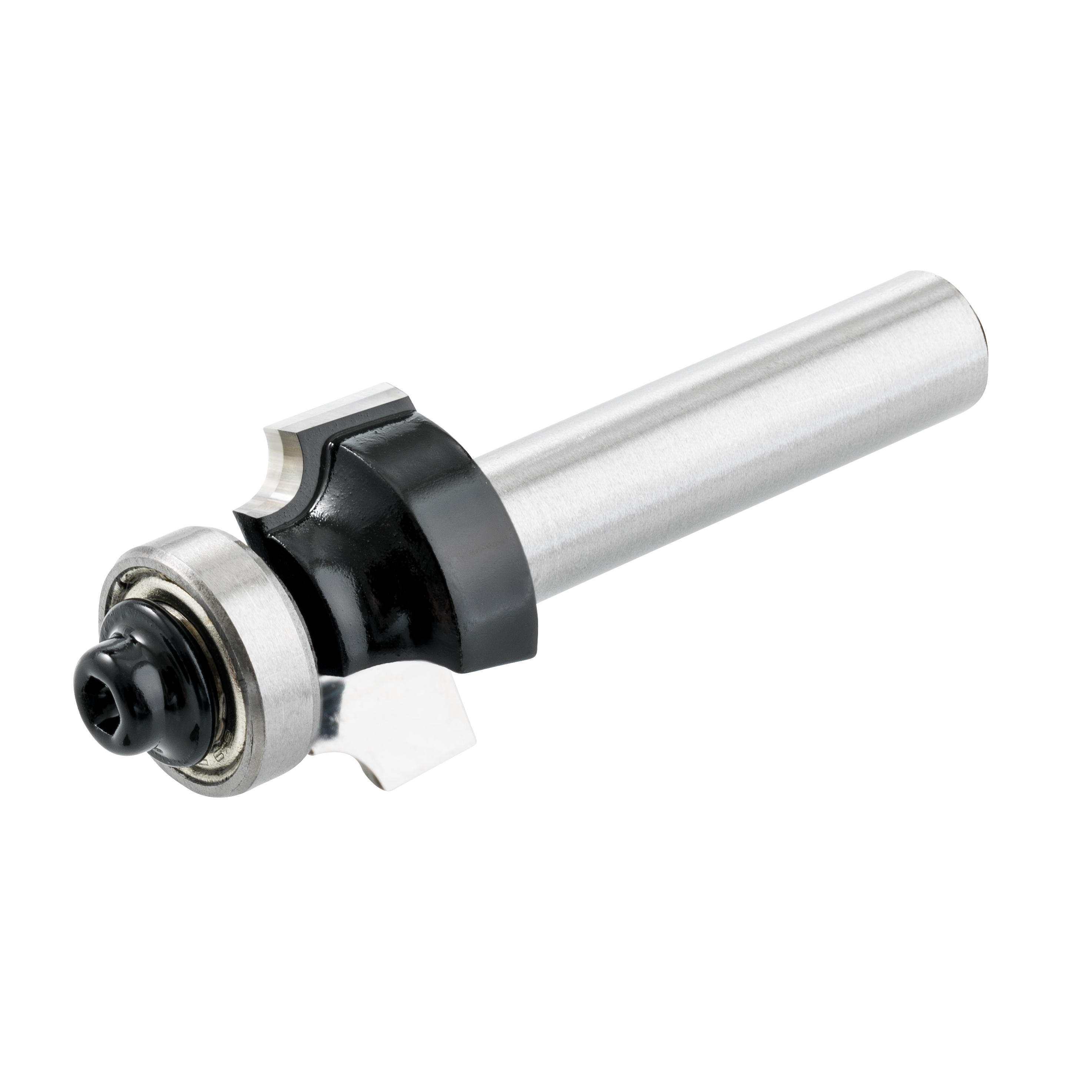

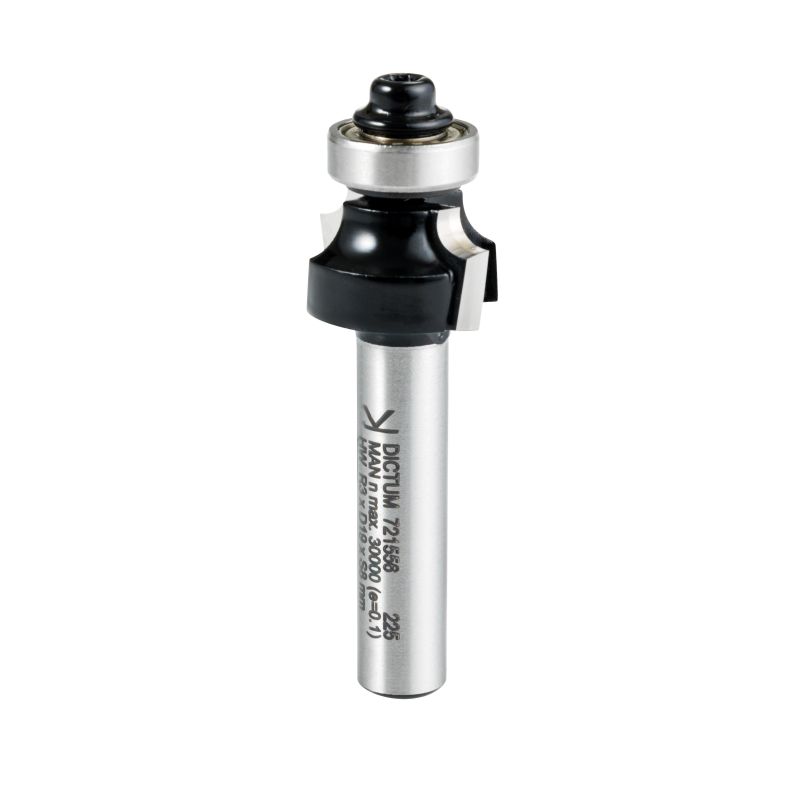

DICTUM® TC Round-over Router Bit with Ball Bearing, Shank Ø 8 mm, R 3 mm
Product no.:
721556
Brand:
DICTUM
€29.30 €24.62
per piece
Delivery time approx. 3-5 working days
- Cutter diameter 19 mm
- Cutting length 10 mm
- Form R 3.0
- Number of cutting edges 2
- Overall length 45 mm
Description
One bit, two profiles
By varying the cutting depth, a round-over router bit can be used to produce both soft round-overs and round-overs with a quirk (German profile).
Safety first
- All bits comply with the EU safety standards EN 847-1 and EN 847-2
- Suitable for hand feed
- Main specifications laser-engraved on shank
Tungsten carbide (TC) tipped router bits
- Tungsten carbide tips ensure high heat and wear resistance
- Ultra-fine micrograin quality for extended edge life
- Cutting edges are angled where technically possible
- Precisely ground shanks ensure accurate concentricity
- Secure clamping in the collet (eccentricity is marked on the shank)
- Perfect guidance along the workpiece thanks to high-quality ball bearings
- All ball bearings are replaceable and available as spare parts
Properties
| Cutter diameter: | 19 mm |
|---|---|
| Cutting length: | 10 mm |
| Form: | R 3.0 |
| Number of cutting edges: | 2 |
| Overall length: | 45 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
Properties
| Cutter diameter: | 19 mm |
|---|---|
| Cutting length: | 10 mm |
| Form: | R 3.0 |
| Number of cutting edges: | 2 |
| Overall length: | 45 mm |
| Schneidstoff: | HW - tungsten carbide |
| Shank diameter: | 8 mm |
Manufacturer
DICTUM
DICTUM develops products with a focus on functionality, quality and durability.
For more than 170 years, our corporate philosophy has embodied:
- Highest standards of functional aesthetics
- A commitment to ergonomics
- Careful selection of materials
- Long-standing business relationships with manufacturers and suppliers
-
Supporting product use through comprehensive service offerings, such as spare parts services
DICTUM is more than tools...
