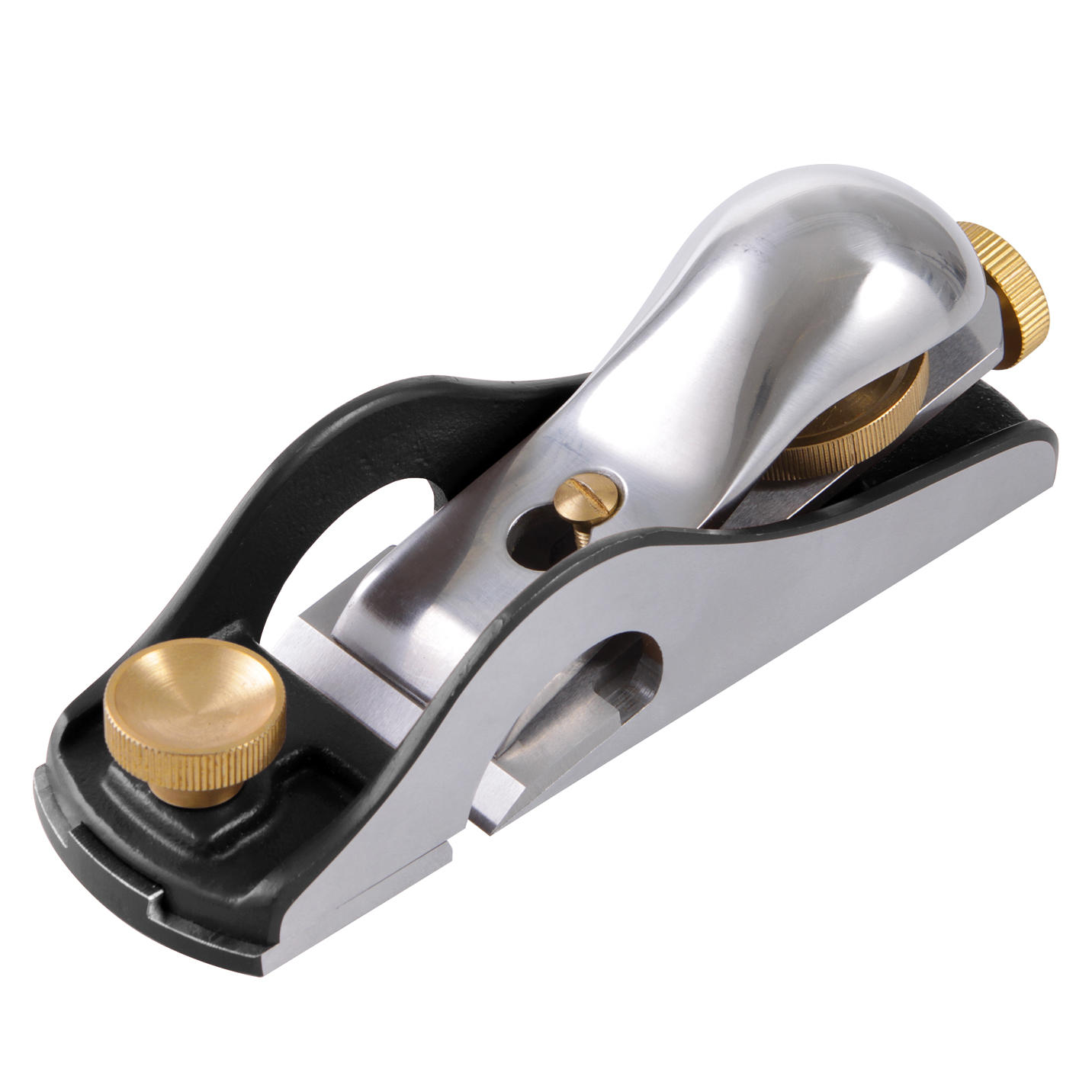

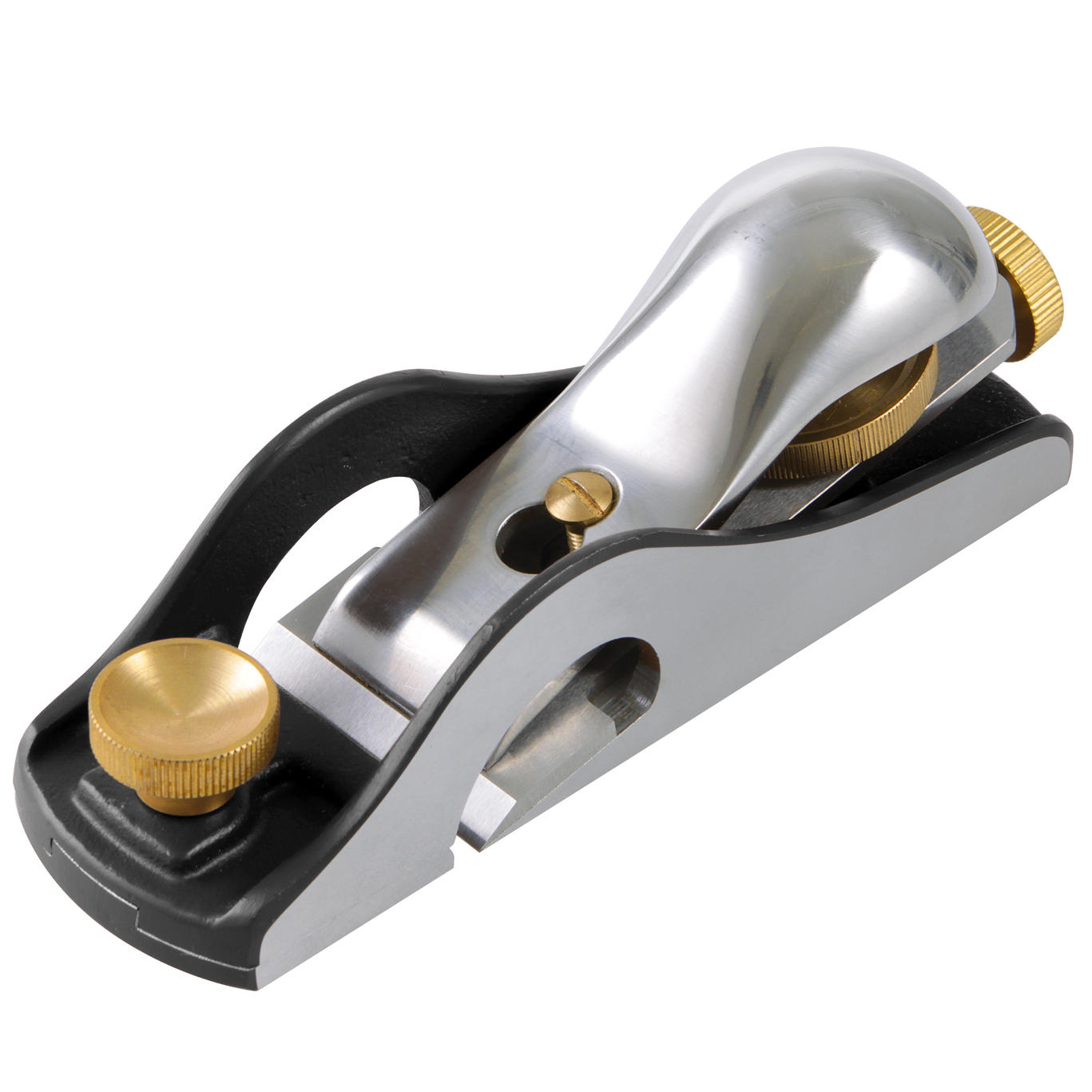

DICTUM® Rabbet Block Plane, Adjustable Mouth, O2 Waterjet
Product no.:
703378
Brand:
DICTUM
€109.00 €91.60
per piece(s)
Delivery time approx. 3-5 working days

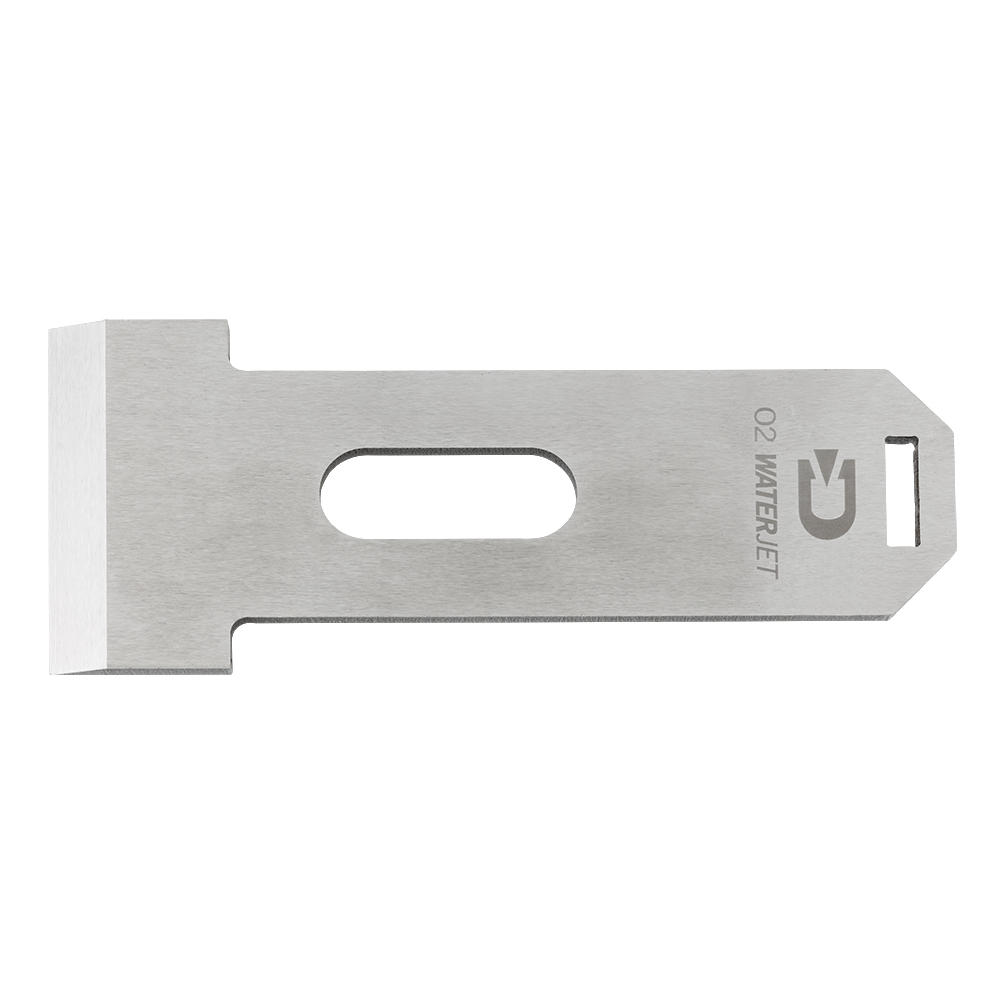

- Blade material O2 Waterjet
- Blade thickness 3.5 mm
- Blade width 44 mm
- Design / cutting angle Bevel up / cutting angle 35°-37° (end grain processing)
- Overall length 165 mm
Description
- Long service life, excellent sharpness, and edge-holding capacity
- Vibration-damping effect under heavy cutting loads thanks to 3.5 mm material thickness
- Precisely ground back and micro-bevel for razor-sharp edges straight from the factory

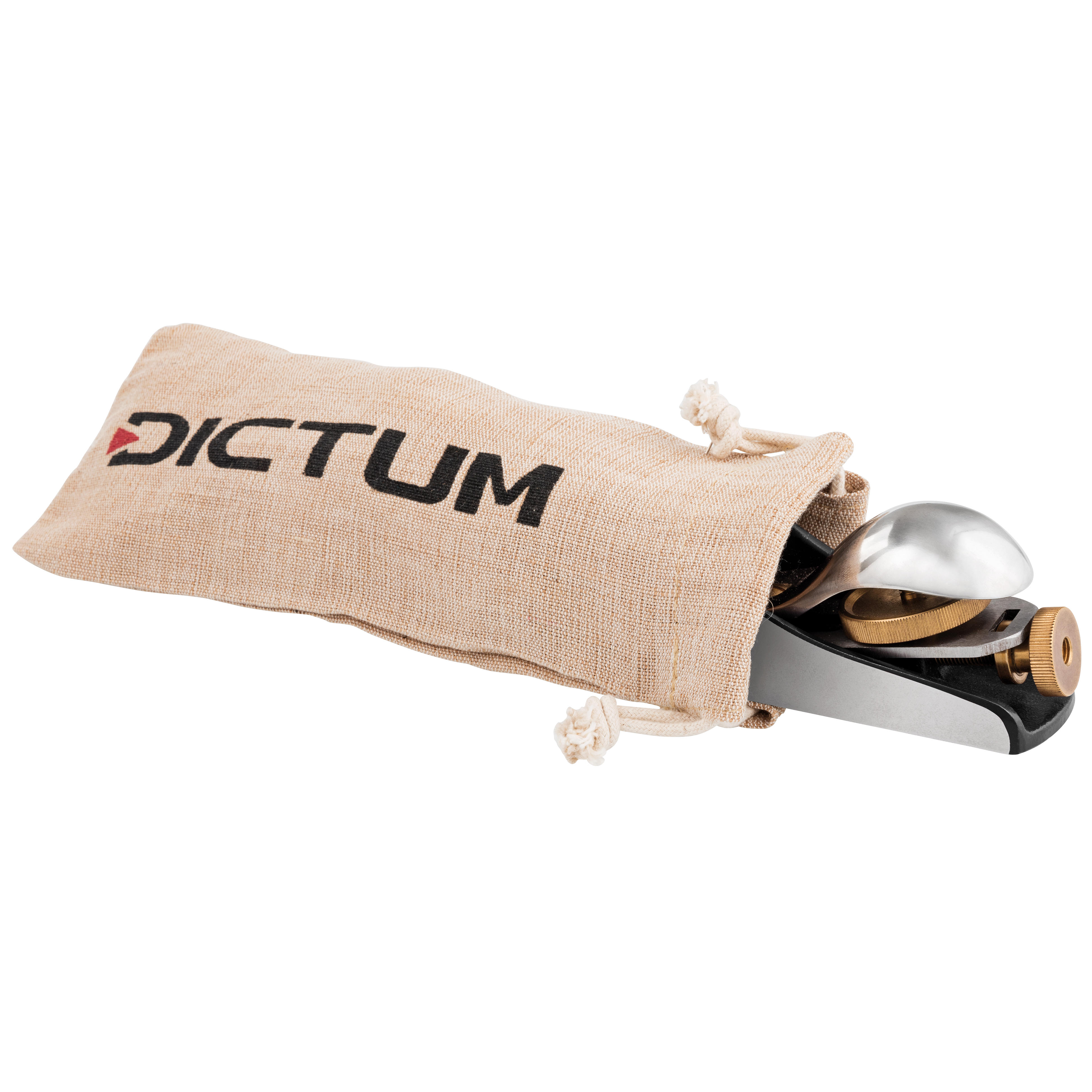

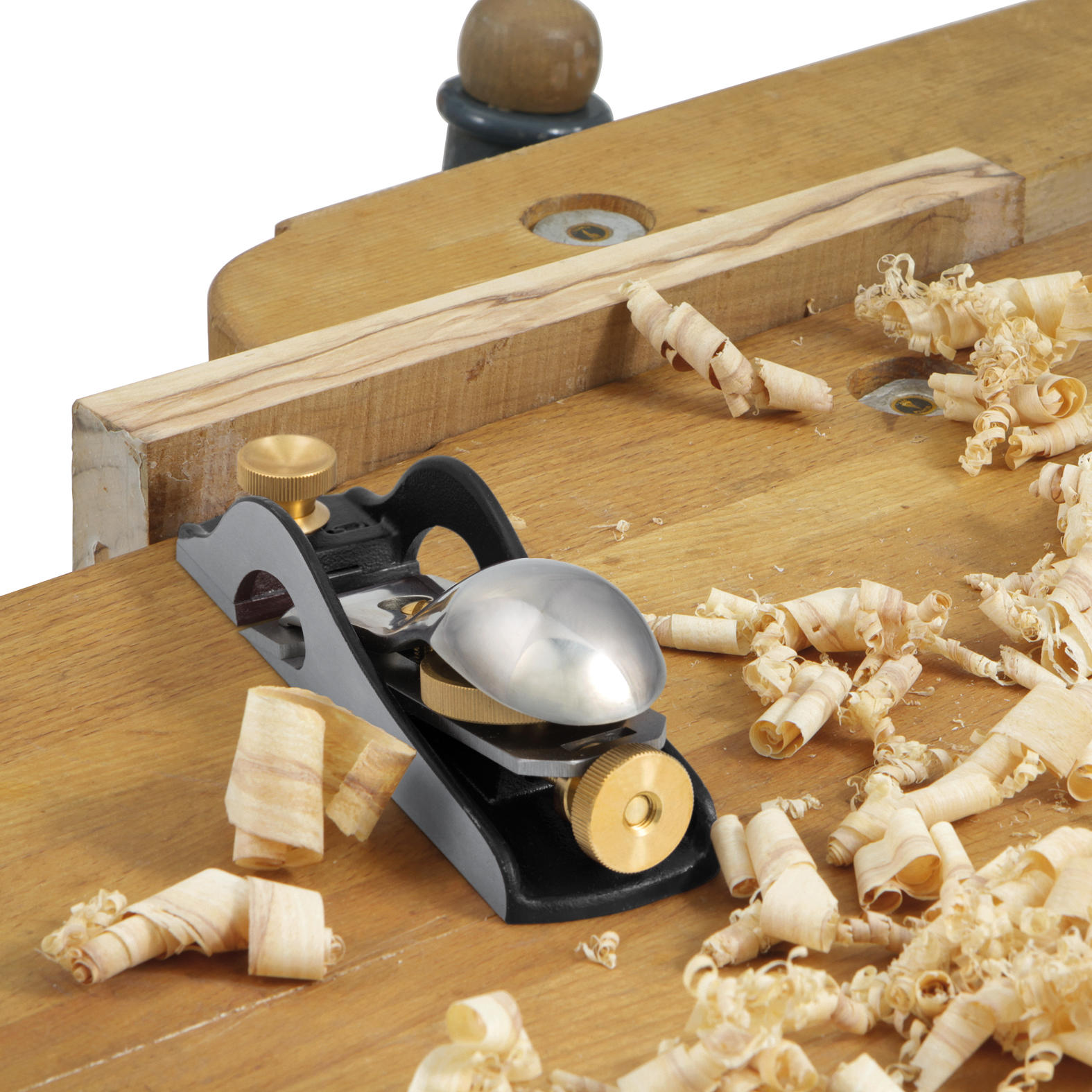

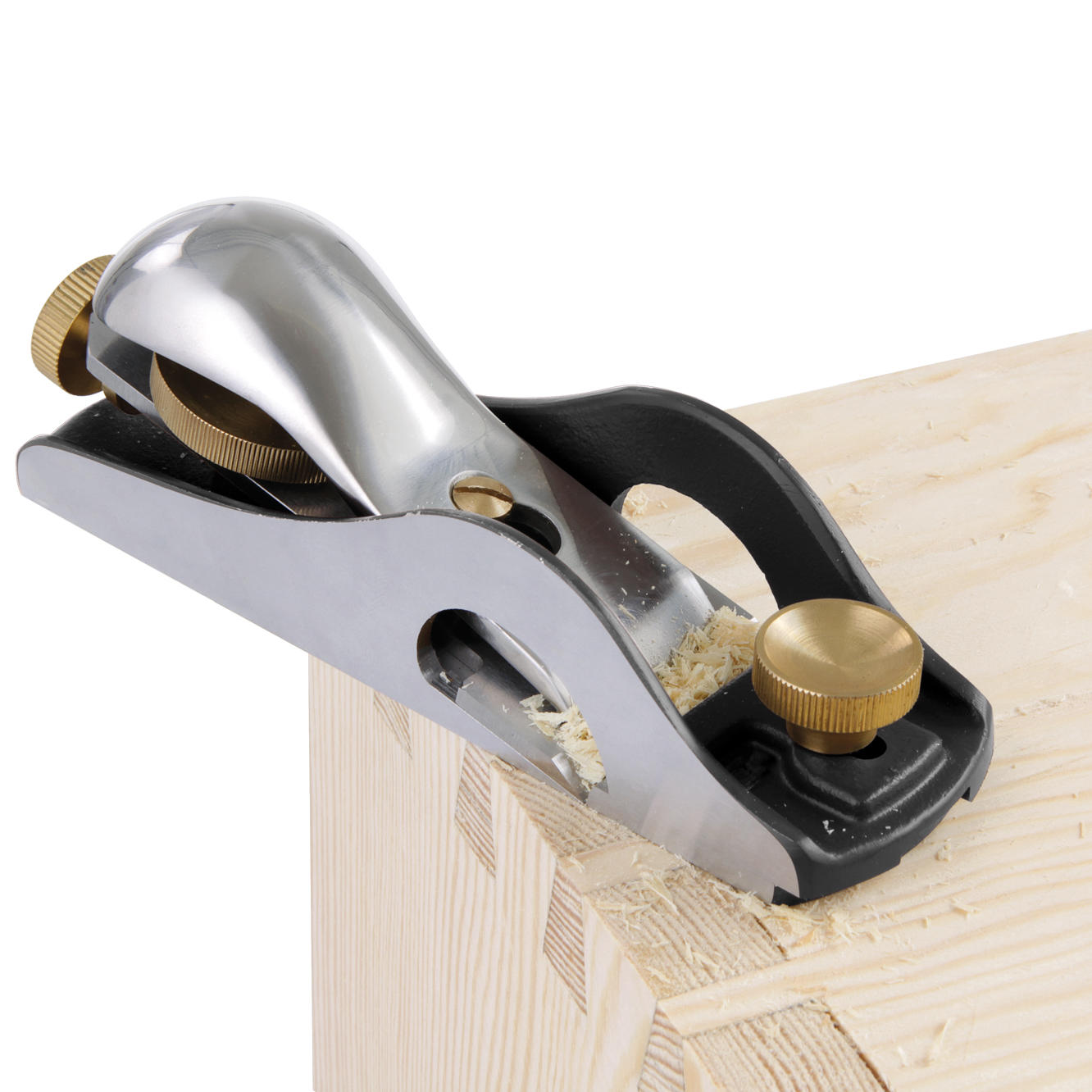

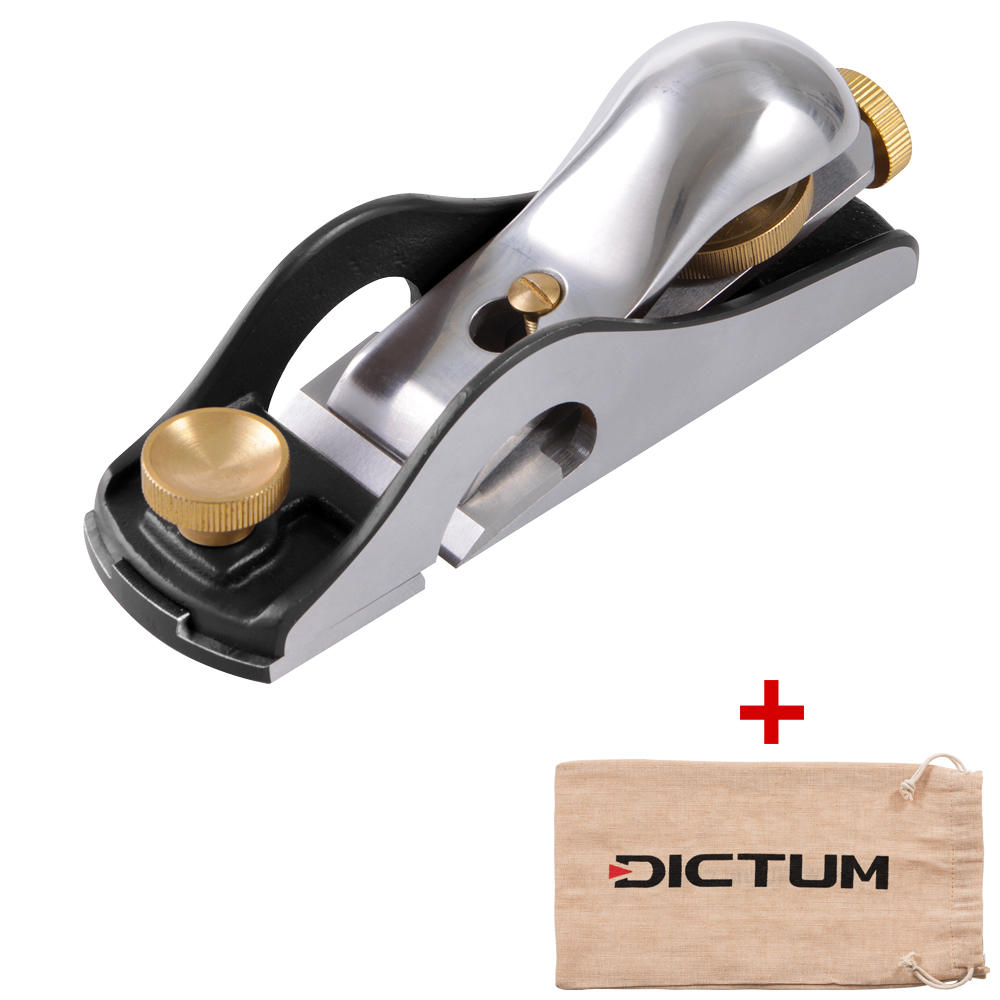

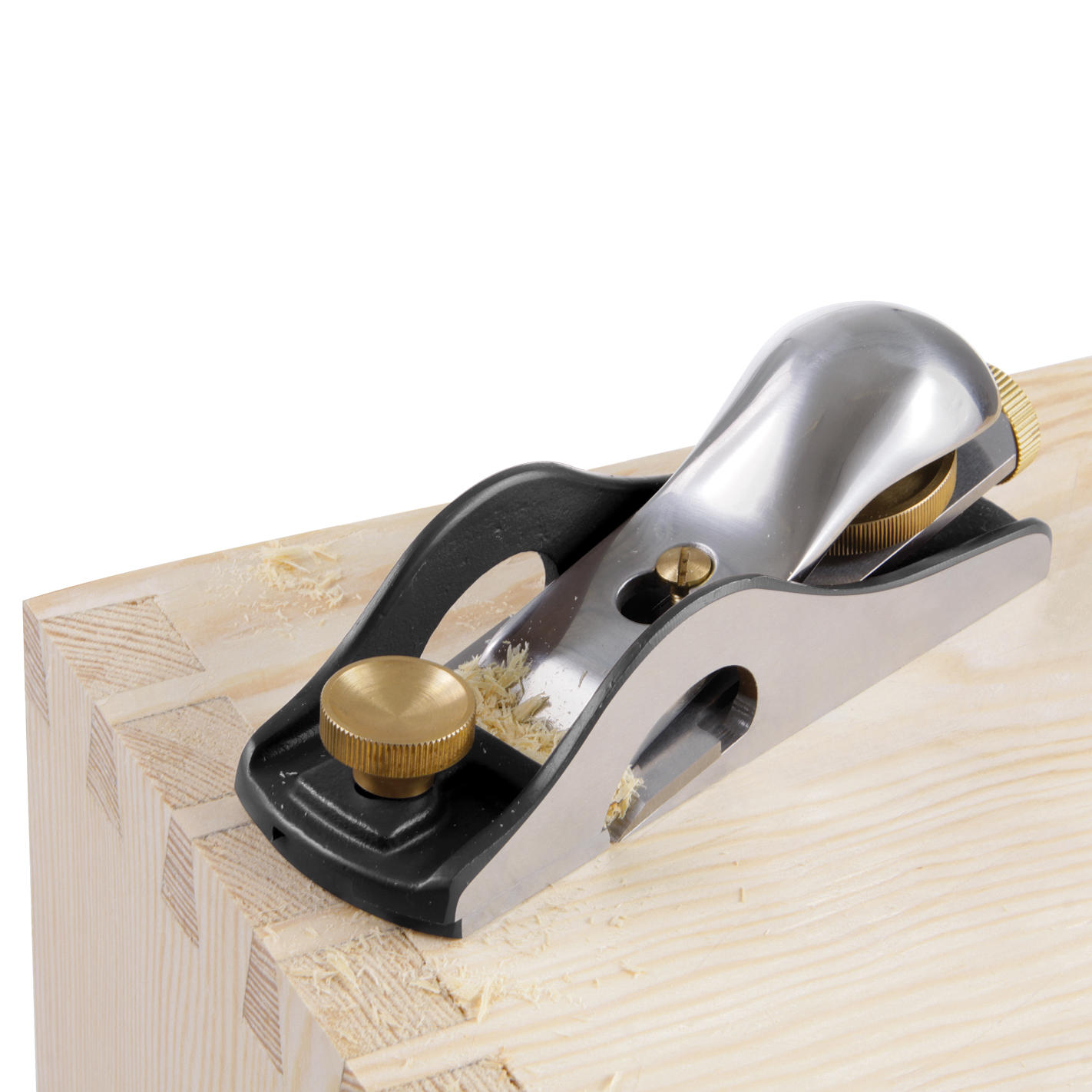

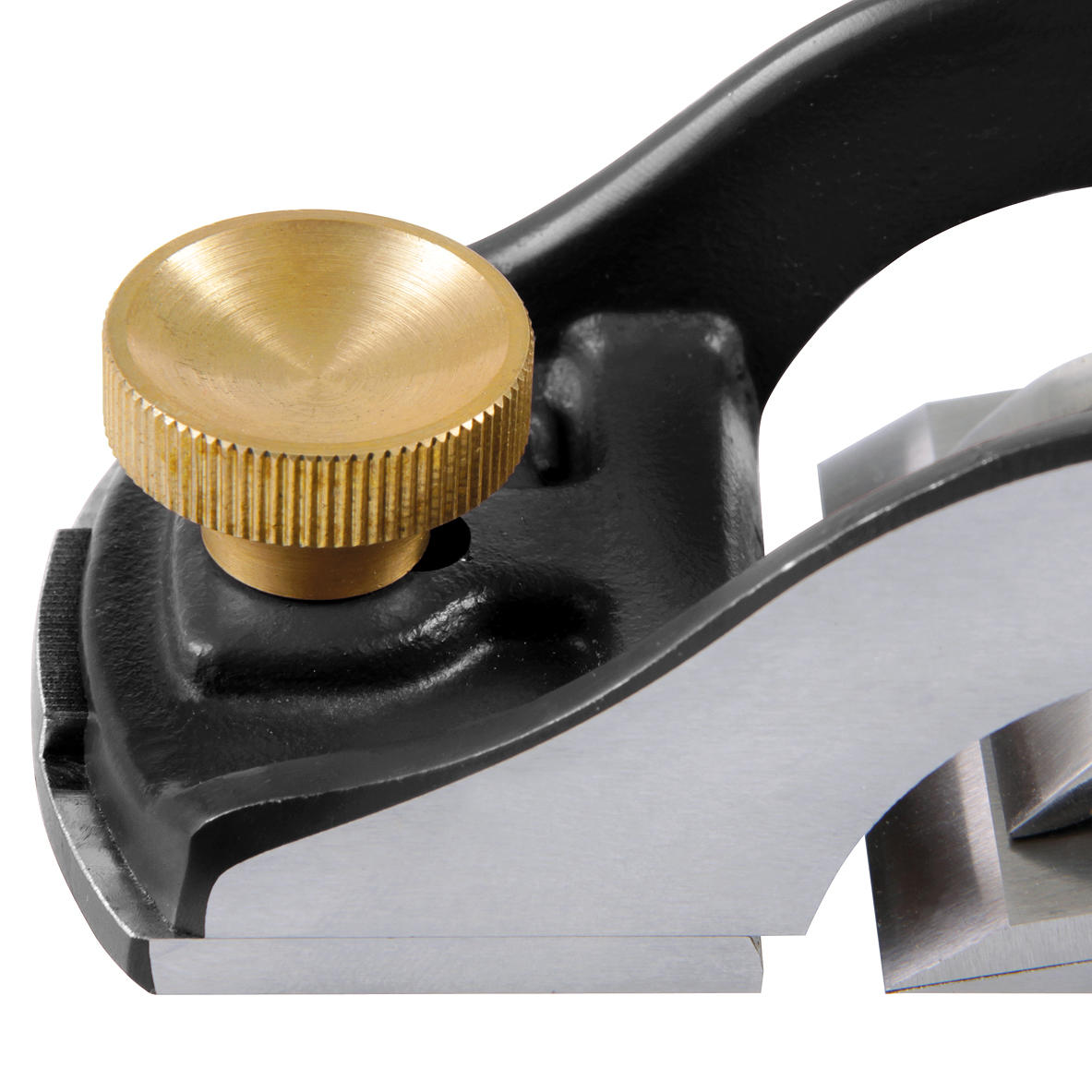

Universal plane, ideal for finishing rebates, tenons and shoulders. Its low blade angle of 12° makes it suitable for many uses, including trueing and smoothing end grain, difficult grains and long grain, both across and in the direction of the grain, and even working into corners. The movable shoe adjusts the mouth opening for fine shavings or rough stock removal. Bevel angle 25°. Results in a cutting angle of 37°. Smooth fine-adjustment of the blade, supplied with a plane pouch made of a jute-cotton blend with drawstring closure.
DICTUM® Planes

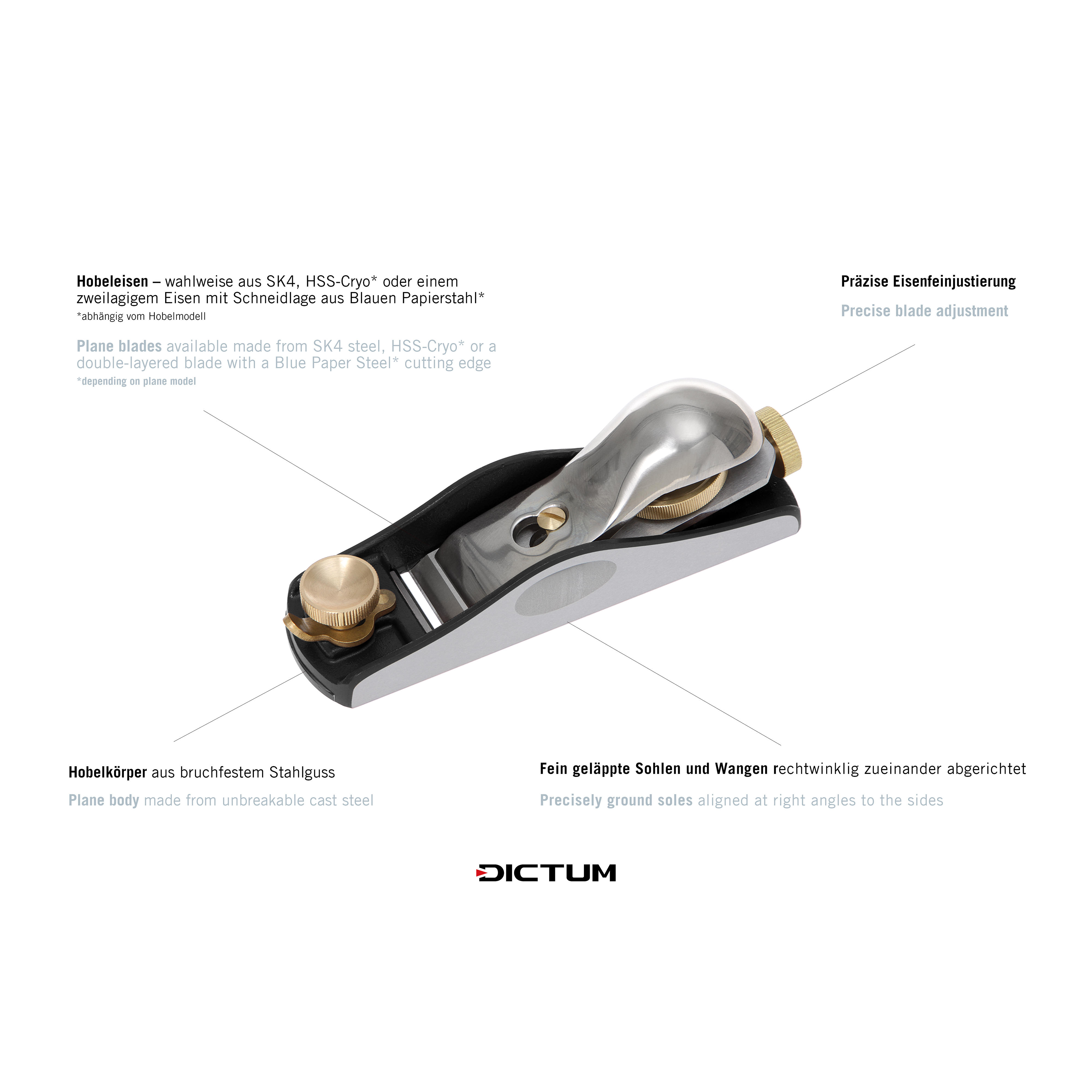

We have developed our DICTUM plane series based on our Herdim planes. We have been making these planes for decades for our violin makers, who require the utmost precision and perfect workmanship. The solid, stress-relieved plane bodies made from cast steel* with precisely ground soles aligned at right angles to the sides, together with the minimum 3 mm thick blades made from SK4 steel (61 HRC) signify top quality. The planes are also available with a Japanese blade made of Blue Paper Steel (63 HRC) or O2 Waterjet (62 HRC). The blade adjuster allows for precise adjustments and the ergonomically shaped handles developed through tests as well as the polished cap irons provide a good grip. Handles made of walnut wood.
* unless otherwise specified
* unless otherwise specified
Properties
| Blade material: | O2 Waterjet |
|---|---|
| Blade thickness: | 3.5 mm |
| Blade width: | 44 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 165 mm |
| Plane body: | Cast steel |
| Purpose: | Multi-purpose |
| Type: | Block planes |
| Weight: | 780 g |
Properties
| Blade material: | O2 Waterjet |
|---|---|
| Blade thickness: | 3.5 mm |
| Blade width: | 44 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 165 mm |
| Plane body: | Cast steel |
| Purpose: | Multi-purpose |
| Type: | Block planes |
| Weight: | 780 g |
Manufacturer
DICTUM
DICTUM is dedicated to creating products which have a long service life and are free from substances that are harmful to the environment or health.
For more than 170 years, our corporate philosophy has embodied:
- The highest functional aesthetics
- A commitment to ergonomics
- The best materials
- Long-standing business relationships with manufacturers and suppliers
- Long-lasting products thanks to comprehensive services such as our
Sharpening service
Handle mounting service
Spare parts availability
