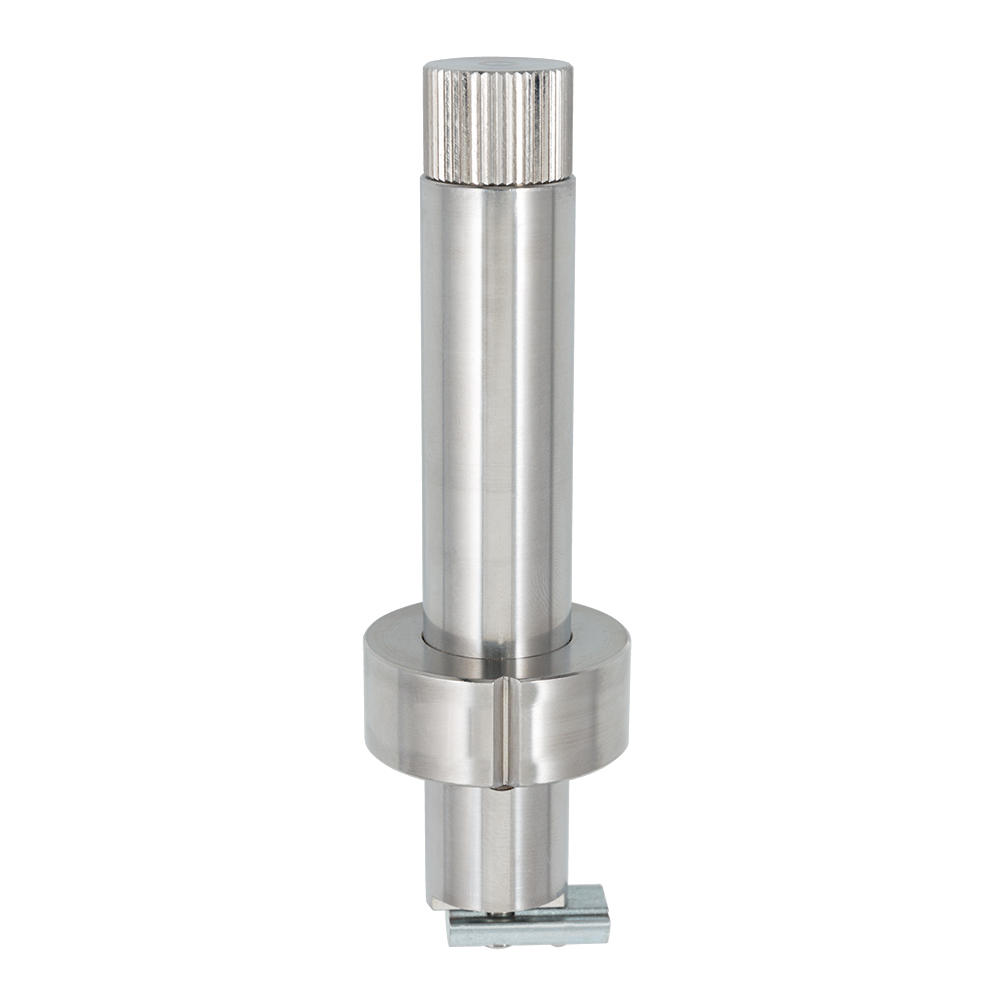

DICTUM® Multifunction Bench Dogs MBH20
Product no.:
728775
Brand:
DICTUM
€41.50 €34.87
per piece(s)
Back in stock soon
- Durchmesser 20 / 36 mm
- Material Stainless steel
- Passend für DICTUM Multifunktionstisch PRO
Description
For precise formatting at any angle

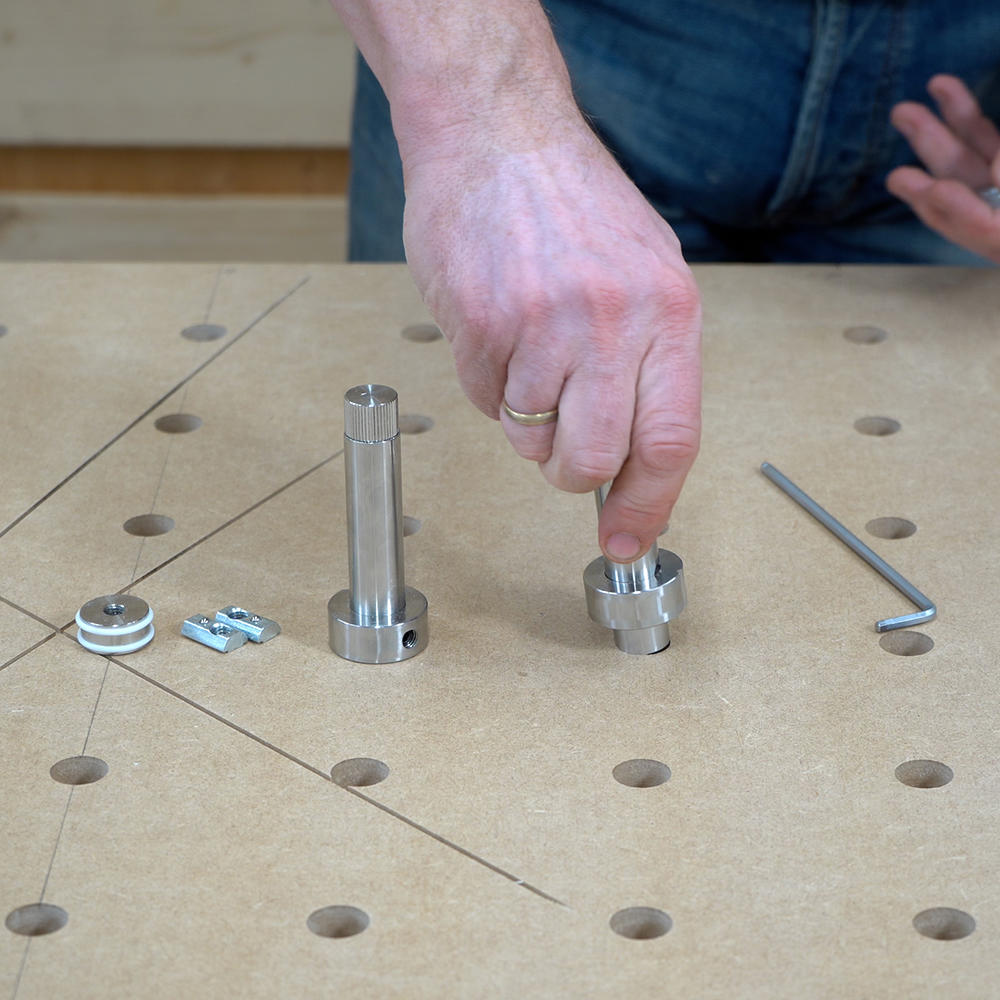

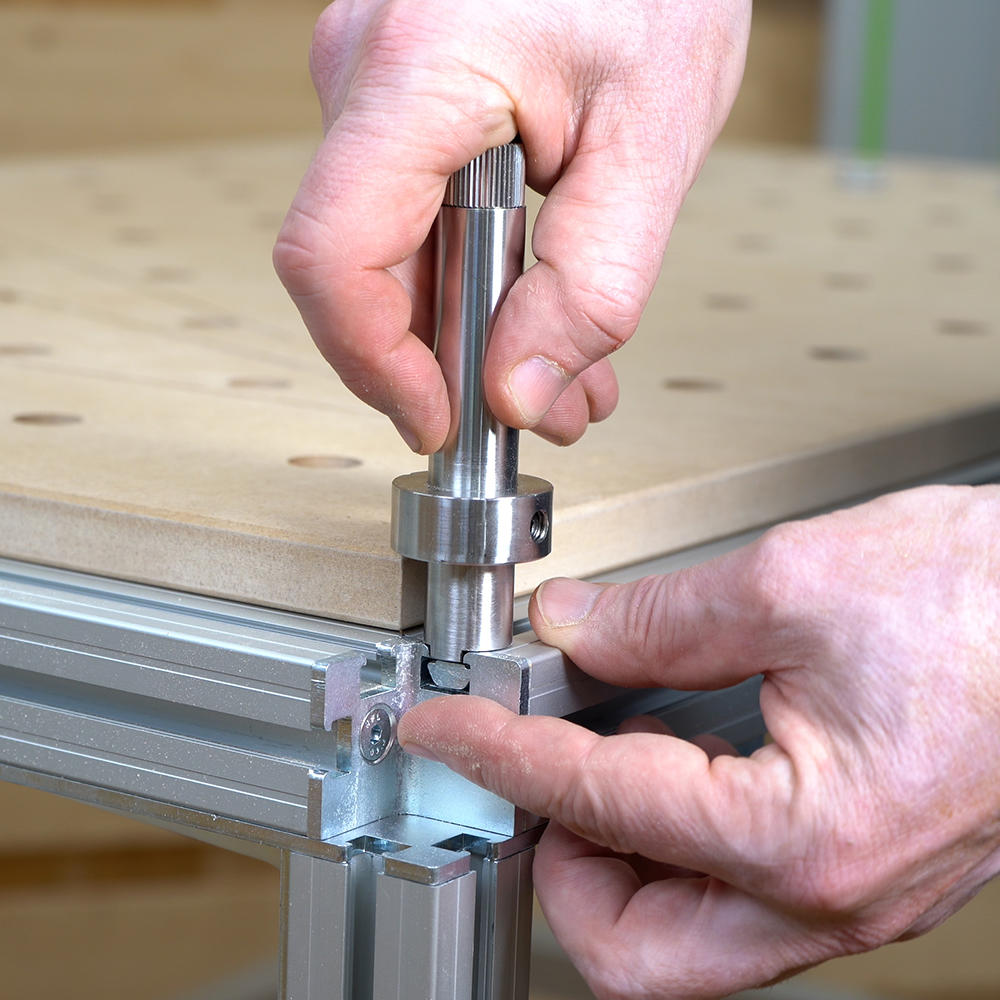

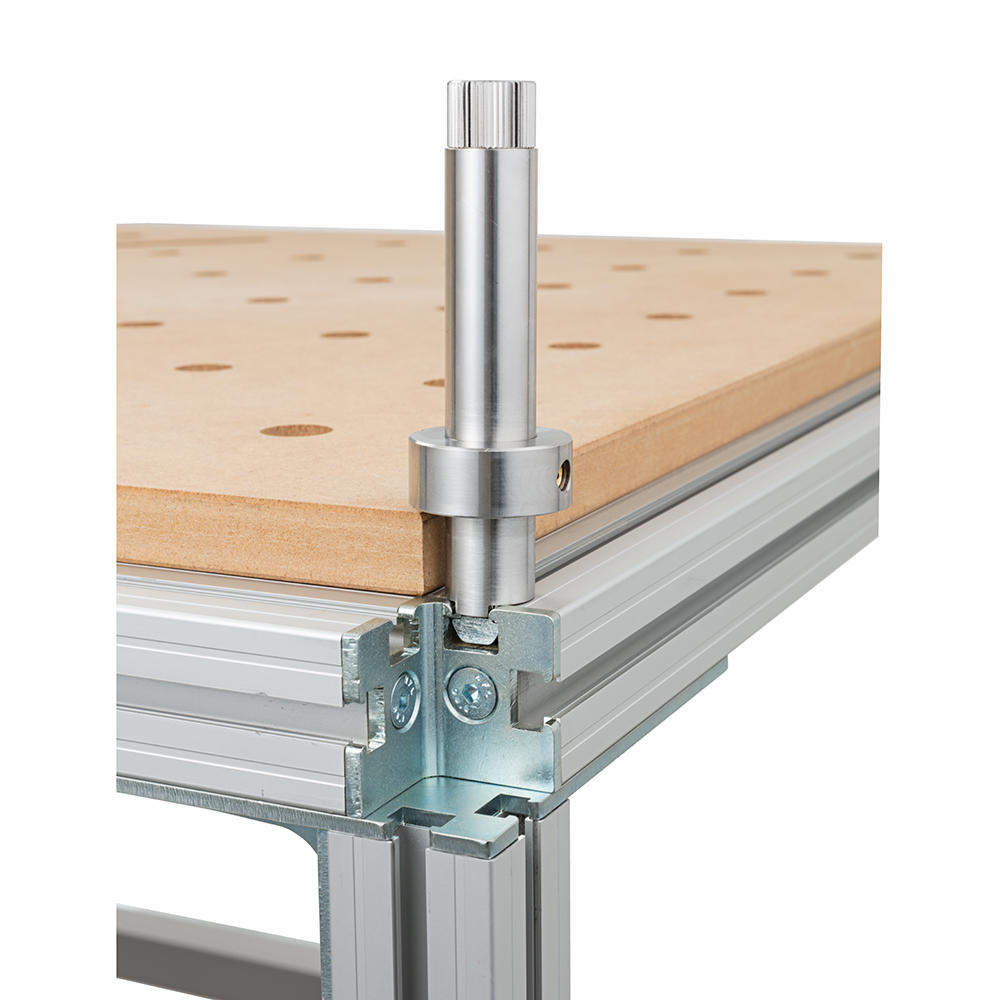

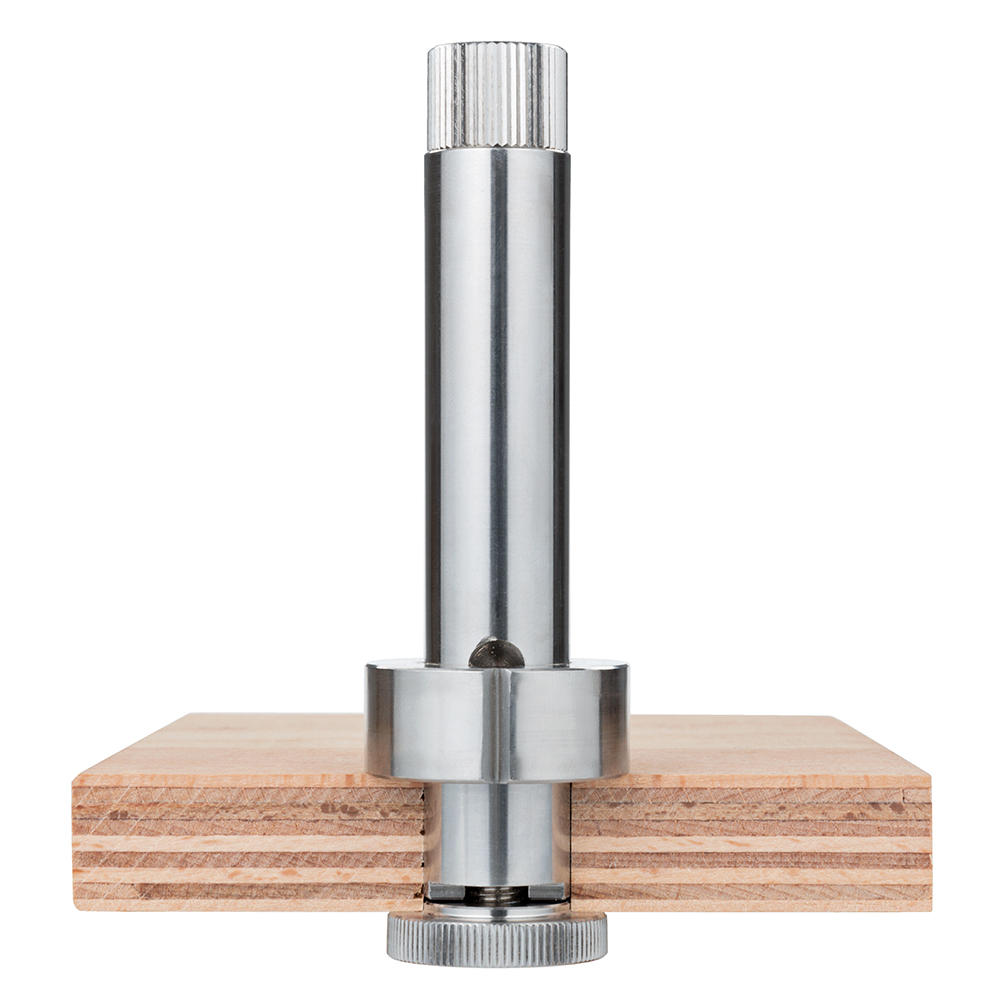

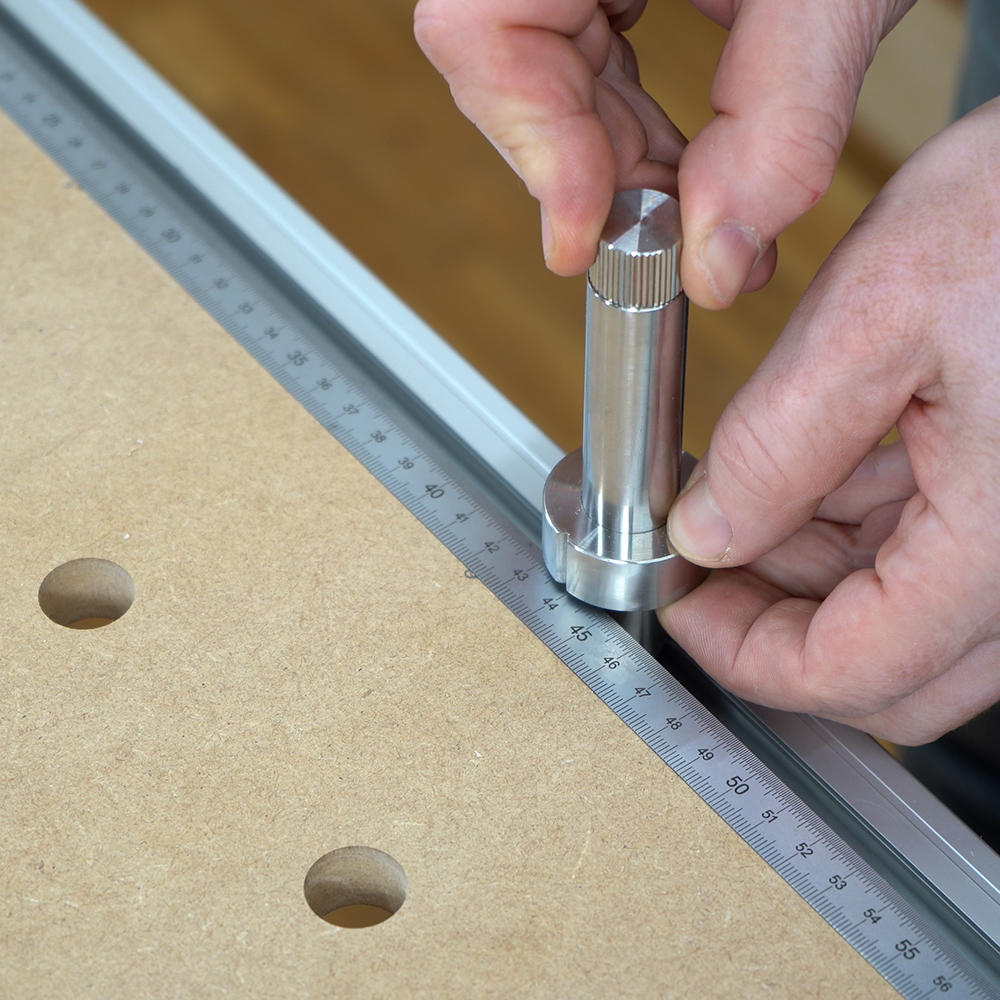

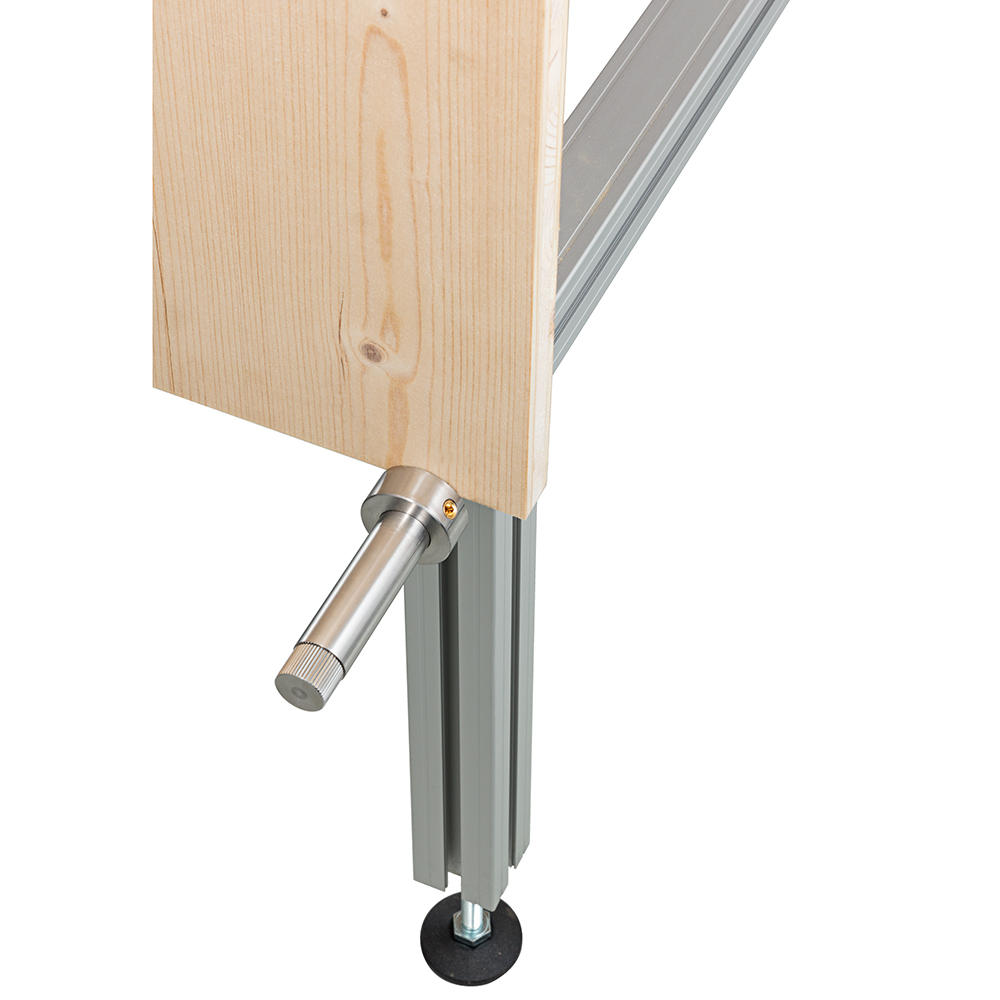

With the freely positionable MBH20 bench dogs and a plunge saw with guide rail, you can transform the multifunctional table PRO into a formatting platform that is equal to a sliding table saw. Due to the circumferential T-slot system on the DICTUM Multifunction Tables, the MBH20 is precisely guided by the milled guide pins and fixed in any position with the rotary knob. No grid of holes, no more given distances or angles! Precise formatting with high repeatability, even with flat or pointed bevel cuts, is easier than ever. One MBH20 is positioned in each of the opposite groove profiles. If only one bench hook is moved, its position to the other and therefore the angle changes. Comes with a manual and an angle table. An adjustment ring facilitates positioning by marking or scale. The bench dog can also be positioned within a perforated plate by moving the adjustment ring to the second detent. If a bench support is needed, e.g. for edge processing, simply fix the MBH20 in one of the eight T-slots of the table legs. A real all-rounder that can be used in 20 mm bores or 8 mm grooves. Made of stainless steel.

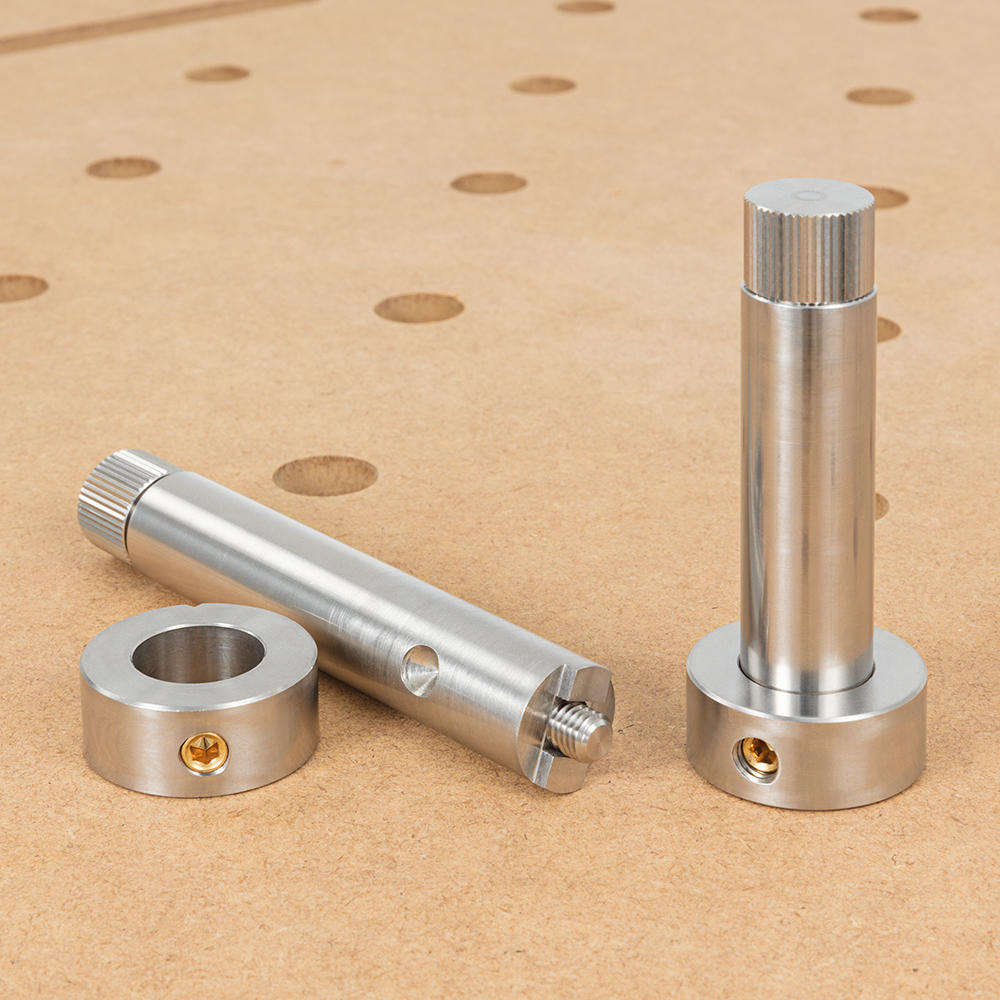

Scope of delivery
- Bench dog length 115 mm
- Adjustment ring Ø 36 x 15 mm
- T-slot nut
Properties
| Durchmesser: | 20 / 36 mm |
|---|---|
| Material: | Stainless steel |
| Passend für: | DICTUM Multifunktionstisch PRO |
Properties
| Durchmesser: | 20 / 36 mm |
|---|---|
| Material: | Stainless steel |
| Passend für: | DICTUM Multifunktionstisch PRO |
