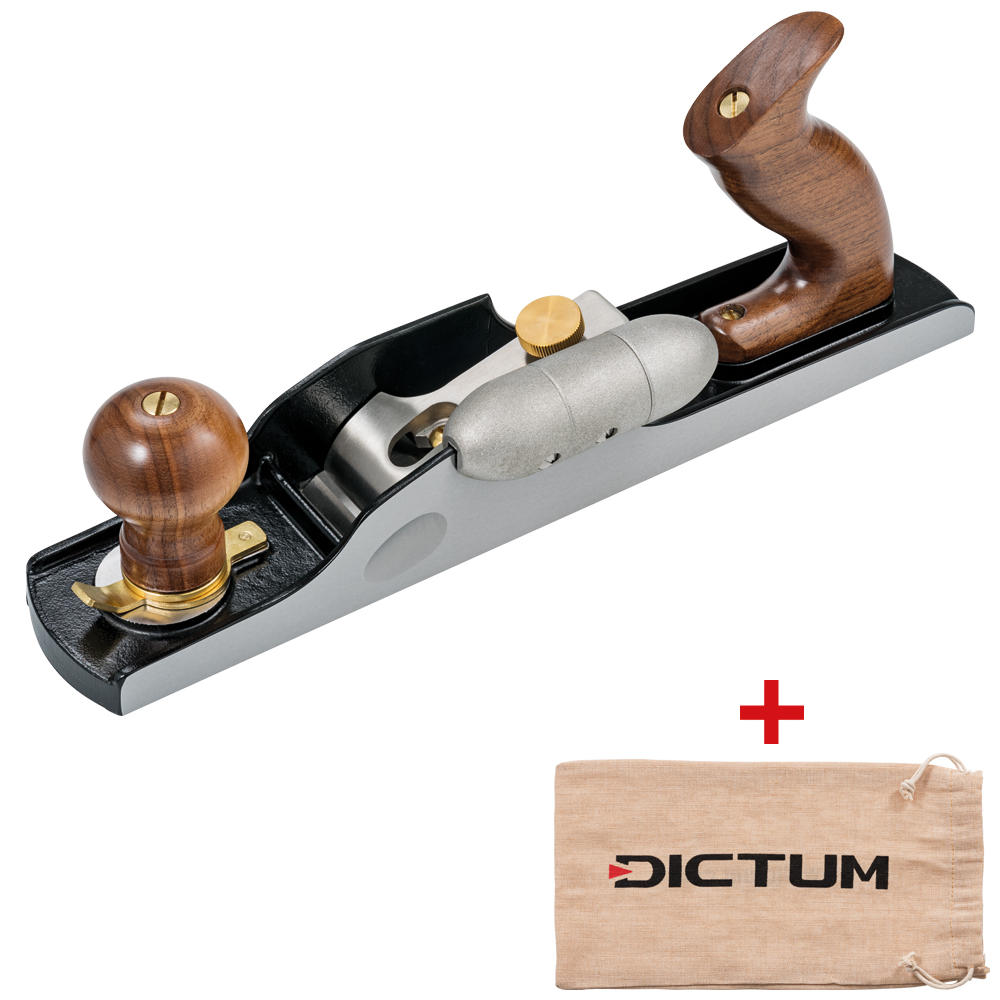

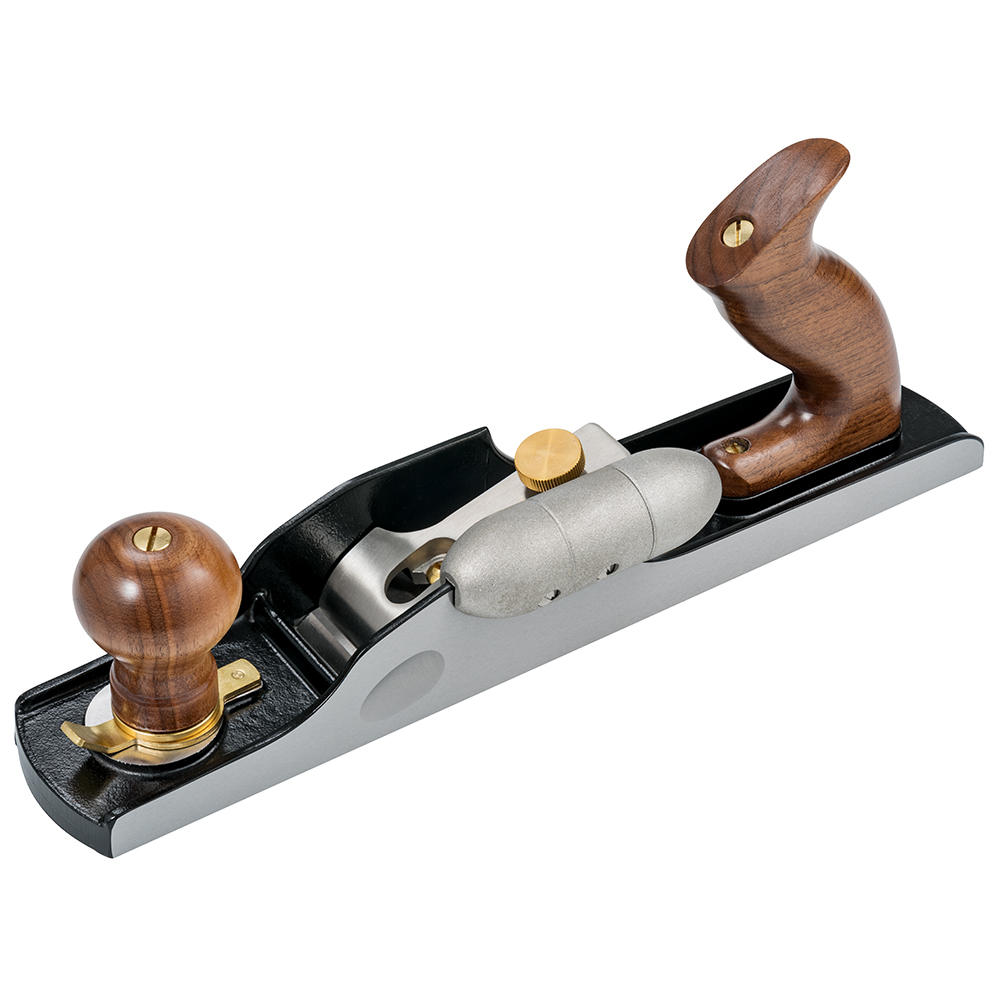

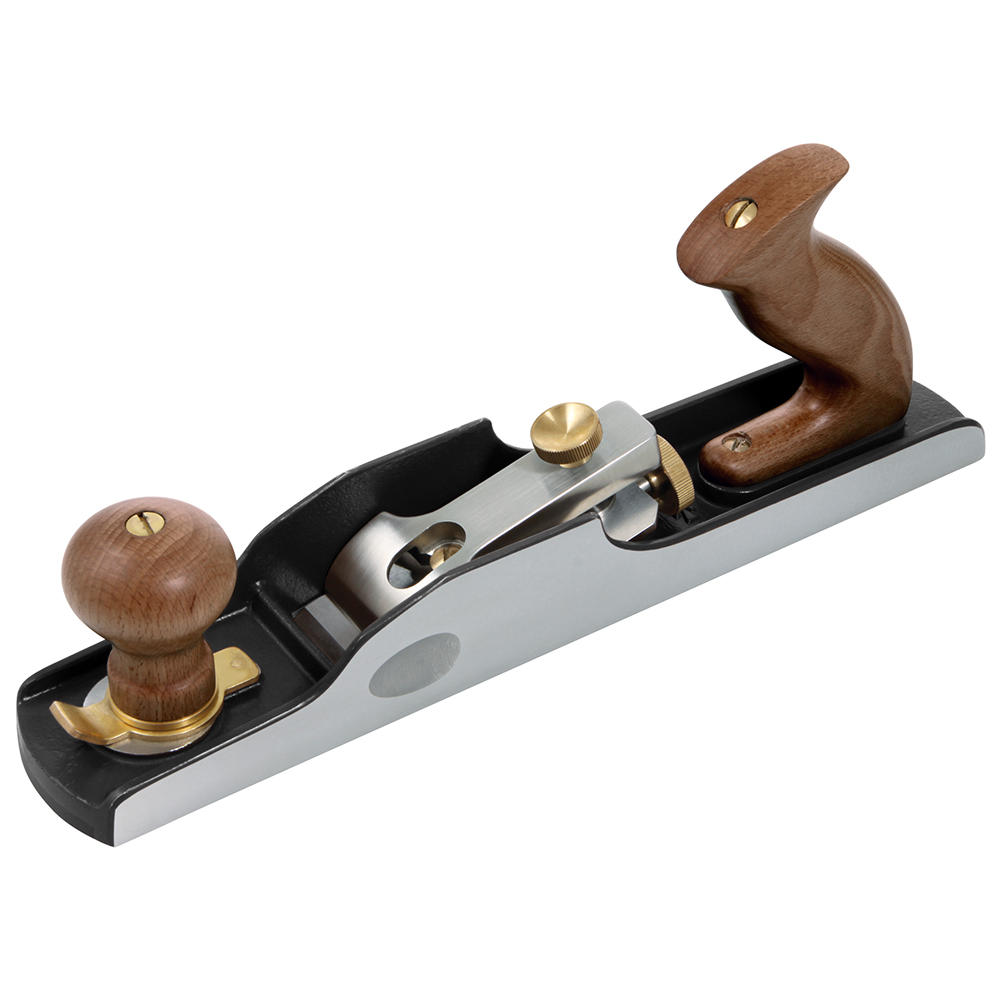

DICTUM® Low-Angle Jack Plane No. 62, Incl. Hot Dog Left, SK4 Blade
Product no.:
703420
Brand:
DICTUM
€188.00 €157.98
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material SK4 steel
- Blade thickness 3 mm
- Blade width 51 mm
- Design / cutting angle Bevel up / cutting angle 35°-37° (end grain processing)
- Form Bevel up / cutting angle 35°-37° (end grain processing)
Description
For right handers.
Because of its length, shape and accessories, the No. 62 is the most universal type of plane and was already very popular in Stanley’s time. Apart from finishing, its long design also makes it ideal for trueing surfaces. The blade, whose cutting angle can be easily adjusted by regrinding the bevel, handles even end grain, knotty wood and difficult grain without problems. Once assembled, the supplied »hot dog« (side handle), the indentations and the strong cap iron with finger recesses ensure optimal ergonomic planing. For fine cuts and end grain. Blade angle 12°. A 25° bevel angle results in a cutting angle of 37°.

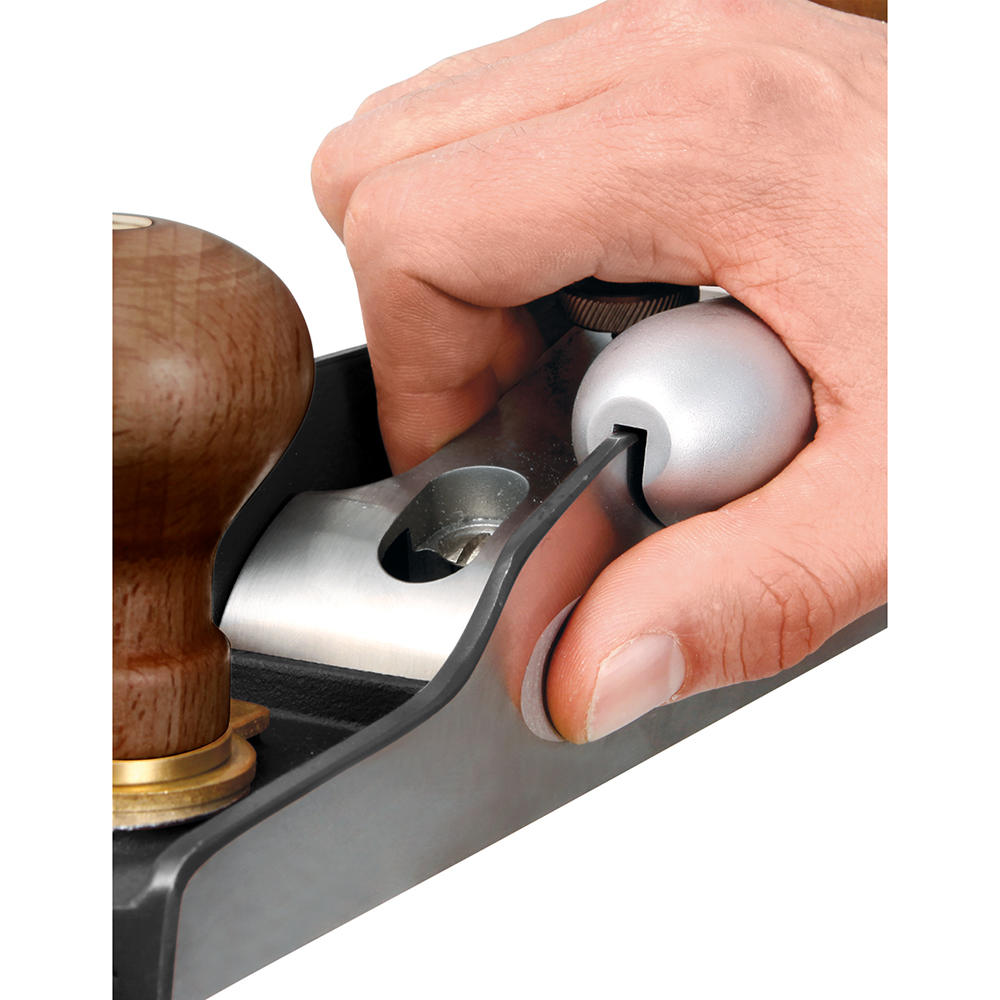

- Easy adjustment of the plane mouth via the front handle
- Easy to change the cutting angle by regrinding the blade
- Main grip tilted downwards for optimum force transmission and balance
- Cap iron with pressure plate

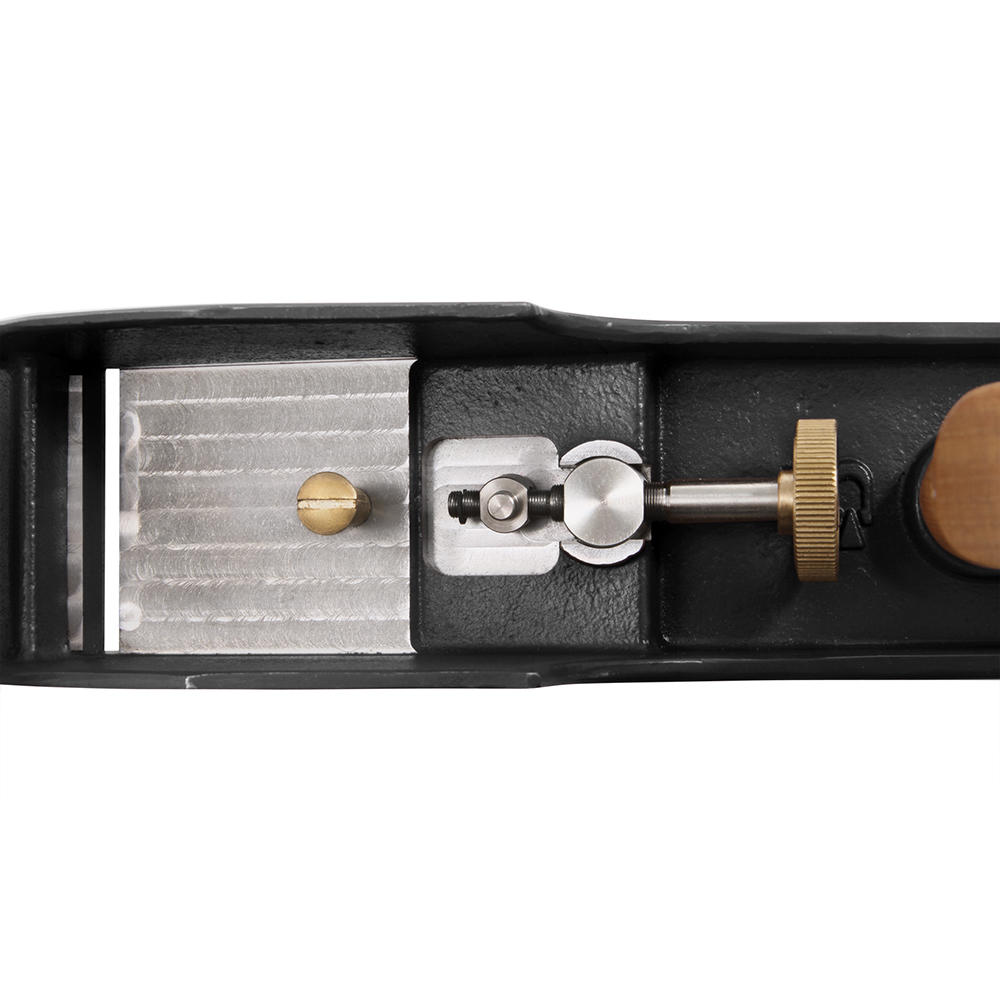

- Lateral adjustment with setscrew

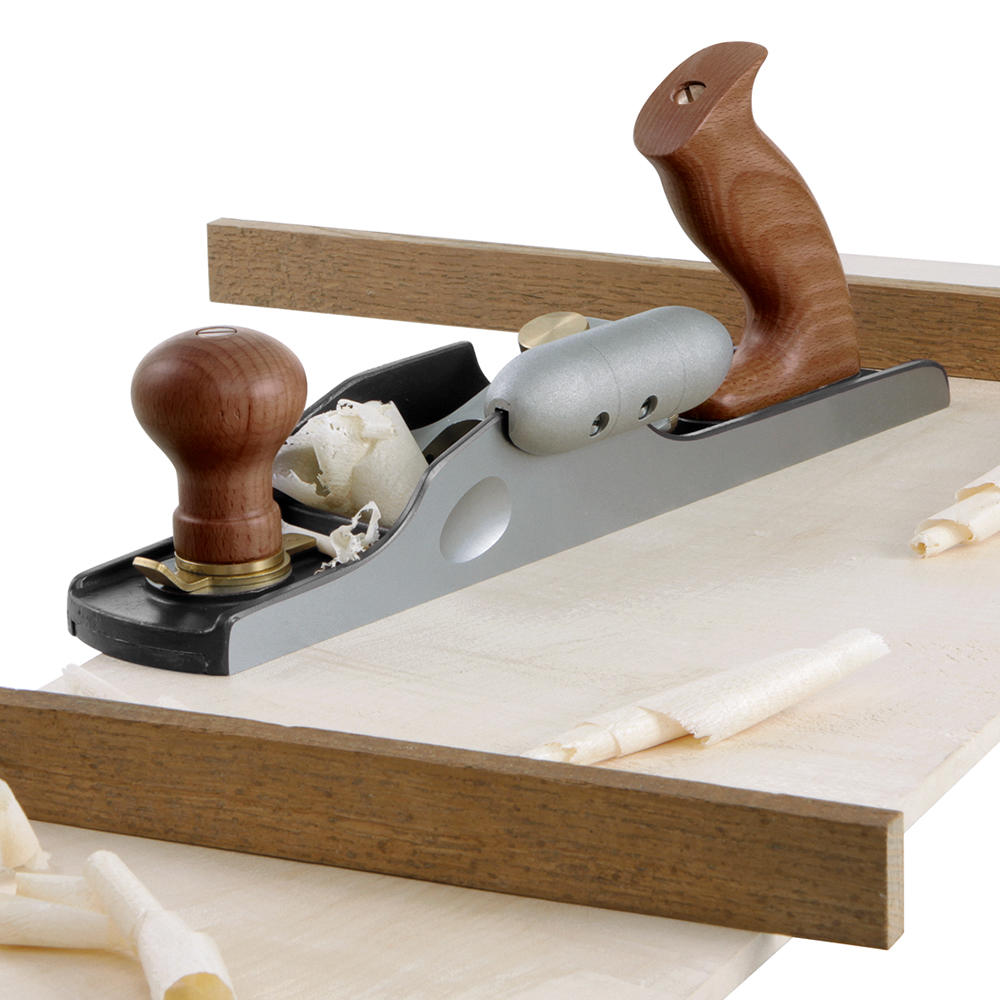

- Optimised design for ergonomic use as a shoot board plane
- Cast steel plane body
DICTUM® Planes
The development of our DICTUM plane series is based on our Herdim planes, which we have been manufacturing for decades for our violin makers, who demand the utmost precision and flawless workmanship. Solid, stress-relieved cast steel bodies*, with finely lapped soles and sides squared precisely to each other, reflect the high standard of quality. The easily adjustable blade setting allows for quick corrections, while ergonomically shaped handles – developed through extensive testing – and polished lever caps provide a secure and comfortable grip.
Handles made of walnut wood.
* unless otherwise specified
Handles made of walnut wood.
* unless otherwise specified
Properties
| Blade material: | SK4 steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Form: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 355 mm |
| Plane body: | Cast steel |
| Purpose: | Multi-purpose |
| Typ: | Bench planes |
| Weight: | 2.7 kg |
Properties
| Blade material: | SK4 steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Form: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 355 mm |
| Plane body: | Cast steel |
| Purpose: | Multi-purpose |
| Typ: | Bench planes |
| Weight: | 2.7 kg |
